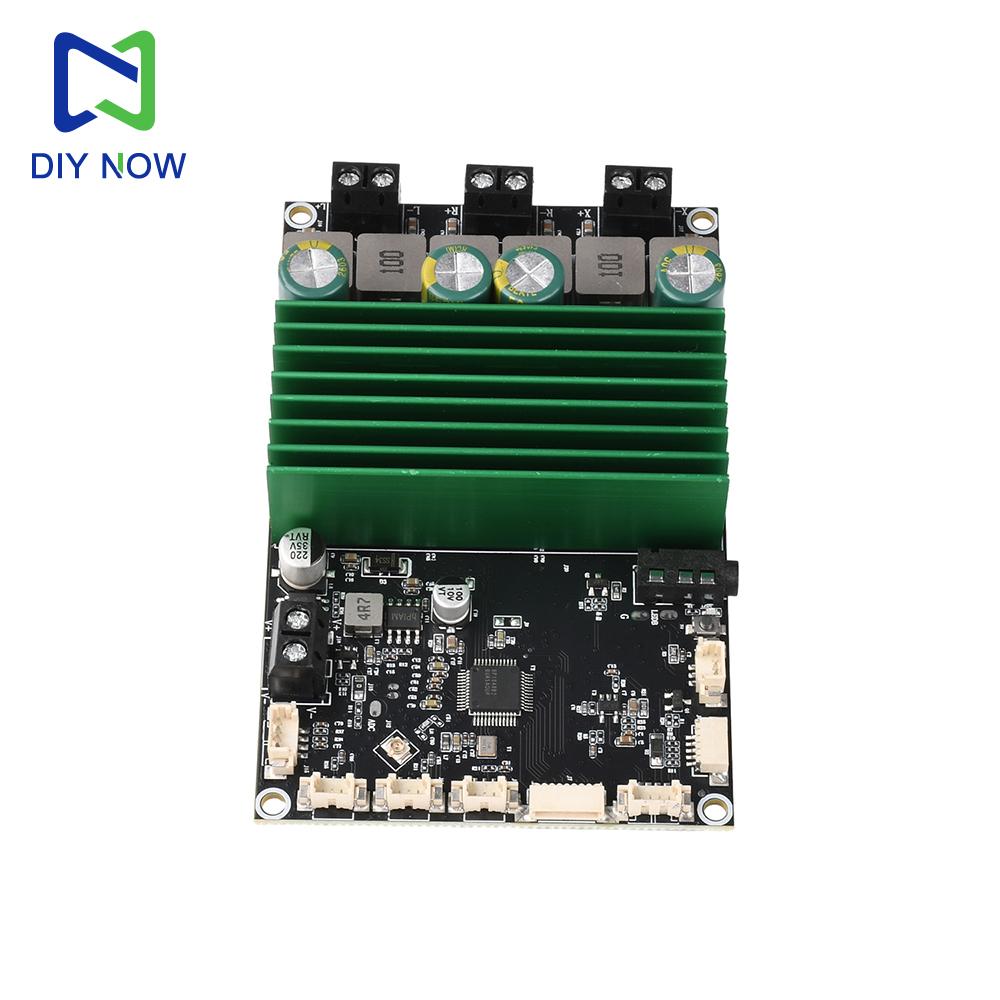

24V 2.1 Channel Bluetooth Karaoke Amplifier Board 2*50W + 100W TPA3116 Based Custom Bluetooth Amplifier Board Mobile App Tuning

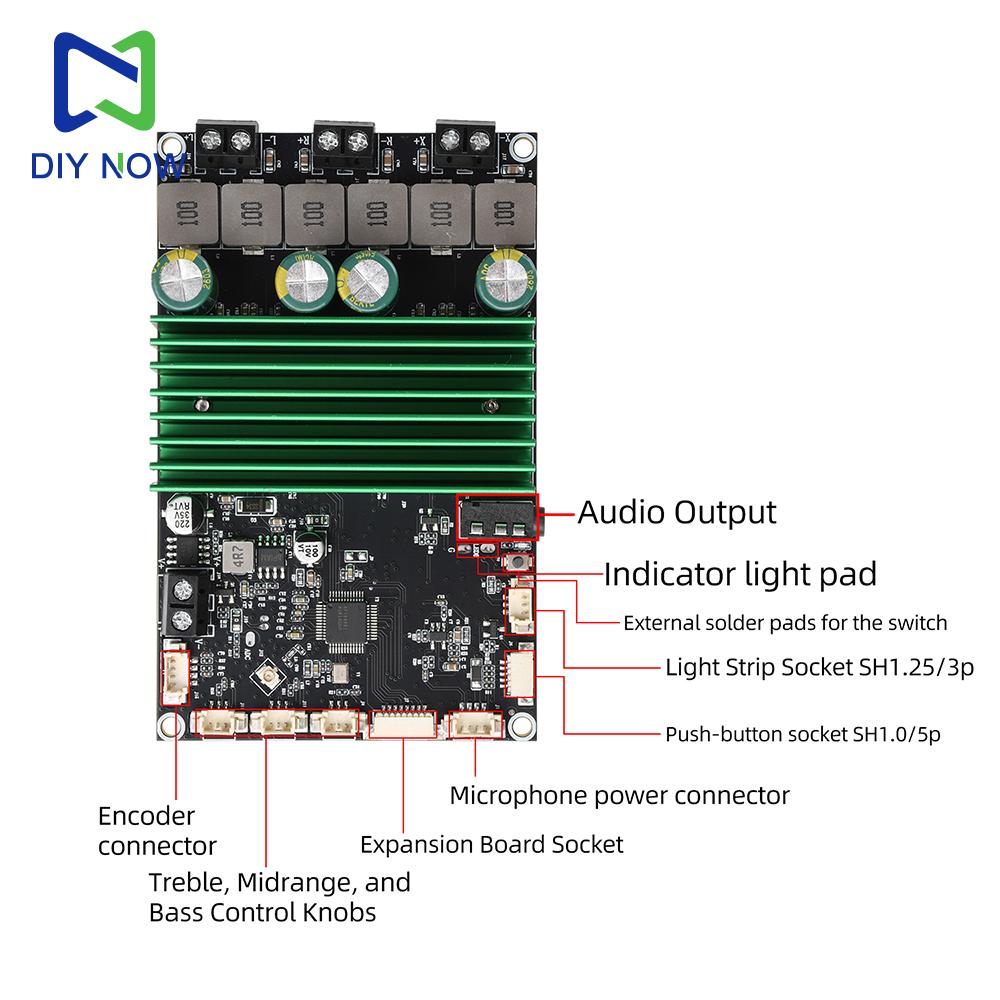

Quantity : 1 High-concerned chemical : none Package : SOP is_d : Yes Dissipation Power : 100W Supply Voltage : 21V Application : Speaker Type : Module Brand Name : DIY NOW Origin : Mainland China Condition : New Operating Temperature : -10℃ to +60℃ Amplifier Chip : TPA3116 Power Supply Requirements : Recommended input voltage 21V Output Power : 2 x 50W + 100W Recommended Attenuation : 3-5 dB LED Strip Connector : SH1.25/3P Button Connector : SH1.0/5P

Features: 1. Adopting 2.1-channel 2 × 50W+100W high-power, TPA3116 high fidelity amplifier 2. Support mobile app tuning function, easy to operate 3. Simultaneously support computer tuning and dynamic EQ 4. Comes with karaoke function, multiple built-in sound effects can be set by oneself 5. Suitable for home karaoke speakers, car entertainment, and DIY audio modification Parameters: Amplifier chip: TPA3116 Power supply requirements: Recommended input voltage of 21V (5 series lithium batteries), maximum ≤ 24V; overvoltage is strictly prohibited Power: 2 × 50W+100W Suggested suppression: 3-5DB Lamp strip socket: SH1.25/3p Button socket: SH1.0/5p Working environment: -10 ℃~+60 ℃ (continuous work is recommended to operate stably for a long time in a well ventilated environment) Product size: 103mm * 65mm * 23mm Notes: 1. Attention Electrostatic protection 2. Positive and negative pole identification 3. After completing the wiring, turn on the device again 4. The APP needs to download the installation package (note: the APP currently only supports Android system and cannot be downloaded on Apple system) 5. Try to use 21V, 10A batteries as much as possible 6. If customers need to use the built-in karaoke function, they need to purchase a microphone themselves. Common speaker matching reference scheme and power supply selection: In theory, choosing a higher voltage corresponds to higher power and lower distortion at lower voltages. Here's one thing to mention, Under normal circumstances, the power output of 24V is four times, not twice, that of 12V. It is recommended to use a power supply of 8A or above for 12V, which can make a sound power speaker within 2 * 15+30. It is recommended to use a power supply of 10A or above for 16.8V, which can be used to make a speaker with a sound power of 2 * 35+70 watts or less. It is recommended to use a power supply of 12A or above for 21V, which can make a speaker with a sound power of 2 * 50+100 watts or less. Note: The X channel supports speakers with an impedance of 2 ohms or more. Use voltage not exceeding 24V and try to use battery power as much as possible. Product List: 1X power amplifier board
