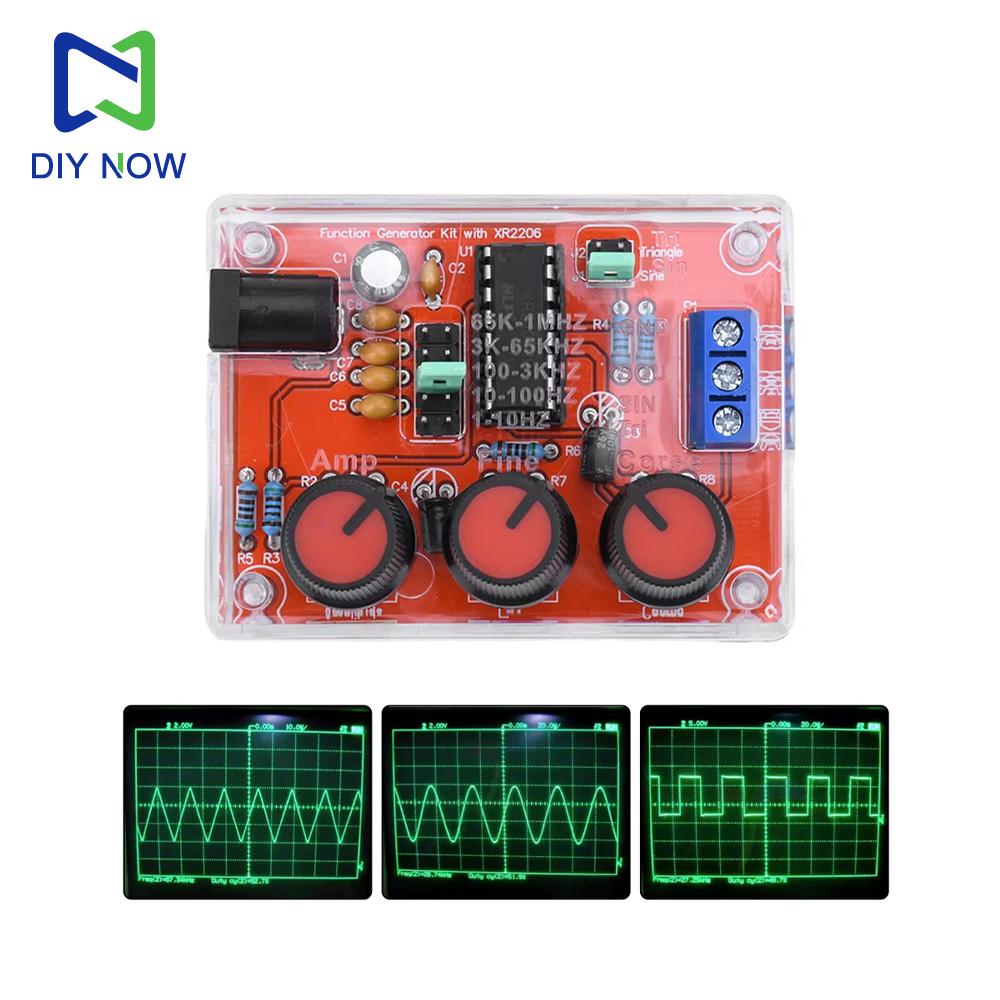

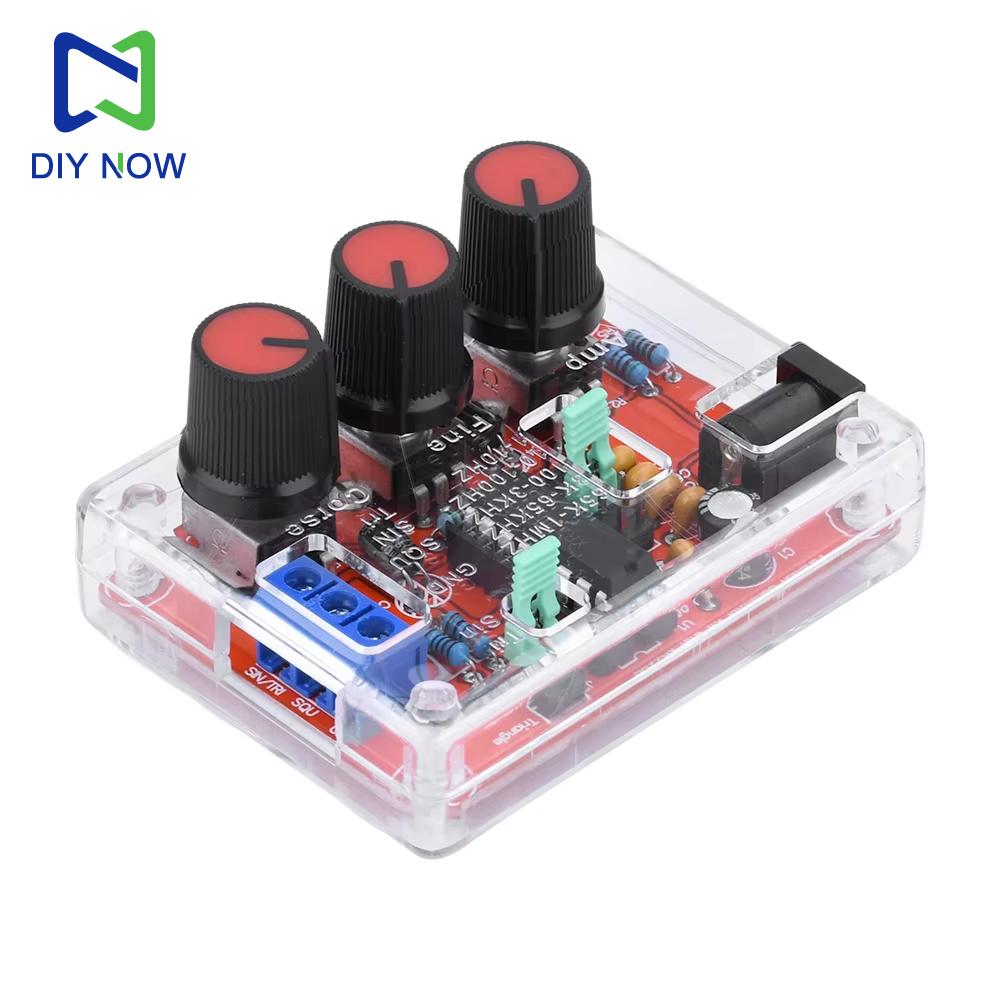

XR2206 High Precision Signal Generator DIY Kit Sine Triangle Square Waves 1Hz 1MHz Frequency Range Adjustable Frequency

Quantity : 1 High-concerned chemical : none Package : SOP is_d : Yes Supply Voltage : DC9-12V Application : XR2206 signal generator Type : Module Brand Name : DIY NOW Origin : Mainland China Condition : New Wholesale discounts : Complete variety, welcome to contact us for consultation Voltage supply : DC 9-12V Waveform : Square wave, sine wave, and delta wave Impedance : 600 ohms +10% Frequency : 1Hz-1MHz

Product selling points: 1. Exquisite and compact appearance, beautiful arrangement of components 2. Made of high-quality materials, durable and practical 3. The frequency can be adjusted from 1Hz-1MHz, and the amplitude of the frequency can be adjusted 4. Wide range of applicable power supply, can be powered by 9-12V or 9V external power supply 5. Wide range of applications, suitable for various industrial DIY occasions

Product parameters: Voltage supply: DC9-12V Waveform: square wave, sine and triangle Impedance: 600 ohms + 10% Frequency: 1hz-1MHz Sine wave: Amplitude: 0-3V at 9V DC input Distortion: less than 1% Square wave: Amplitude: 8V at 9V DC input (no load) Rise time: less than 50ns Fall time: less than 30ns Symmetry: less than 5% (at 1KHZ) Triangle wave: Amplitude: 0-3V at 9V DC input Linearity: less than 1% (up to 100 khz) 10mA

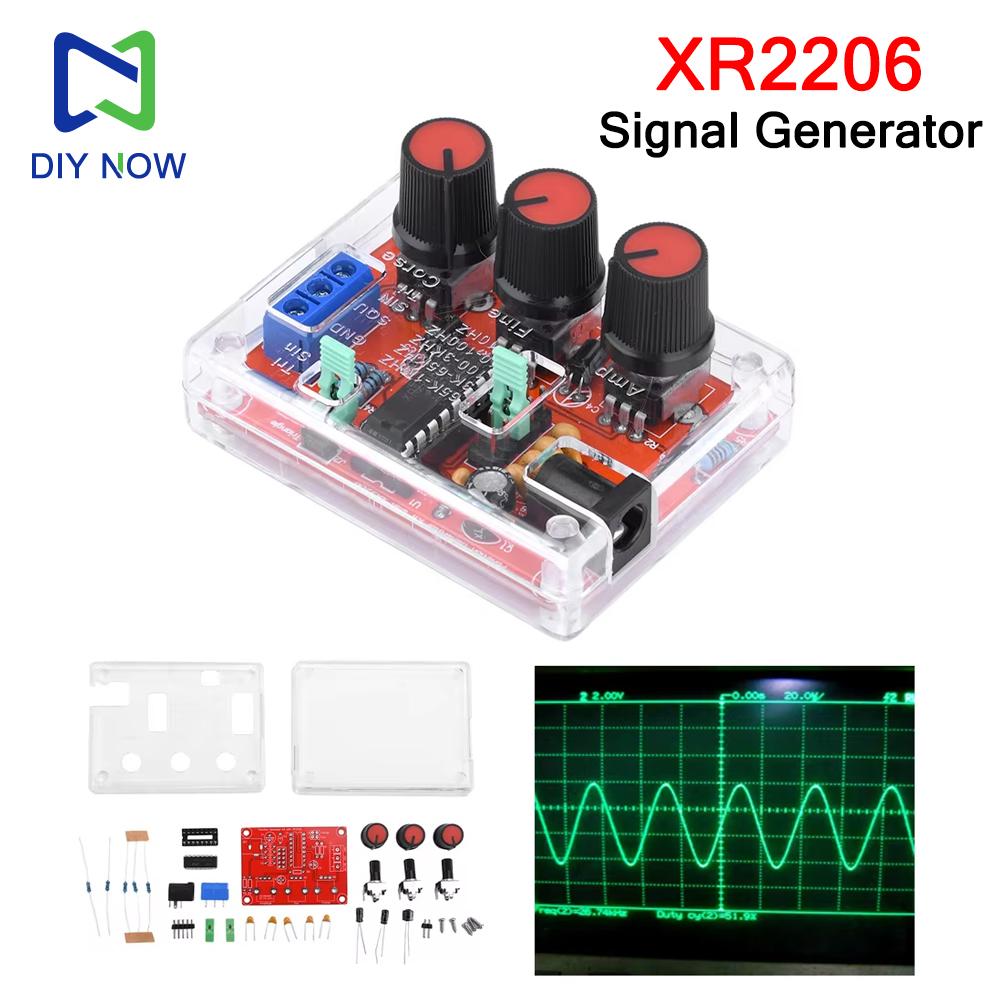

Packing list: DIY kit/Finished Product

label:yes

Material: plastic
