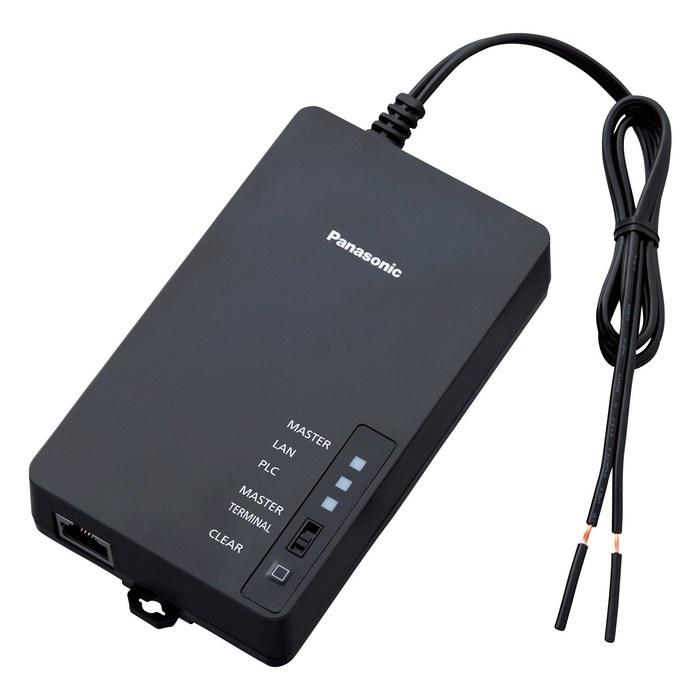

Panasonic HD-PLC Adapter - Terminal Block Mount - Outdoor - Enclosure Installation WPN7112

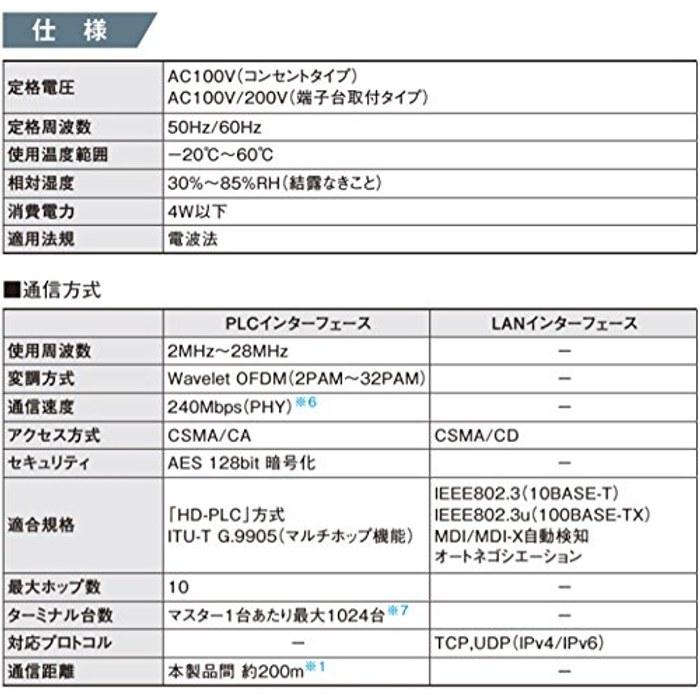

・Body size: Width 7.2 x Depth 3 x Height 13.4 cm ・Body weight: 0.14 kg ・Rated voltage: AC100V/200V Rated frequency: 50/60 Hz ・Operating temperature range: -20 to 60 degrees ・Relative humidity: 30 to 85% RH (no condensation) ・Power consumption: 4W or less ・Applicable regulations: Radio Law ・Communication method (PLC interface) 1: Operating frequency = 2MHz-28MHz, Modulation method = Wavelet OFDM (2PAM-32PAM), Communication speed = 240Mbps (PHY), Access method = CSMA/CA, Security = AES 128bit encryption ・Communication method (PLC interface) 2: Compliant standard = “HD-PLC” method, ITU-T G.9905 (multi-hop function), Maximum number of hops = 10, Number of terminals = Maximum 1024 per master, Communication distance = Approximately 200m between units ・Communication method (LAN interface): Standard used = IEEE802.3 (10BASE-T), IEEE802.3u (100BASE-TX), MDI/MDI-X automatic detection, Auto-negotiation, Supported protocols = TCP, UDP (IPv4/IPv6), Access method = CSMA/CD

【Voltage Compatibility】 When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.

【Plug Type】 Our products use Japanese plug types (A or B type). Please use a conversion adapter if necessary.

【Important Note on Transformers and Adapters】 A transformer adjusts voltage to match your device's requirements. A conversion adapter only changes the plug shape and does not adjust voltage. Using only a conversion adapter without a transformer may result in damage to the product.

【Liability】 We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer.
