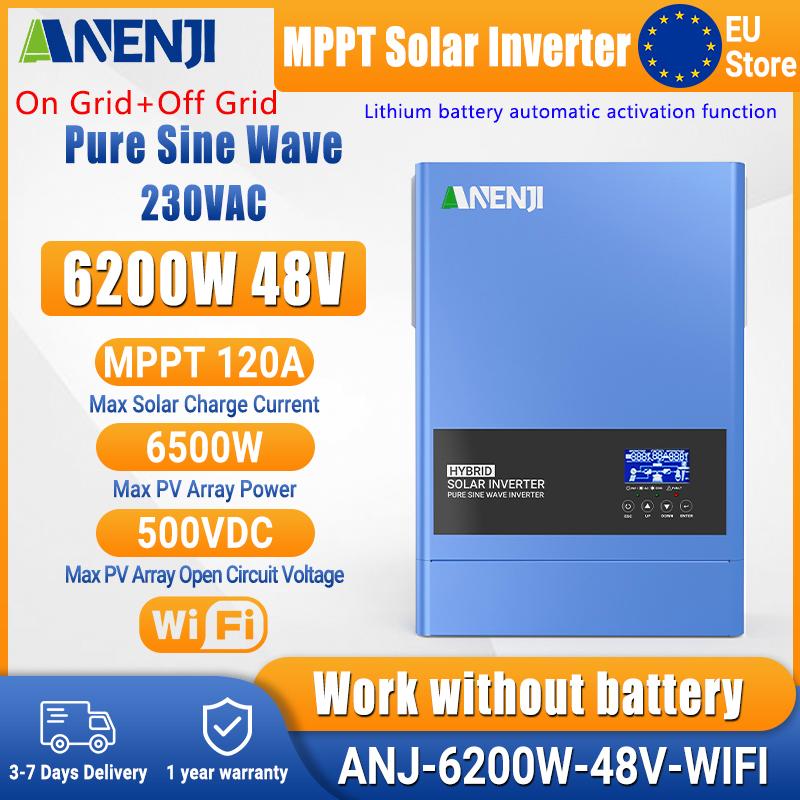

ANENJI 51.2V 100AH LiFePo4 Battery A Grade Cells 5KWH BMS 6.2KW 48V Hybrid Solar Inverter AC 220VAC Pure Sine 120A PV 60-500VDC

The actual shipment is the ANJ-6200W-48V-W model, which is an upgraded version of ANJ-6200W-48V-WIFI. The maximum PV input can reach 9000W and comes with 2 AC output interfaces.

ANJ-6200W-48V-W:

Features:

1.Support works without battery

2.Support lithium battery activation function

3.PV input voltage 60-500VDC

4.120A MPPT solar charge controller

5.With WiFi APP controller

6.RS485 Communication interface

7.Support PACE PYLON Growwatt communication protocols BMS

8.built-in WiFi module

9.on grid+off grid

Package:

solar inverter*1

manual*1

ANJ-51.2V-100AH Features：

1.LCD monitor the energy storage power data and operating status.

2.High-quality LiFePO4 battery, safety, deep cycle and long lifespan. 3.Product round edge be more safe, avoid accident collision. 4.External main switch to reduce product power consumption and improve safety. 5.Wall brackets, which can meet the installation and use of different place. 6.BMS built inside, over-voltage, over-load, over-temperature protection, etc. 7.Compatible, can be connected to different types of loads within the voltage range. 8.Support up to 15 modules in parallel

Output Type: SINGLE Model Number: ANJ-6200W-48V-W Rated Power: 6500VA/6200W Brand Name: ANENJI Certification: CE communication interface: RS485/WIFI Humidity: Humidity 5% to 95% Relative Humidity (Non-condensing) Operation Temperature: -10℃-55℃ Origin: Mainland China Acceptable Voltage Range: 170-280VAC(For personal Computer);90-280VAC(For Home Appliances) Maximum Efficiency: 98% Output Current: 120A Weight: 10.5KG Is Smart Device: Yes Wave Form: Pure sine wave MPPT Range operation Voltage: 60-500VDC Dimension,D*W*H: 438x295x105mm Features: Supports working without batteries Size: 43.8X29.5X10.5CM Frequency Range: 50/60HZ Auto sensing Output AC Voltage Regulati: 230VAC±5% Maximum charge current: 120A Transfer Time: 10ms (For Personal Computers) Floating Charge Voltage: 54VDC Maximum PV Array Power: 6500W Net Weight: 10kg Surge Power: 6500VA Overcharge Protection: 61VDC Maximum PV Array Open Circuit Voltage: 500VDC Maximum Solar Charge Current: 120A Storage Temprature: -15℃-60℃ EU LVD Voltage: High voltage: Above 50Vac or 75Vdc Output Frequency: 50/60Hz Input Voltage: 230VAC Battery Voltage: 45VDC
