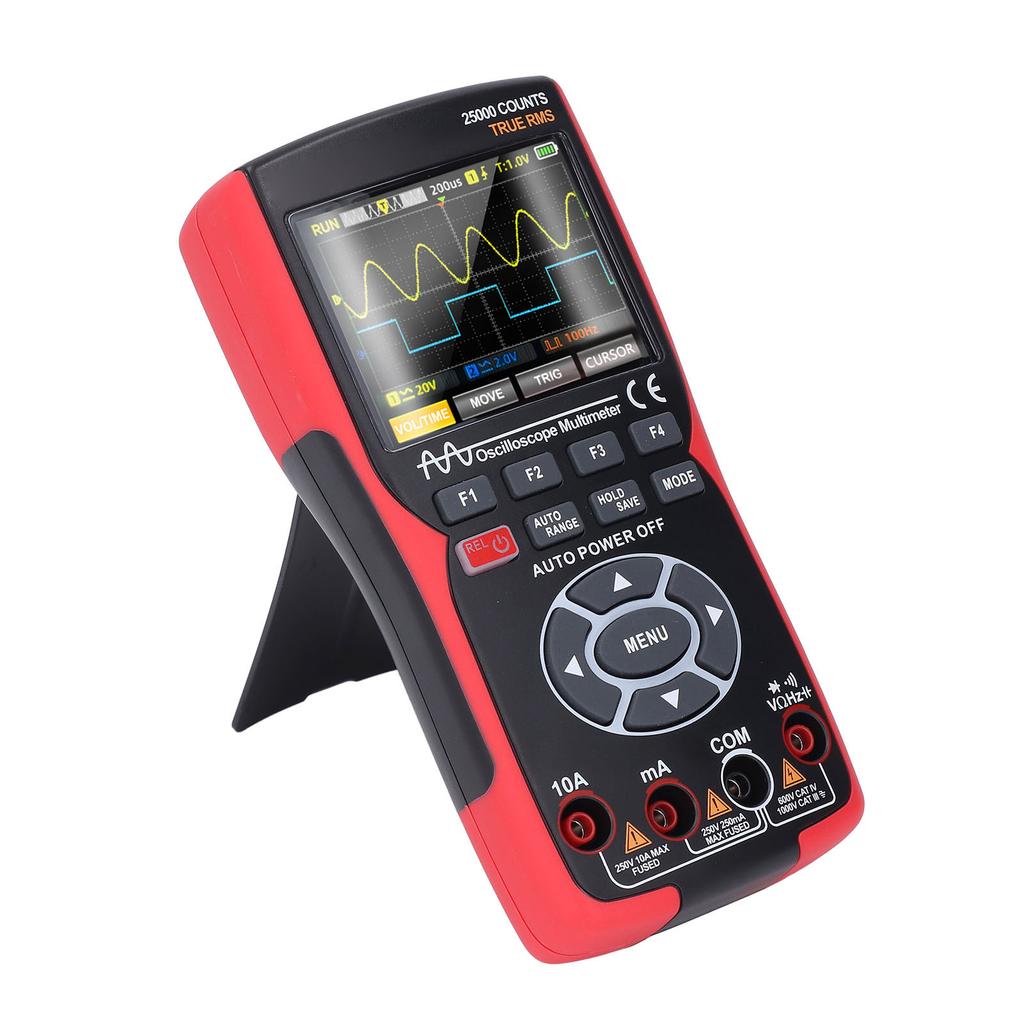

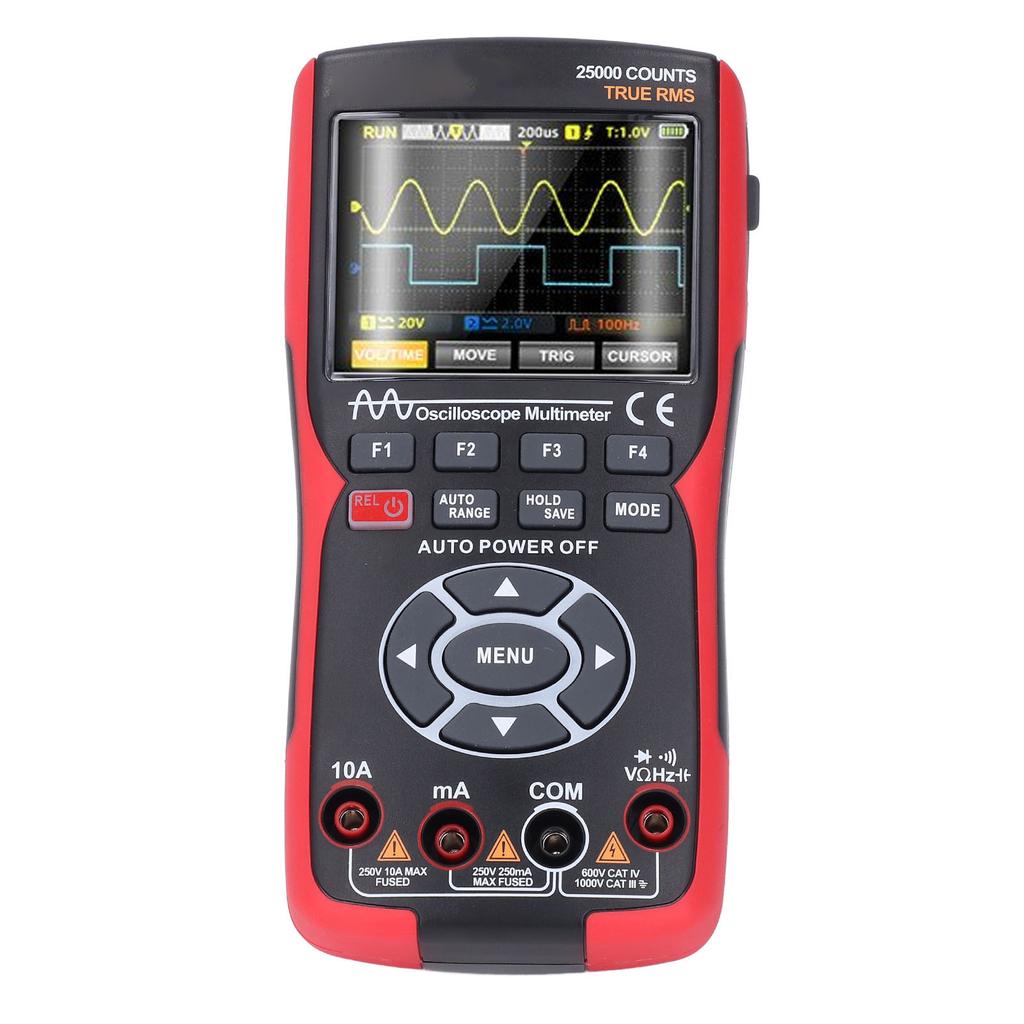

3 in 1 Oscilloscope 50MHz 280MSa s 2 Channel Oscilloscope 25000 Counts Digital Multimeter Waveform Signal Generator

Feature: 1. [3 in 1 Function] This handheld device combines the functions of an oscilloscope, digital multimeter, and signal generator, providing exceptional performance and versatility for various measurement tasks. 2. [Clear Display] Featuring a 3.5 inch IPS full view color display screen with adjustable brightness, this oscilloscope offers a clear and intuitive menu interface for easy operations and data visualization. 3. [Oscilloscope Mode] With 2 channels, 50MHz bandwidth, 280MSa s real time sampling rate, 128kb record depth, 20mv div to 10v div vertical sensitivity, allowing for quick and precise analysis. 4. [Multi Function] Equipped with automatic measurement function, as well as auto, normal, single trigger modes, supports waveform image storage and export, enhancing convenience and efficiency. 5. [Digital Multimeter Mode] With a 25000 count display, this device can measure AC DC voltage, AC DC current, resistor, capacitor, frequency, and diodes, offering comprehensive measurement capabilities for various electrical parameters. Specification: Item Type: 3 in 1 Oscilloscope Material: ABS, TPE Battery: Polymer Battery x 1, Battery Capacity: 3400mAh (Built in) Oscilloscope Information: Bandwidth: 50MHz, Dual Channel Sampling: Sampling Method: Real Time Sampling Sampling Rate: 200MSa s 280MSa s Channel: 2, Dual Channel Input: Input Coupling: DC, AC Input Impedance: 1M Ohm , at 16pf Attenuation: X1, X10 Maximum Input Voltage: X1 Range <150V, X10 Range <300V (DC+AC Peak) Level: Rate Range: 1.5Sa s 280MSa s Interpolation: (sinx) x Scan Range: 10ns div 20s div Time Base: 20ppm Record Length: Up to 128KB Vertical: Sensitivity: 20mV div 10V div Offset Range: 4 Grids (Positive and Negative) Analog Bandwidth: 50MHz Low Frequency: Over 10Hz Rise Time: Less than 10ns DC Gain Accuracy: + 3percent Measurement: Automatic Measurement: Period, Frequency, Peak, Maximum, Minimum, RMS, Duty Cycle, Pulse Count Trigger: Trigger Mode: Auto, Normal, Single Trigger Edge: Rising Edge, Falling Edge Operating Mode: Normal Mode 200MSa s, High Speed Mode 280MSa s Display Mode: YT XY Scroll Persistence Mode: Minimum, 500ms, 1S, 10S, Infinite Signal Generator Output: Sine Wave, Square Wave, Sawtooth Wave, Half Wave, Full Wave Multimeter Information: AC Voltage (V): 0V 750.0V, 0.0001V 0.1V, + (0.5percent +3) DC Voltage (V): 0V 1000.0V, 0.0001V 0.1V, + (0.05percent +3) AC DC Voltage (mV): 25.000mV 250.00mV, 0.001mV 0.01mV, + (0.05percent +3) AC DC Current (A): 0A 10.000A, 0.0001A 0.001A, + (0.5percent +3) AC Current (microamps mA): 25.000mA 250.00mA, 0.001mA 0.01mA, + (0.8percent +3) DC Current (mA): 25.000mA 250.00mA, 0.001mA 0.01mA, + (0.5percent +3) Resistor: 0 Ohm 250.0M Ohm , 0.01 Ohm 0.1M Ohm , + (5.0percent +5) Capacitor: 0nF 99.99mF, 0.001nF 0.01mF, + (5.0percent +20) Hz (Only Detectable to 100kHz on AC Voltage Range): 0Hz 999.9kHz, 0.01Hz 0.1kHz, + (0.1percent +2) Diode Buzzer: Yes Data Hold: Yes Low Battery Indication: Yes Support Frame: Yes USB Charging: Yes True RMS: Yes Battery Model: 1 x 3.7V Battery Data Storage Viewing: USB Connected to Computer Sampling Rate: 3 Times Per Second Language Options: Chinese English Screen Display: VA Inverse Color Screen Maximum Count: 25000 Counts Adjustable Screen Brightness: 30percent , 50percent , 80percent , 100percent Scope: Automatic Manual Automatic Shutdown: Can be Set to Automatically Shutdown for 1 Minute, 10 Minutes, 30 Minutes, 60 Minutes, 120 Minutes, Shutdown (Unlimited Time). Package List: 1 x 3 in 1 Oscilloscope Multimeter 1 x Oscilloscope Pen 2 x Locating Sleeve 8 x Label Ring 1 x Probe Compensation Screwdriver 1 x Crocodile Clip Ground Wire 1 x Storage Bag 1 x Extra Pen Tip 1 x USB Data Cable 2 x Connection Cable 4 x Connection Socket 2 x Test Accessory 2 x Ni Plated Copper Pin 2 x U Shaped Insert 2 x Crocodile Clip 2 x User Manual (English)
