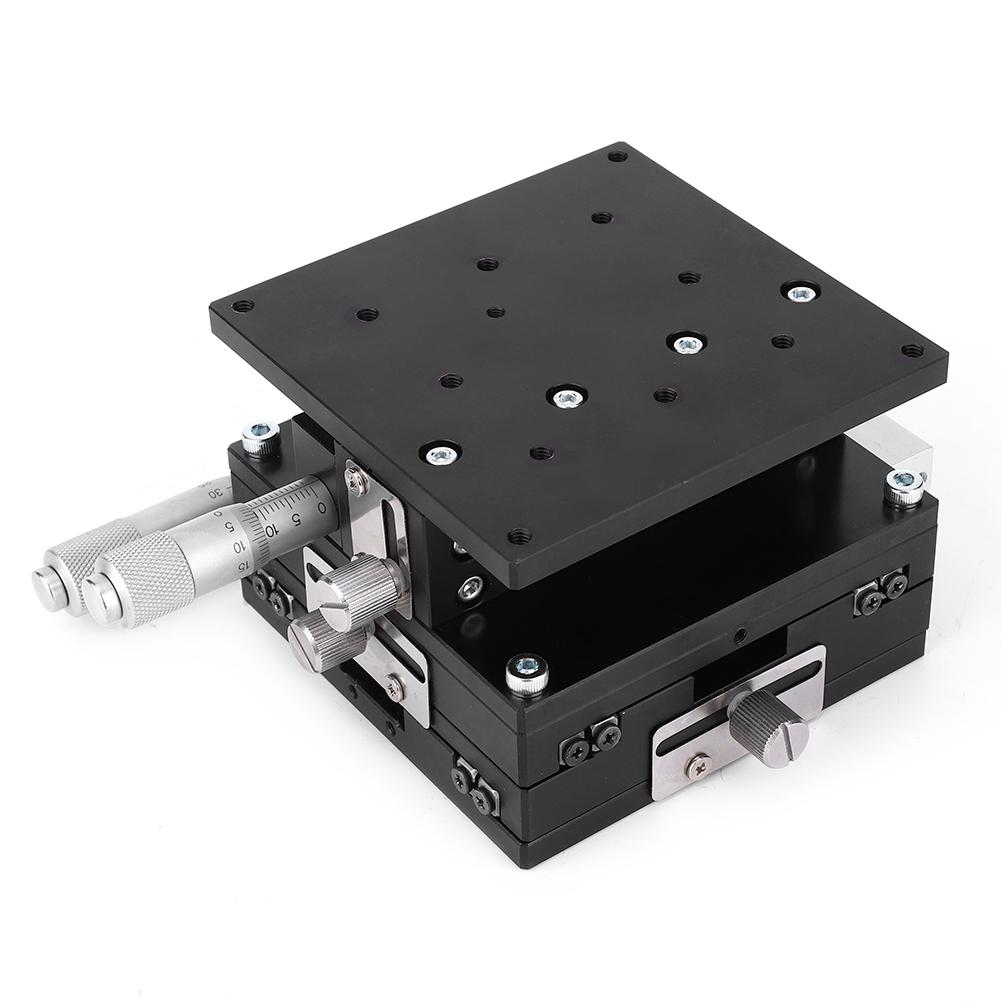

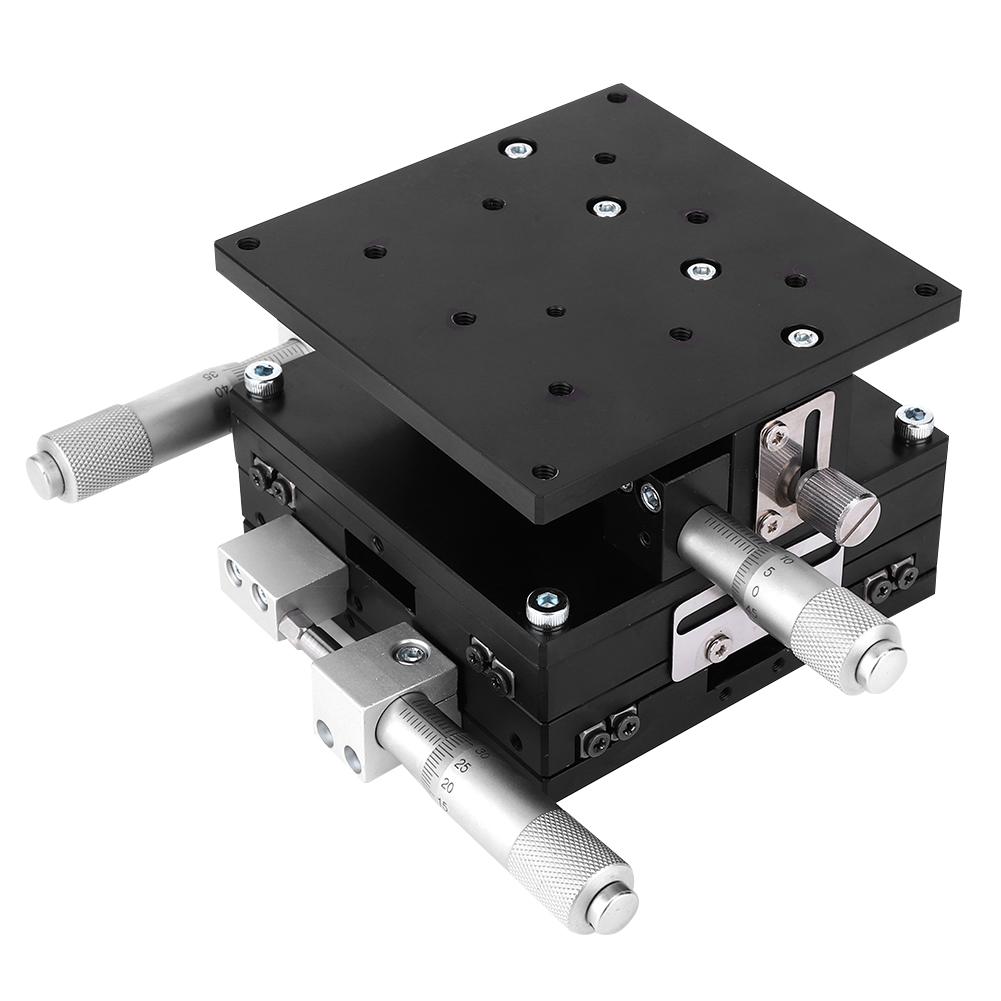

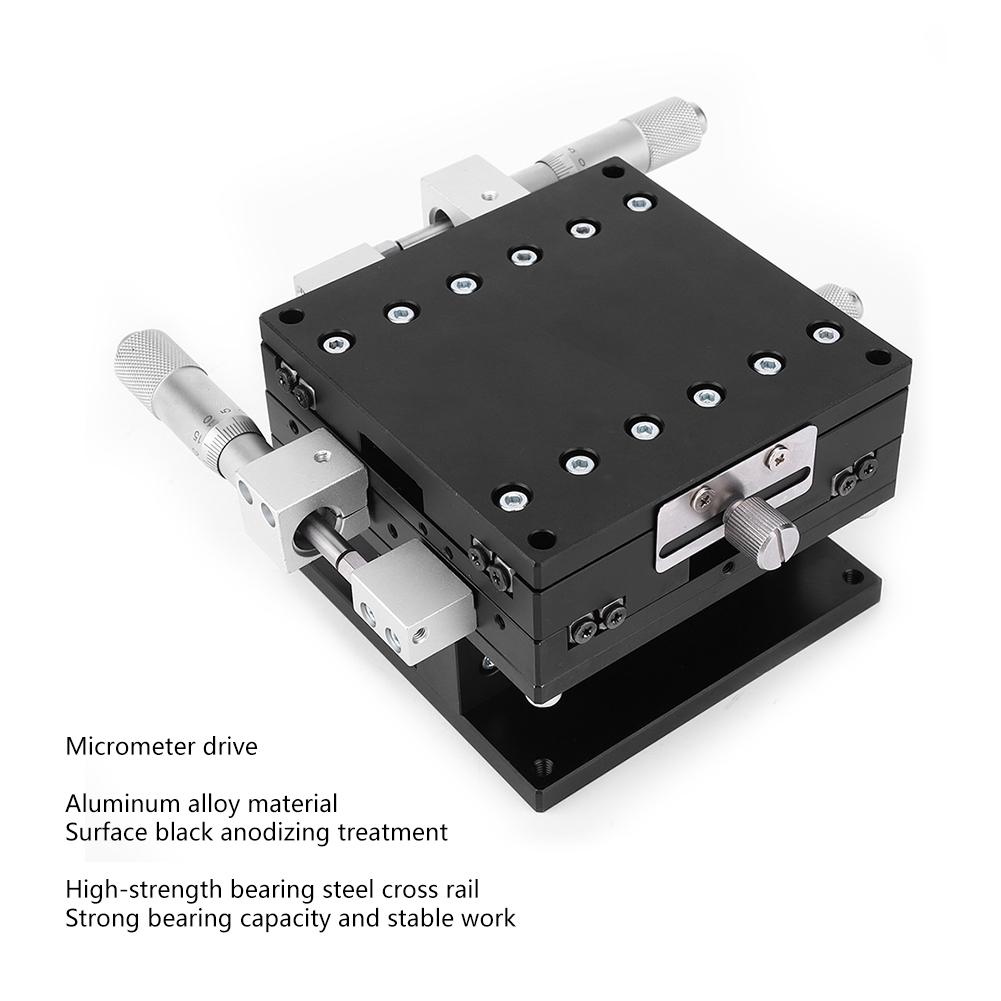

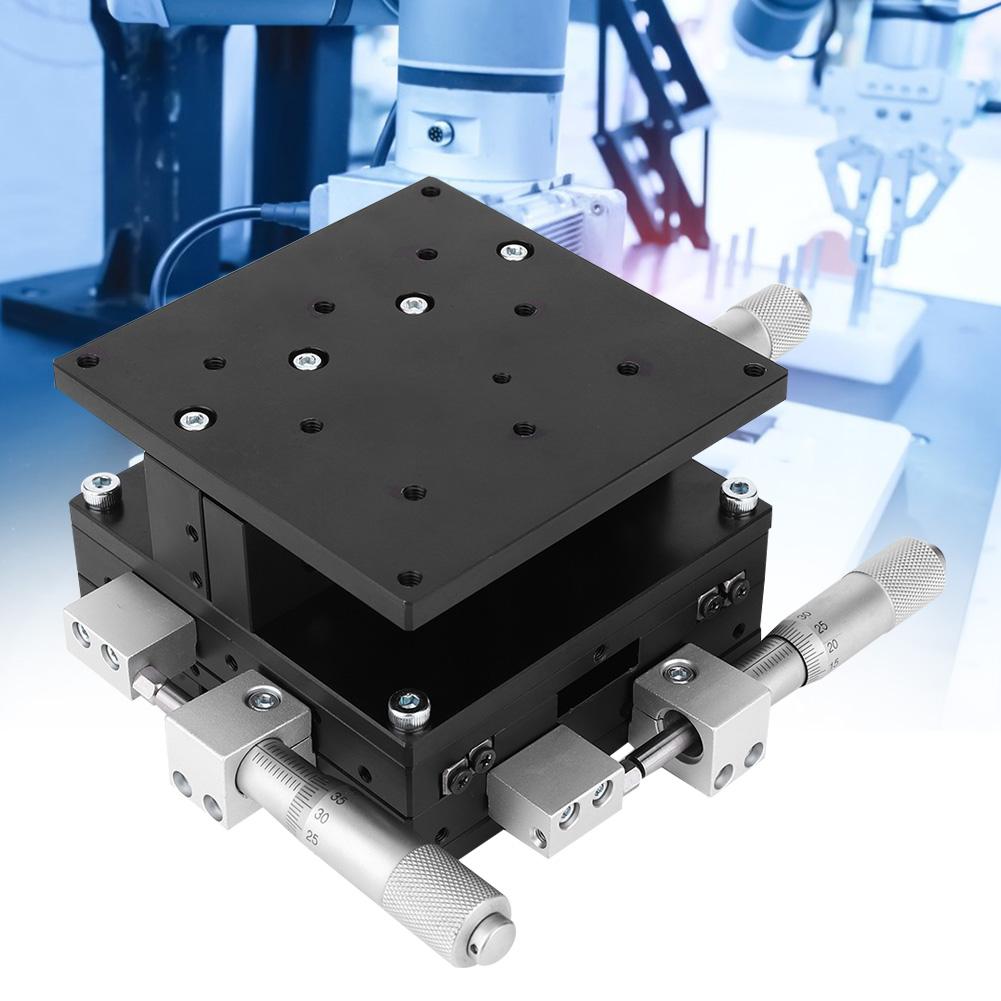

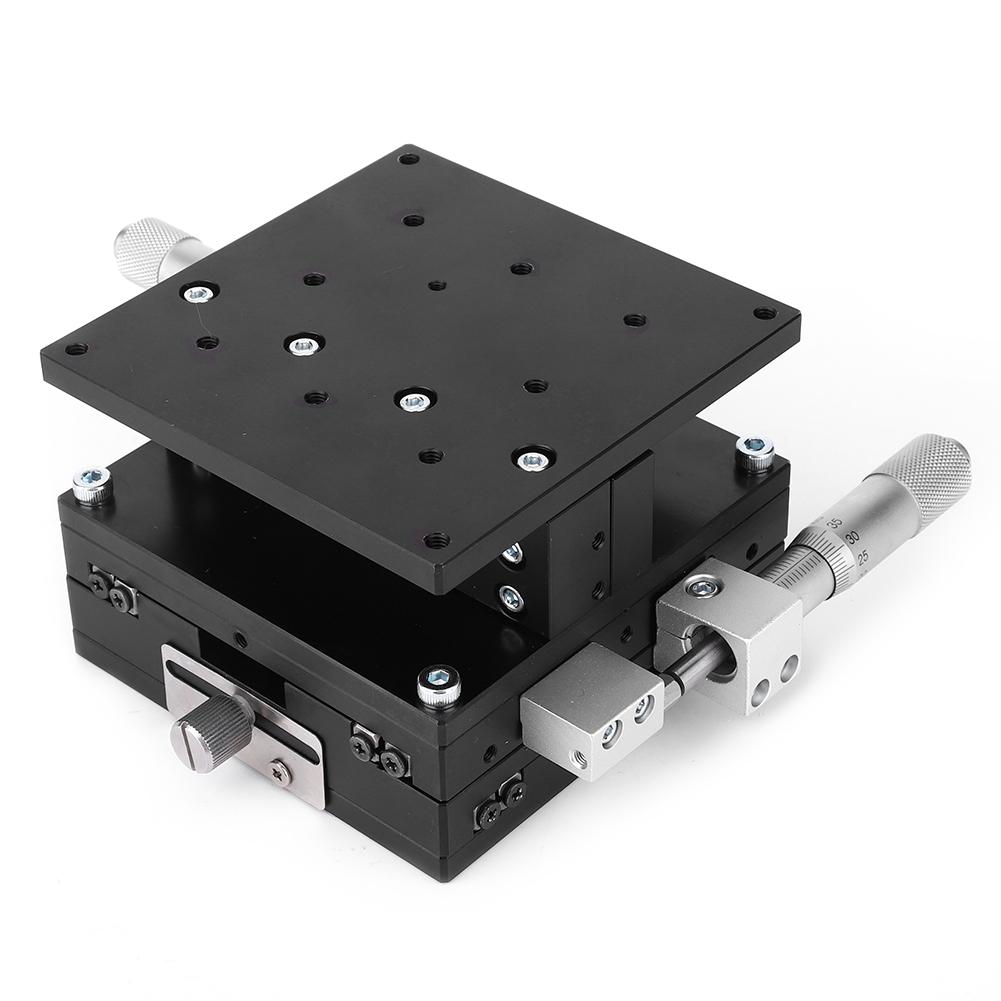

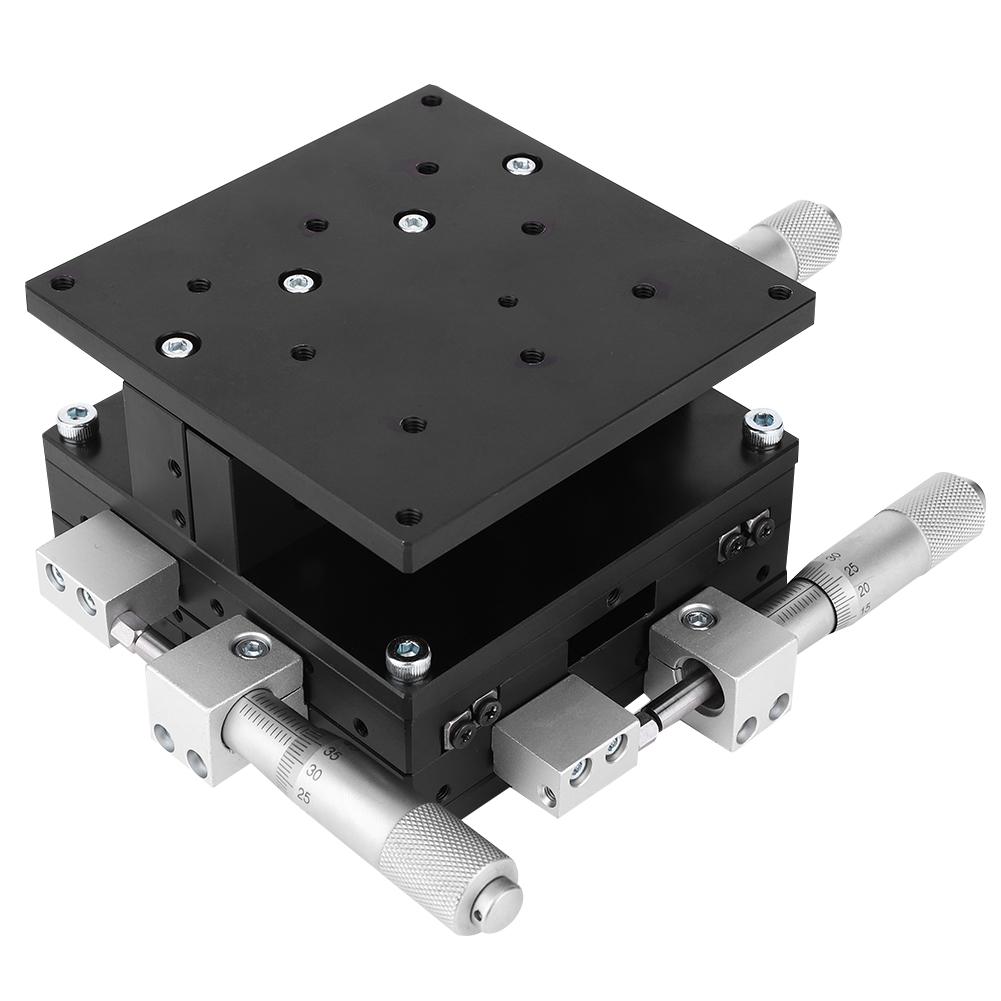

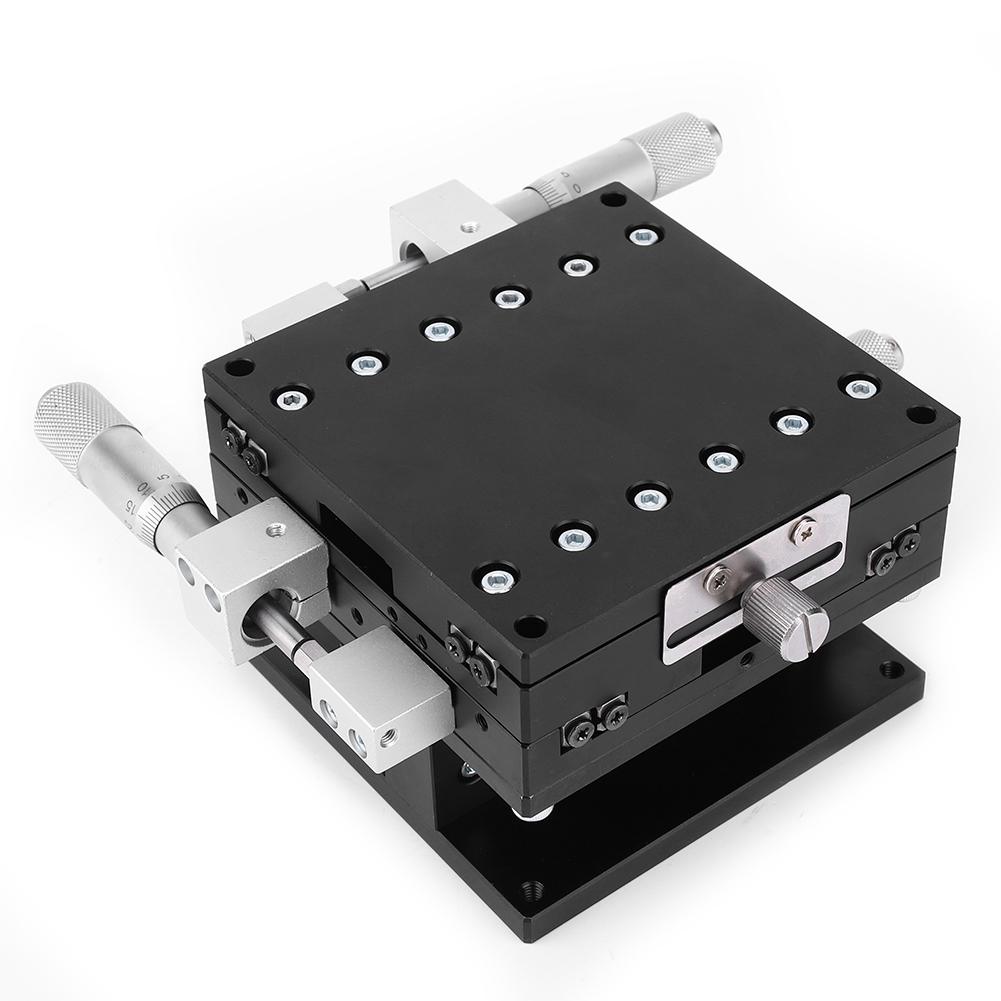

LD90 LM XYZ 3 Axes Trimming Platform Manual Linear Stage Tuning Sliding Table 90 x 90mm

Feature: 1. Suitable for production machinery, testing equipment, optical experimental measurement, fine tuning displacement, precision positioning, quantitative movement and so on. 2. XYZ 3 Axes DOF can be adjusted, internal cross rail, high precision, strong load bearing. 3. Nickel plated locking screw, nickel plated fine adjustment knob. 4. Carbide side head, tighter lock, no rust in complex environment, more durable, corrosion resistant. 5. It adopts high strength bearing steel cross guide rail, which has strong bearing capacity, stable work and better wear resistance. 6. The surface of the guide rail is electroplated and can be used in complex environments, corrosion resistant and rust resistant. 7. Micrometer driving method with an accuracy of 0.03mm. Specification: Item Type: Linear Stage Trimming Platform Model: LD90 LM Material: Aluminum Alloy (Black anodized surface) Table Size: Approx. 90 x 90mm 3.5 x 3.5in Moving Rail: Cross rail Drive Mode: Micrometer Direction of Movement: XYZ 3 Axes DOF XY Axes Travel: + 12.5mm Z Axes Travel: 10mm Load: 49N(5kgf) Minimum Scale: 0.01mm Accuracy: 0.03mm Parallelism: 0.03mm Scope of Application: Production machinery, testing equipment, optical experimental measurement, fine tuning displacement, precision positioning, quantitative movement and so on.. Package List: 1 x Linear Stage Trimming Platform
