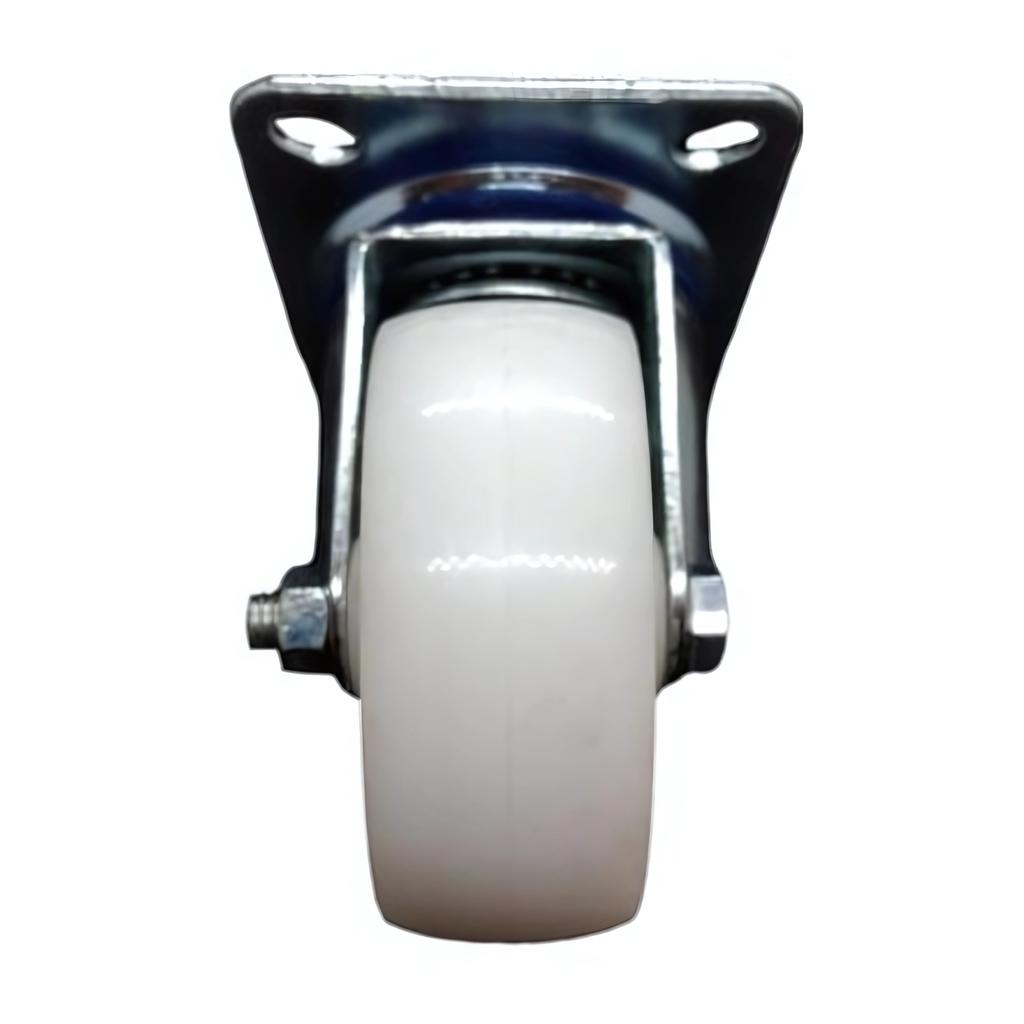

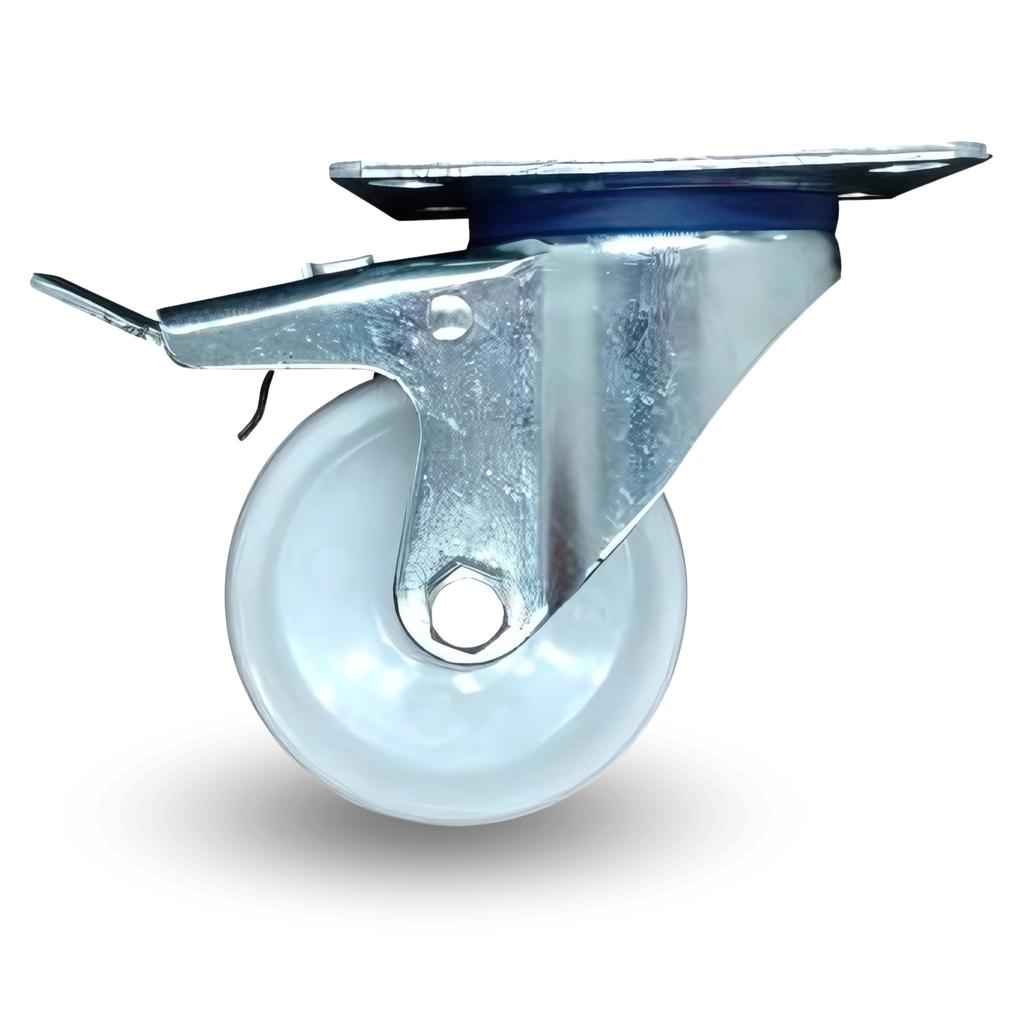

Swivel wheel, rolling set, brake, 80mm, 120kg, BPPP 0801, WHITE, polypropylene
The auction applies to 1 piece
1️⃣ The most important information:
✅ Wheel 80mm
✅ Load capacity up to 120kg (when assembling 4 pcs) load capacity 360kg )
✅ Tread polypropylene *
✅ No noise when rolling
✅ Bearing plain **
✅ Mounted on plate

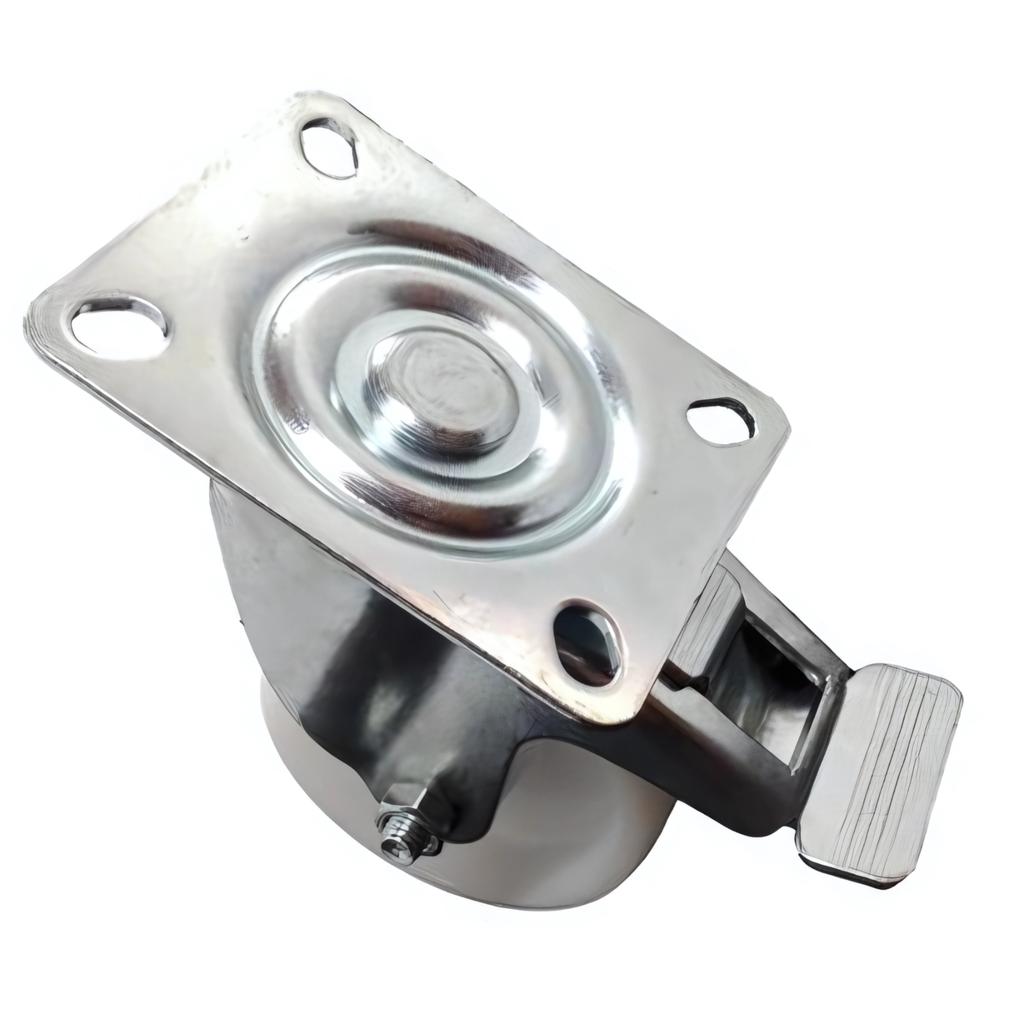

✅ Tongue brake (plate)
✅ Tread hardness 75° (-/+5) Shore D
✅ Operating temperature from -20°C/+80 °C
2️⃣ Application :
• all types of transport and warehouse trolleys
• catering and hotel trolleys
• goods baskets, advertising displays
• wardrobes, armchairs, shelves, tables
3️⃣ Which wheel should I choose?
Apart from ground conditions, load capacity is one of the most important criteria for selecting wheels. To determine the required load capacity, the following variables must be known:
• the equipment's own weight
• the maximum load weight or load capacity
• the number of wheels that will be used
The wheel must always be in contact with the ground. In practice, this rarely occurs due to thresholds or unevenness in the ground. As a result, the total load often ends up on three wheels, and the load per wheel increases.
Therefore, the total load must be divided by three wheels instead of four, to achieve a safe load capacity.
When determining the safe total load capacity for a 4-wheeled device, we take into account the weight of the device plus its maximum load. Divide the sum by 3 to obtain the safe load capacity that should be assumed for 1 wheel.
In other cases, the load capacities are distributed as follows:
1) 1 swivel caster + 2 fixed casters
System suitable for small loads. Easily maneuverable, but unstable.
2) 4 swivel casters
Easy to maneuver in all directions, but difficult to operate in a straight line.
3) 2 swivel casters + 2 fixed casters
easy to operate in a straight line, but more difficult when changing direction.
4) 4 fixed sets (2 central upper)
Easy to operate in a straight line, easy to maneuver, but unstable.
5) 2 fixed sets + 4 swivel sets
Recommended setup for heavy loads and long vehicles. Easy to maneuver in all directions and good operation in a straight line.
* Tread polypropylene
• low rolling resistance
• useful in all conditions
• high load capacity
• high rolling resistance on uneven floors
• rapid wear on uneven surfaces
** Bearing plain
These bearings exhibit good rolling properties and are used in wheels made of plastics (polypropylene and nylon). These bearings are particularly useful in devices that are subject to only slight movement.
Under normal conditions, plain bearings require no maintenance, are insensitive to shocks, and are corrosion-resistant.
