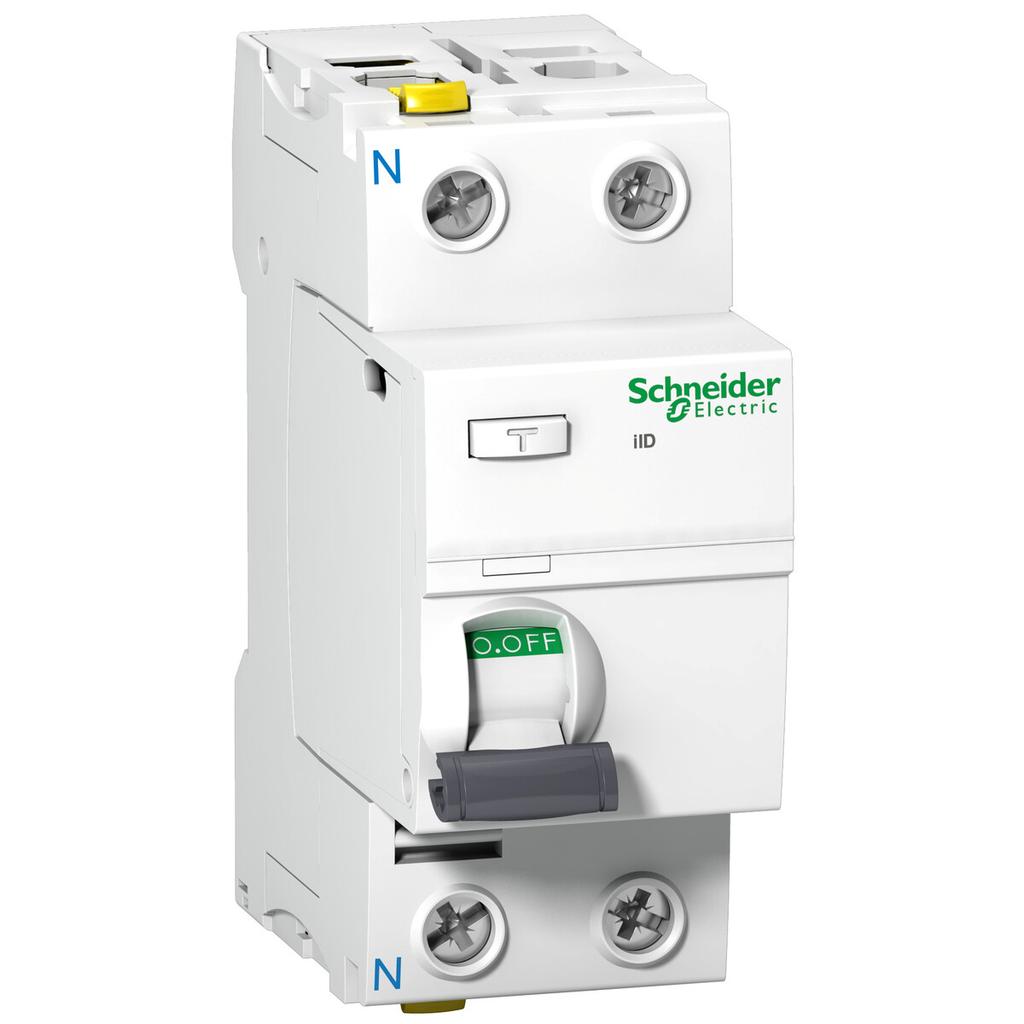

IID-40-2-30-A 40A 2-pole 30mA type A differential circuit breaker

• This Acti 9 iID is a modular and reliable residual current circuit breaker (RCCB).

• It is a 2P, rated current is 40A, and operating voltage is 220VAC to 240VAC.

• Making and breaking capacity is 1500A (Im/I?m).

• Electrical endurance goes up to 15000 cycles, and mechanical endurance goes up to 20000 cycles.

• The degree of protection is IP20 and IP40 in an enclosure.

• It is DIN rail mountable.

• Device location in system is outgoer, and the earth leakage protection class is type A.

• This product is compliant with EN/IEC 61008-1.
