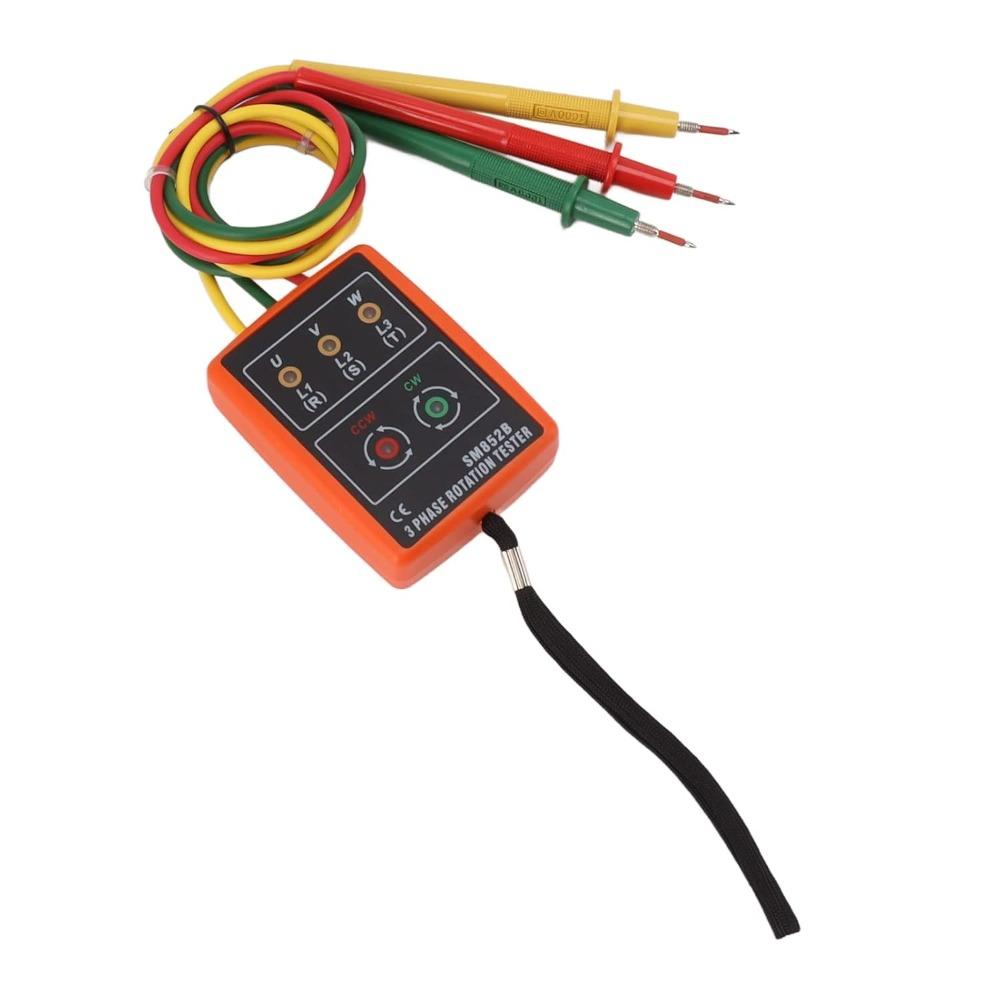

LED Indicator Phase Rotation Tester 60V-600V AC Circuit Breaker Finder Industrial Maintenance

Label:Yes [Continuous Use Duration] Up to 60 minutes at 200 V AC, and up to 4 minutes at 600 V AC, meeting short term efficient detection needs.

[Portable Specifications] Measures 82 x 60 x 25 mm(3.23 x 2.36 x 0.98 in) without test leads and weighs about 200 g. The orange yellow body is easy to carry and simple to use. [Wide Range Adaptability] Supports 60 V to 600 V three phase AC voltage and 20 Hz to 400 Hz frequency measurement, making it suitable for different circuit environments.

[Core Function] Detect open phase status and phase sequence. Buzzer sound and LED display confirm phase sequence correctness. [Safe Voltage Withstand Design] Withstands up to 2000 V per minute (pulse voltage 4000 V), providing safe and dependable use.

Specification: Item Type: Phase Sequence Meter Material: ABS Color: Multicolor Operating Voltage: 60V to 600V (Three-phase AC) Maximum Withstand Voltage: 2000V/min (Pulse Voltage 4000V) Measurable Frequency Range: 20Hz~400Hz Continuous Operating Time: 200V ACV: Within 60 minutes 600V ACV: Within 4 minutes Working Frequency: 20Hz-400Hz Size: Approx. 82 x 60 x 25 mm(3.23x2.36x0.98in) Gross Weight: Approx. 223g/0.49lb

USE FOR: Used to detect open phase conditions and sequence, it verifies whether the phase sequence of the current three-phase circuit is correct through audible beeper sounds and LED indicators.

Package List: 1 x Phase Sequence Meter 3 x Clip 1 x Bag 1 x Manual
