Two Display Voltage Protective Device Self Resetting Current Limit Protector Circuit Safety

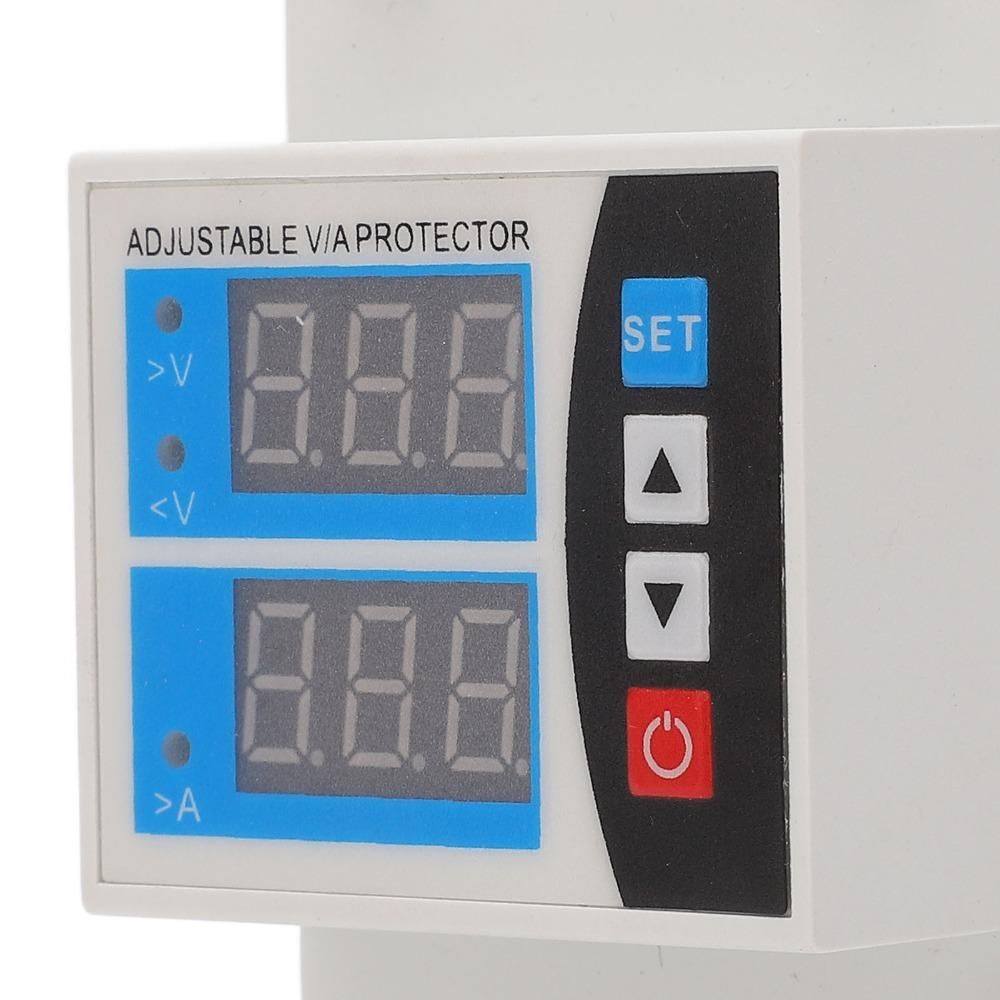

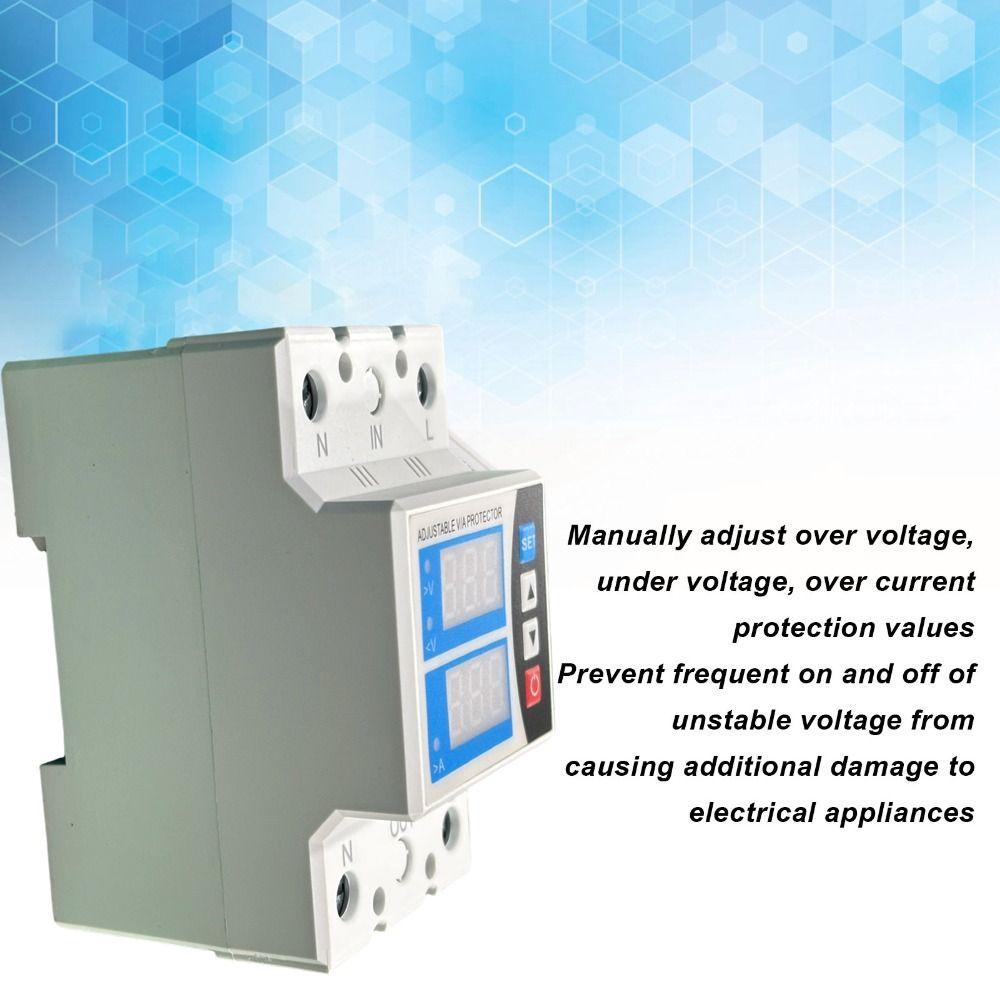

Label:Yes 3. Voltage Stabilization:Aims to avoid potential damage to appliances caused by frequent power cycling due to unstable voltage conditions. 2. Adjustable Protection Settings:It helps safeguard connected appliances by allowing manual adjustment of the overvoltage, undervoltage, and overcurrent protection thresholds. 4. Additional Features:Includes functions such as reset mode selection, fault inquiry, and factory reset for user convenience. 5. Dual Display & DIN Rail Mount:Equipped with a dual digital display for clear monitoring of voltage and current. Supports standard DIN rail installation. 1. Fire-Retardance Housing & Core Functions:Constructed with a PC fire-retardance shell, this protector integrates overvoltage protection, undervoltage protection, and a voltage display for safer operations.

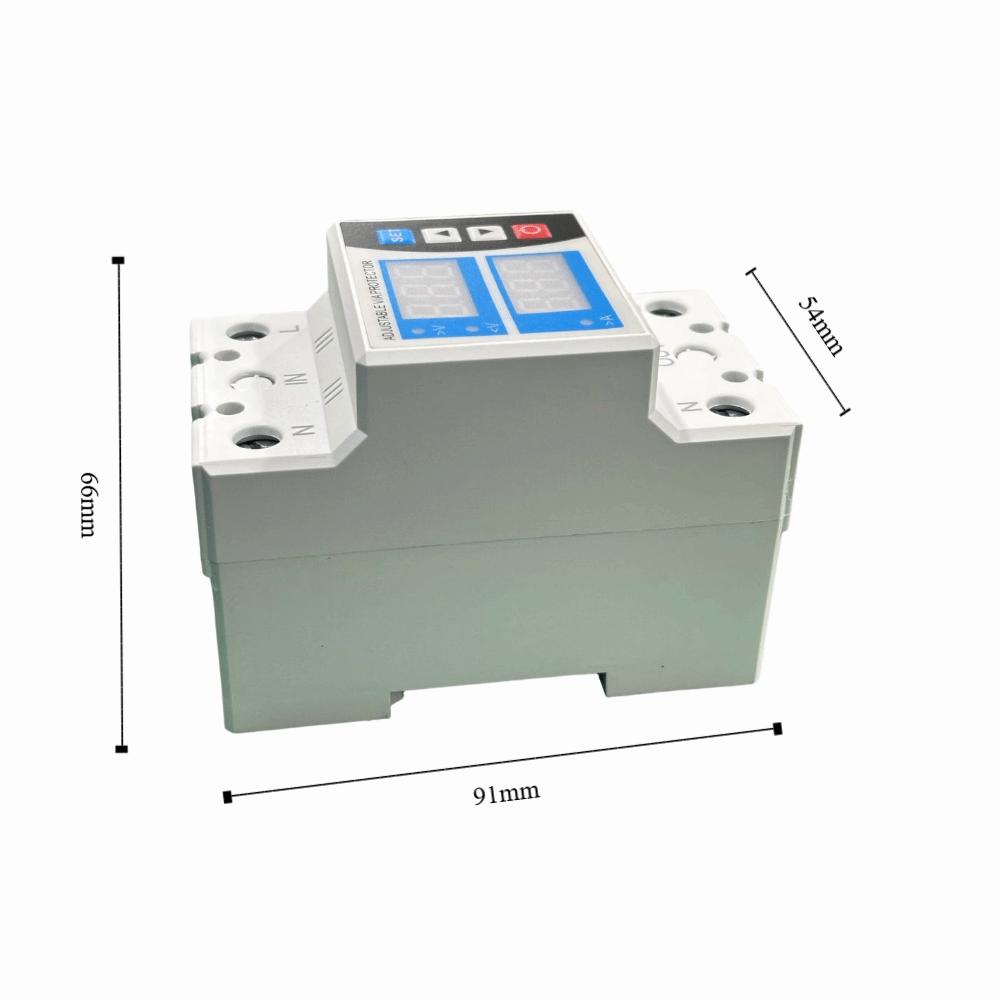

Specifications: Item Type: Over Under Voltage Protector Material: PC fire retardance Overvoltage Protection (uvo): 240V to 300V Undervoltage Protection (uve): 140V to 210V Adjustable range of overcurrent: 1-63A Shutdown Delay Time: 2s (can be set 1-300s) Self Reset Protection Delay: 30s (1-300s) Rated Insulation Voltage: 400V Rated Frequency: 50/60Hz Voltage Measurement Accuracy: 1% Error: 2% Operating Temperature: -50℃-55℃ Humidity: ≤50% at 40℃ (no condensation) Electrical Life: 100000 Times Mechanical Life: 1 Million times Size: 54 * 91 * 66mm(2.13 * 3.58 * 2.60in) Color: White

Package List: 1 x Over Under Voltage Protector

Note: 1. Due to the difference between different monitors, the picture may not reflect the actual color of the item. 2. Please allow slight dimension difference due to different manual measurements. Thank you for your understanding.
