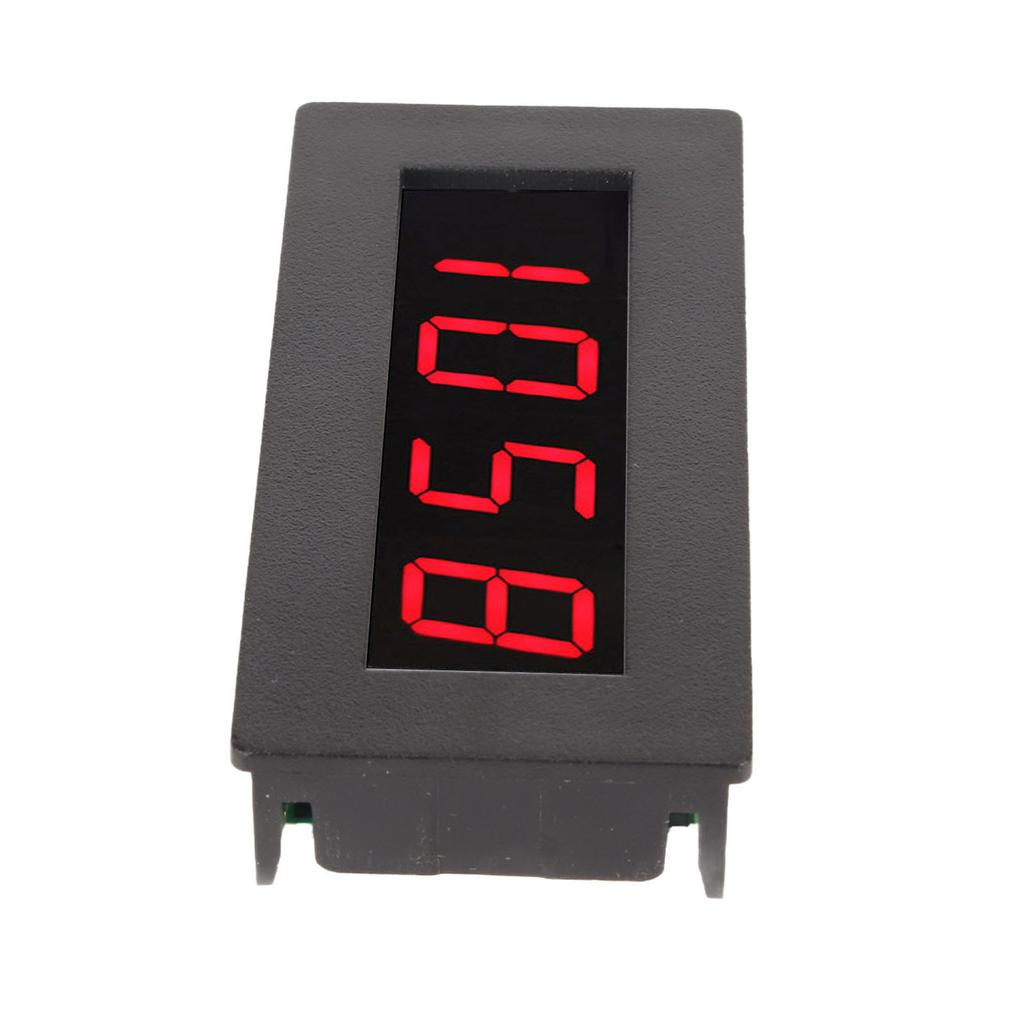

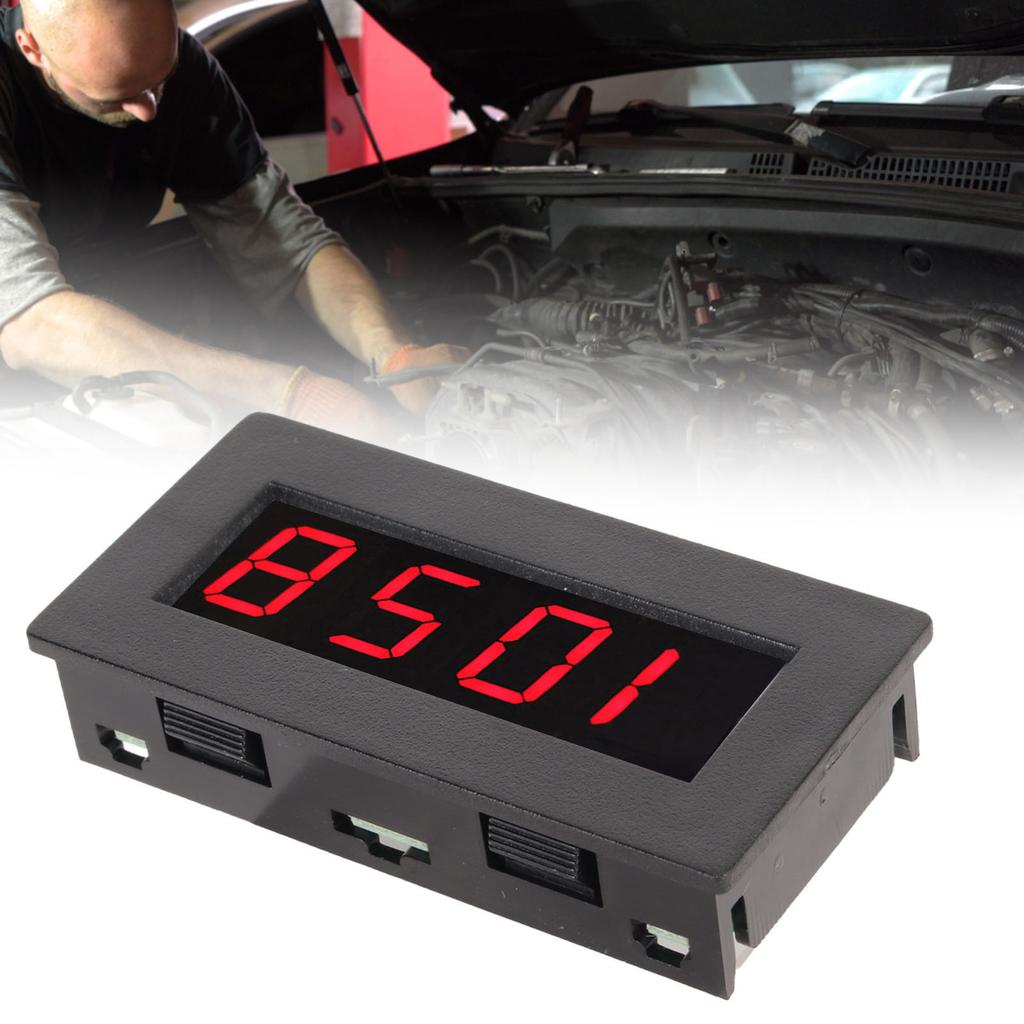

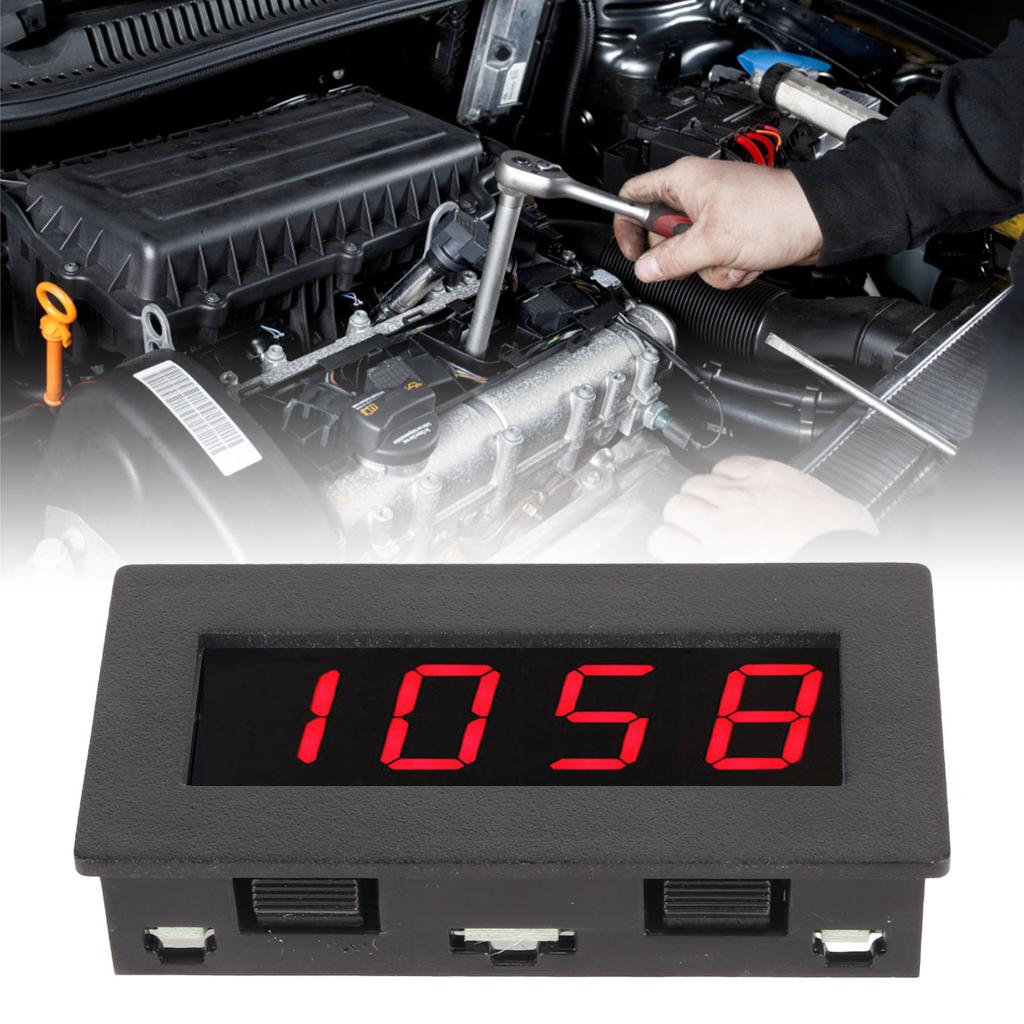

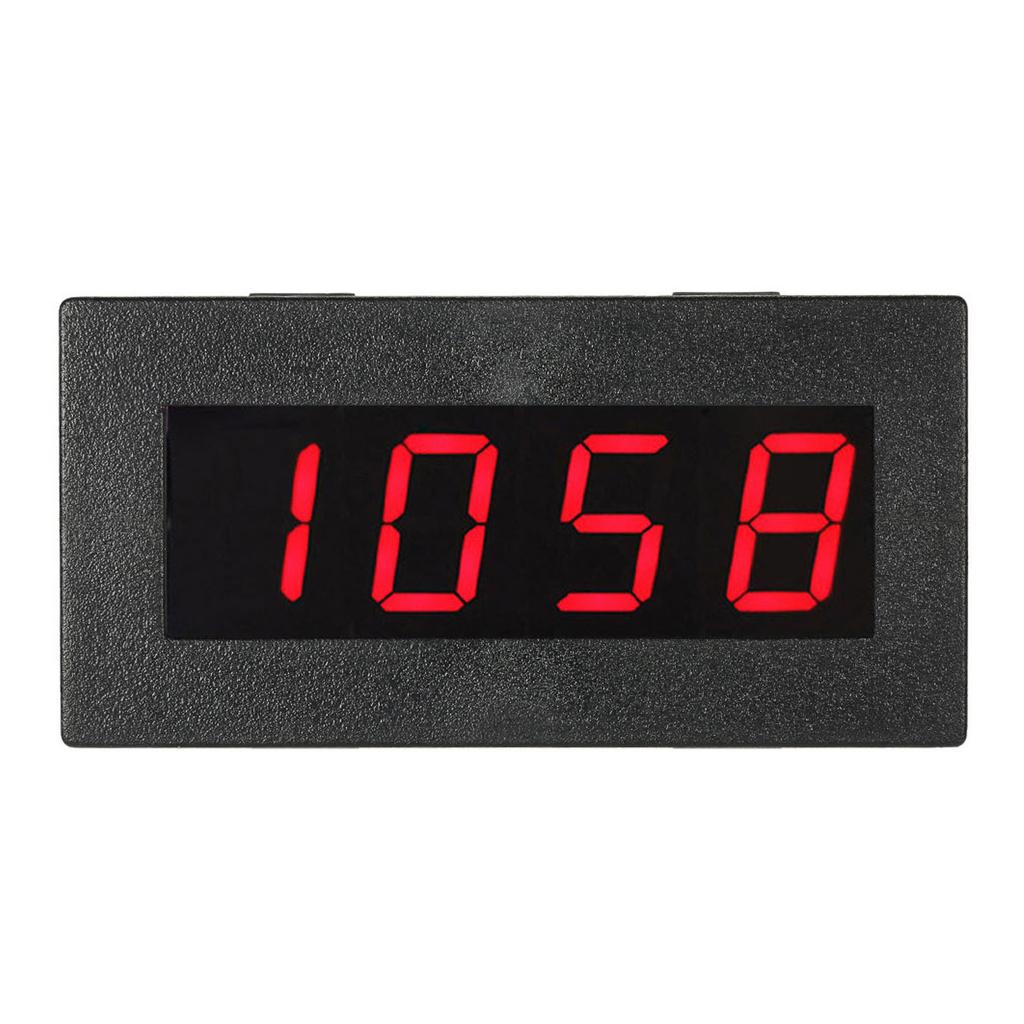

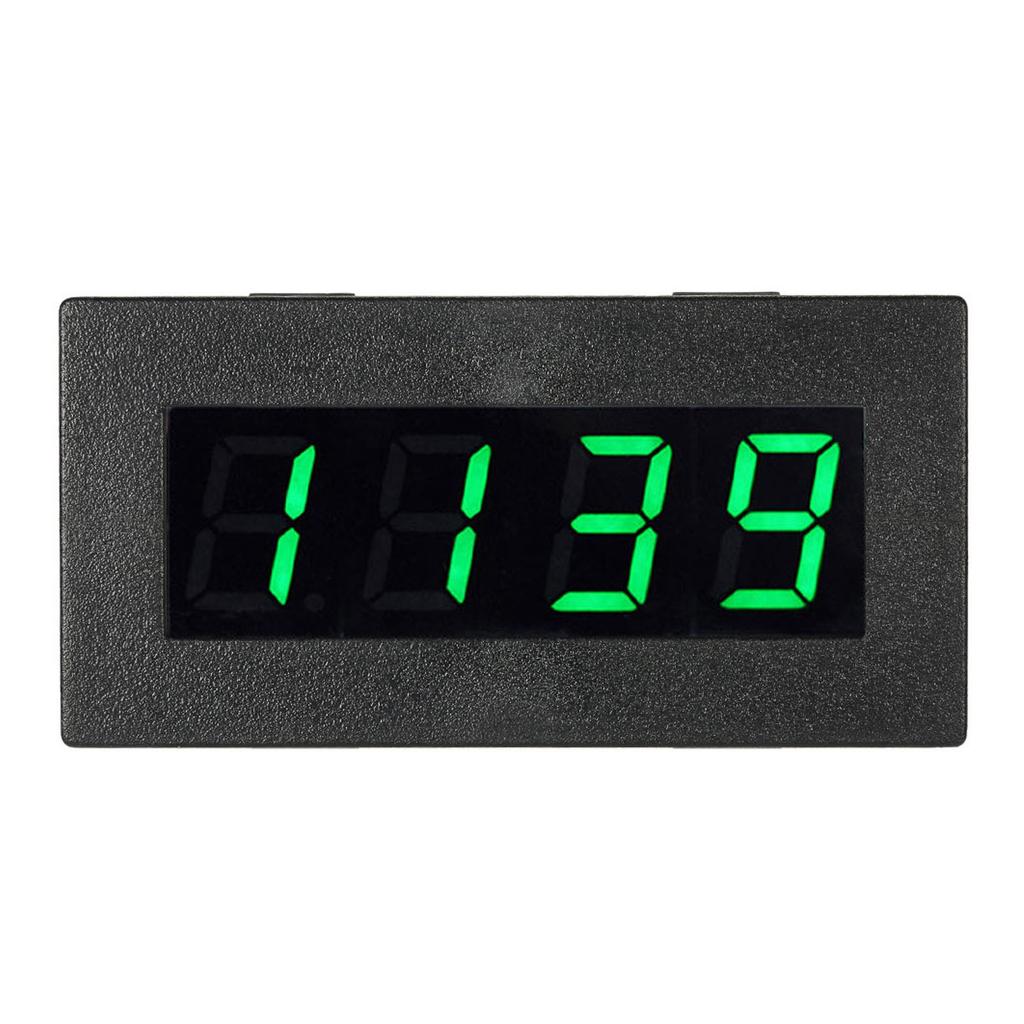

Digital Frequency Meter Speedometer 8 to 15V 0.56 in 5 to 9 RPM 4 LED Digital Display Frequency Tachometer

Accurate Testing: This tachometer has the characteristics of fast and accurate response speed, good stability, and can accurately test the speed and frequency values of the motor. Clear Reading: The Tachometer is 0.56 inch, and the display screen is 4 digital display. The number is clear and the display is fast, which is convenient for you to read data and know the speed. Wide Application: The digital frequency tachometer has a speed measurement range of 5 to 9RPM and a frequency range of 0 to 98990.1 Hz, which is suitable for speed detection of various motors. Item Type: Frequency Motor Tachometer Display: 0.56 in four position LED Speed Range: 5 to 9RPM Frequency Range: 0 to 98990.1 Hz Rate Setting Range: 1 to 99 (default 01) Reset Time: 10

Time: 120 to 1200RPM: 0.2 to 0.5s; 2400 to 9 rpm: 0.25.0.6 s Accuracy: 5000 rpm: approximately 3 rpm Input Signals: Voltage pulse signal, active contact signal, PNP, NPN Power Supply: 8 to 15V Installation: Embedded Connection: +12V: 8 to 15V input pole GDN: power supply negative +: Signal input
