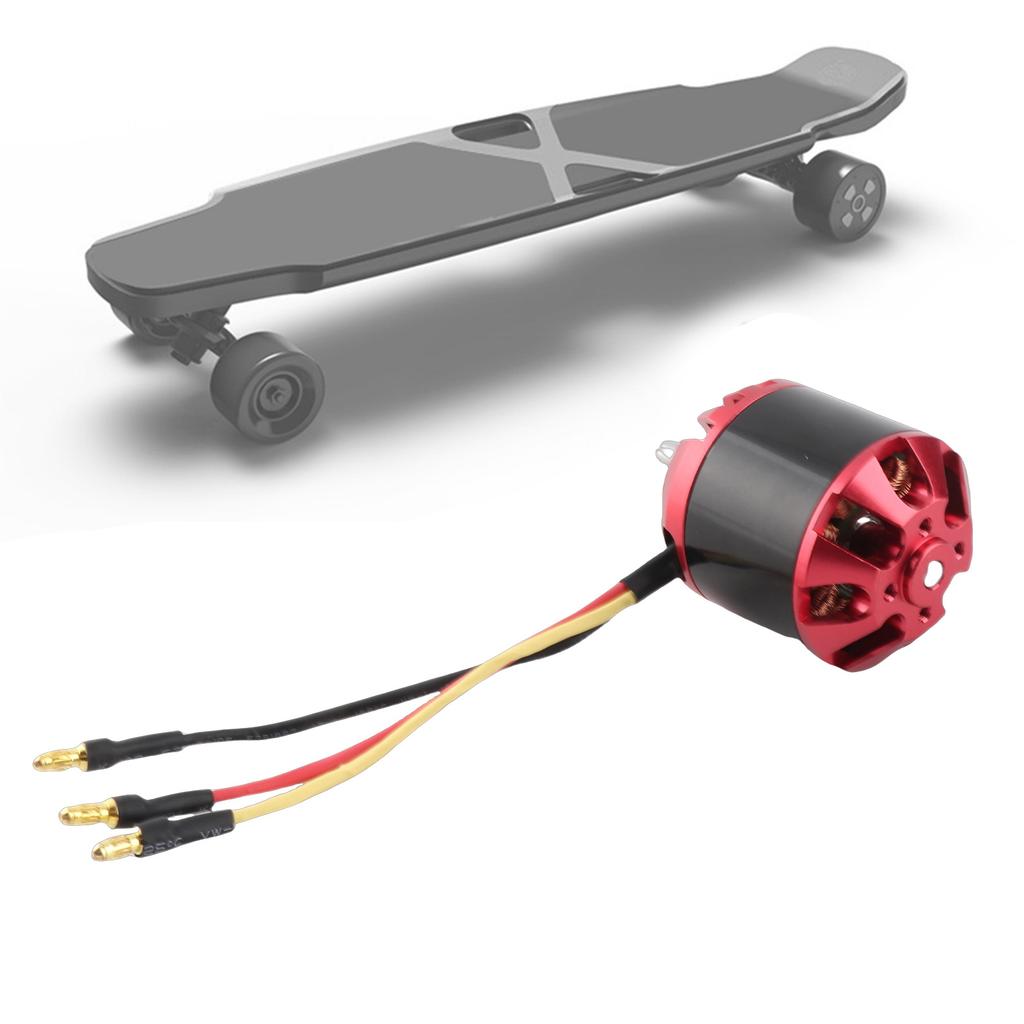

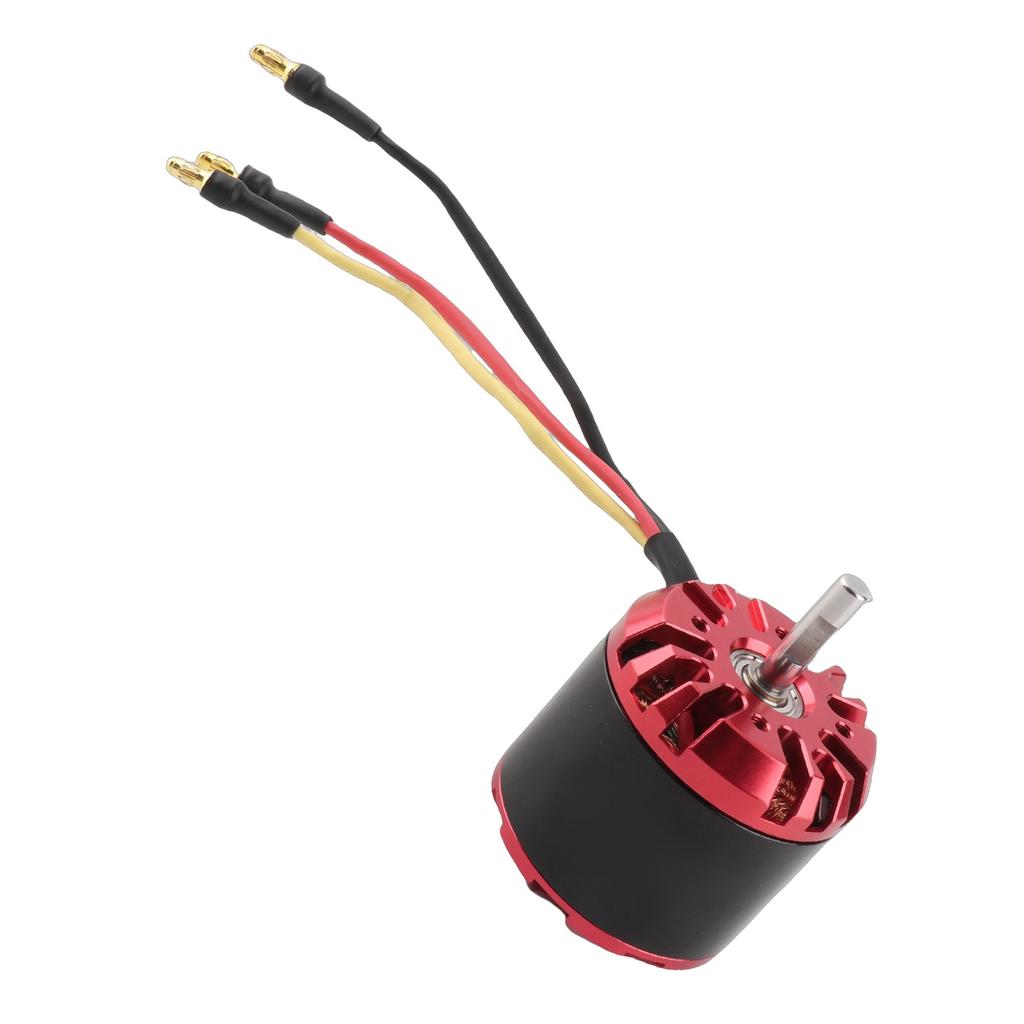

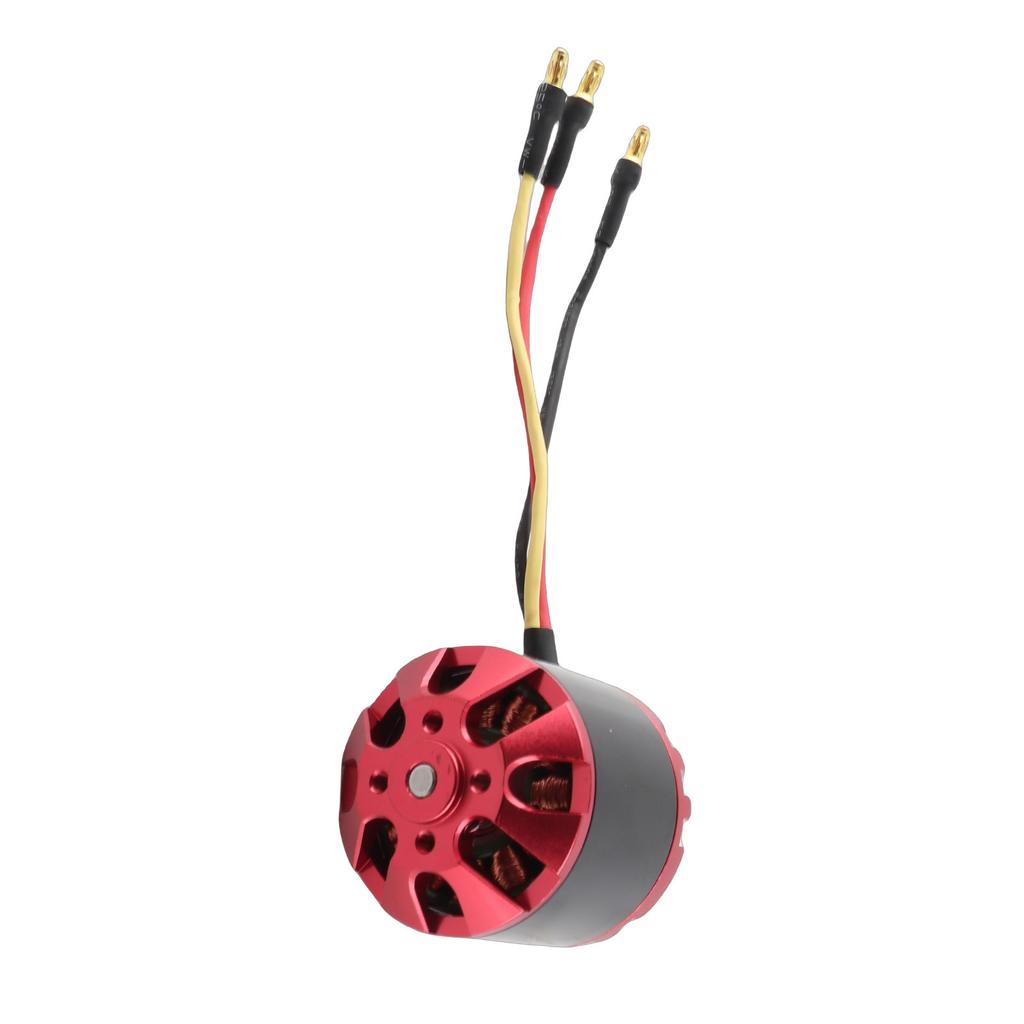

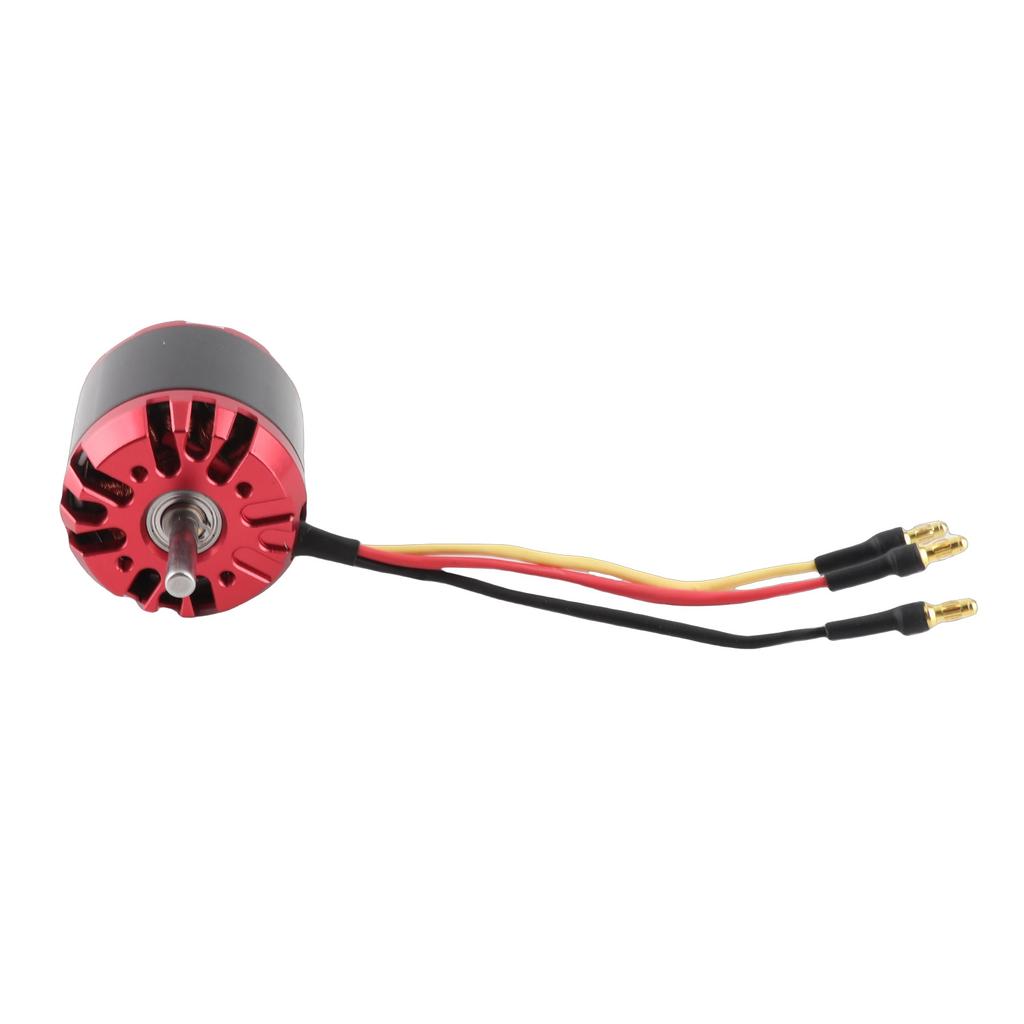

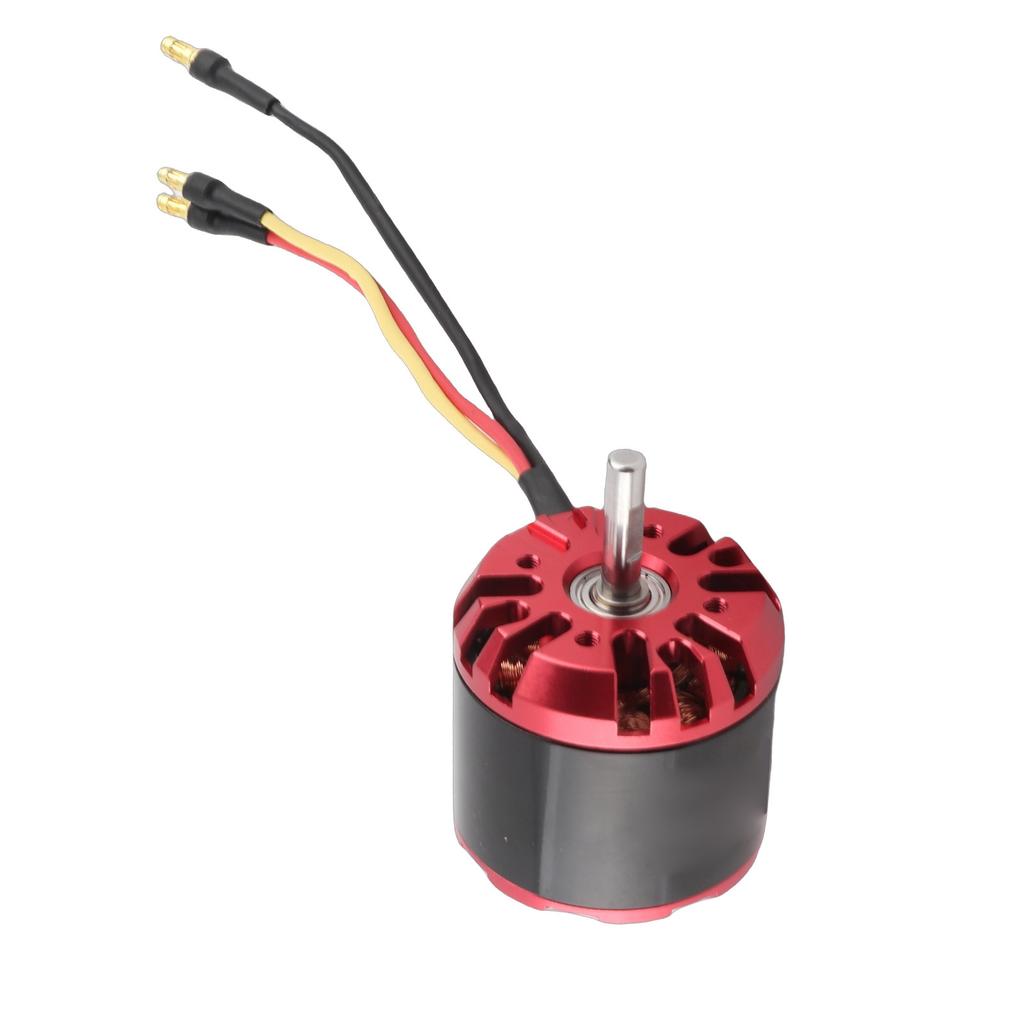

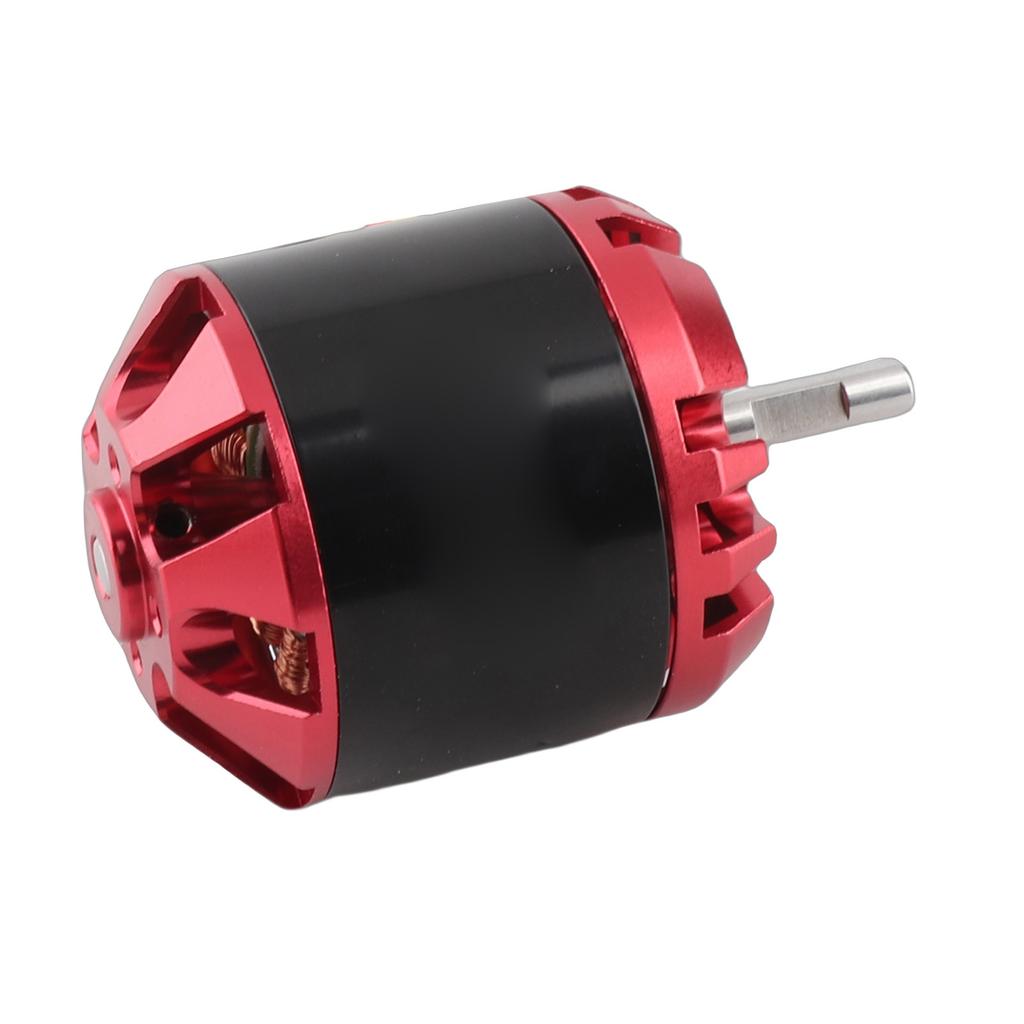

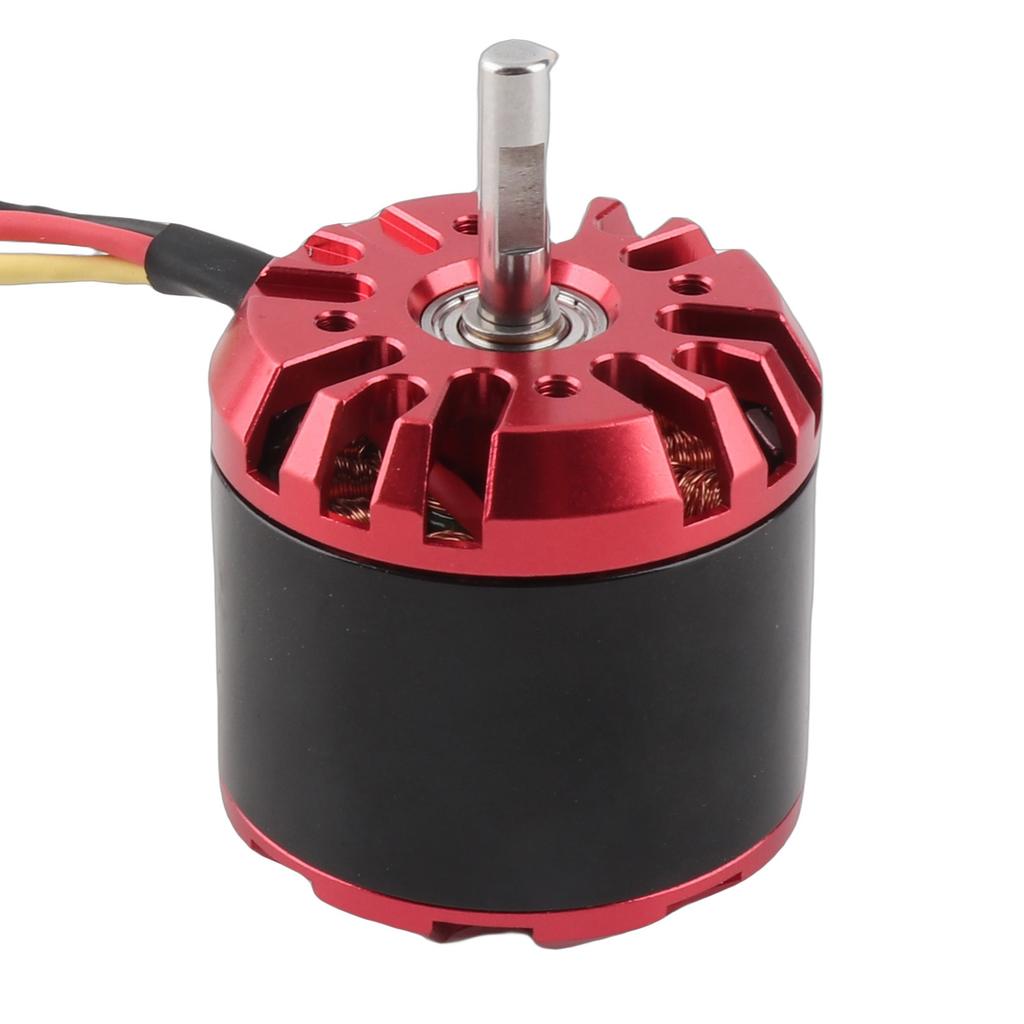

C4250 Brushless Sensorless Motor on Order for Electric Scooter Aeromodeling

Name: C4250 Brushless Sensorless Motor on Order for Electric Scooter Aeromodeling
SKU: 69bbba9be63ede0140200de5
Price: 95.1 PLN
Availability: InStock

Obecna cena

Cena 95,10 zł

z VAT

KolorJak na zdjęciu

Dostawa do 🇵🇱 Polski

6–11 dni roboczych · 13 zł za zamówienie

Twoje płatności i prywatność są bezpieczne

Zwrot w przypadku braku dostawy

Gwarancja jakości

Bezpieczna logistyka

Ochrona prywatności

Bezpieczeństwo i zgodność z przepisami

Opis

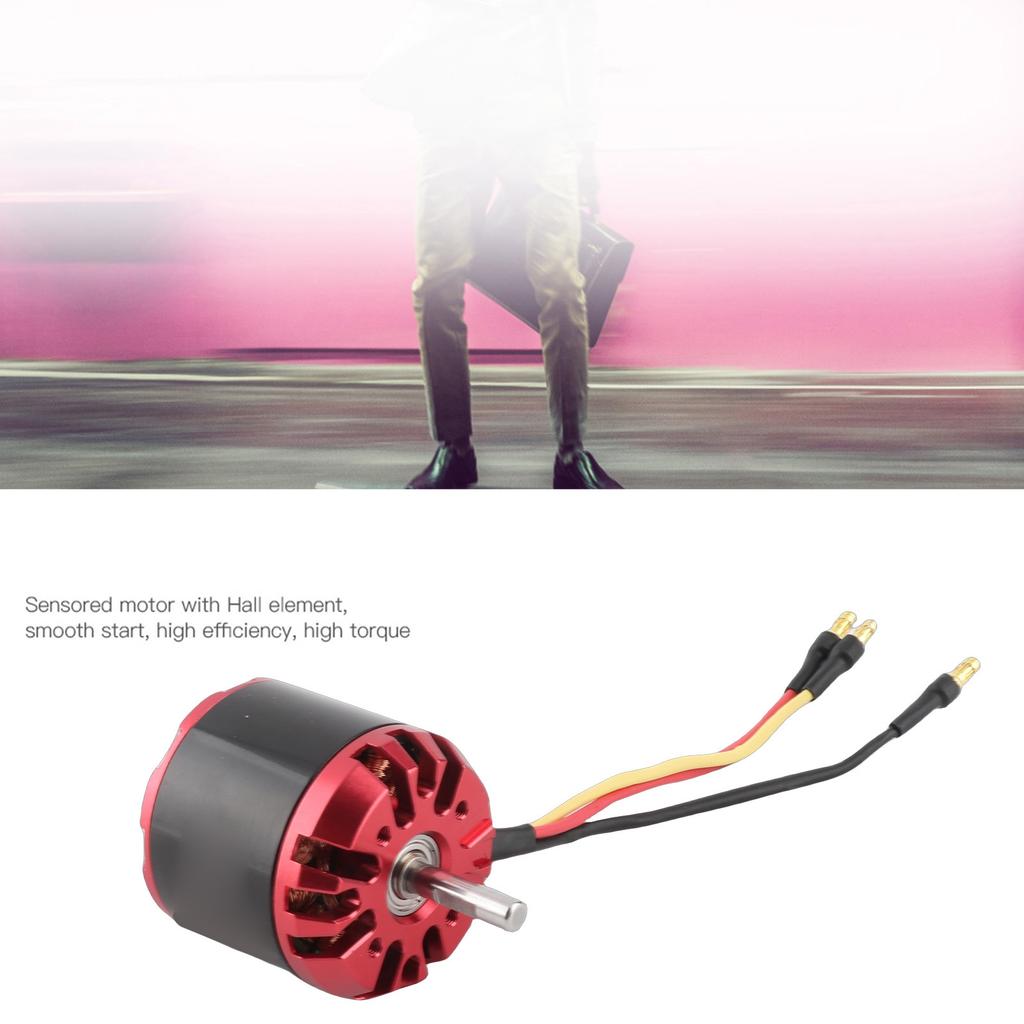

Sensorless motor with noninductive Hall component, stable start, high efficiency, high .

design for maximum conversion of energy. Excellent ht dissipation quality ensures system. Ftures: Sensorless motor with noninductive Hall component, stable start, high efficiency, high .

design for maximum conversion of energy. Excellent ht dissipation quality ensures system. Stdy shaft has longer service life. Low energy consumption and low noise. Specifications: Condition: 100 Brand New Item Type: Brushless Motor Material: Alloy Model: C4250 Shaft Diameter: 5mm Output Shaft Length: 20mm KV Value: 560KV (customizable KV value) Maximum Power: 1760W Voltage: 11.1-36V Speed: 6000-9000

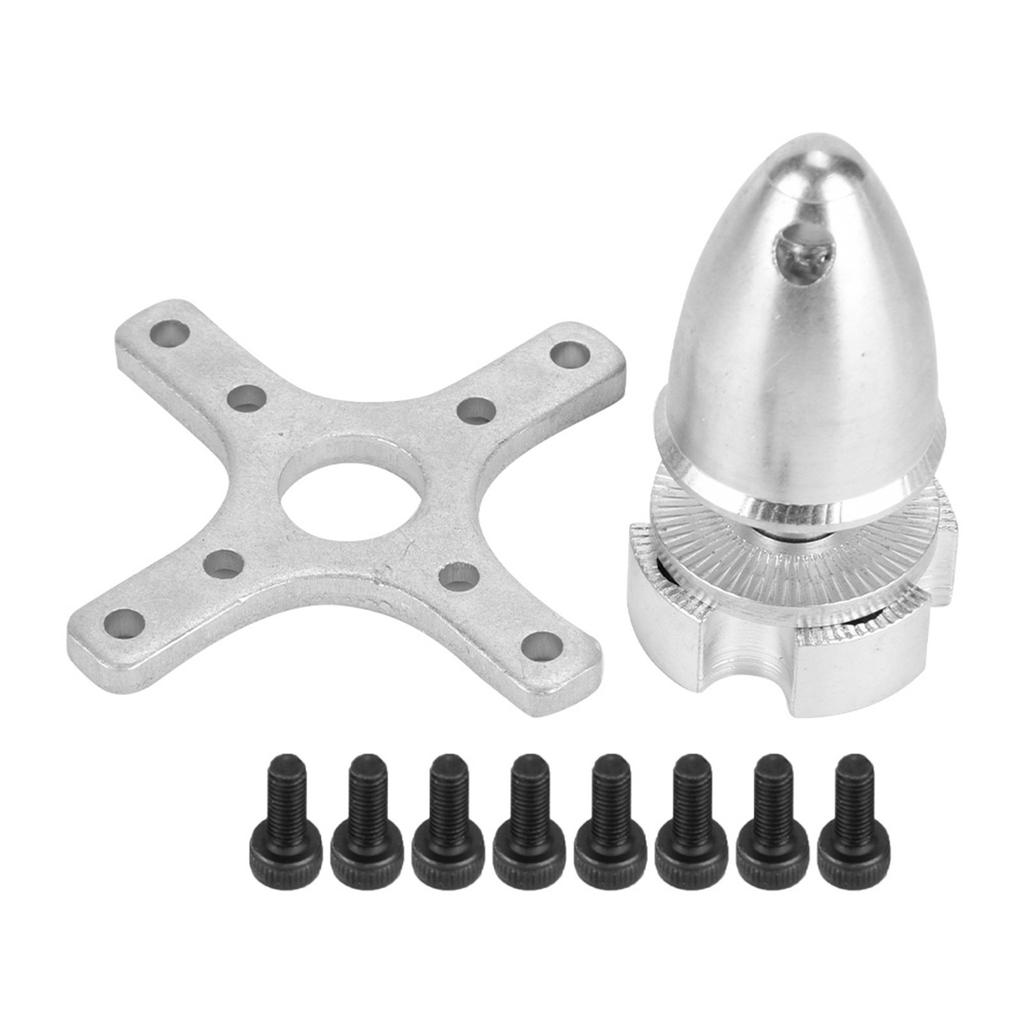

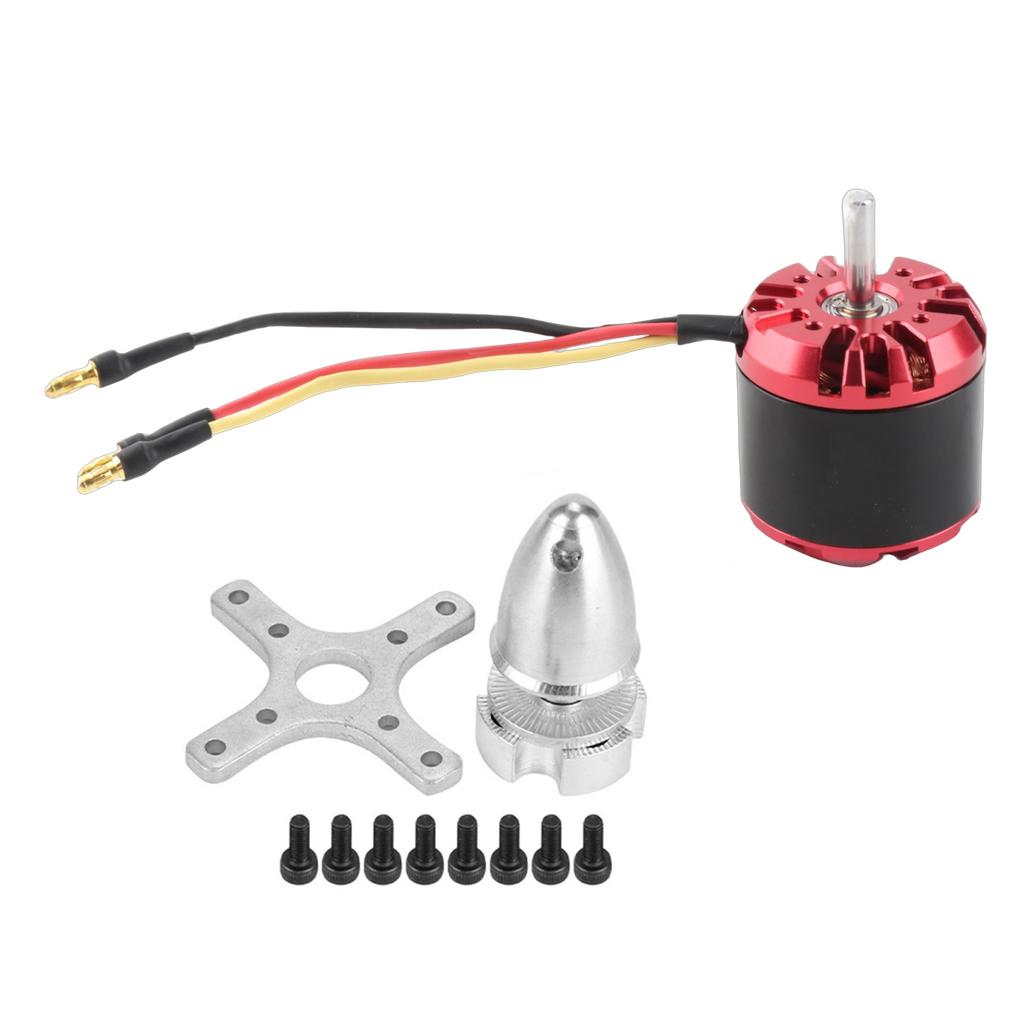

: 1-2N/m Stall : 7-8N/m Winding Number: 9 Number of Motor Poles: 14P Stator Slot Number: 12N Resistance: 0.068ohm No-load Current: 1.5-1.6A (maximum current 80A) Banana Connector: 3.5/4.0mm Lithium Battery Section Number: 3-8S Mounting Holes Spacing: 25/17mm Mounting Hole Size: M2.5*4 Diameter: Approx. 42mm / 1.7inch Height: Approx. 50mm / 2.0inch Weight: Approx. 257g Package List: 1 x Motor 1 x Propeller 1 x Bracket 8 x Screw
