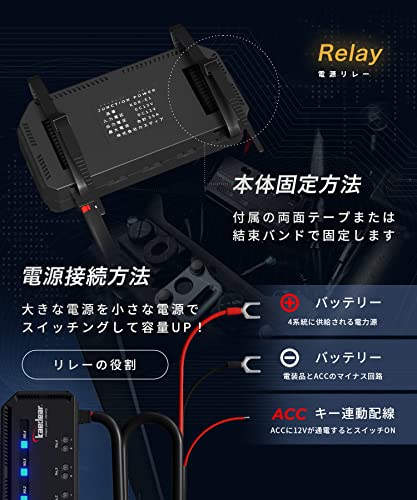

[Applications of Junction Power Relays] As the number of electrical components on a motorcycle increases, such as QI USB smartphone holders, dashcams, and USB power supplies, the total power consumption and current increase. Imagine the battery as a dam, and the wiring as water pipes. To supply current (water flow) to each system without reducing voltage (water pressure) from the battery power (dam's water pressure), sufficiently thick wiring (thick water pipes) is required. Minimizing the distance of the wiring (water pipes) from the battery (dam) also improves supply efficiency. By introducing a distribution relay, it's possible to use a small-capacity ACC accessory power source, such as a power extraction kit, to electromagnetically switch a large-capacity battery power source, allowing for direct battery power supply to up to four systems, totaling up to 20A, linked to key operation.

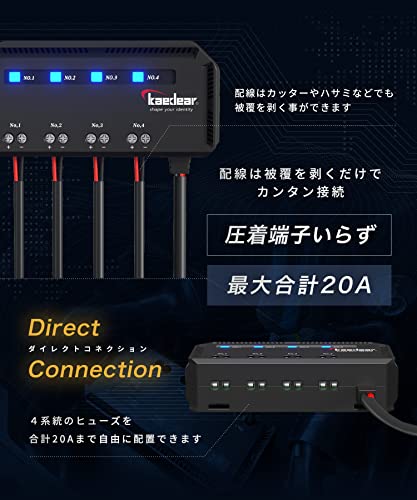

[Direct Connection] Each electrical unit has four output terminals that allow for direct wiring connections, eliminating the need to worry about the type of crimp terminals used. Simply loosen the Phillips screw beforehand, insert the stripped copper wire, and tighten. Once installed, you won't need electrical pliers or crimp terminals.

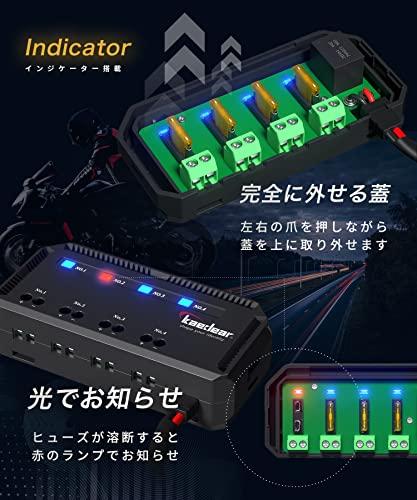

[Fuse Indicator] When an electrical component stops working, the first thing you might check is the fuse. On motorcycles with limited space, there may not be enough room to access the fuse, making it difficult to check its status. The fuse indicator uses a lamp to show the fuse's continuity. Blue indicates a continuity in the fuse, while red indicates a blown fuse. A fuse is a mechanism that melts when a short circuit or excessive current occurs between the fuse and the electrical component, preventing damage to the battery or burning of wiring due to high current, thus protecting the vehicle and other electrical systems.

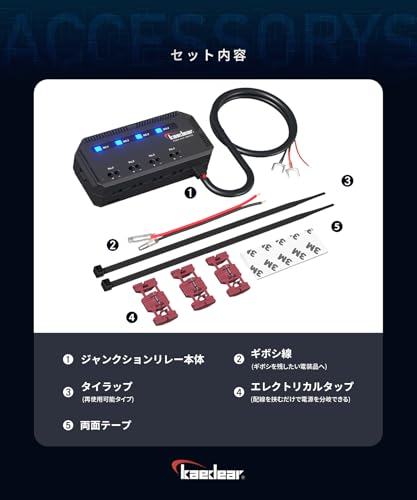

【Product Details】 ■Input: 12-16V ■Output: 20A total, 4 circuits ■Body size: 95 x 45 x 25mm ■Wiring: 70cm ■Material: Polycarbonate ■Contents: Junction relay body (5A fuse x 4), crimp wire (for electrical components where you want to retain the crimp), cable ties, double-sided tape, electrical taps x 3 ■Instruction manual (online only): As part of our efforts to decarbonize and reduce environmental impact, we refrain from including a paper copy. You can view or download it from each product page on the Kaedear official website.
【Manufacturer's Warranty】 ■Manufacturer's warranty period: 1 year (expires on the same day as the purchase date) Kaedear will continue to support you after the sale to ensure your satisfaction. For any questions regarding our products, including installation on your motorcycle, our staff, who hold national maintenance qualifications, can provide accurate and expert advice. In the unlikely event that a malfunction is diagnosed as being due to a product defect, we will review the matter in accordance with our manufacturer's warranty regulations and provide free repair or replacement under the manufacturer's warranty. For commercial use, the manufacturer's warranty period will be halved (e.g., if the manufacturer's warranty period is 1 year, it will be 6 months, and the expiration date will be the same day as the month of purchase, plus 6 months). For details, please see the manufacturer's warranty regulations on our official website. We will provide support even after installation and use. As a Japanese manufacturer, we will respond with a spirit of hospitality. Please feel free to contact us first.
