[Easy Installation x Waterproof Cap SAE Distribution Relay] This product is designed with compatibility with Kaedia products in mind, allowing you to connect your existing SAE connector-equipped electrical components directly. This means you can use it simply by plugging the SAE connector directly into the unit, without using crimping or wire strippers. If the wiring length is insufficient, you can purchase SAE wiring separately. The SAE port is designed specifically for Kaedia SAE connectors, and when not in use, the waterproof cap fits snugly to prevent corrosion of the terminals due to moisture and water ingress from the outside. [Maximum 480W Support x 3 Output Systems] This product is equipped with three output systems of 120W, 160W, and 200W, and can stably supply up to a total of 480W of direct battery power to up to three systems linked to key operation. By using a small capacity ACC accessory power supply, the switch operation of the large capacity battery power supply is electromagnetically controlled, preventing voltage drop even when using multiple electrical components simultaneously. [Equipped with Relay Function] This product is equipped with a relay function, which automatically switches the power on and off in conjunction with the vehicle's ACC power supply. When the key is turned off, the power supply stops, preventing battery drain. This reduces unnecessary power consumption while driving or stopped. In addition, unlike mechanical types, contact burnout is less likely to occur, making it suitable for long-term use, and there is no need to worry about battery drain as no dark current is generated. [No Fuse Replacement Required! Circuit Breaker Protection Function] In the unlikely event that the output exceeds the set value, the circuit breaker will automatically shut off the circuit, eliminating the need to replace fuses. This design allows for hassle-free troubleshooting. [Wiring and Power Consumption] Each output terminal of this product is assigned an appropriate power level. It is important to use wiring of the appropriate thickness (square millimeters) for the electrical equipment being used. If the wiring thickness is inappropriate, the power supply may become unstable, so it is recommended to use wiring of the appropriate square millimeters for the electrical equipment being used. Also, the longer the wiring, the more likely voltage drop will occur. ■Power harness: 60cm Constant +: 5.0mm² [10AWG] / ring terminal ACC +: 0.5mm² [20AWG] / bare wire Negative: 5.0mm² [10AWG] / ring terminal Please provide the ACC wiring connector yourself as needed. 120W output (approx. 8.33-9.52A) → Wiring square: 1.25mm² (equivalent to 16AWG) 160W output (approx. 11.11-12.70A) → Wiring square: 2.0mm² (equivalent to 14AWG) 200W output (approx. 13.89-15.87A) → Wiring square: 3.5mm² (equivalent to 12AWG) You can check the amperage of the output using the following formula: 120W output: Calculated at 12.6V-14.4V → Approx. 8.33A-approx. 9.52A 160W output: Calculated at 12.6V-14.4V → Approx. 11.11A-approx. 12.70A 200W output: Calculated at 12.6V-14.4V → Approx. 13.89A-approx. 15.87A *Power consumption (W) ÷ Current (A) can be calculated from voltage (V). [6 built-in safety protection functions] Equipped with 6 safety functions: overvoltage, undervoltage, overcurrent, overheating, output overload, and short circuit protection. If an abnormality occurs, the LED indicator lamp will light up, allowing you to visually check the situation. This makes it easy to identify the cause of the trouble and allows for safe use. [Wiring design and important specifications] ・Input voltage range: DC 10.5V to 16V ・Recommended operating voltage: DC 12V to 15V ・Operating voltage range: 0 to 56V ・Rated output (total of 3 systems): 120W/160W/200W (maximum 480W) [Accessories] Main unit, SAE cable (3.5mm² [14AWG]): 15cm x 3, cable ties x 5, heat collection terminal with solder ring (wiring can be connected by simply heating with a heat gun, etc.) You can convert your cable to SAE by joining your existing cable with the included SAE cable using the heat collection terminal with solder ring. ■Instruction Manual (Online Only): As part of our efforts to decarbonize and reduce environmental impact, we refrain from including paper copies of the instruction manual. It can be viewed or downloaded from each product page on the Kaedear official website. 【Manufacturer's Warranty】 ■Manufacturer's Warranty Period: 1 year (Expires on the same day as the purchase date) At Kaedear, we provide support even after the sale to ensure customer satisfaction. For any questions regarding the product, including installation on your motorcycle, our staff, who hold national maintenance qualifications, can provide accurate and expert advice. In the unlikely event that a malfunction is diagnosed as being due to a product defect, we will review the matter in accordance with our manufacturer's warranty regulations and provide free repair or replacement under the manufacturer's warranty. For commercial use, the manufacturer's warranty period will be halved (e.g., if the manufacturer's warranty period is 1 year, it will be 6 months, and the expiration date will be the same day as the purchase date plus 6 months). Please see the manufacturer's warranty regulations on the official website for details. We will provide support even after installation and use. As a Japanese manufacturer, we will respond with a spirit of hospitality. Please feel free to contact us first.
【Easy Installation × Waterproof Cap SAE Distribution Relay】 This product is designed for compatibility with Kaedia products, allowing you to connect your existing SAE connector-equipped electrical components directly. This means you can use it simply by plugging the SAE connector directly into the unit, without the need for crimping or wire strippers. If the wiring length is insufficient, additional SAE wiring is available separately. The SAE port is specifically designed for Kaedia SAE connectors, and the waterproof cap fits snugly when not in use, preventing corrosion of the terminals due to moisture and water ingress.
【Maximum 480W Support × 3 Output Systems】 This product features three output systems of 120W, 160W, and 200W, providing a stable supply of up to 480W total power to three systems via direct battery power linked to key operation. By utilizing a small-capacity ACC accessory power supply, it electromagnetically controls the switch operation of the high-capacity battery power supply, preventing voltage drop even when multiple electrical components are used simultaneously.

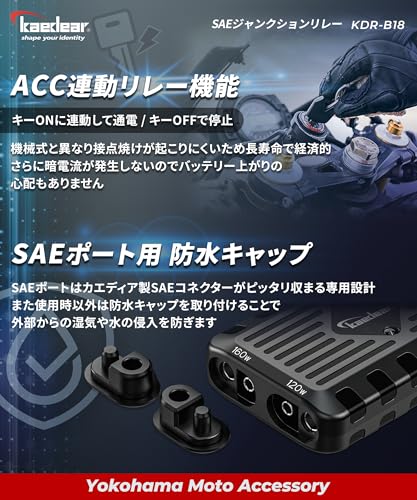

[Relay Function] This product features a built-in relay function, automatically switching the power on and off in conjunction with the vehicle's ACC power supply. Power supply is stopped when the key is off, preventing battery drain. It also reduces unnecessary power consumption while driving or parked. Unlike mechanical systems, it is less prone to contact burnout, making it suitable for long-term use, and since it does not generate quiescent current, there is no need to worry about battery drain.

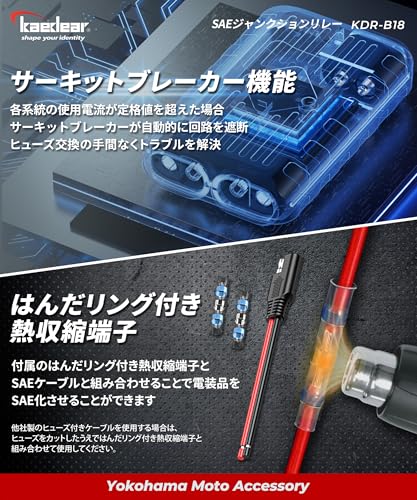

[No Fuse Replacement Required! Circuit Breaker Protection Function] In the unlikely event that the output exceeds the set value, the circuit breaker automatically shuts off the circuit, eliminating the need for fuse replacement. This design allows for hassle-free troubleshooting.

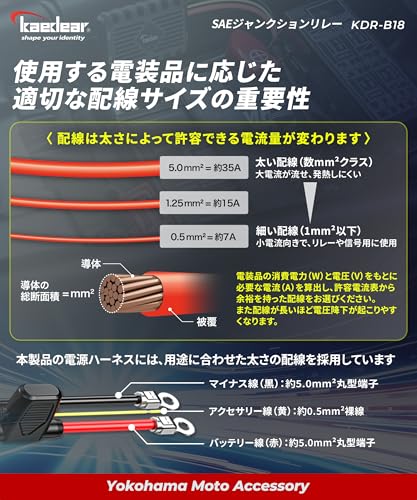

[Wiring and Power Consumption] Each output terminal of this product is assigned an appropriate power level. It is important to use wiring of the appropriate thickness (square millimeters) for the electrical components being used. Inappropriate wiring thickness may lead to unstable power supply, so it is recommended to use wiring of the appropriate square millimeters for the electrical components being used. Also, voltage drop is more likely to occur with longer wiring. ■Power harness: 60cm Constant +: 5.0mm² [10AWG] / ring terminal ACC +: 0.5mm² [20AWG] / bare wire Negative: 5.0mm² [10AWG] / ring terminal Please provide the ACC wiring connector yourself as needed. 120W output (approx. 8.33-9.52A) → Wiring square: 1.25mm² (equivalent to 16AWG) 160W output (approx. 11.11-12.70A) → Wiring square: 2.0mm² (equivalent to 14AWG) 200W output (approx. 13.89-15.87A) → Wiring square: 3.5mm² (equivalent to 12AWG) You can check the amperage of the output using the following formula: 120W output: Calculated at 12.6V-14.4V → Approx. 8.33A-approx. 9.52A 160W output: Calculated at 12.6V-14.4V → Approx. 11.11A-approx. 12.70A 200W output: Calculated at 12.6V-14.4V → Approx. 13.89A-approx. 15.87A *Power consumption (W) ÷ You can find the current (A) from the voltage (V).
