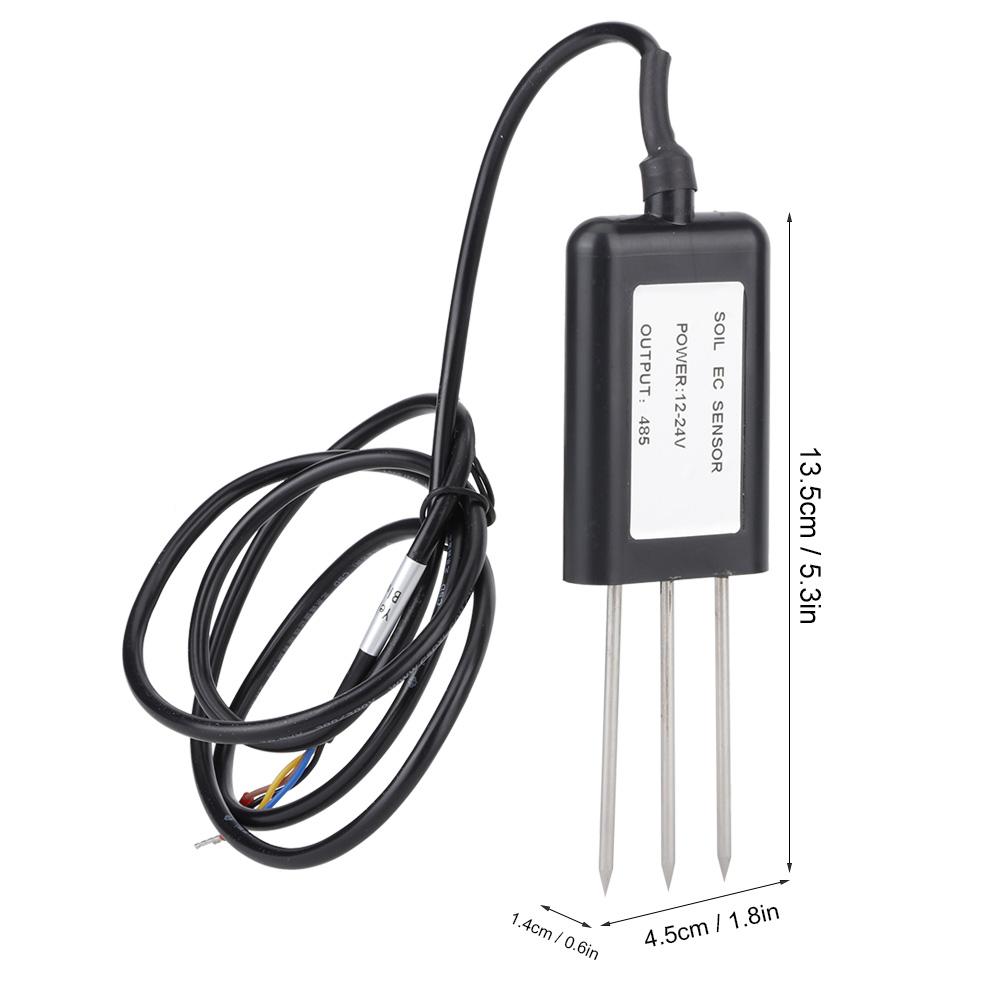

High Waterproof Soil Moisture Temp EC Sensor Transmitter Soil Fertilizer Detector Tester

Easy to measure, not only , but also for non-professionals, just insert the instrument into the soil to measure. High , fast speed measurement, and increased stabilitym, more accurate data. The sensor uses high quality chip, low power consumption, high sensitivity and stable signal. Condition: 100% Brand New Item Type: Soil EC Sensor Material: ABS+Stainless Steel Color: As shown in the picture Size: Approx.13.5x4.5x1.4cm Celsius 5.3x1.8x0.6in Weight: Approx.184gCelsius6.5oz Power Supply: 12-24VDC Output Signal: 485Celsius4-20mACelsius0-5VCelsius0-10V Installation : all buried or all probes inserted into the measured medium

: IP68 Response Time: Conductivity Range: 0.10000LambdaCelsiuscm Conductivity Accuracy: 10LambdaCelsiuscm Moisture Measurement Range: 0.100% Moisture Measurement Accuracy: +Celsius-3% of reading (within 0.53% range) +Celsius-5% of reading (within 53.100% range) Temperature Measurement Range: -40 degrees C . 80 degrees C Temperature Measurement Accuracy: +Celsius-0.5 degrees C Measurable: EC, moisture, temperature Instructions:

Measurement : Select a suitable measurement location, avoid the stone, that the steel needle does not touch the hard object, cut the layer according to the required measurement depth, maintain the original tightness of the soil, and hold the sensor. Vertically insert the soil, do not shake left and right when inserting, it is recommended to measure the average over a small range of one measuring point. Buried Measurement : Vertically excavate the pit with Diameter >20cmCelsius7.9in, insert the sensor steel needle horizontally into the pit wall at a given depth, fill the pit tightly, and stabilize it for a period of several days, several months or even Longer measurement and recording.
