Made of high quality material, in use.
It has 24 common functions to meet more application requirements
Can control the solenoid valve, , motor, light belt and so on.
Features:
Made of high quality material, in use.
It has 24 common functions to meet more application requirements
Can control the solenoid valve, , motor, light belt and so on.
Low power consumption, performance.
The product has a wide range of applications and can be used in many fields.
Specification:

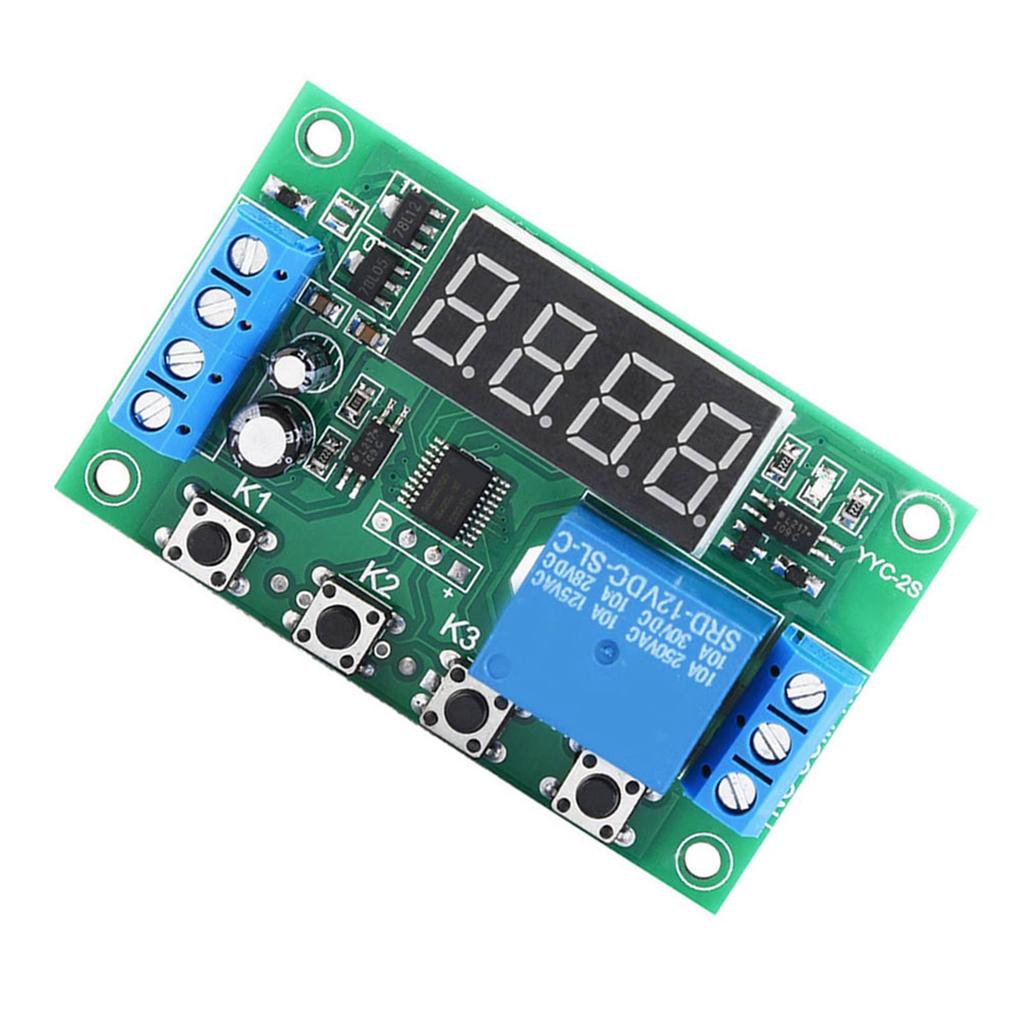

Model: YYC-2S
Material: Plastic
Weight: 30gCelsius1.1oz
Voltage: 5V, 12V, 24V (Optional)
Output power: or AC load within 5A can be controlled
Time range: 0.01 seconds to minutes can be adjusted at any time

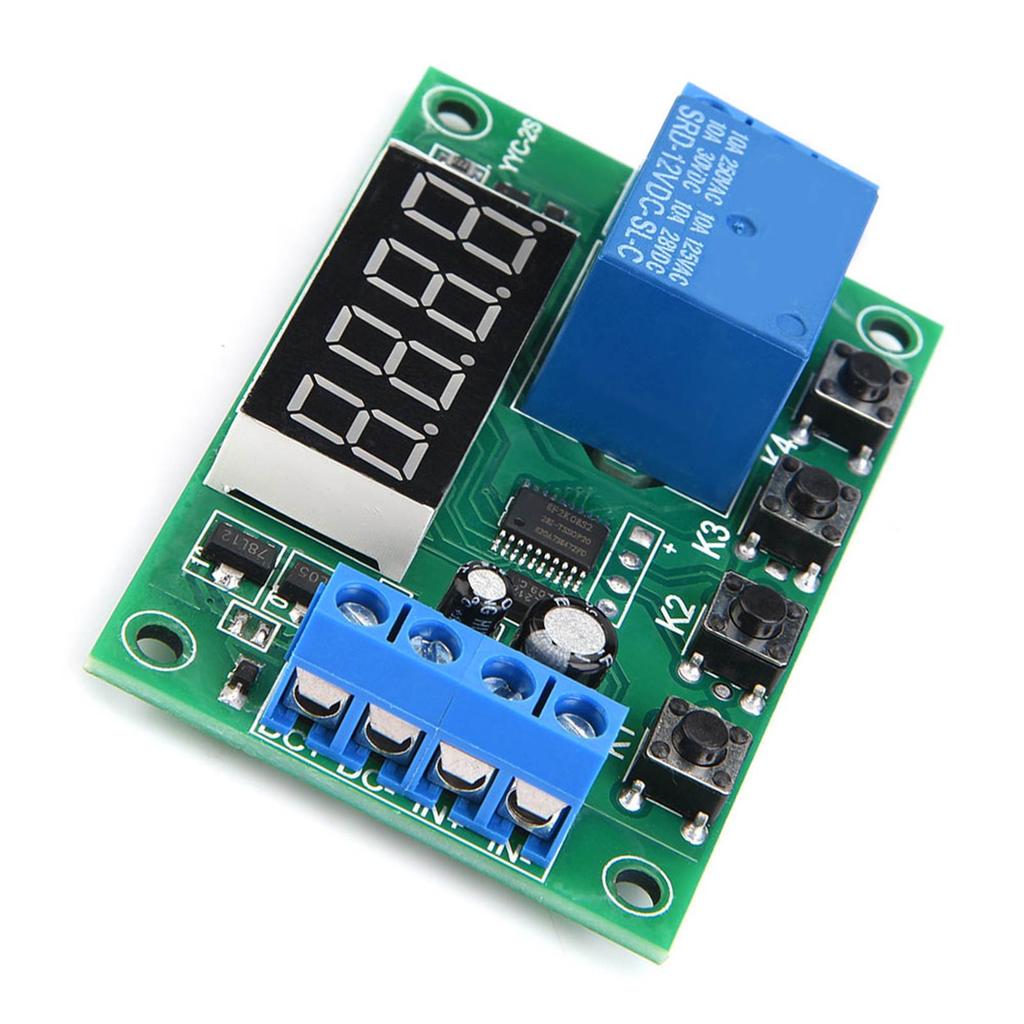

Description of wiring port:
1. + : input the positive pole of power supply
2, - : input power supply cathode
3. IN+ : signal input is positive
4, IN- : signal input terminal negative
5. NO: the relay normally opens the interface, and the relay is suspended before absorption, and is connected with COM short after absorption
6. COM: relay public interface
7. NC: the relay normally closes the interface, and the relay is short connected with COM before absorbing and suspended after absorbing.
Key setting instructions:
Power on display ------- means to enter standby state;
Press K1 for the first time (it takes more than 1 second to be effective to prevent false triggering), and it shows: p-11: adjusts the main mode, K3K4 adjusts the function
Press K1 the second time, the screen will show: a001: and K3 to adjust the first time A and K4 to adjust the decimal point (time unit).
Press K1 for the third time, and the screen will show: b001: and K3 to adjust the second time B and K4 to adjust the decimal point (time unit).
Press K1 for the fourth time, and -- indicates standby state
Press K4 in standby state to permanently closeCelsiusopen the display and to low-power mode.
Description of decimal point time unit:
X.XX decimal point in place, timing range: 0.01 seconds to 9.99 seconds
XX.X decimal point in the tens place, timing range: 0.1 seconds to 99.9 seconds
XXX has no decimal point, timing range: 1 second . seconds
XXX. Decimal point in the place, timing range: 1 minute to minutes.
Package List:
1 x Timer Relay
