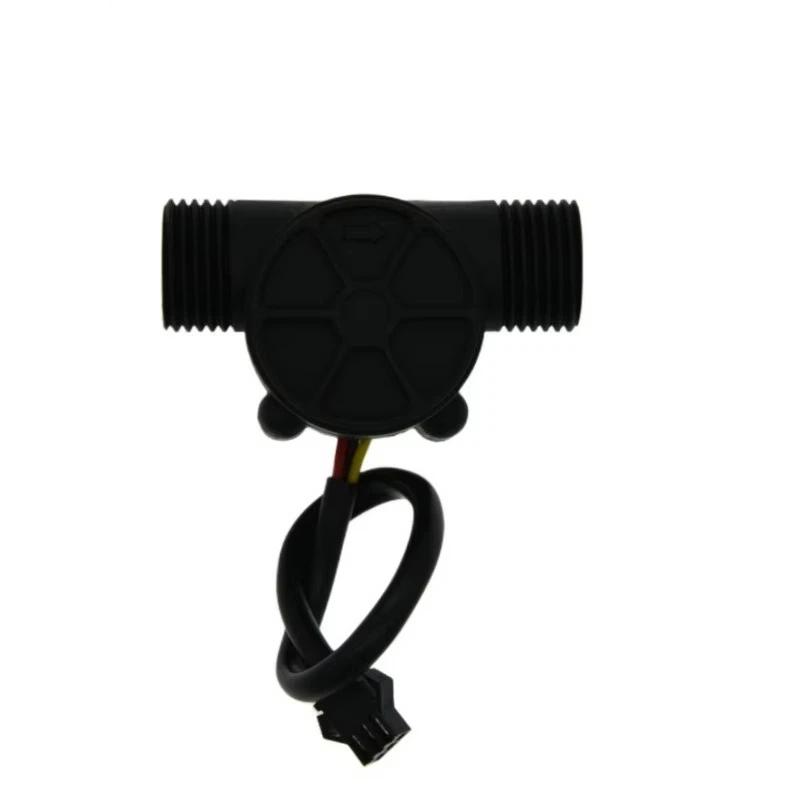

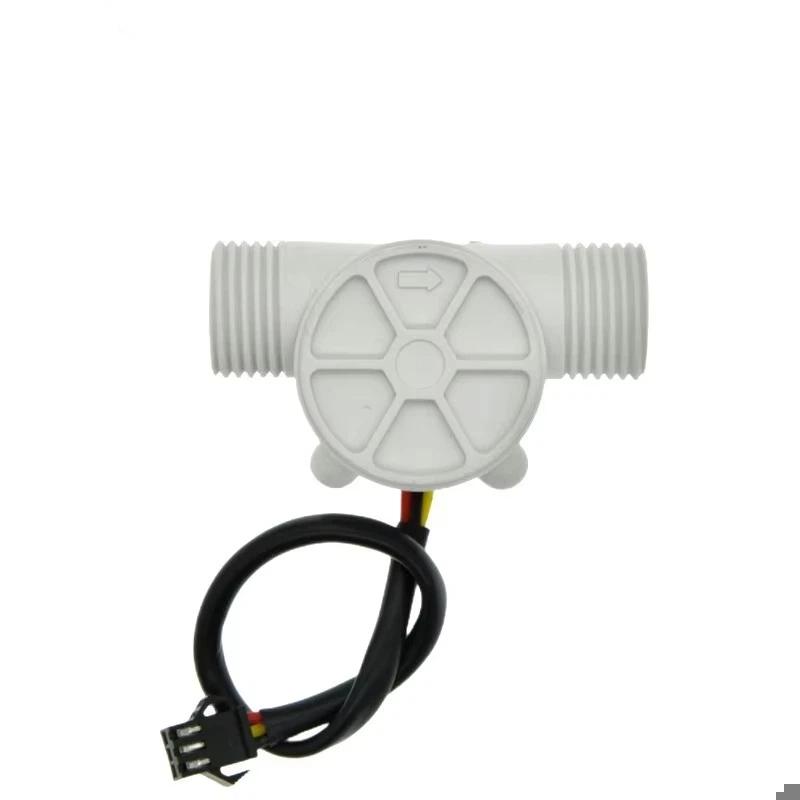

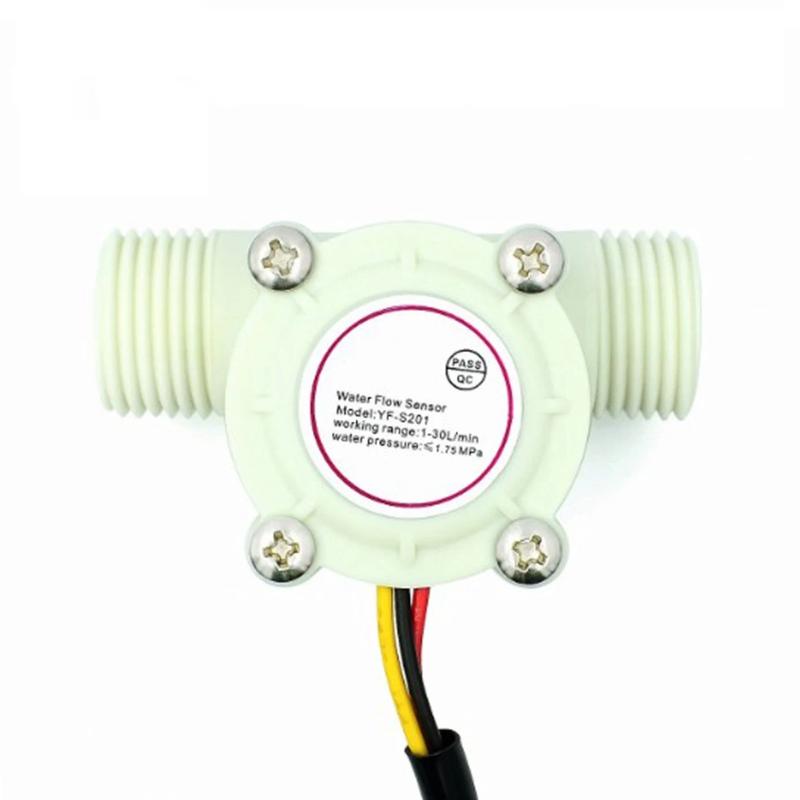

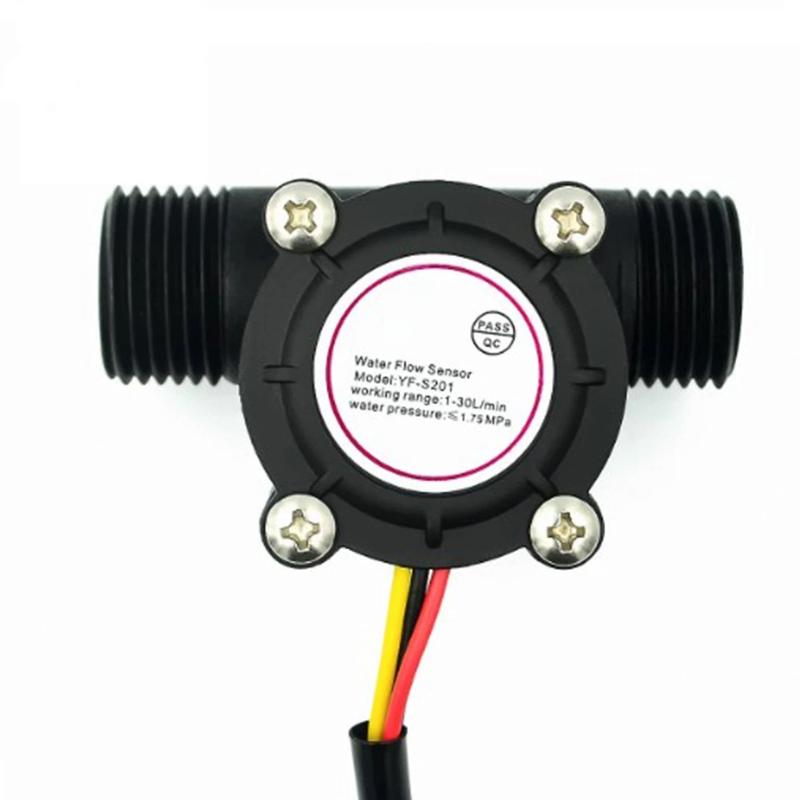

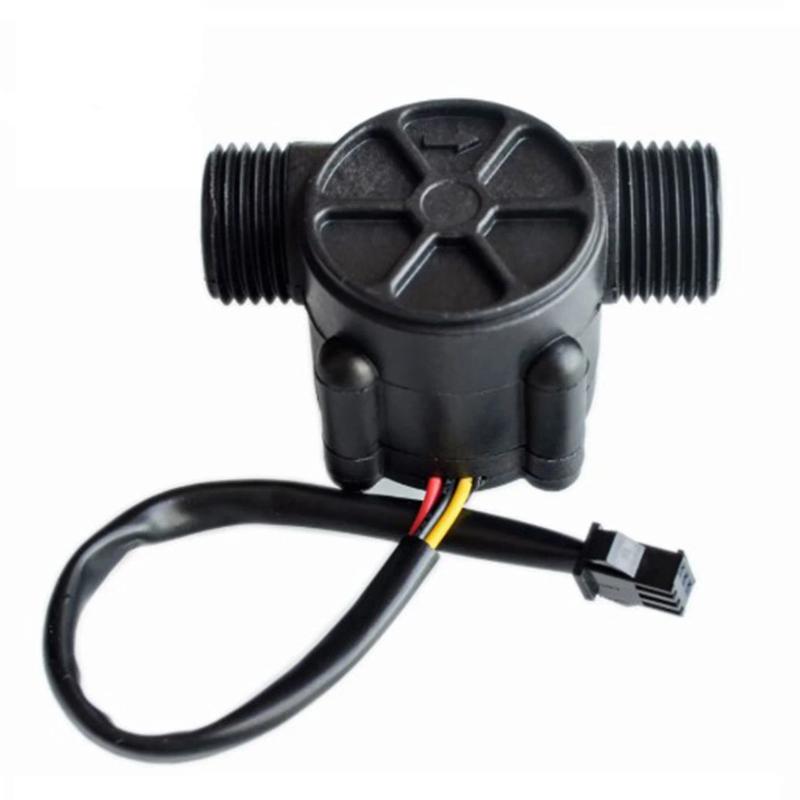

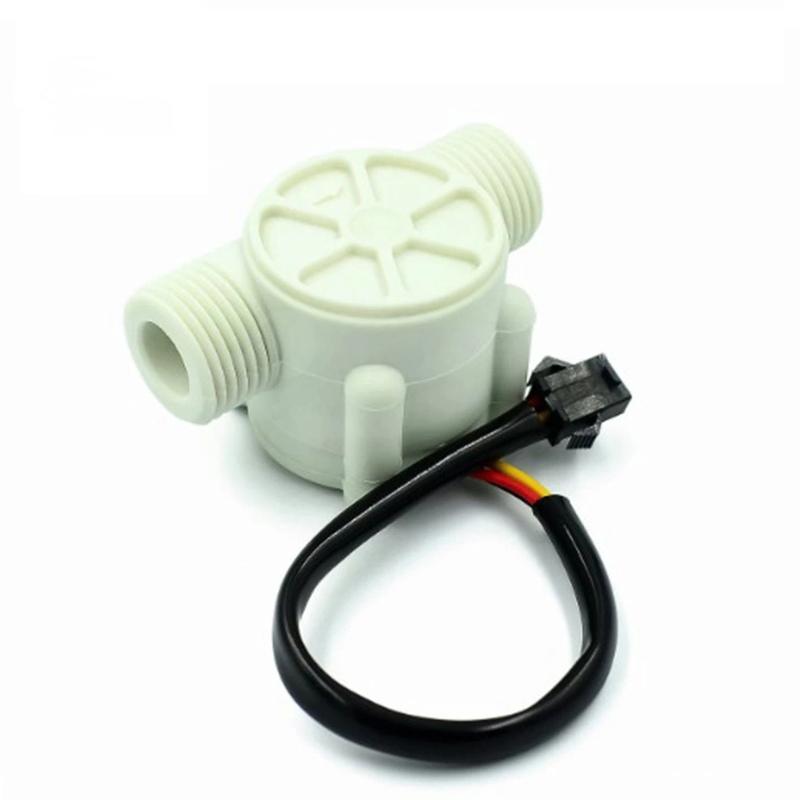

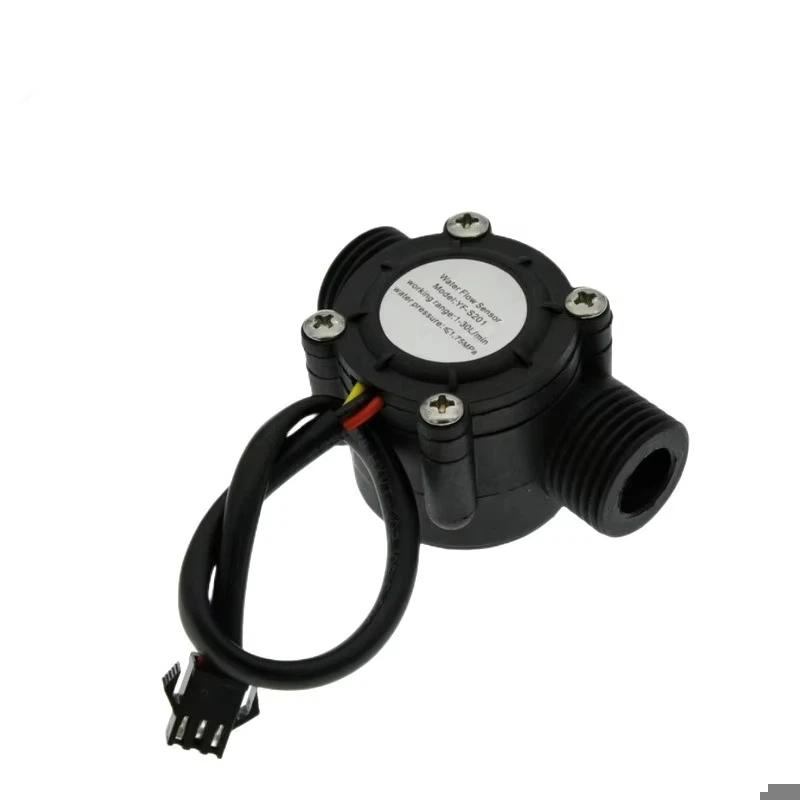

1Pcs Dc 5-18V Flowmeter Hall Flow Sensor Water Control Liquid Flow Sensor Switch 1-30L/Min 1.75Mpa 12V Water Flow Sensor

Features: Mainly used for water testing, water cooling system Application: Water heaters, credit card machines, water vending machine, flow measurement device The impeller is inlaid with stainless steel beads for wear resistance. The structure of the seal ring adopts force from top to bottom to prevent water leakage The Hall element is imported, the line is filled with a waterproof seal rubber ring, and the inlet waterproof silicone strengthens the waterproof Lead out method: 1. Connect the red IN to the positive pole 2 . Yellow OUT signal output line 3 . Connect black GND to negative pole Precautions for use: Severe impact and chemical erosion are strictly prohibited. Throwing or colliding is strictly prohibited. The temperature of the medium should not exceed 120 degrees. Specification: The lowest rated working voltage: DC4.5 5V-24V Maximum operating current: 15mA (DC 5V) Working voltage range: DC 5~18V Load capacity: ≤ 10mA (DC 5V) Use temperature: ≤ 80°C Operating humidity range: 35%~90%RH (no frost) Allowing pressure: Water pressure below 1.75Mpa Temperature: -25 ~ +80 °C External threads: 1/2' Outer diameter: 20mm Intake diameter: 9mm Outlet diameter: 12mm Material: Plastic Packing: 1pcs Note: 1. The color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. Please refer to the actual product received. 2. Please allow slight manual measurement deviation for the data. The merchant warrants that their products comply with all applicable laws, and are offered only if they comply with Joom's policies and EU Product Safety and Compliance laws.
