ENGINEER PA-09 Precision Crimping Pliers for Open Barrel Terminals

[Product Infomation] Brand : ENGINEER Materials : Steel

[Product Description]

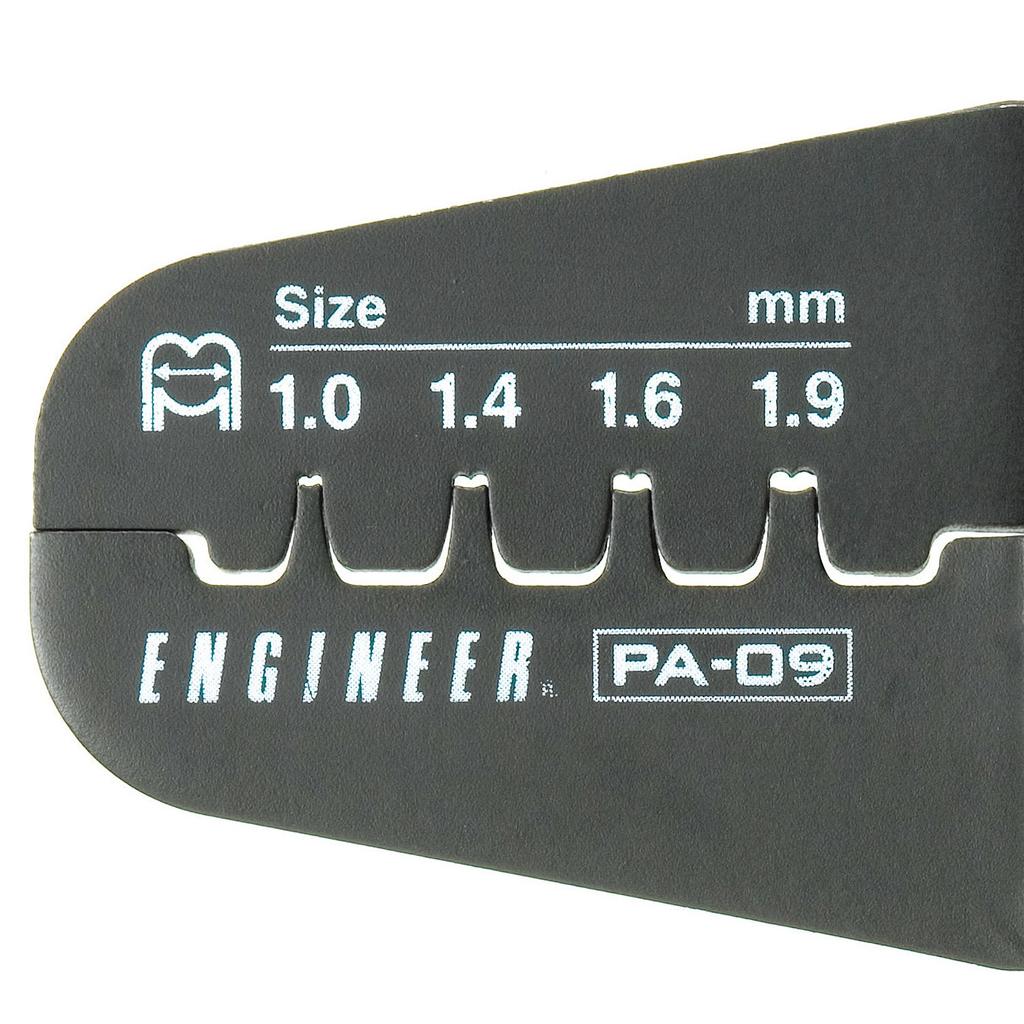

Size: 57mm x 175mm x 12mm Die Widths: 1.0mm, 1.4mm, 1.6mm, 1.9mm Die Heights: 0.50mm, 0.55mm, 0.8mm, 0.9mm Die Thicknesses: 1.7mm, 1.7mm, 2.0mm, 2.0mm Compatible Wire Sizes: 0.20-0.32mmφ, 0.32-0.51mmφ, 0.51-0.64mmφ, 0.51-0.81mmφ Compatible Wire Sizes: 0.03-0.08mm^2, 0.08-0.21mm^2, 0.21-0.33mm^2, 0.21-0.52mm^2 Compatible Wire Sizes: #32-28, #28-24, #24-22, #24-20

Product Introduction

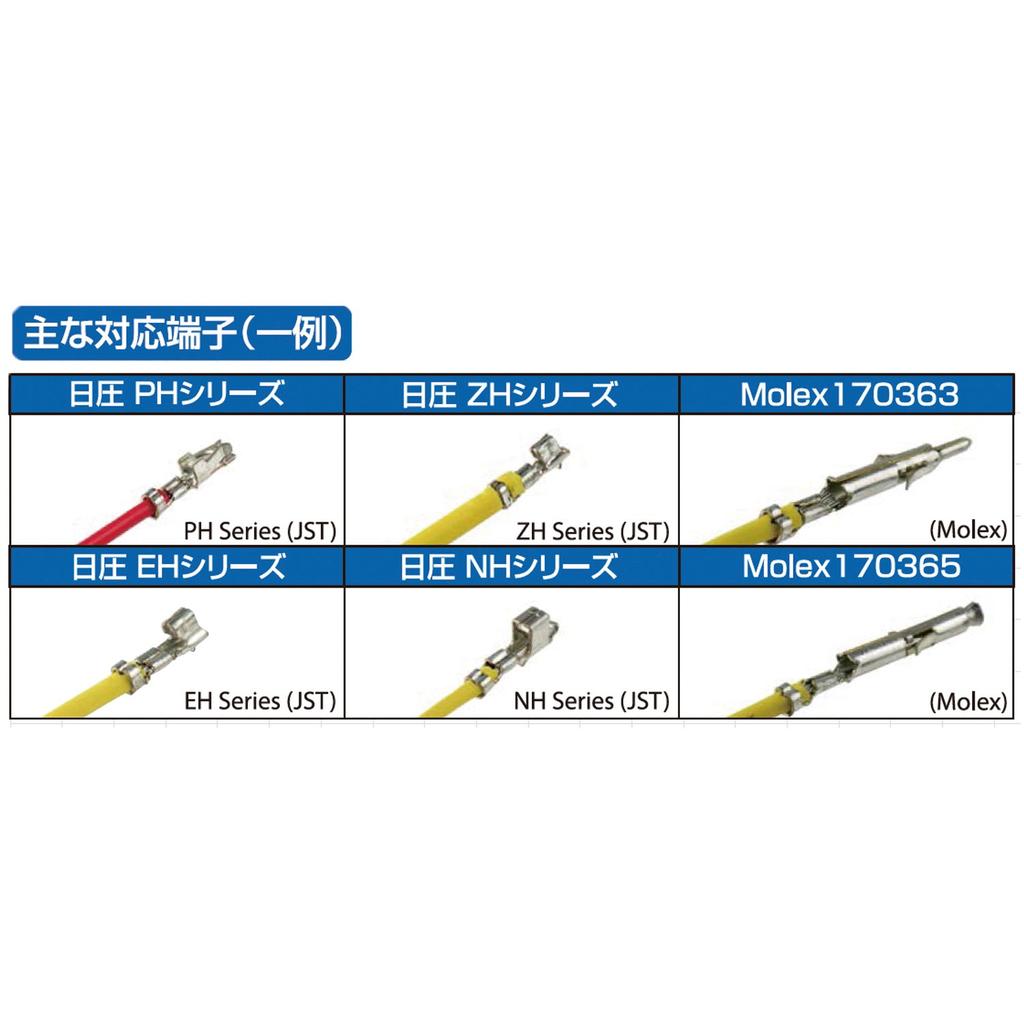

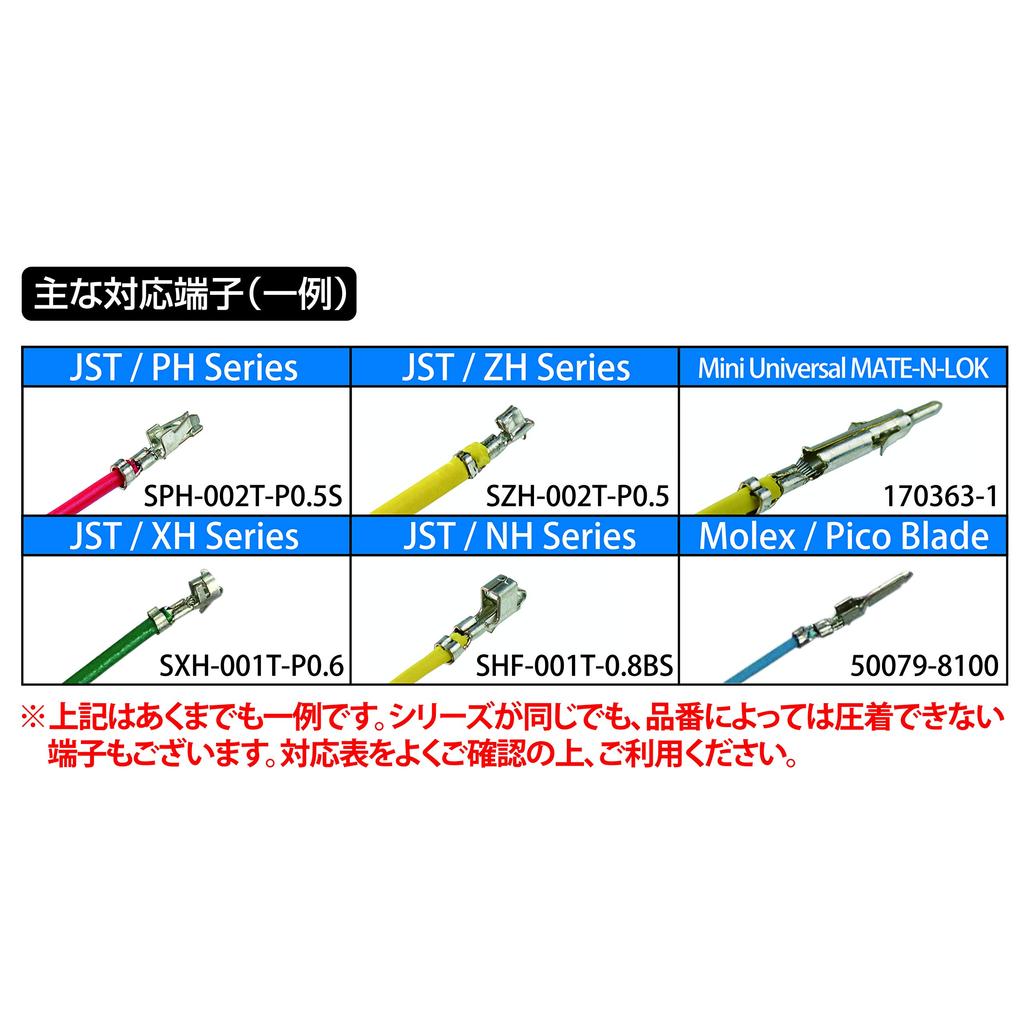

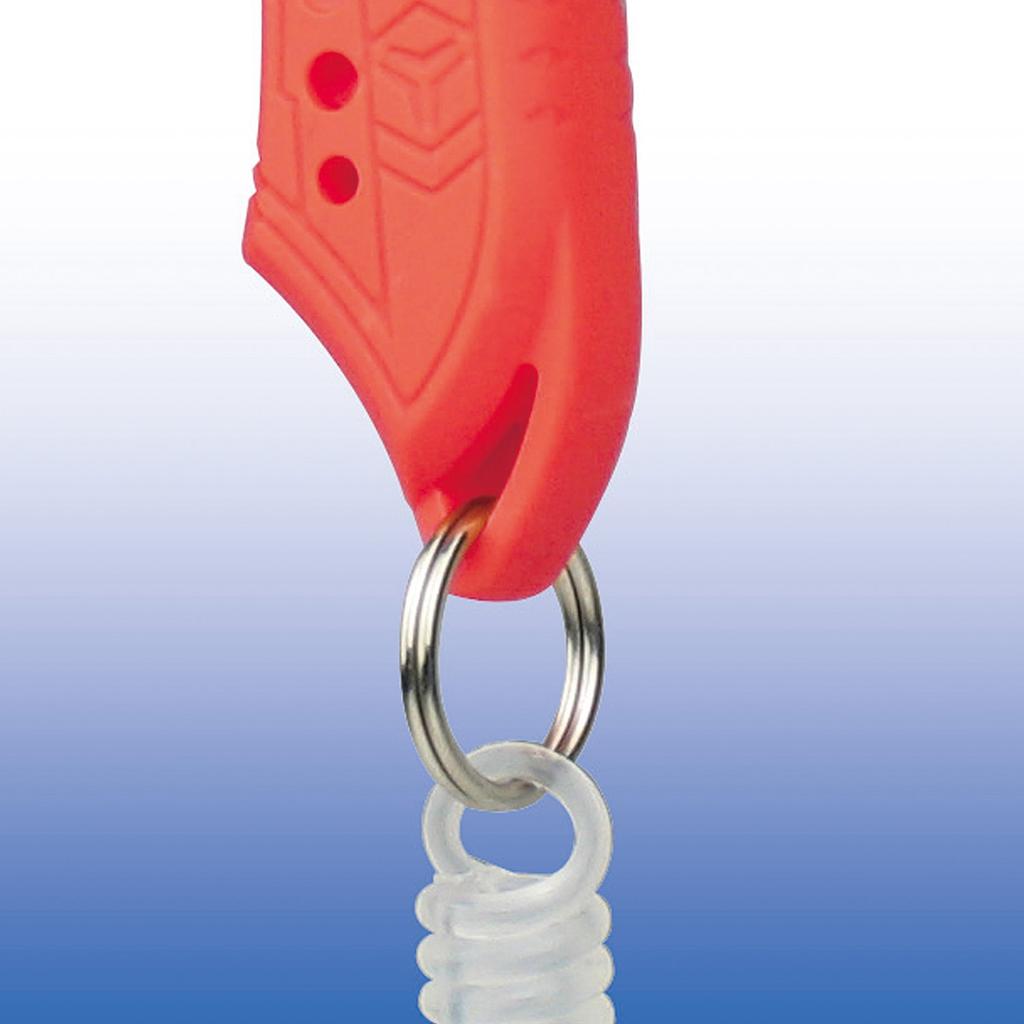

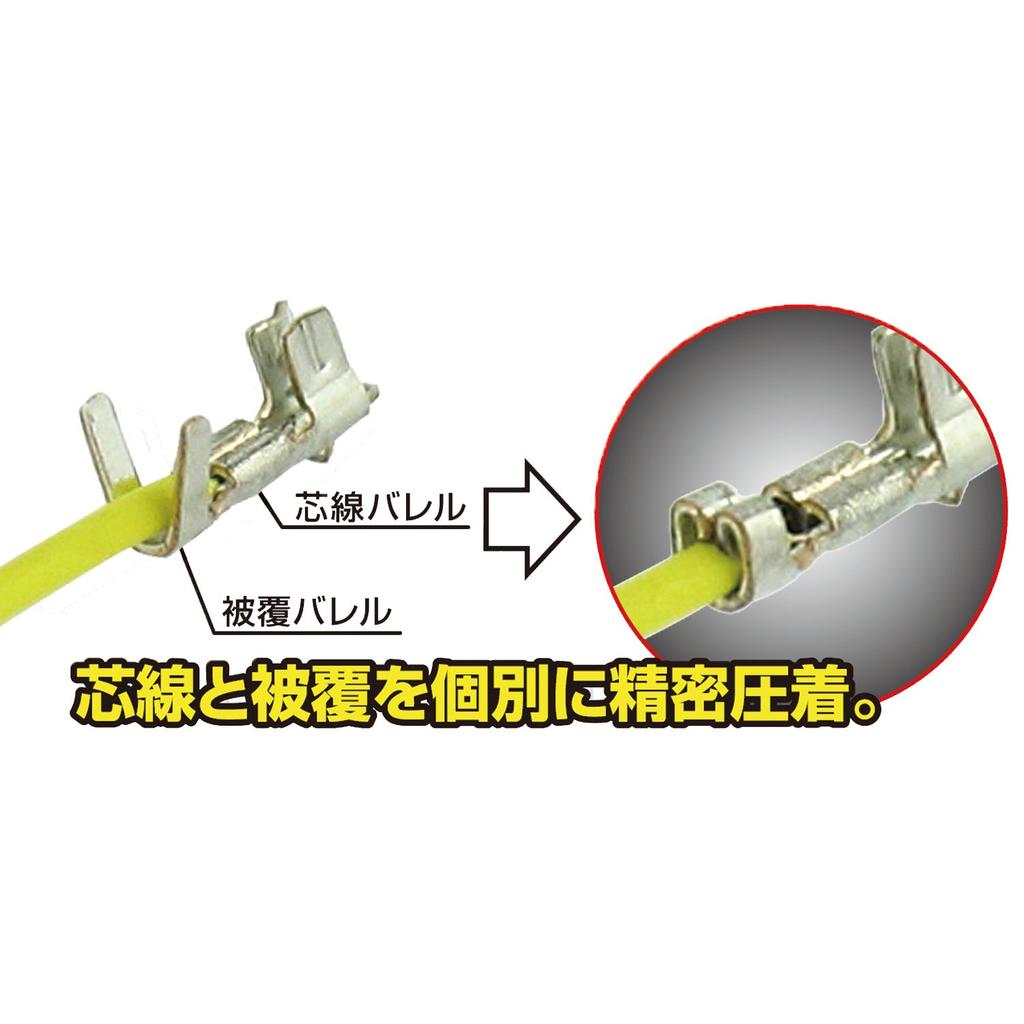

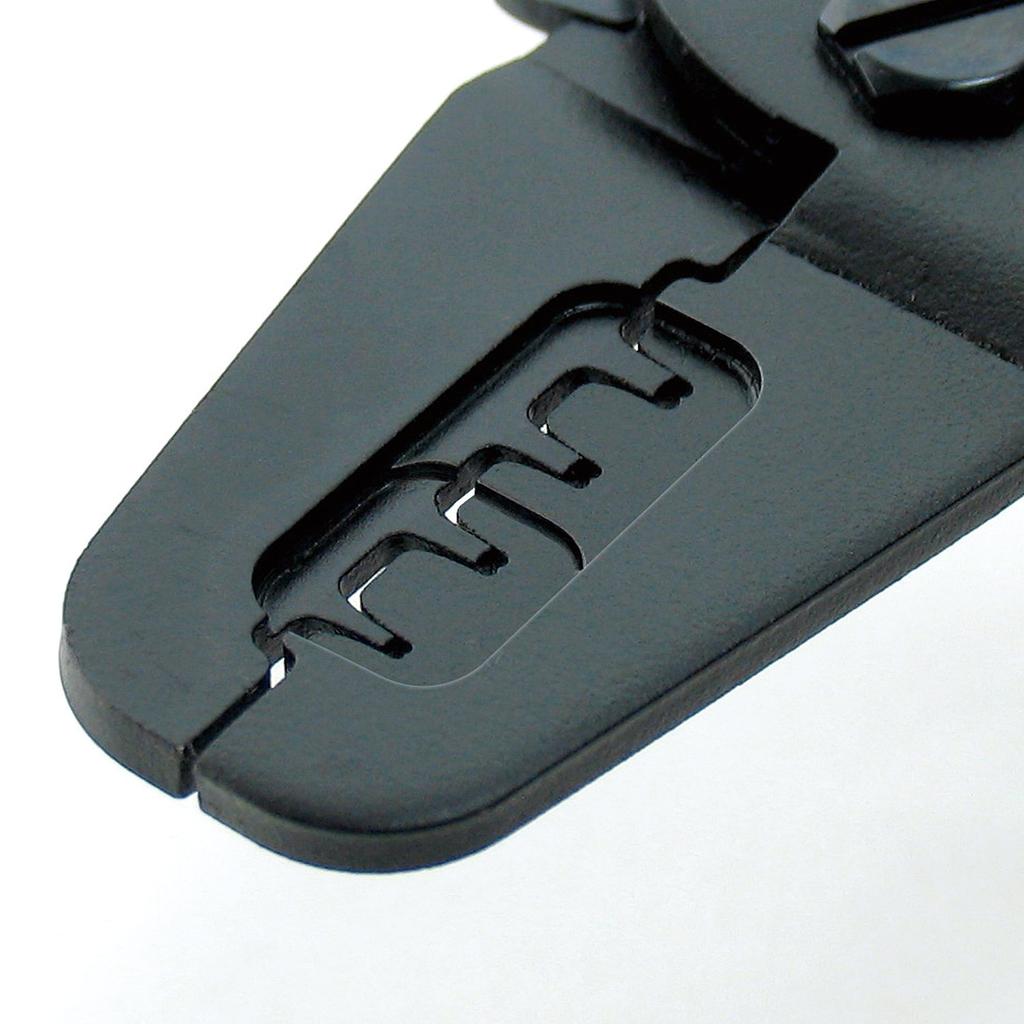

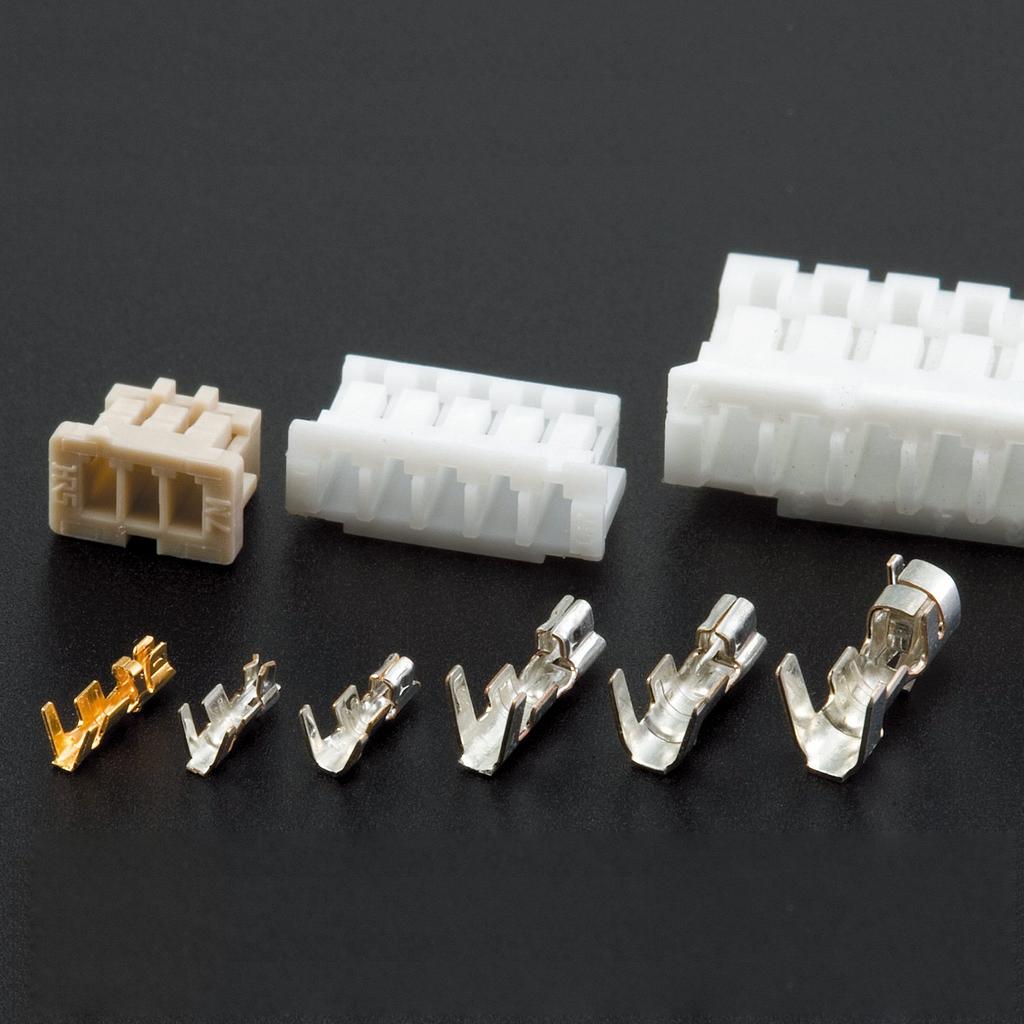

Finally, these precision crimping pliers are capable of crimping half-pitch contacts. Four die sizes allow for crimping of extremely small terminals with a 1.25mm-2.5mm pitch. High-precision crimping of extremely small contact pins, including 1.25mm and 1.5mm pitch, is possible. Compatible with AWG wire sizes #32-#20. The thin-walled die is ideal for crimping extremely small pins. The grip is made of environmentally friendly elastomer and is highly oil-resistant. The body surface is finished with a luxurious black Teflon finish. The set pin allows for easy adjustment of loosening due to extended use. A convenient lanyard hole is included for drop prevention. *The color and shape of the grip will change once the current product is sold out.

From Amazon

● Four die sizes allow for crimping of extremely small terminals with a pitch ranging from 1.25mm to 2.5mm. ● High-precision crimping accuracy. ● Compatible with AWG #32 to #20 wire. ● Thin die wall design ideal for crimping extremely small pins. ● Grip made of environmentally friendly elastomer with excellent oil resistance.

[Important Notes - For International Customers]

Thank you for purchasing this product. Please read the following important notes carefully before using this product overseas.

1. Legal and Safety Standards This product complies with Japanese safety standards. Before using this product in your country, please verify compliance with local legal and safety standards. Certain product categories (electronic devices, cosmetics, food, etc.) may require importing country certification.

2. Regarding Electrical Products [Voltage Compatibility] When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V). Using them with a different voltage may cause malfunction.

[Plug Type] Our products use Japanese plug types (Type A or Type B). Please use a conversion adapter if necessary.

[Important Notes Regarding Transformers and Adapters] A transformer adjusts the voltage to match the device's requirements. A conversion adapter only modifies the plug shape; it does not adjust the voltage. Using a conversion adapter without a transformer may damage the product.

[Liability] We are not responsible for any malfunctions or damage caused by improper use, such as operating the product without a transformer.

3. Language and Manual Product instructions and labels may only be in Japanese. You can download the English manual from our website.

4. Product Returns and Exchanges Please note that if you wish to return or exchange a product, you must submit a video of the product being unpacked.
