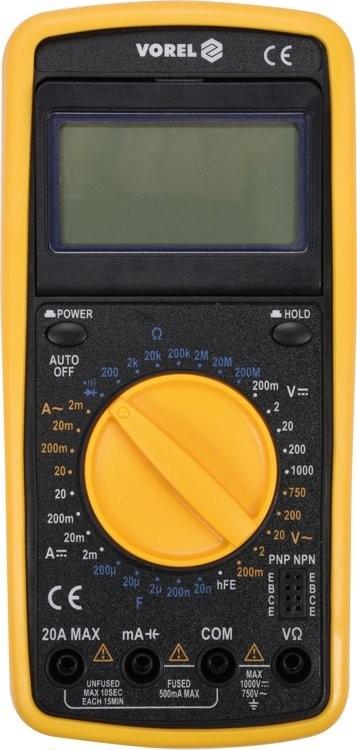

.w3-container .w3-padding-left { font-size:160%; font-weight:normal; margin:20px 0px 15px 0px; } .w3-container p { margin:10px 0px 10px 0px; } .w3-container .w3-padding-left:first-child { margin-top:0px; } .w3-table { width:100%; } .w3-table td, th { padding: 6px 8px; padding-left: 8px; display: table-cell; text-align: left; vertical-align: top; background:#f2f2f2; } .w3-bordered tr { border: 1px solid #d0d0d0; } Product Description Multifunction digital meter with adjustable display byVOREL 81775. This digital meter is particularly useful for diagnosing and detecting faulty components in electrical installations.
Supports measurement of: AC voltage: U a.c. 200mV / 2V / 20V / 200V / 750V DC voltage: U d.c. 200mV / 2V / 20V / 200V / 1000V AC current: I a.c. 2mA / 20mA / 200mA / 20A DC current: I d.c.2mA / 20mA / 200mA / 20A Resistance: R 200Ω / 2kΩ/ 20kΩ/ 200kΩ/ 2MΩ/ 20MΩ/ 200MΩ capacity: C 20 nF, 200 nF, 2 μF, 20 μF, 200 μF diode test: IF 1 mA, UR 1.5 V Transistor test: hFE PNP, NPN The audible signal allows you to easily verify circuit continuity. MultimeterVOREL 81775has a displayLCDallowing you to display the resultmax 1999. Its unique advantage is the ability to adjust the inclination angle, which significantly facilitates the reading of measured parameters. Furthermore, the DATA HOLD function allows you to keep the currently measured value on the display.
The meter is powered by a 9V (6F22) battery. Thanks to the AUTO-POWER OFFfunction, the device will automatically turn off after 15 minutes of inactivity, saving battery life and extending its life.

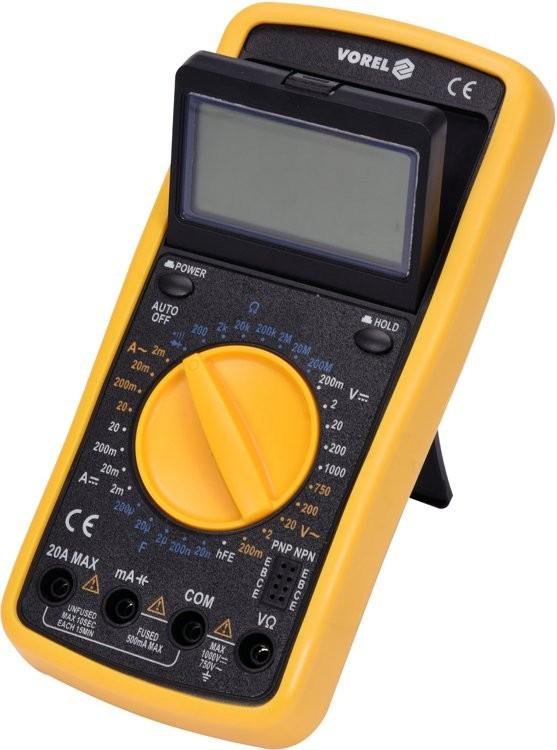

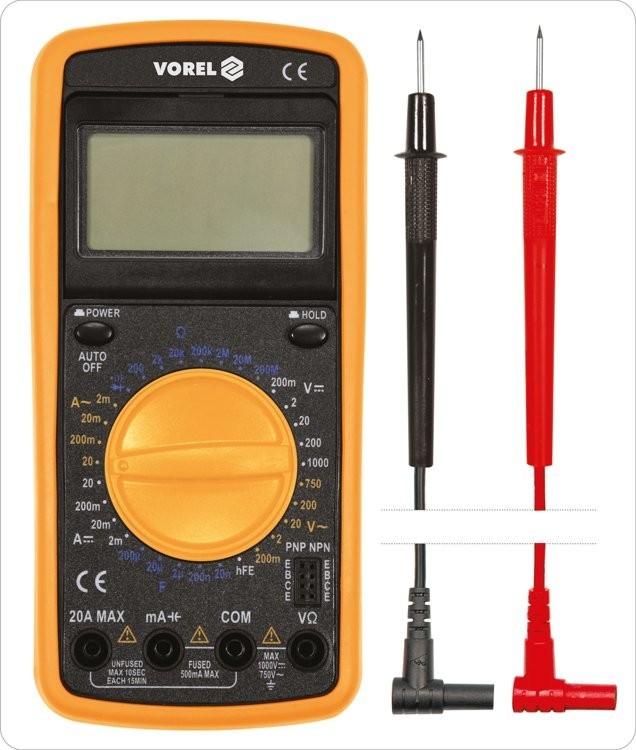

The aesthetically pleasingrubber casing primarily protects it from mechanical damage while increasing comfort of use. Additionally, a pull-out kickstand on the back allows you to position it for easier viewing.The kit includestest leads
.
Technical DataIndex Number 81775EAN5906083042584 Brand Vorel Transistor hFe Measurement PNP, NPN AC Voltage Measurement 0-750V DC Voltage Measurement 0-1000V Capacitance Measurement 20n - 200uF Measurement Resistance 0-200M Alternating Current 0-20A Direct Current 0-20A Continuity Test YES Test diodes YES
