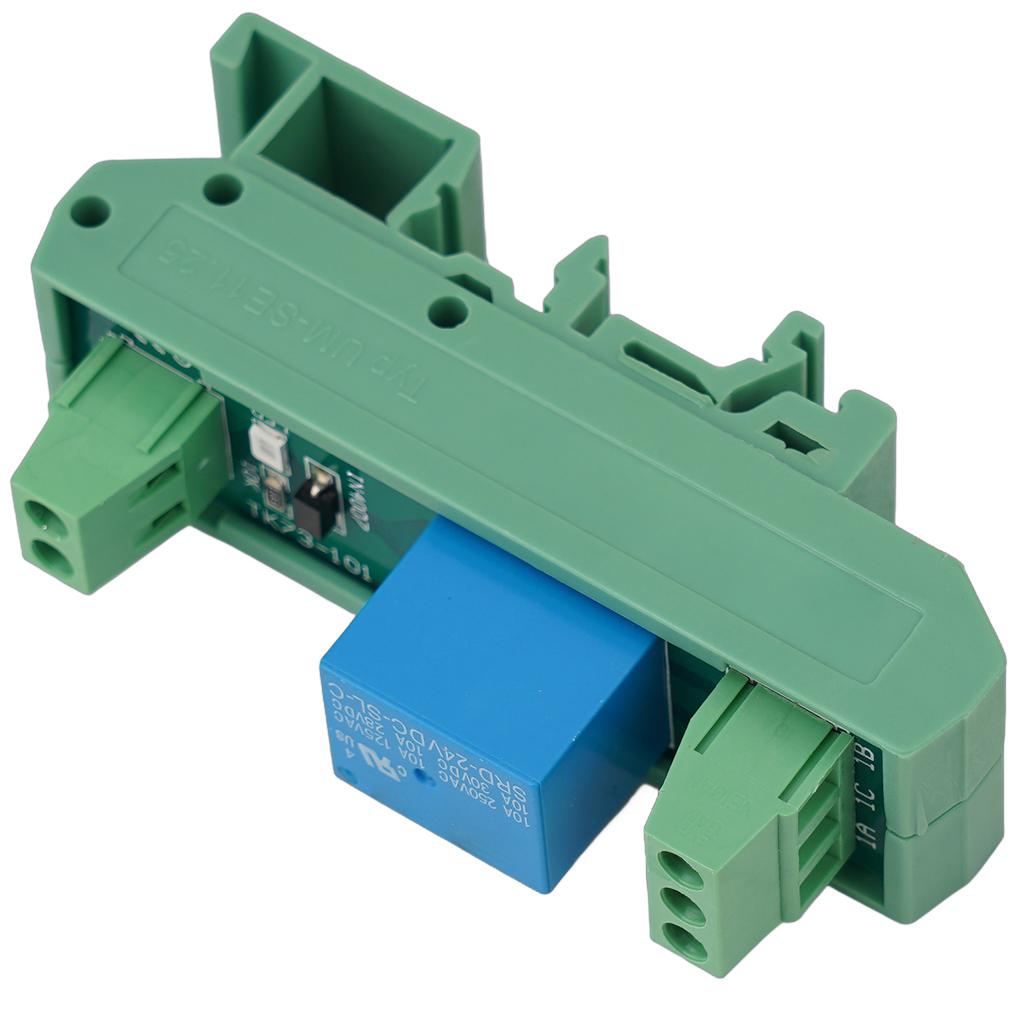

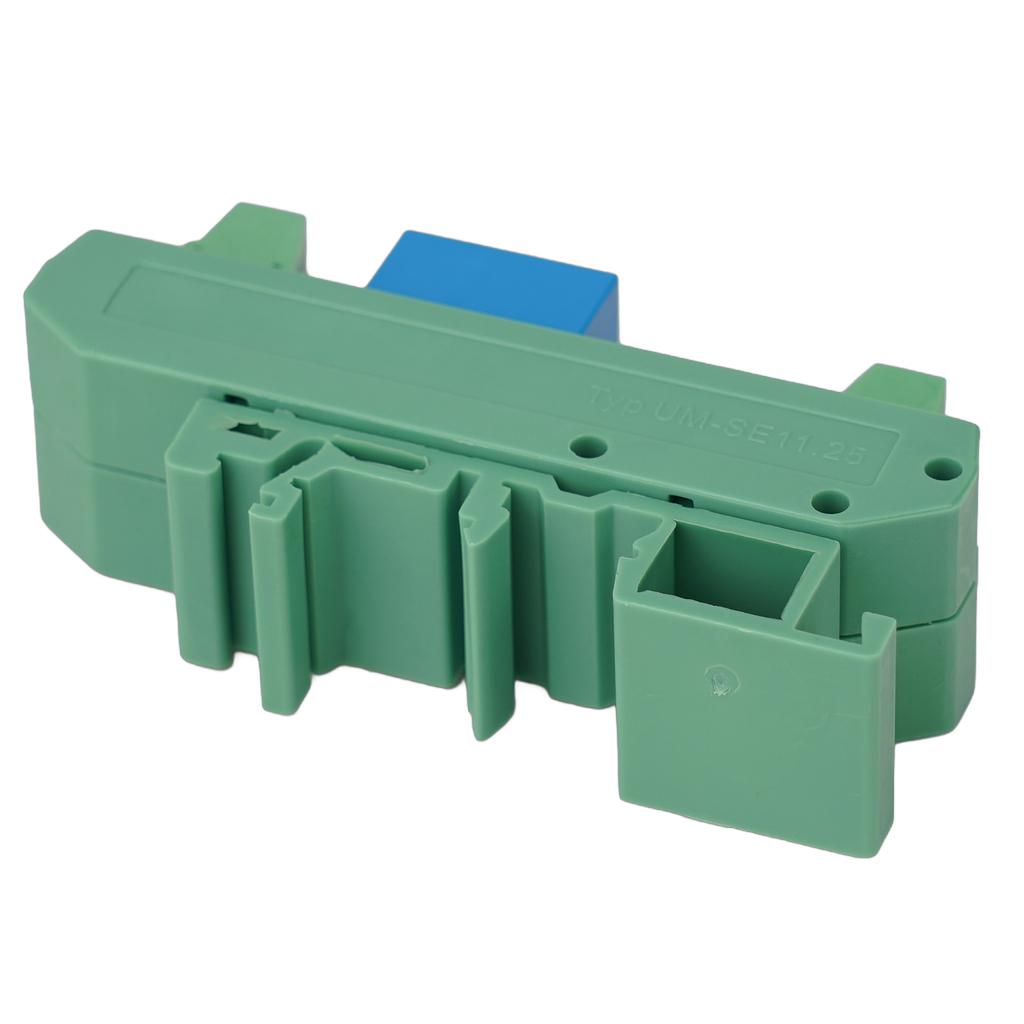

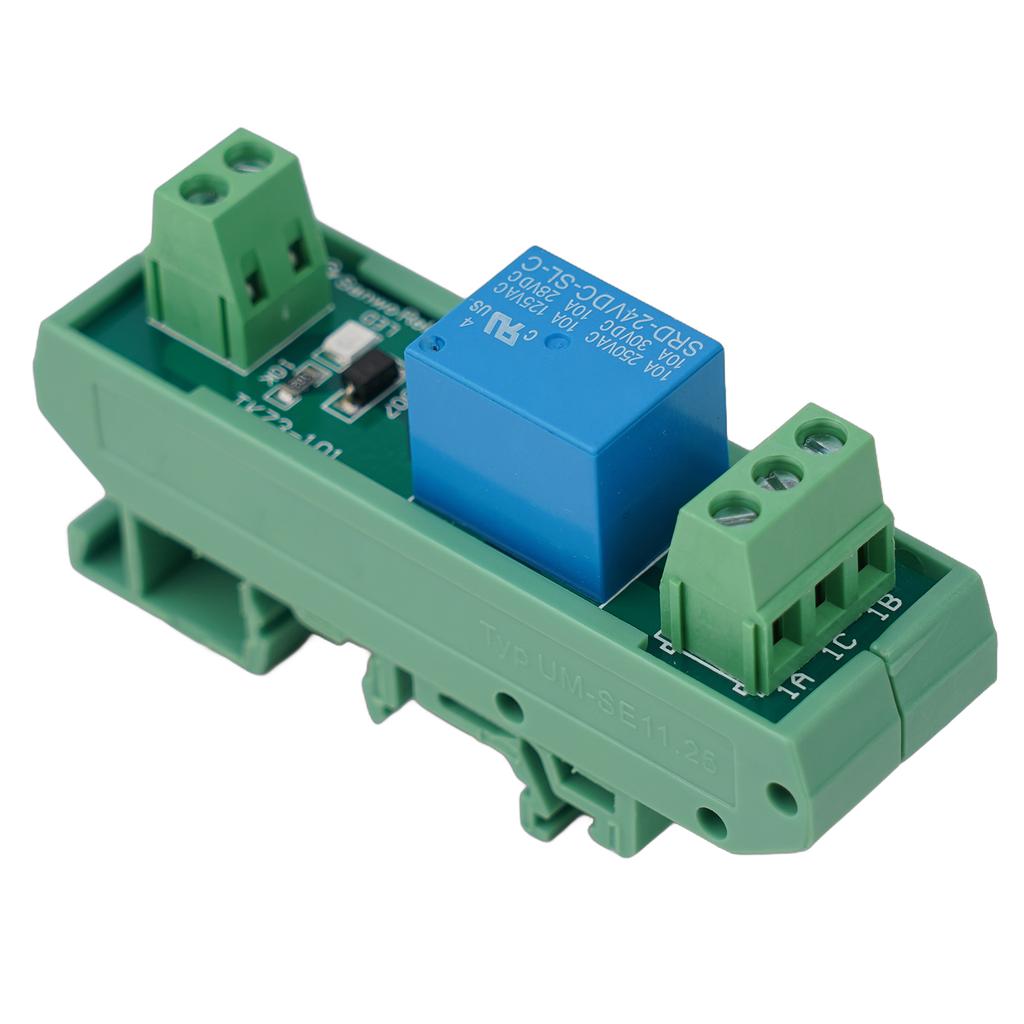

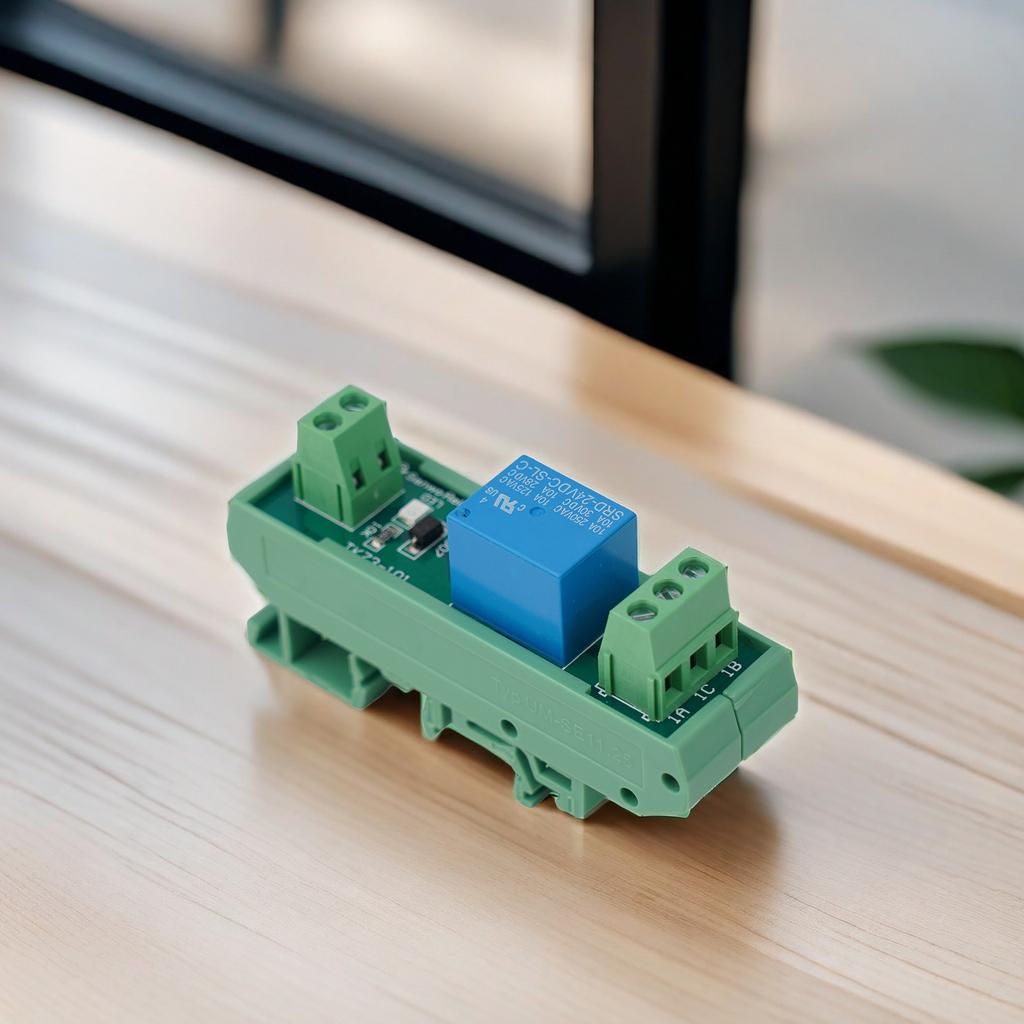

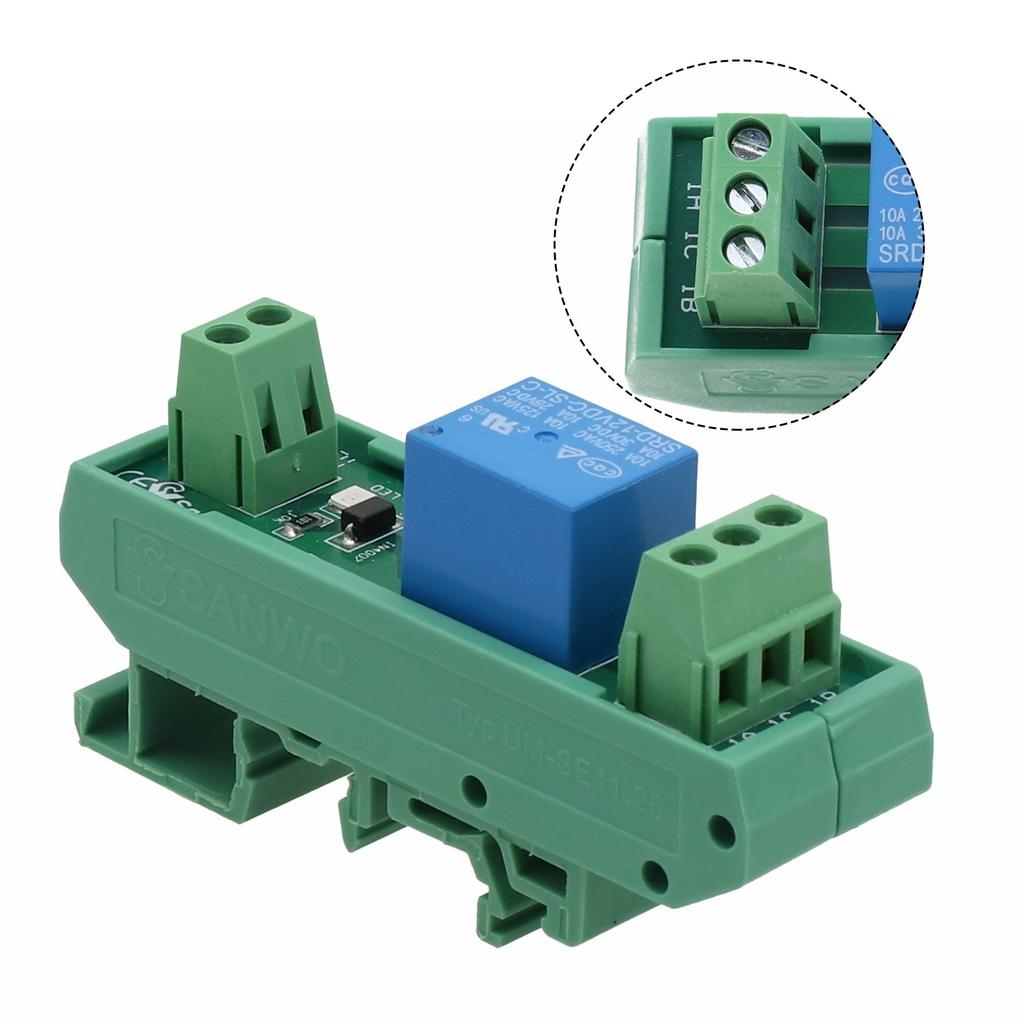

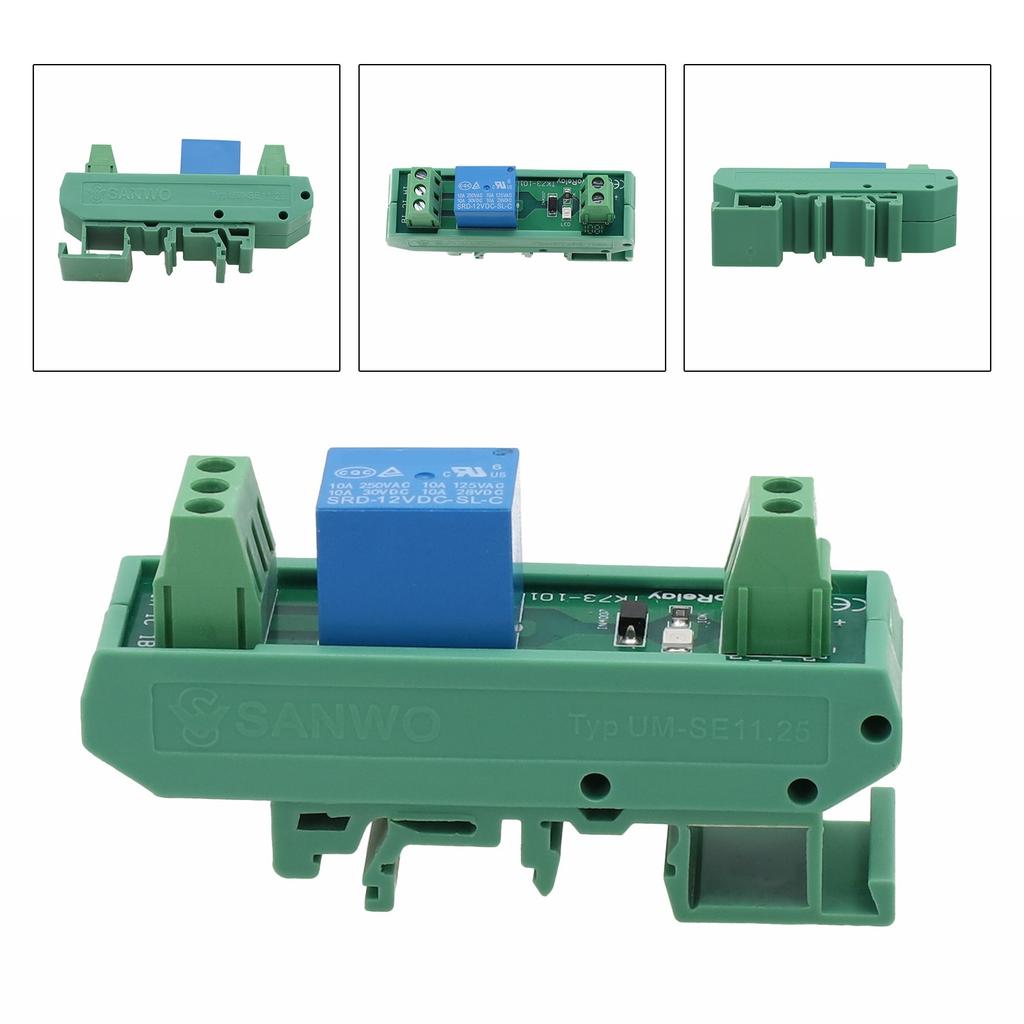

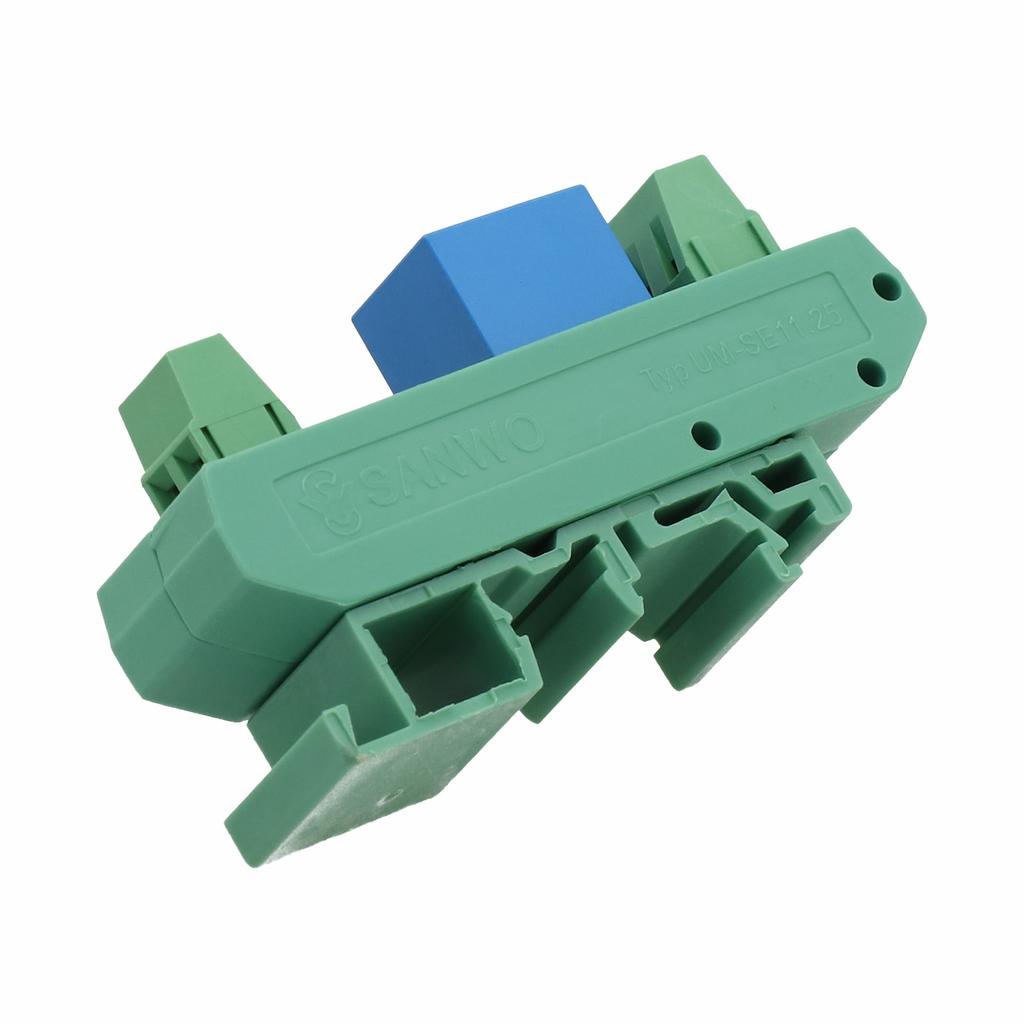

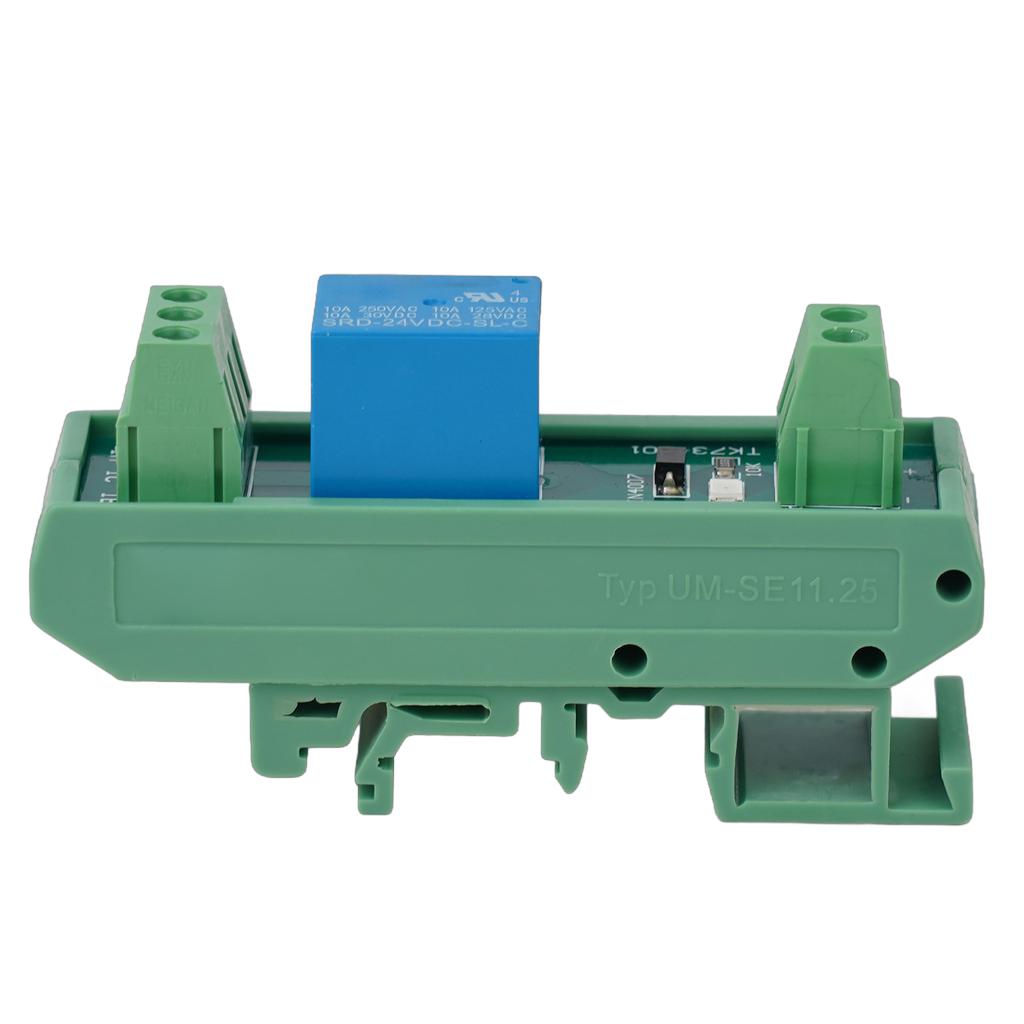

30VDC 250VAC Relay Board 5/12/24V Relay Built-in MPA Electromagnetic Relay

Features:

* DIN Rail optional 1-channel relay interface module * 1 NO& relay module; * Built-in MPA electromagnetic relay * Switching current up to 10A at 250VAC or 30VDC * Input wiring adopts screw terminals, NPN&PNP common, AC&DC common * Relay status indication LED, each relay channel has surge suppression for Protection and overvoltage for Protection * DIN rail mounting in width TS15/28/35

Specification:

* load: 10A * switching current: 10A * switching voltage: 30VDC/250VAC * information: 1 NO&1

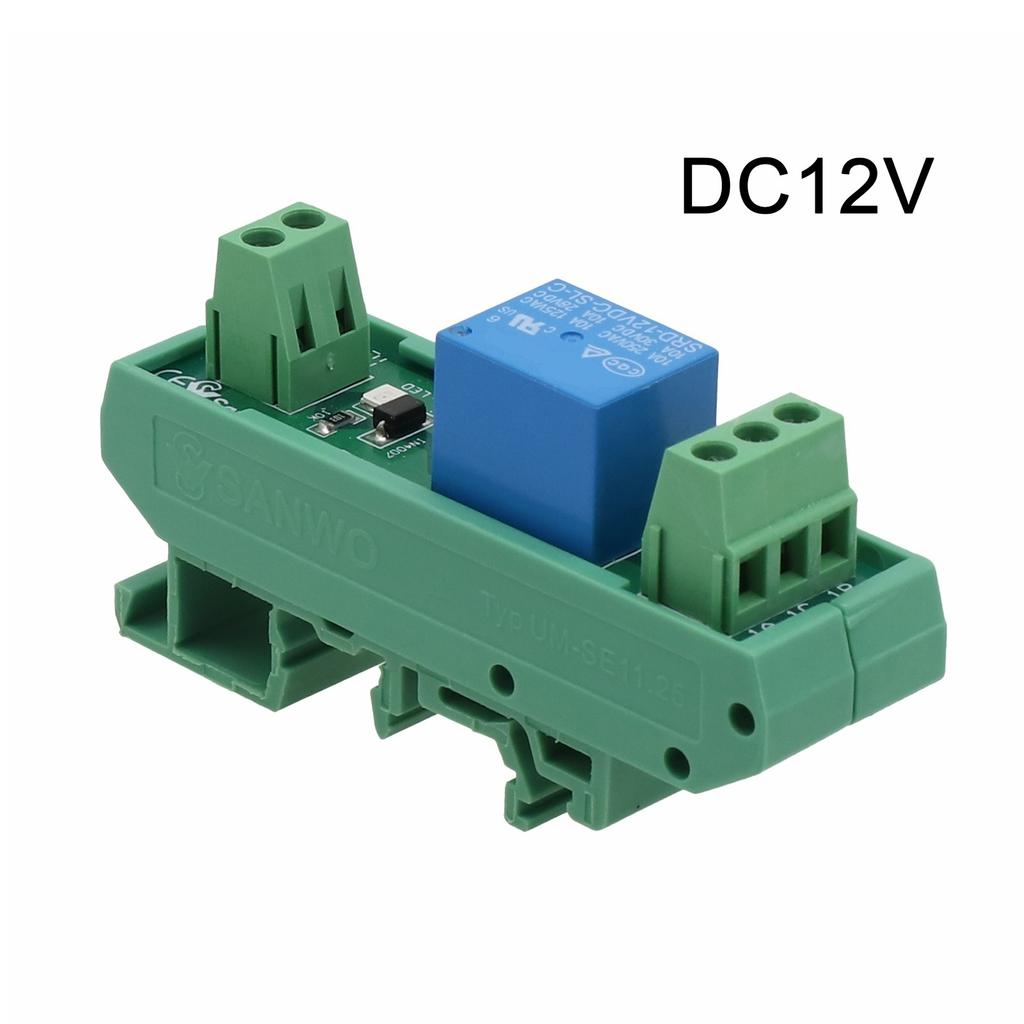

* Rated current: 10A * Rated voltage: 1 channel DC5V, 1 channel DC12V, 1 channel DC24V * for Protection feature: sealed * Coil power supply: DC5V/12V/24V(optional) * Coil power: 0.53W * 3C rated voltage range: below 36V * Application Field: Electrical Engineering

Package iludes:

1*Din rail 1 channel relay board

Notes:

1. Due to various factors such as display brightness and light brightness, the actual color of the product may be slightly different from the website picture. 2. Please allow a slight deviation between the data and the manual measurement.
