Frame material: high-strength aluminum alloy
Net weight/gross weight: ≈ 32.5 kg/≈ 40 kg
Product size: 1860 × 1080 × 680 mm (handlebar length 68 cm)
Packaging size: 1480 × 240 × 790 mm
Maximum load capacity: 150 kg
Suitable height: 170-200 cm
power system
Motor: 48V 750W brushless motor, torque 65 Nm
Sensor: speed sensor
Factory top speed: 25 km/h (compliant with EU electric assisted bicycle standards)
Top speed after deceleration: 45-50 km/h (adjustable)
Release speed limit method: Adjust the P08 parameter on the instrument to 67 to release the speed limit
Battery system (dual battery solution)
Battery type, capacity, battery cell specifications, dimensions (approximately), weight (approximately)
Built in battery 48V 15 Ah Dongci 21700 365 × 90 × 110 mm 3.95 kg

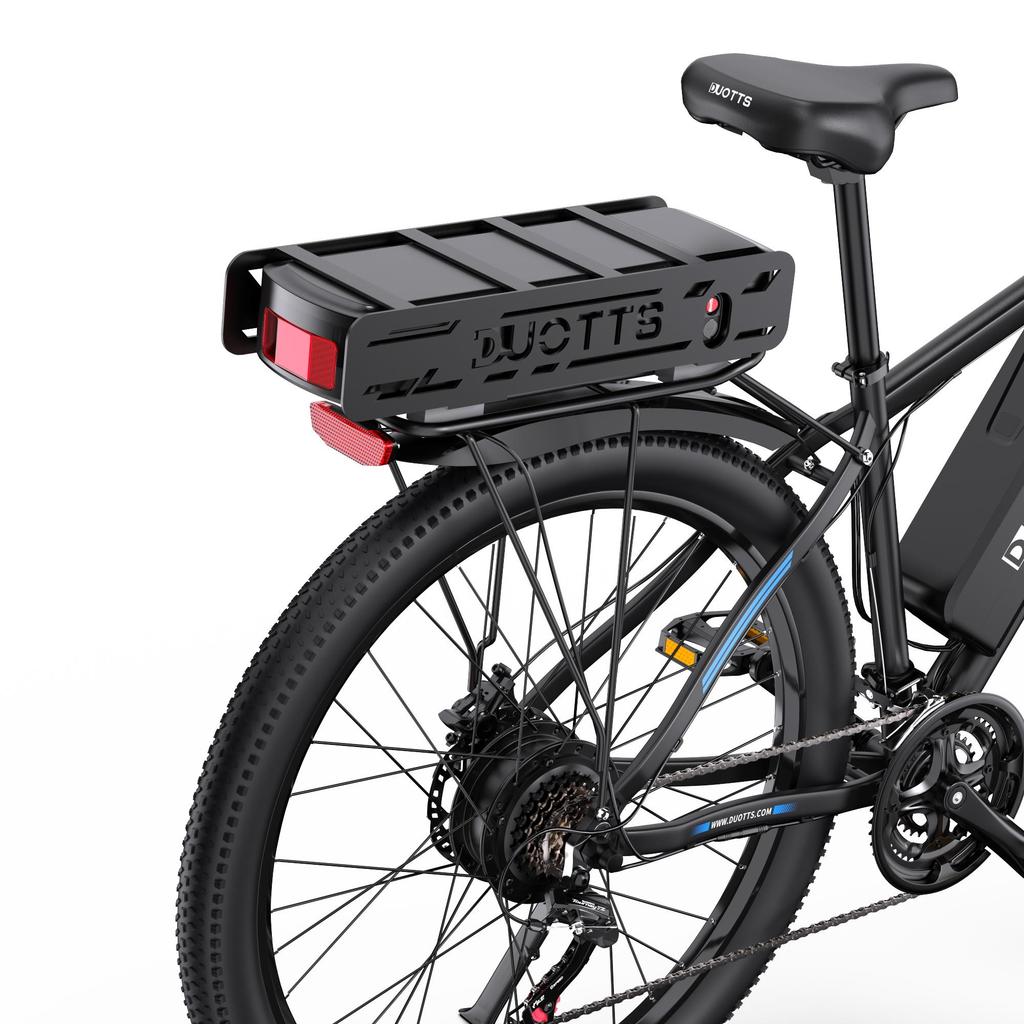

Rear shelf battery (optional/expandable) 48V 22.5 Ah Dongci 21700 456.5 × 155 × 78.5 mm 6.05 kg
Comprehensive range: approximately 150-170 km in auxiliary mode
Charging time:
54.6V 2A charger: 7-8 hours
54.6V 3A charger: 6-7 hours
Transmission and braking

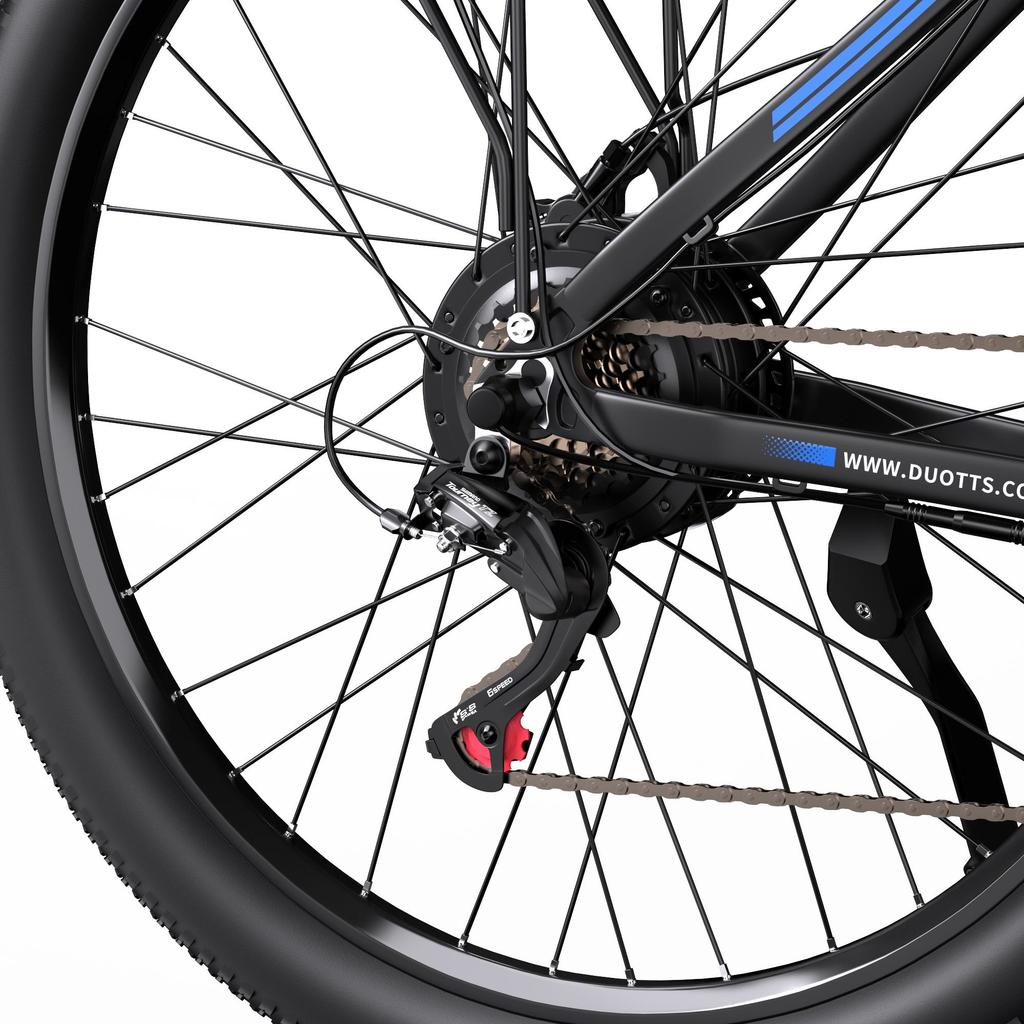

Transmission system: SHIMANO TOURNEY 3 × 7 speed (21 speed)

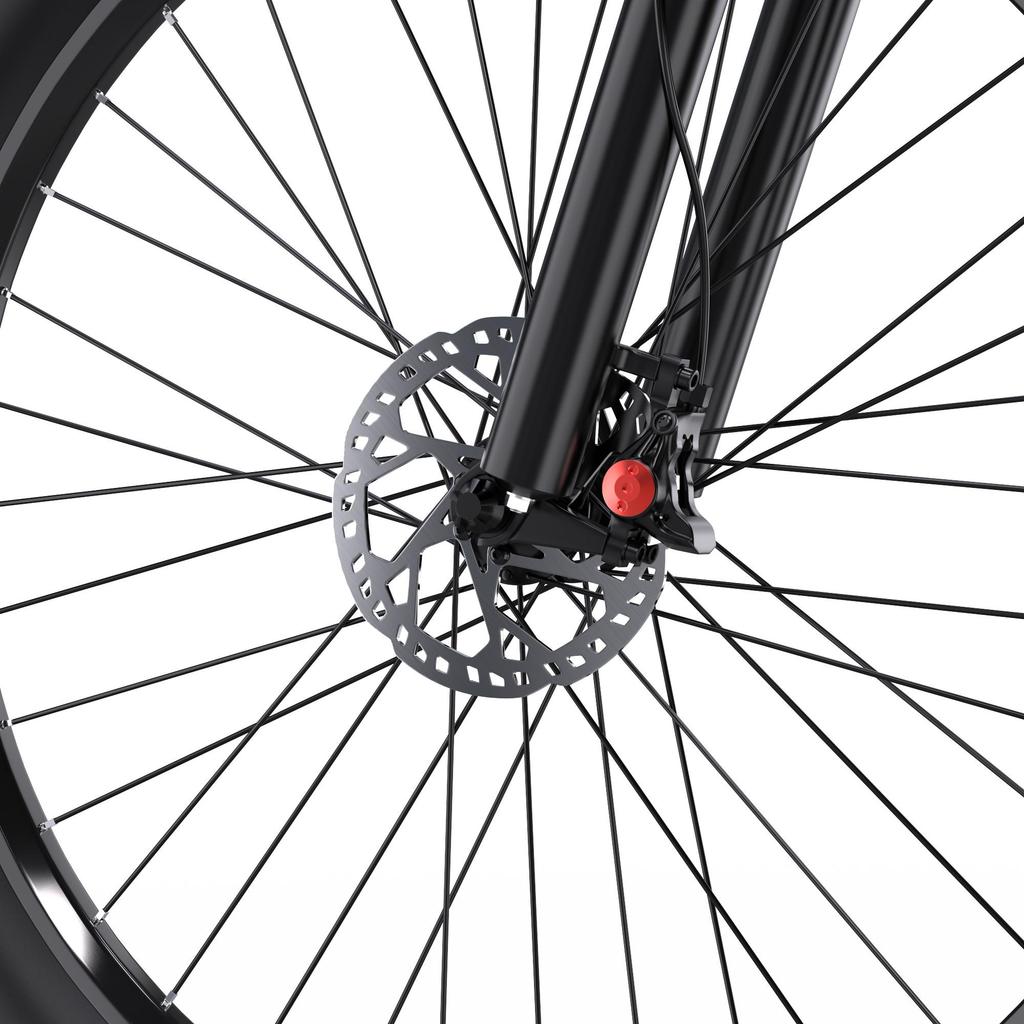

Braking system: Front and rear hydraulic disc brakes (oil brakes)

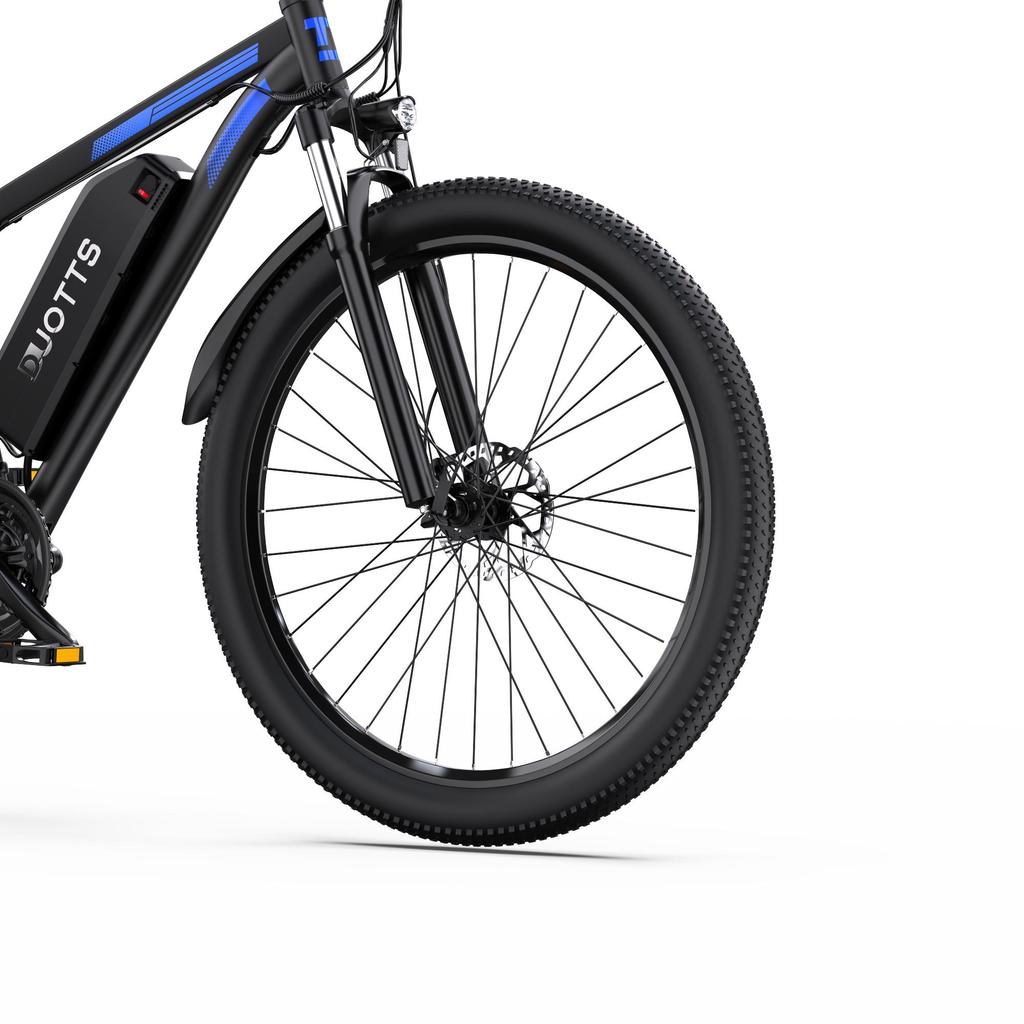

Tire: 29 x 2.125 inch mountain tire
Configuration and Functionality
Handlebars: aluminum alloy, length 68 cm
Seat cushion: height adjustable (85-103 cm)

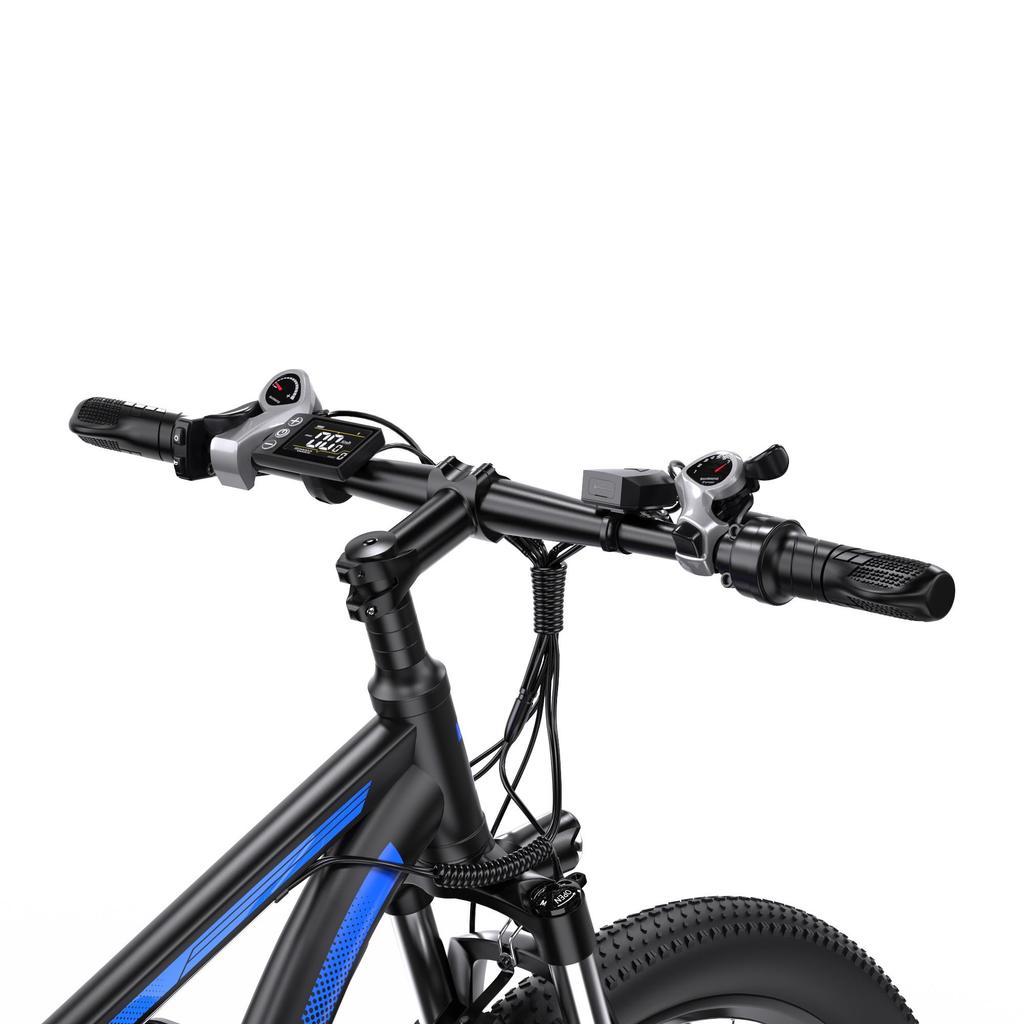

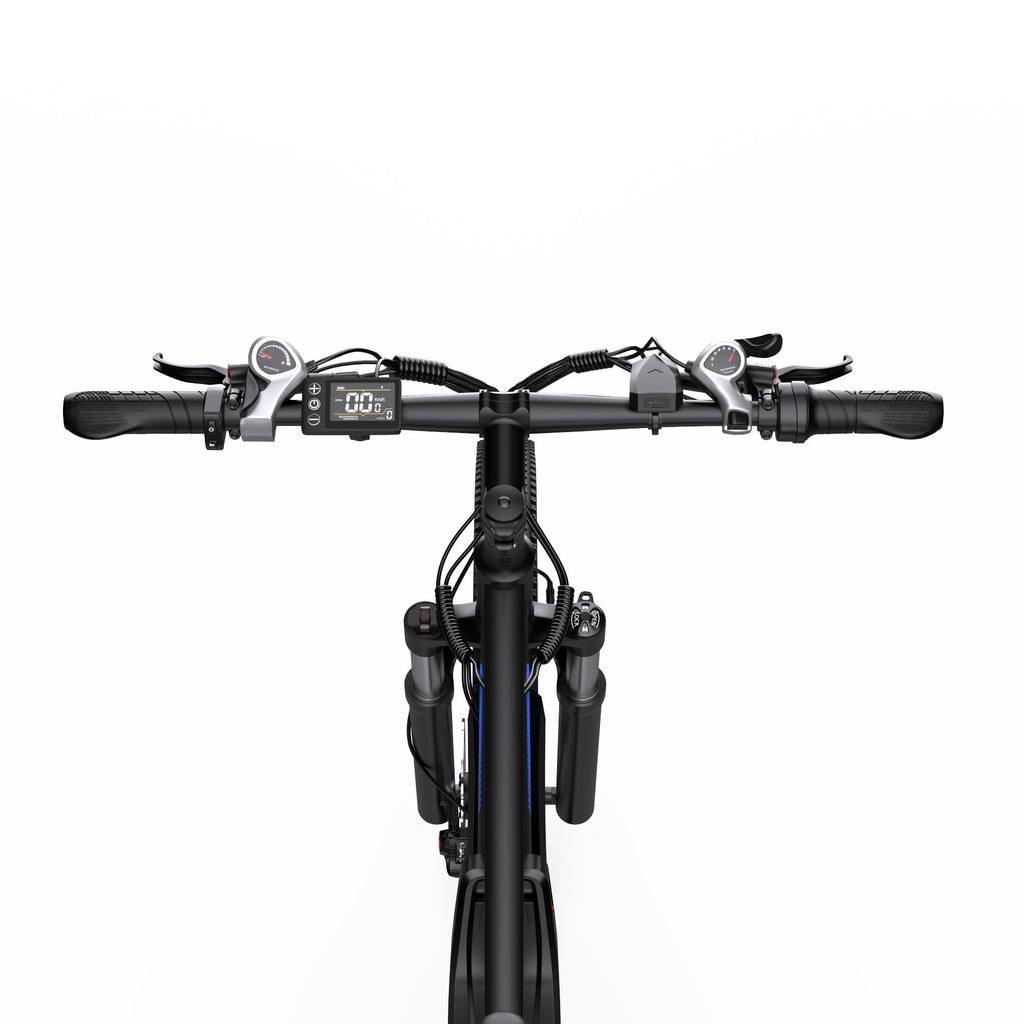

Instrument: 2.4-inch LCD screen (European standard), three key control, supports Bluetooth connection
Taillights: High brightness taillights (without brake sensing)
Waterproof rating: IPX4 (prevents light rain, rainwater splashing, cannot be directly flushed)
Climbing angle: maximum 30 ° (suitable for slopes in medium-sized cities)
package contents
Charger, instruction manual, sixteen in one tool kit, handle, foot pedal, quick release shaft, motor shaft protective cover, air pump, mobile phone case.
1. Dual battery ultra long endurance, bidding farewell to range anxiety
Standard 48V 15Ah built-in battery+optional 48V 22.5Ah rear shelf extension battery
In auxiliary mode, the range can reach up to 150-170 km, meeting the needs of cross city commuting and long-distance outings
Using high-performance Dongci 21700 battery cells, with high energy density and long cycle life
2. Strong power and flexible speed mode
750W motor paired with 65 Nm high torque, effortlessly conquering 30 ° steep slopes
Support compliance/performance dual-mode:
Factory speed limit of 25 km/h (compliant with EU electric assisted bicycle standards, does not require a driver's license, can be registered)
After one click speed control, it can reach 45-50 km/h, meeting the needs of users with higher speed requirements
3. Professional mountain bike configuration
29 inch large wheel diameter+2.125 inch wide tires provide excellent passability, stability, and cushioning
SHIMANO TOURNEY 3 × 7-speed transmission system, suitable for complex terrain and climbing needs
Front and rear hydraulic disc brakes have strong braking force and fast response, ensuring safety during downhill and emergency braking
4. Intelligent interconnection and humanized design
The 2.4-inch LCD instrument panel supports Bluetooth connection to the DUOTTS APP, enabling functions such as cycling data recording, vehicle status monitoring, firmware upgrades, etc
Adjustable handlebars and seat cushions for a height range of 170-200 cm, enhancing riding comfort
Equipped with practical accessories such as high brightness taillights, phone bags, and air pumps, making travel more convenient
5. High cost-effectiveness and reliable quality
Aluminum alloy frame balances lightweight (32.5 kg) and high strength, with a load capacity of 150 kg
IPX4 waterproof rating, not afraid of light rain weather
The packaging contains a complete set of tools and accessories, making installation and maintenance easy
Target users and usage scenarios
Long distance commuters: Ultra long battery life suitable for cross regional commuting
Mountain cycling enthusiasts: large wheel diameter, high torque, professional variable speed suitable for off-road and climbing
Tall users: Suitable for heights up to 200 cm
Riders pursuing intelligent experience: Bluetooth connected APP for data-driven management of cycling
one-sentence summary
A versatile electric mountain bike with a dual battery 170km long range, 750W high torque to conquer 30 ° steep slopes, SHIMANO 21 speed professional transmission, and intelligent APP connectivity. ”
