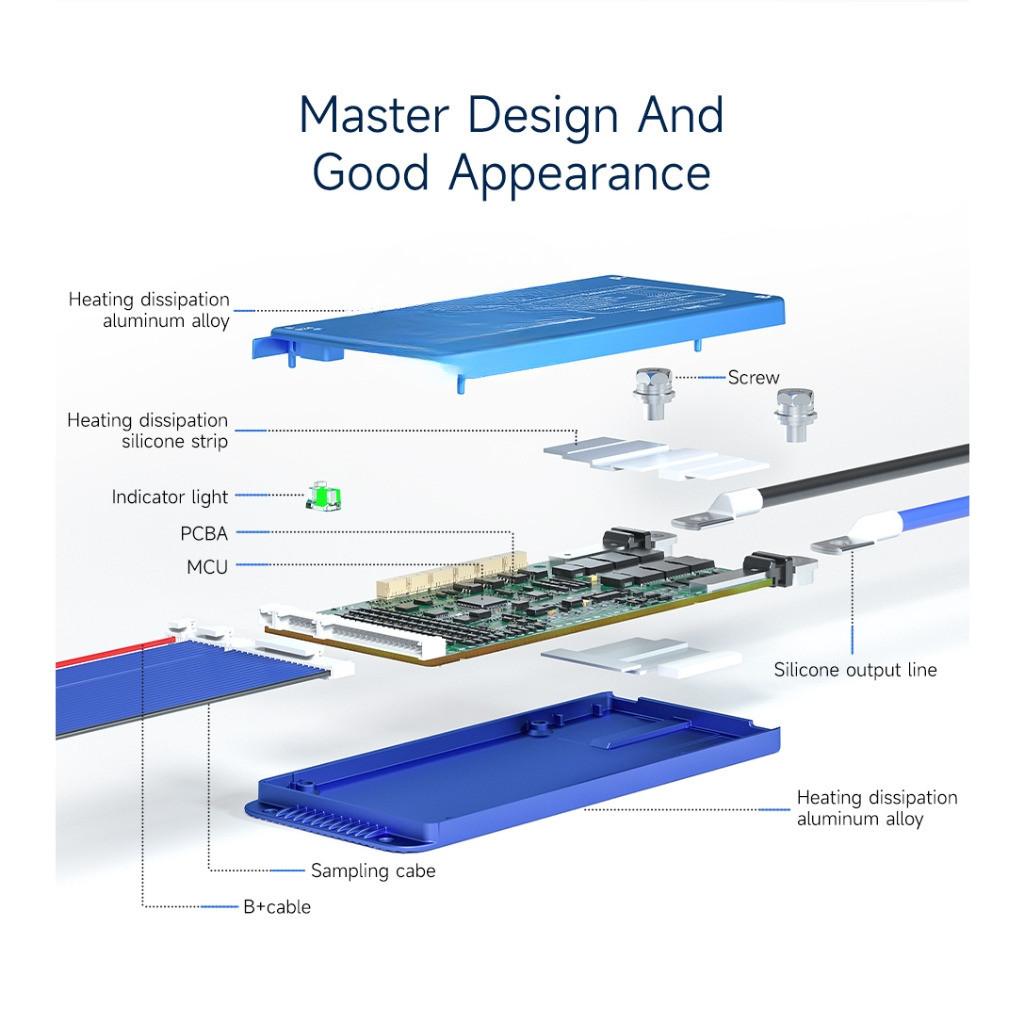

Product Overview
Balance function
The protection board comes with 1A active balancing current, eliminating the need for additional active balancing modules. With fewer wiring, it is more convenient, time-saving, and cost-effective, resulting in higher balancing efficiency

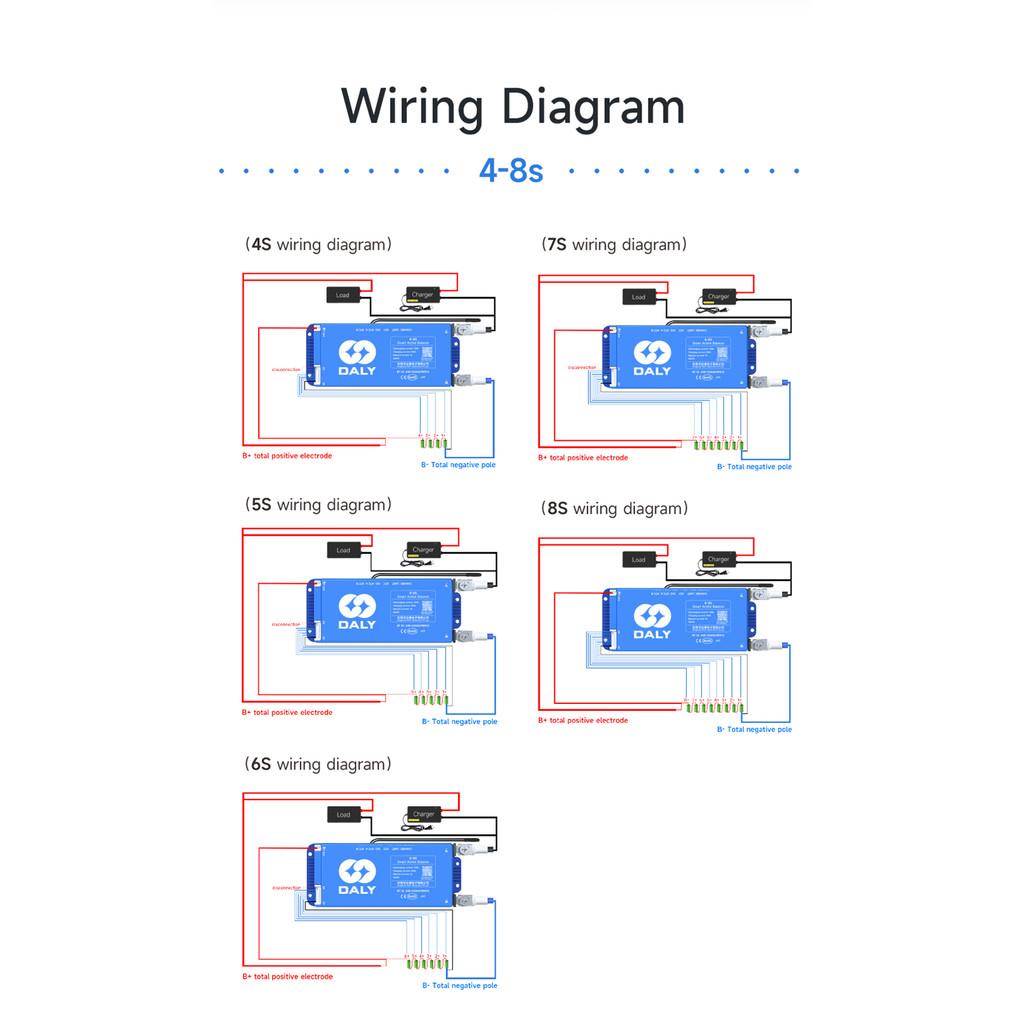

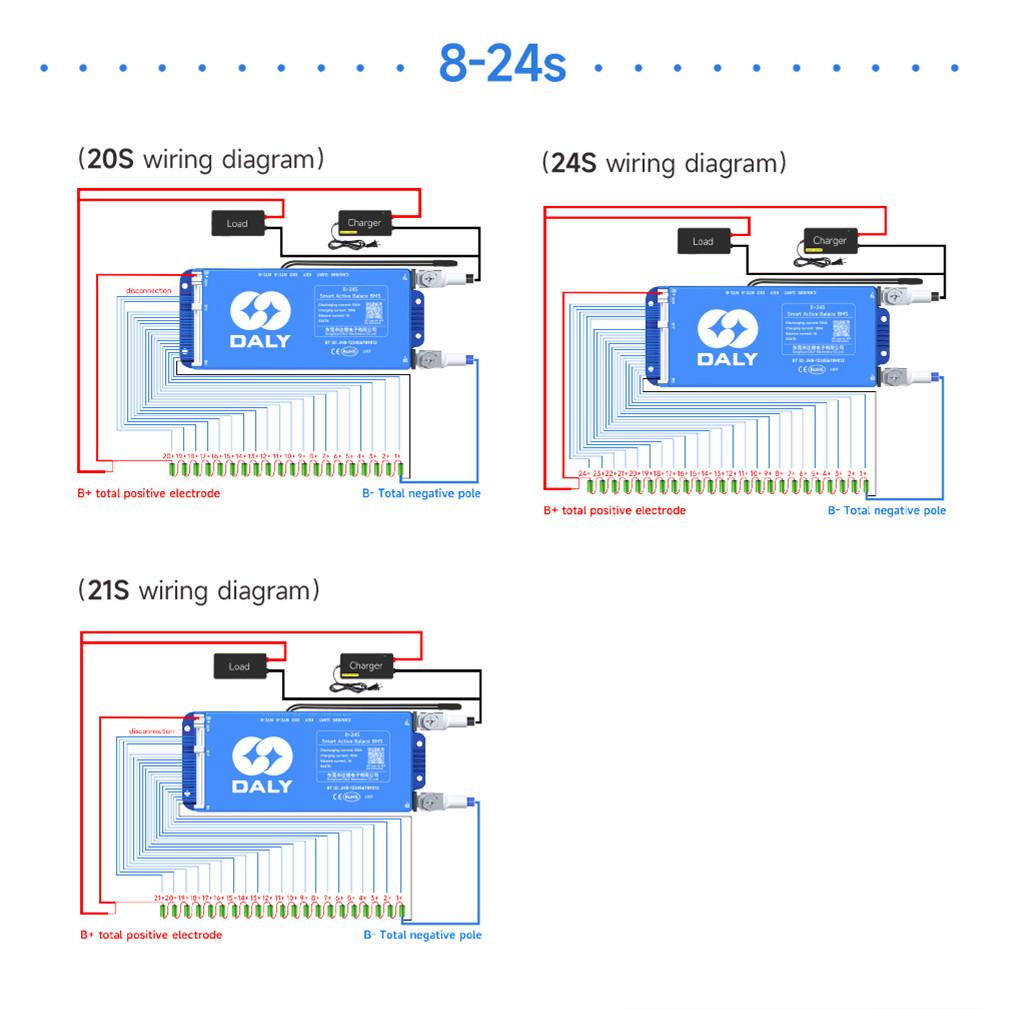

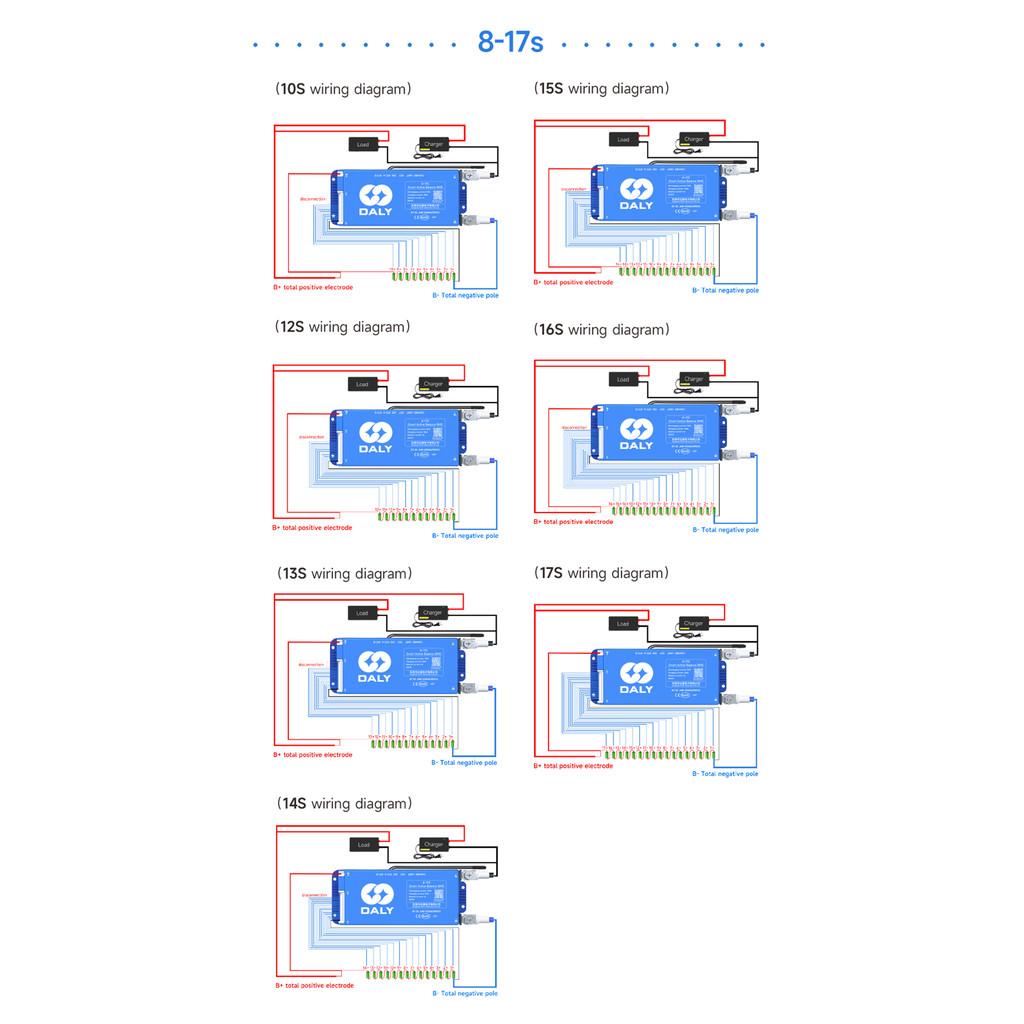

Intelligent serial connection
Intelligent serial 4-24S, versatile for one board; Suitable for more scenarios, reducing stocking pressure; Three major parallel intervals of 4-8S; 8-17S; 8-24S
Parallel current limiting
The protection board is equipped with a parallel current limiting module, eliminating the need for additional parallel modules, making parallel capacity expansion more convenient and safer.
Intelligent applications
WIFI module
Bluetooth APP
Cloud Butler
GPS

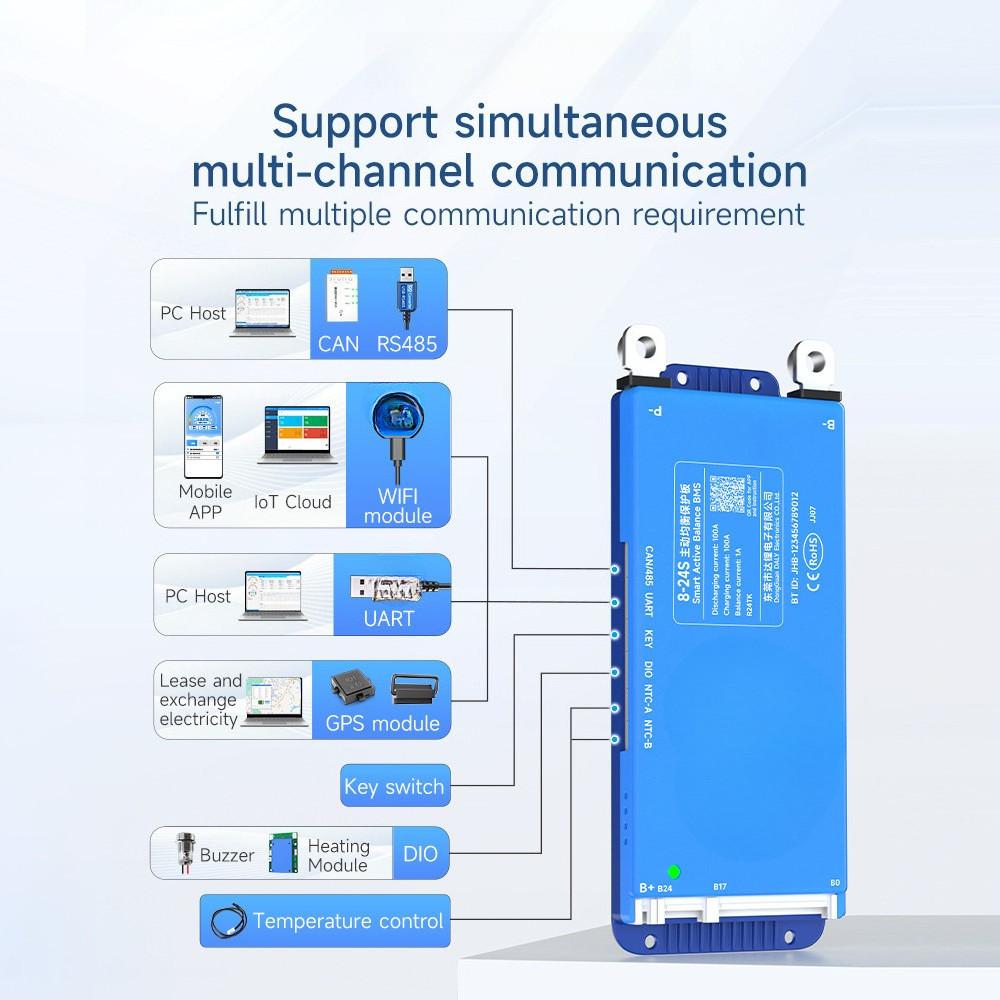

Rich interfaces
Data storage
Protection function
Real time monitoring of battery pack circuit conditions, such as disconnection, disconnection, incorrect wiring, and other abnormal situations, and timely alerting!
Power on to prevent surges, effectively prevent instantaneous high current surges, and reduce damage to BMS and batteries.
Battery overcharge, amplification current, short circuit protection
Due to the inconsistent values of parameters such as battery capacity, internal resistance, and voltage, the battery with the smallest capacity during charging is prone to overcharging and discharging. After damage, the smallest battery capacity becomes smaller and enters a vicious cycle. The performance of individual batteries directly affects the charging and discharging characteristics of the entire battery group and the reduction of battery capacity. A BMS without balancing function is just a data collector, and it is difficult to call it a management system.
The BMS active balancing function can achieve a maximum continuous balancing current of 1A. Transfer the high energy of individual cells to the low energy of individual cells, or supplement the lowest energy of individual cells with the entire set of energy. During the implementation process, the energy is redistributed through the energy storage link to ensure battery consistency, improve battery range, and delay battery aging to the greatest extent possible.

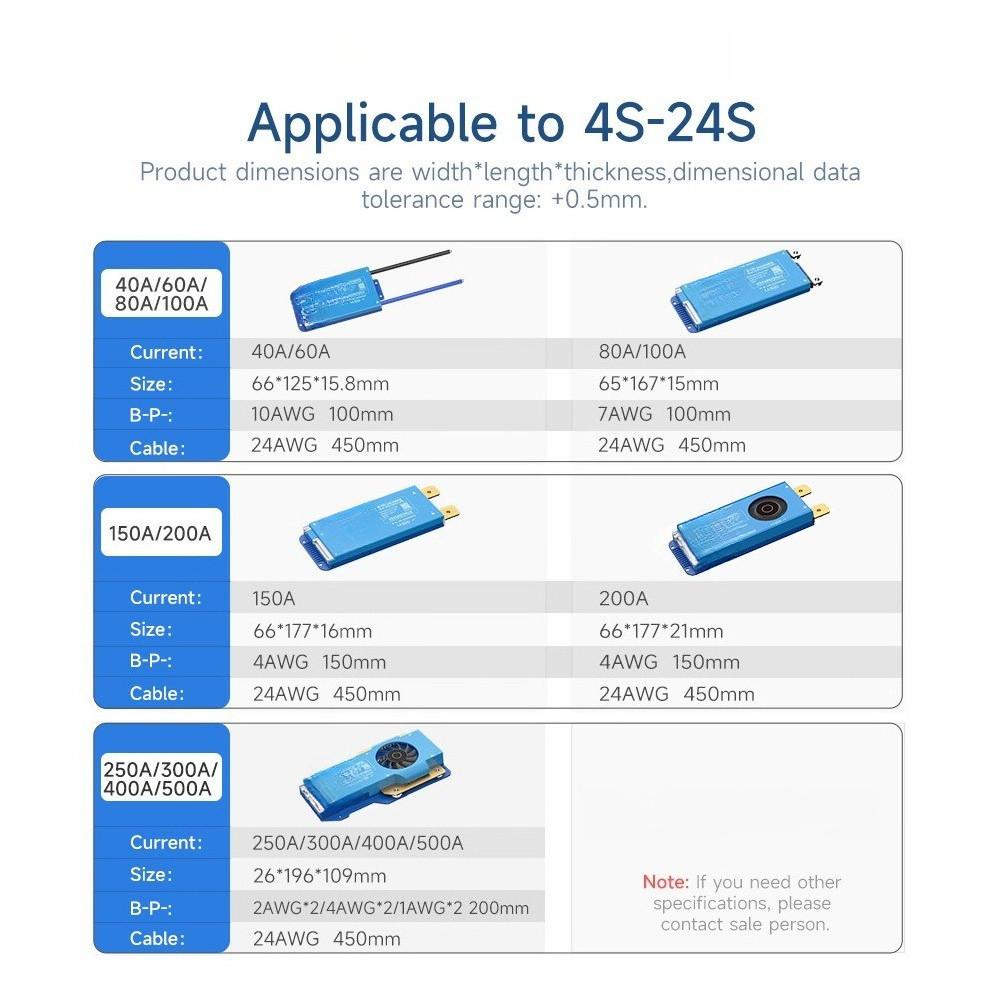

Main parameters and technical indicators

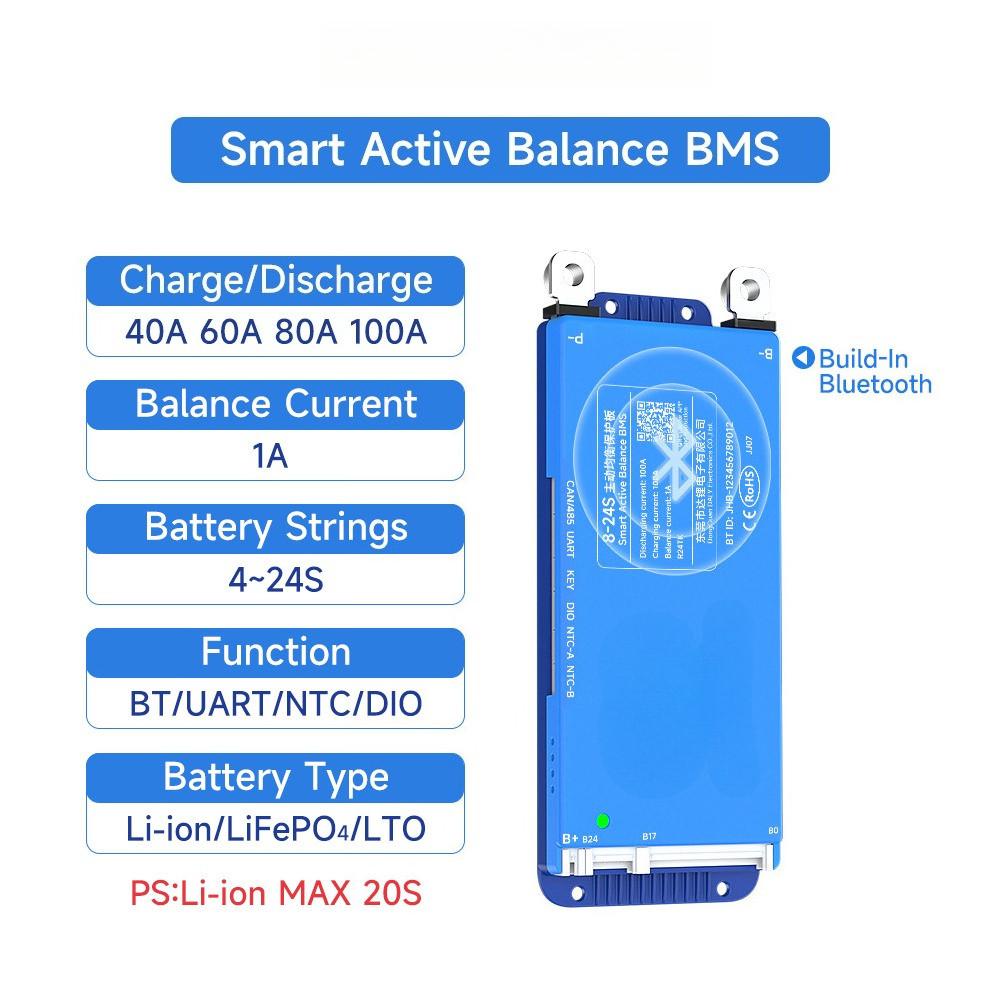

Battery pack type: ternary lithium battery, iron lithium battery
Number of battery pack strings: 4 strings -24 strings (4-24s)
Balanced current: ≤ 1A
Balancing method: active balancing (automatically working after connecting wires)
Equilibrium opening condition: Open: The voltage of the first single string is ≥ 3.1 ± 0.1V
Off: First single string voltage ≤ 3.0 ± 0.1V
Working power consumption: ＜ 1mA
Sleep current: ＜ 5uA
Working temperature -20 ° C-60 ° C

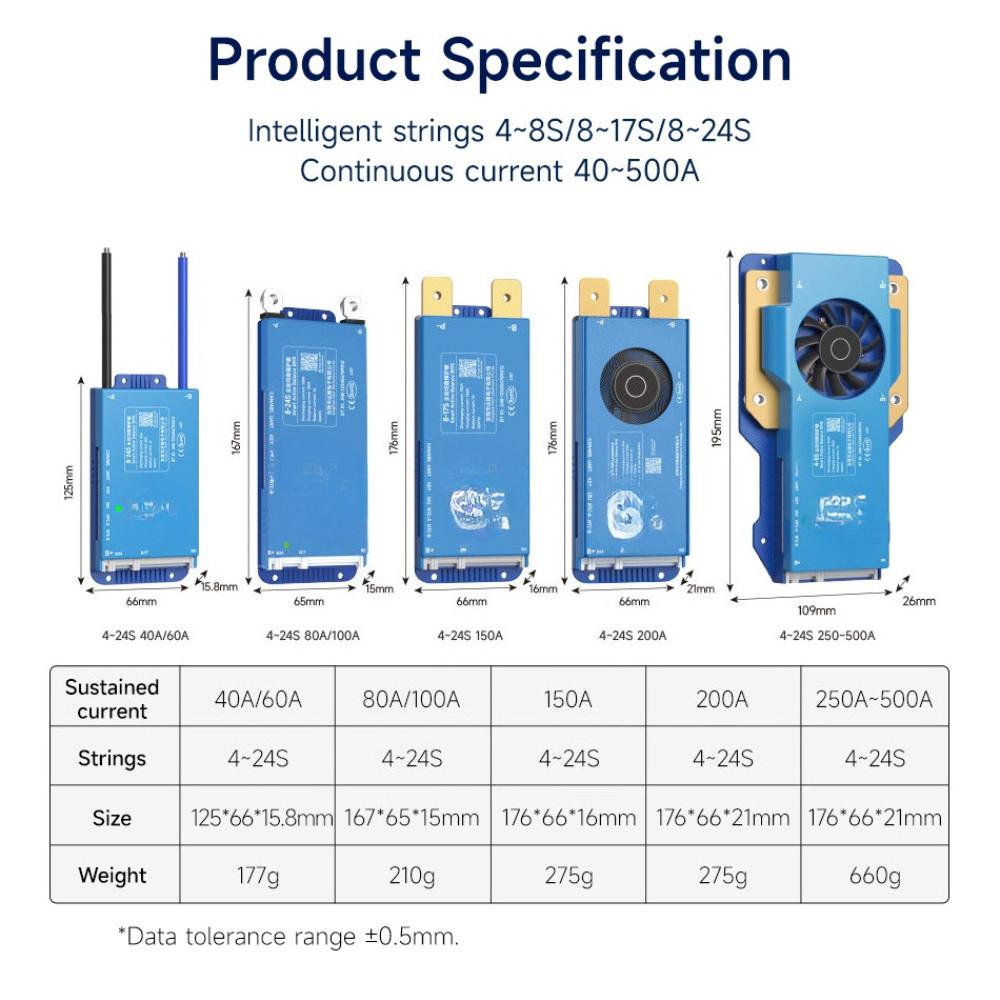

Size: 60mm * 35mm * 18mm
Wire harness: compatible with intelligent protection board BMS
Balanced indicator light: on Balanced on Off: Balanced not on/faulty
Interface Definition Description
Protection board&active balancing: shared
Package Included:

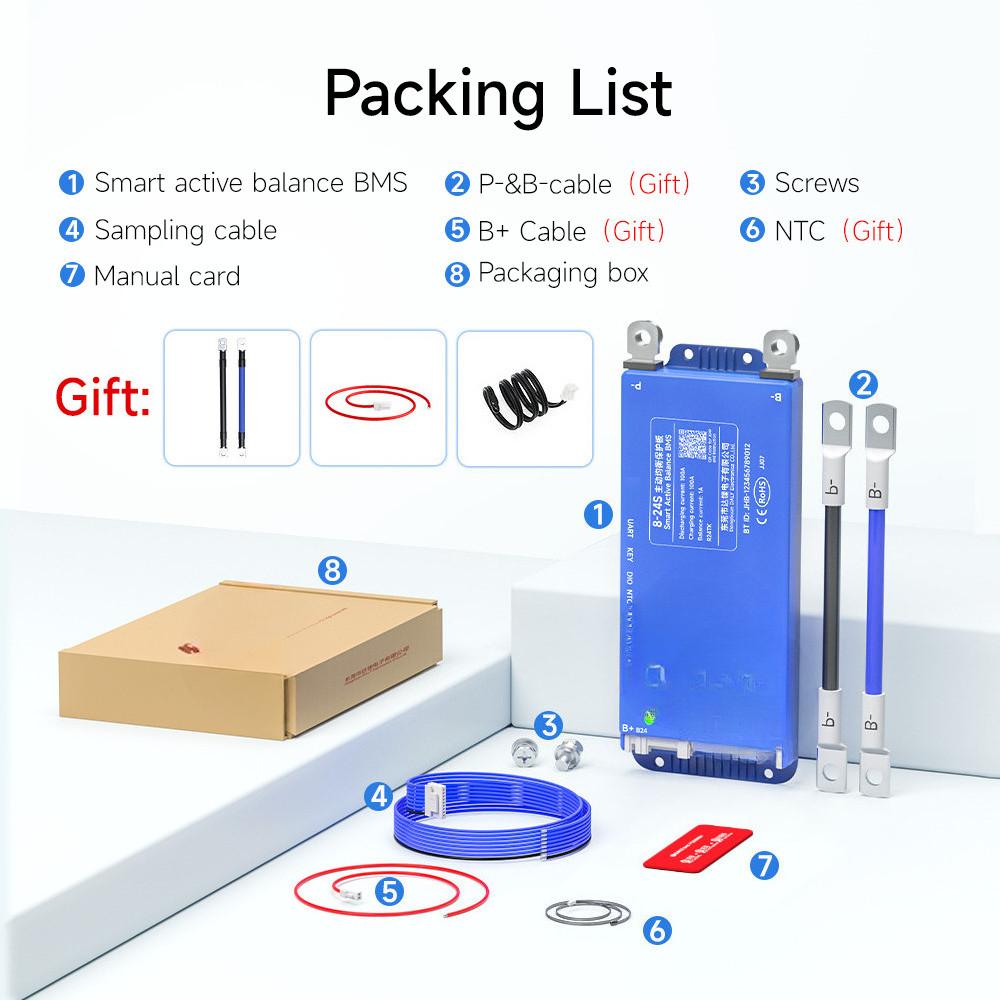

1 x Smart active
