Recommended for those looking to get started in rod building or customize an old rod all at once.
Fuji Kogyo offers a complete guide set series tailored to each fishing type and species.
We offer a variety of guide materials, including titanium torzite rings, titanium SiC rings, stainless steel SiC rings, and stainless steel O-rings.
[Advice]
Even if the rod length is the same, guide specifications are determined by the blank's characteristics, the angler's physical strength, and individual personality, so there is no definitive standard.
Fuji Kogyo's recommended "reference guide specifications" and "guide installation examples" are reference examples showing the "standard guide position and recommended guide set" based on rod length.
Please note that these are intended as a guide to help you find the "guides and position" that are appropriate for the rod you want to build.
[How to Read Guide Set Order Numbers]
"Frame Color" + "Main Guide Model in Set" + "Butt Guide Ring Size" + "Total Number of Guides in Set" + "Top Guide Included/Not Included" (Indicates "1" if included. Leave blank if none.)
[Notes]
*If you are using a blank longer than the listed standard length,
please prepare the "recommended additional guides" (see catalog) for each set and add them to your rod.
*Some models in this series do not include a top guide.
In that case, please prepare the "pipe diameter size matching the tip diameter + recommended top guide" separately.
*The listed "ring size" is a rough guideline for the ring outer diameter (O/D).
For detailed "outer diameter (O/D)," "inner diameter (I/D)," and "width (W)," please refer to the "Ring Size Dimensions Chart."
*For detailed specifications of each guide part in the set, please research the "model name (guide model name)" yourself.

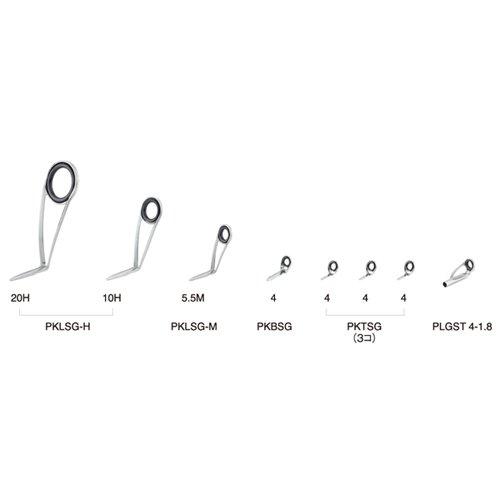

Total number of guides: 8 / Guide set contents: [PKLSG (20H / 10H / 5.5M) x 1] [PKBSG (4) x 1] [PKTSG (4) x 3] [PLGST (4-1.8) x 1]
Frame color: [P (Polished)] / Main guide model number: [KL] / Main guide ring material: [S (Stainless steel SiC ring)] / Guide type: [G (Binding type)]
Butt guide ring size: [20H] / Total number of guides: [8] / Top guide: [Top guide included (1) - Installed top guide (PLGST 4-1.8)]
Standard rod length: 5ft - 7ft / Recommended line: 3lb - 8lb (PE MAX 1.0)
[Set No. 38] / [Order number: PKLSG20H81] / [Fishing type: Lure] / [Type: Spinning bass]
