【Dimensions】In-line cord switch: 11.35mm x 53mm x 54.5mm / 4.46" x 2.08" x 2.14" (L x W x H) Opening: 6.3mm/0.82" Custom screw: 11.8mm x 4.8mm/0.46" x 0.18" (HxW) M3 Screw: 15mm x 6.3mm/0.59" x 0.24"(H*W) Driver: 80mm x 3.0mm/3.14" x 0.11"(L x W) Cable Tie: 100mm x 3.0mm/3.93" x 0.11" (L x H)
【High Power Load】The excellent current capacity supports AC 16A 250V / AC 20A 125V high power specifications. Stably and reliably control the on/off of the circuit, avoiding switch damage or circuit failure caused by overload, providing excellent protection for heavy duty equipment
【WIDE APPLICATION】Suitable for LED indicator lights, patio lights, garden fountains, fans, RVs, boats, construction sites, high output electrical equipment, outdoor electrical equipment, mechanical equipment, medical electric lamps and other electrical equipment
IP66 Waterproof: It has a very high waterproof and dustproof performance, so it operate without any damage even when used for a long period of time under , effectively preventing dust from entering

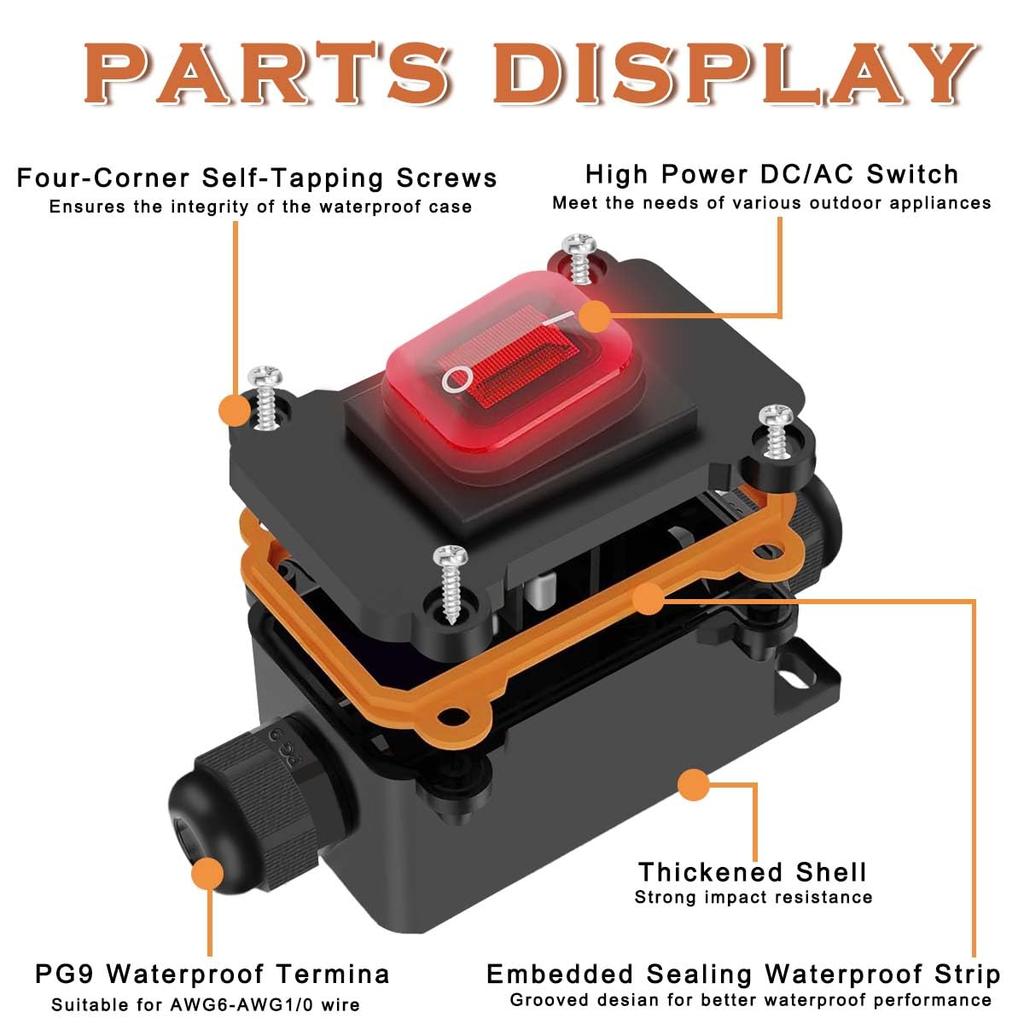

【Waterproof Sealing Ring】The connection between the switch and cable has a built-in silicone sealing ring, which maintains excellent waterproof performance even after long time use, and prevents intrusion due to changes in external pressure
(PA66 Material) The shell is made of PA66 material, it has very high mechanical strength and withstand heavy loads, maintaining stable physical and chemical properties even in high temperature environments, and has certain electrical insulation properties

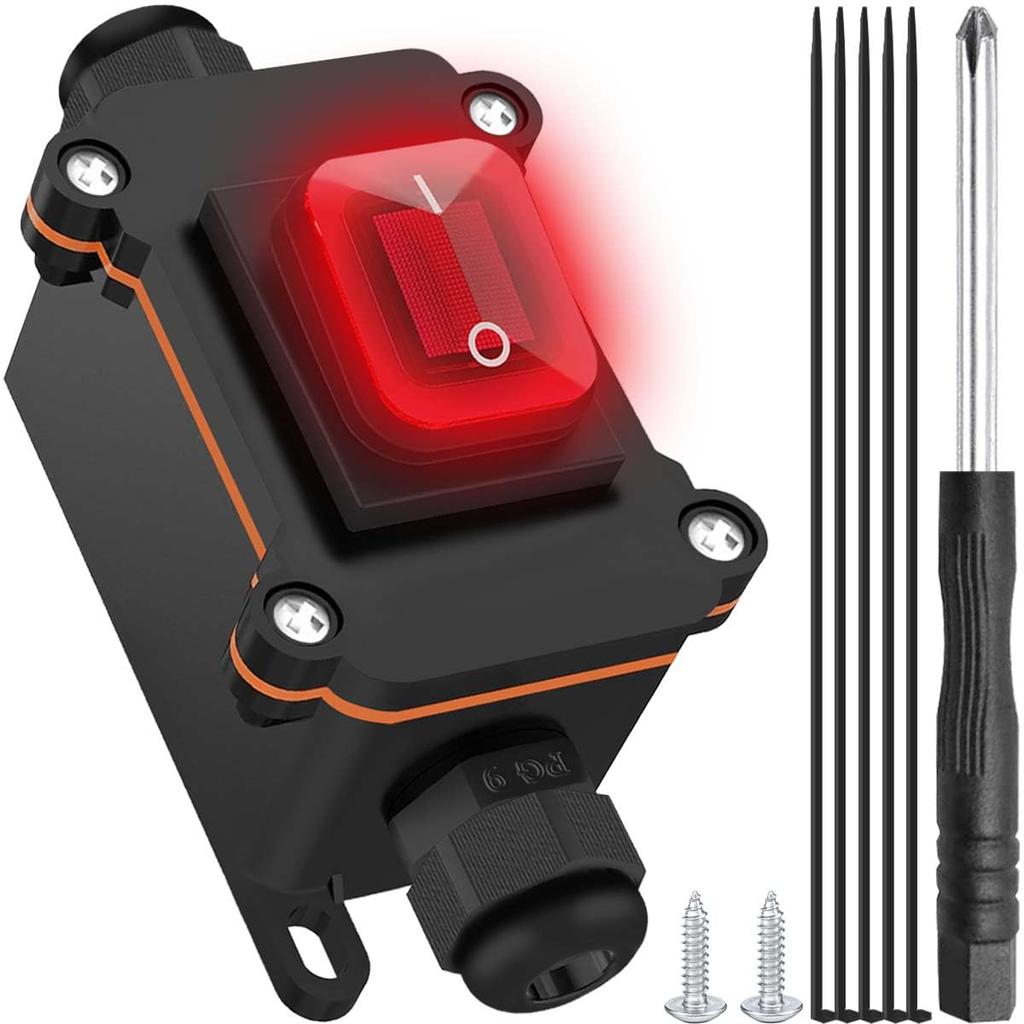

【Package Includes】1 x Outdoor Waterproof Switch Box, 1 x KCD4 Toggle Rocker Switch with Red LED, 4 x Screws, 2 x M3 Screws, 5 x Black Cable Ties, 1 x 3.0" Phillips Screwdriver
