*It can connect to the electronic control lock, light, fan, window, curtain, motor, car, lifting appliance, motor control, lifter control or other appliances or other appliances with AC85V-250V or 12V. So that it can remote unlock the door, close the light, open or close the curtain, etc.
*One/several transmitters can control one/several receivers simultaneously. Support remote controllers up to 16 pieces. This can lrn 1527 coding remote controls.
*The working mode can be changed by yourself: you can to momentary, toggle, latching three modes as you need.
Ftures:
*Very convenient to use, simple wiring diagram connection way.
*It can connect to the electronic control lock, light, fan, window, curtain, motor, car, lifting appliance, motor control, lifter control or other appliances with AC85V-250V or 12V. So that it can remote unlock the door, close the light, open or close the curtain, etc.
*You can turn on/off the receiver with transmitter(remote control) from any place within a distance (500m open ar). (The wireless RF signal can pass through , floors and doors.)
*One/several transmitters can control one/several receivers simultaneously.
*Support remote controllers up to 16 pieces.
*This can lrn 1527 coding remote controls.
*The working mode can be changed by yourself: you can to momentary, toggle, latching three modes as you need.
*The wireless receiving controller, with high confidentiality, stable performance, low power consumption characteristic, line or the coding.
*Lrning pair : it can work with any remote control with the same frequency, so you needn't worry about losing remote control any more. (If the remote control is lost, buy one and pair with the receiver is OK.)
Specifications:
Input Power: 12V
Channel: 2CH
Standby Current: Less than and equal to10mA
. Working Current: 10A
RF Frequency: 43300CMHz
Receive sensitivity: Less than and equal to-105dBm
Transmitting distance: 500m (open ar)
Remote control storage: up to 16PCS

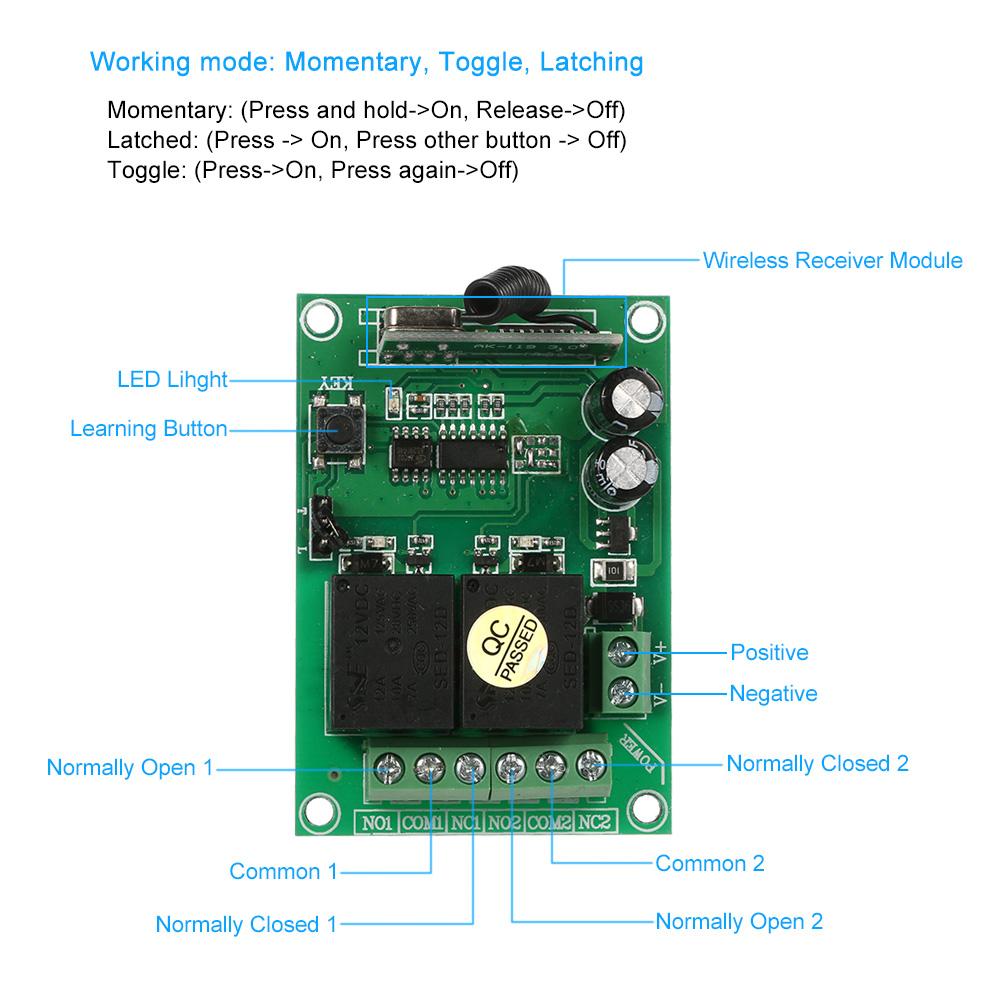

Working mode: Momentary, Toggle, Latching
Momentary: (Press and hold-On, Relse-Off)
Latched: (Press - On, Press other button - Off)
Toggle: (Press-On, Press again-Off)
Wiring type: fixed terminal
Output Terminal: NO , NC , COM
Output Power: /AC Optional
Remote Control battery: 1*12V 23A (not included)
Supporting Remote Control Type: lrning (1527 chip)
Working Temperature10+60
Receiver Board Size: Approx. 7.1*5.1*2.2cm/2.79*2*0.86in
Box Size: 8.6*6.1*2.8cm/3.39*2.4*1.1in
Package Information:
Package Size: Approx. 15*11.5*3cm/5.9*4.53*1.18in
Package Weight: Approx. 101g/3.56oz
Package List:
1* Receiver Board
1* Box
1* Remote Control
