DC 1500V Solar Disconnect Switch 4 Poles Photovoltaic DC Isolation Switch RVs

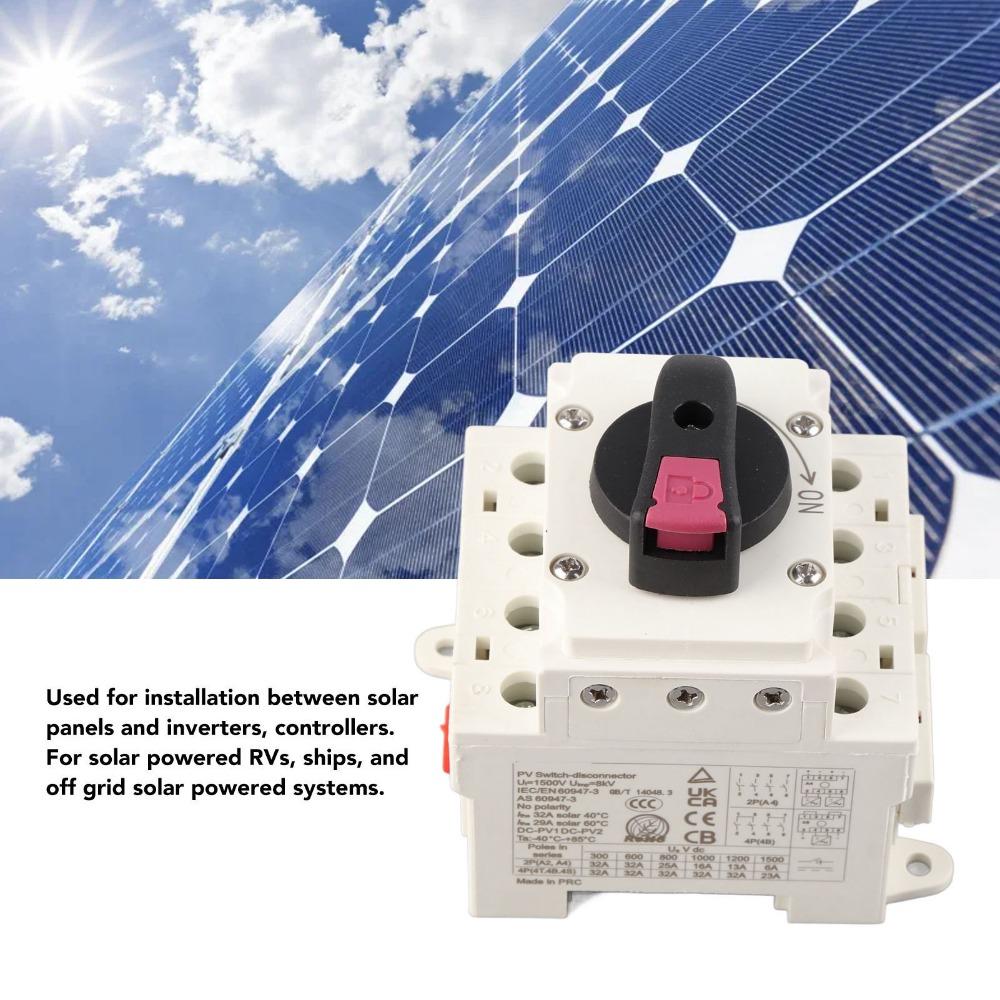

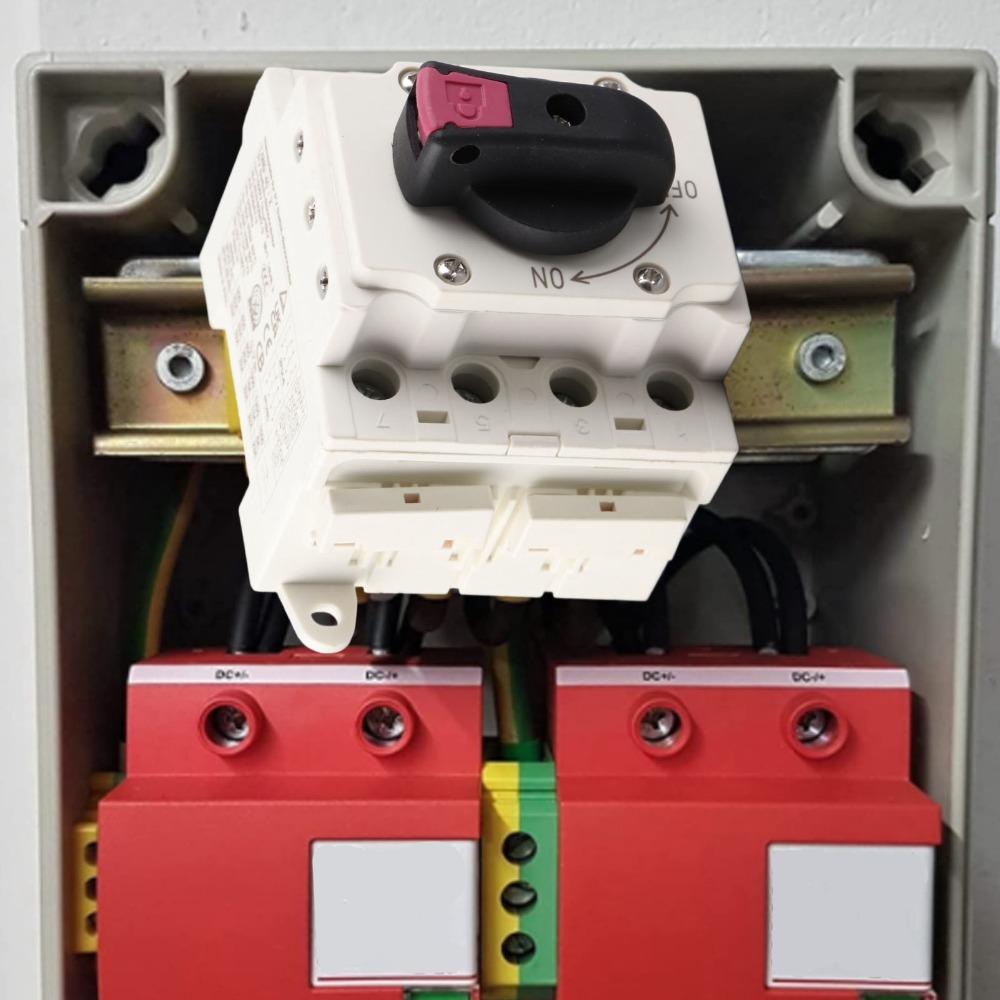

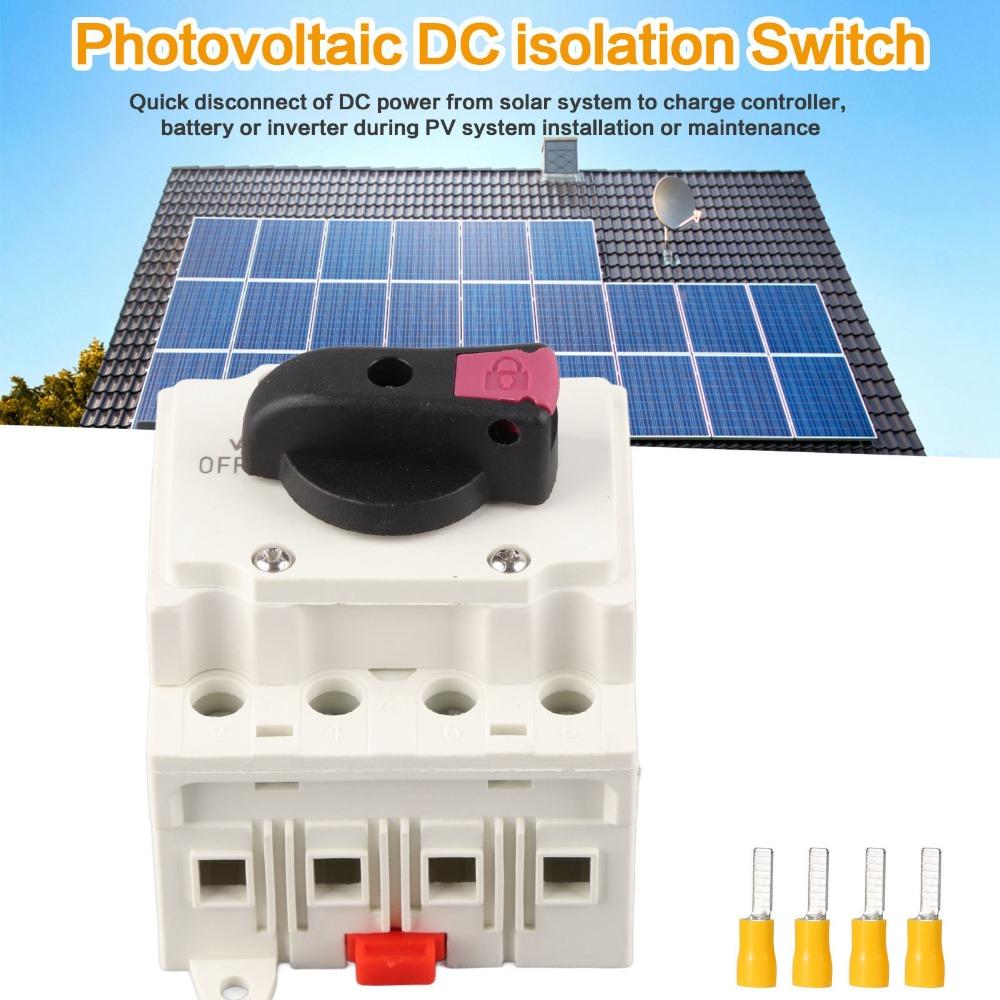

Label:Yes High in Safety: The shell is made of fire retardant PC material, while copper wiring terminals support 2.5-6mm² photovoltaic wire. Silver plated contacts has good conductivity and long mechanical service up to life 10,000 times. Excellent Design: Compact design, product size only 84.5*78.2*60.2mm(3.33*3.08*2.37in), does not take up too much space, switch knob design, ergonomic, and easy to operate. Easy to Install: Equipped with standard 35mm(1.38in) guide rail slot and also supporting screw fixation, two installation methods are optional. Main Function: Quickly disconnect the DC power supply between the solar system and the charging controller, battery or inverter during the installation or maintenance of the photovoltaic system. Good Application: DC isolation switch with a maximum breaking capacity of DC 1500V 32A, used for installation between solar panels and inverters and controllers. Suitable for solar powered RVs, ships, and off grid solar powered systems.

Specification Item Type: Solar Disconnect Switch Material: PC, copper. Rated Voltage: Maximun DC 1500V Rated Heating Current: 32A Wiring Poles: 4P Insulation Voltage: DC1500V Impulse Withstand Voltage: 8kV Protection Level: IP66 Contacts Material: Silver Contacts Operating Handle Position: 0-90° Operating Temperature: -40-85℃ Size: 84.5*78.2*60.2mm(3.33*3.08*2.37in) Color: As picture shown

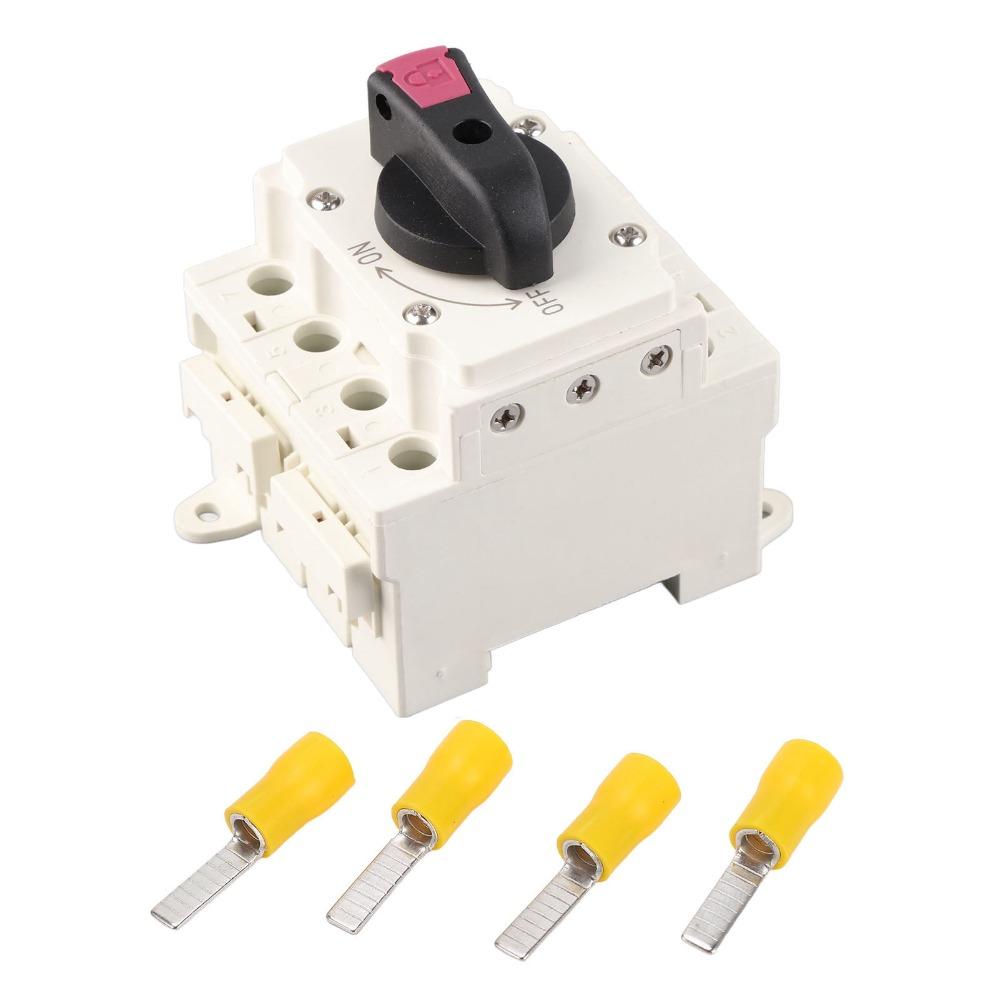

Package List 1 x Solar Disconnect Switch 4 x Terminal
