9~12bit Adjustable Water Temperature Sensor Digital Transducer Module Versatile Applications

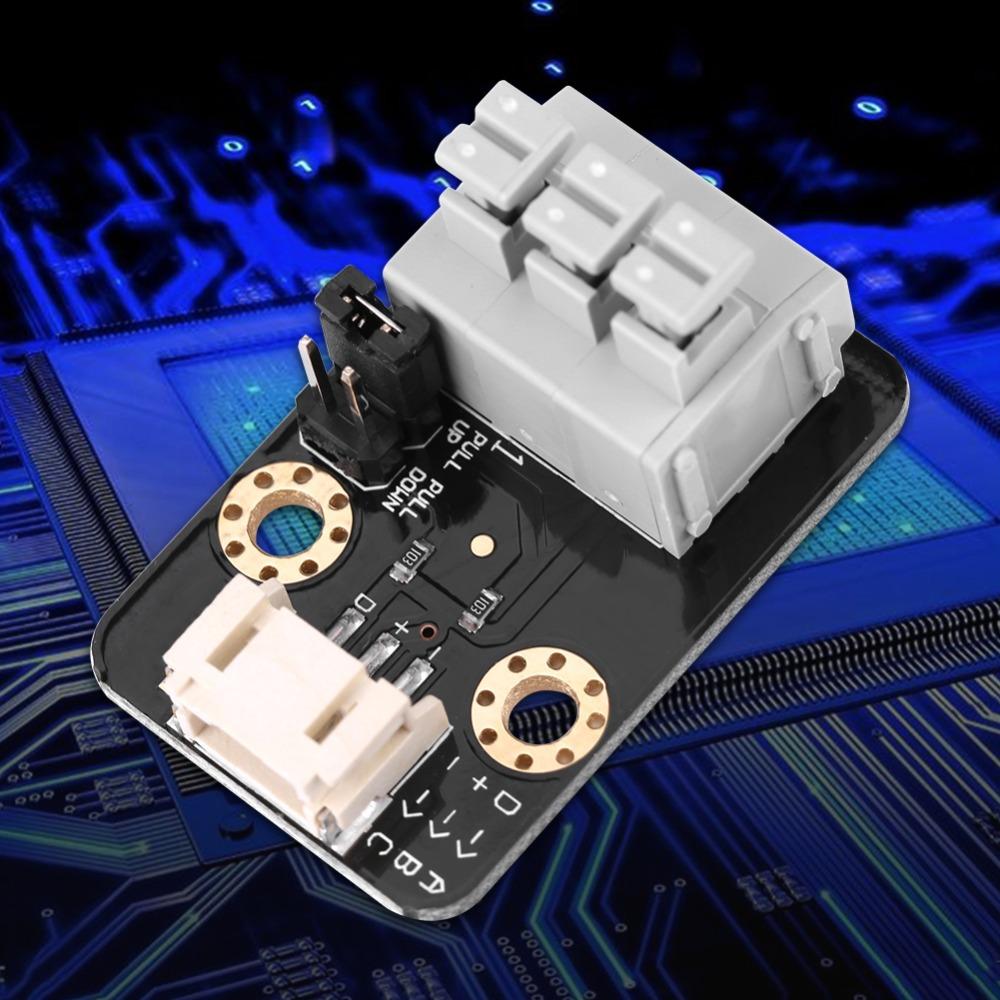

Label:Yes 1. Precise Temperature Measurement:This high-sensitivity water temperature sensor provides a display range of -10°C to +85°C, with an accuracy of ±0.5°C, and an operating temperature range of -55°C to +125°C. 3. Flexible Connection via Plug-in Terminal:A pluggable terminal adapter is included, allowing the sensor to be connected to a microcontroller. The adapter supports a configurable pull-up resistor via a jumper cap. 2. Waterproof & Sealed Design:The sensor probe is fully sealed, offering reliable waterproof performance suitable for use in moist or wet environments. 4. Direct Microcontroller Interface:Pluggable terminal adapter digital port adds pull up resistor, using jumper cap to switch, so the sensor can connect to microcontroller directly 5. Versatile Application Range:Suitable for a variety of projects, including soil temperature monitoring, water tank temperature control, and other temperature-sensing applications.

Specifications: Power Supply Voltage: 3.0V~5.5V Resolution: 9~12bit(adjustable) Temperature Display Range: -10℃ to +85℃(error ±0.5℃) Operating Temperature Range: -55℃ to 125℃ (85℃ maximum for wire) Using a single line interface: only one digital interface is needed for communication Query time: less than 750ms Cable diameter: 4mm(0.16in) Length: 90cm(35.43in) Sensor size: 35 * 22mm(1.38 * 0.87in) Stainless steel pipe size: length 35mm(1.38in), diameter 6mm(0.24in) Color:Black

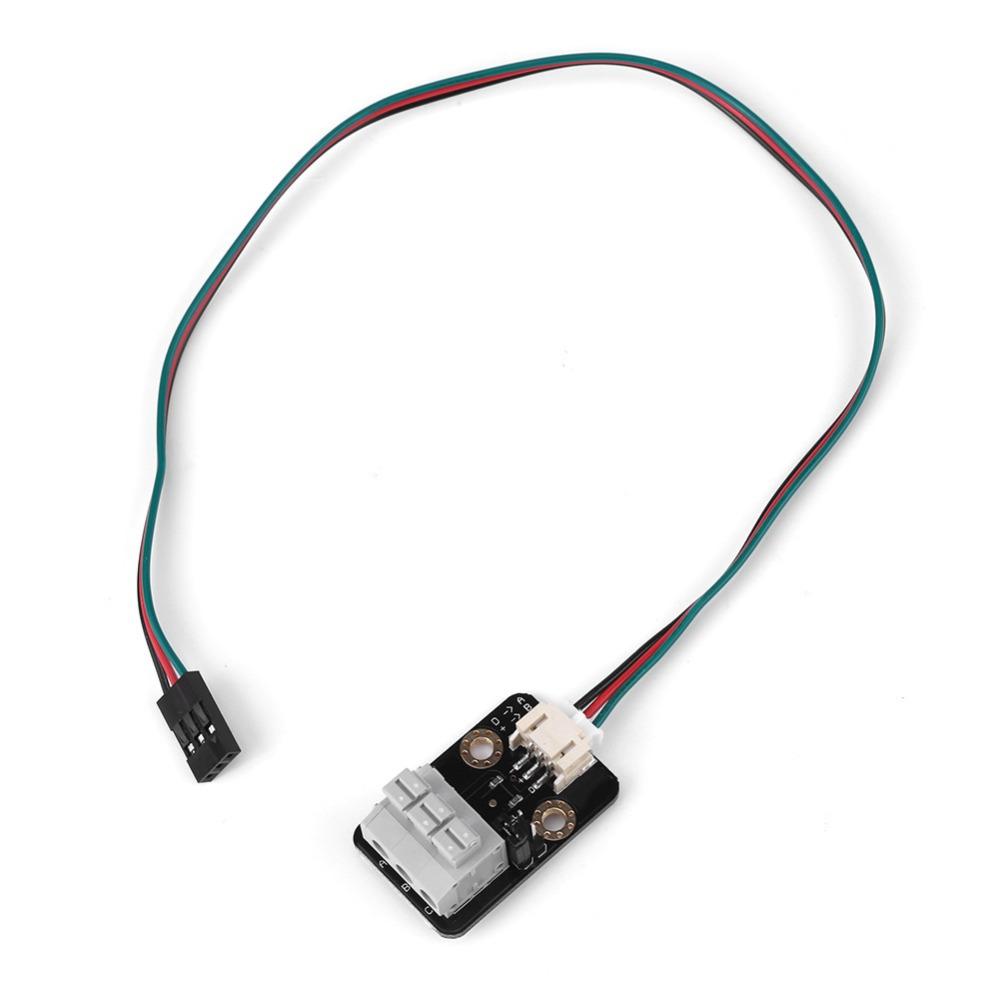

Package Includes: 1 x Module 1 x Probe 1 x Adapter Wire

Note: Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
