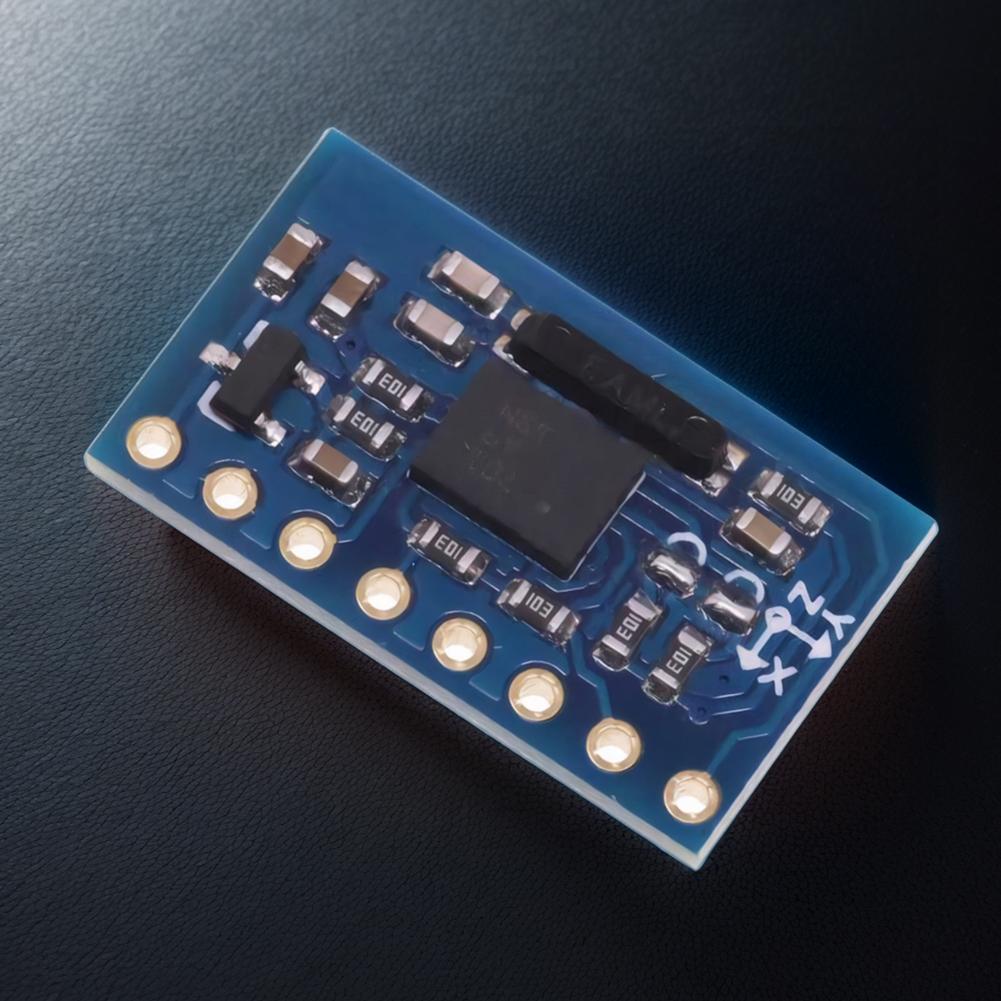

GY-BNO055 9DOF 9-axis Absolute Orientation Breakout Board Sensor Module IIC Serial BNO055 9-Axis Attitude Sensor Module Acceleration Gyroscope Geomagnetism Sensor for Arduino
Feature:
1. Highly Integrated Sensor:The 9dof 9-axis absolute orientation breakout board integrates an accelerometer, gyroscope, and magnetometer, allowing it to simultaneously capture acceleration, angular velocity, and magnetic field strength data in three directions. This comprehensive integration makes it a versatile tool for various applications.
2. High Precision Measurement:The sensor module offers high measurement accuracy and stability. Utilizing advanced sensor technology and precise calibration algorithms, it provides accurate and reliable attitude and motion data, ensuring your projects have the best possible data quality.
3. Automatic Calibration:The angle gyroscope module features built-in automatic calibration. Through internal algorithms and sensor data, it can self-calibrate to deliver precise attitude and motion data effortlessly, saving you time and ensuring consistent performance.
4. Flexible Interface Options:The 9-axis attitude sensor module supports multiple interfaces such as I2C and SPI, making it easy and flexible to connect with the main control chip. This flexibility enhances compatibility and simplifies integration into various systems.
5. Low Power Consumption Design:The acceleration gyroscope geomagnetism sensor is designed for low power consumption, effectively reducing energy usage and extending battery life. Its broad application range includes attitude measurement, motion tracking, indoor navigation, virtual reality, and robotic control, making it an essential component for numerous fields.
Specification:
Origin: Mainland China
Material: Mixture
Description:
BNO055 combines multiple sensors, including: 3-axis 12-bit accelerometer, 3-axis geomagnetic sensor and 3-axis 16-bit gyroscope. Built-in Atmel 32-bit MCU handles software operations between various sensors. It supports Sensor-hub products of Windows 8.1 and can provide single data of three sensors (acceleration/geomagnetic/gyroscope) respectively, or provide combined data through built-in MCU operation, providing more application support for products such as smartphones and wearable devices.
Module model: GY-BNO055
Chip used: BNO-055
Power supply: 3-5v (internal low-voltage regulator)
Communication method: standard IIC/serial communication protocol
Product size: 20.00x12.00x3.00mm
Product size: 0.79x0.47x0.12inch
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
1 x GY-BNO055 Sensor
