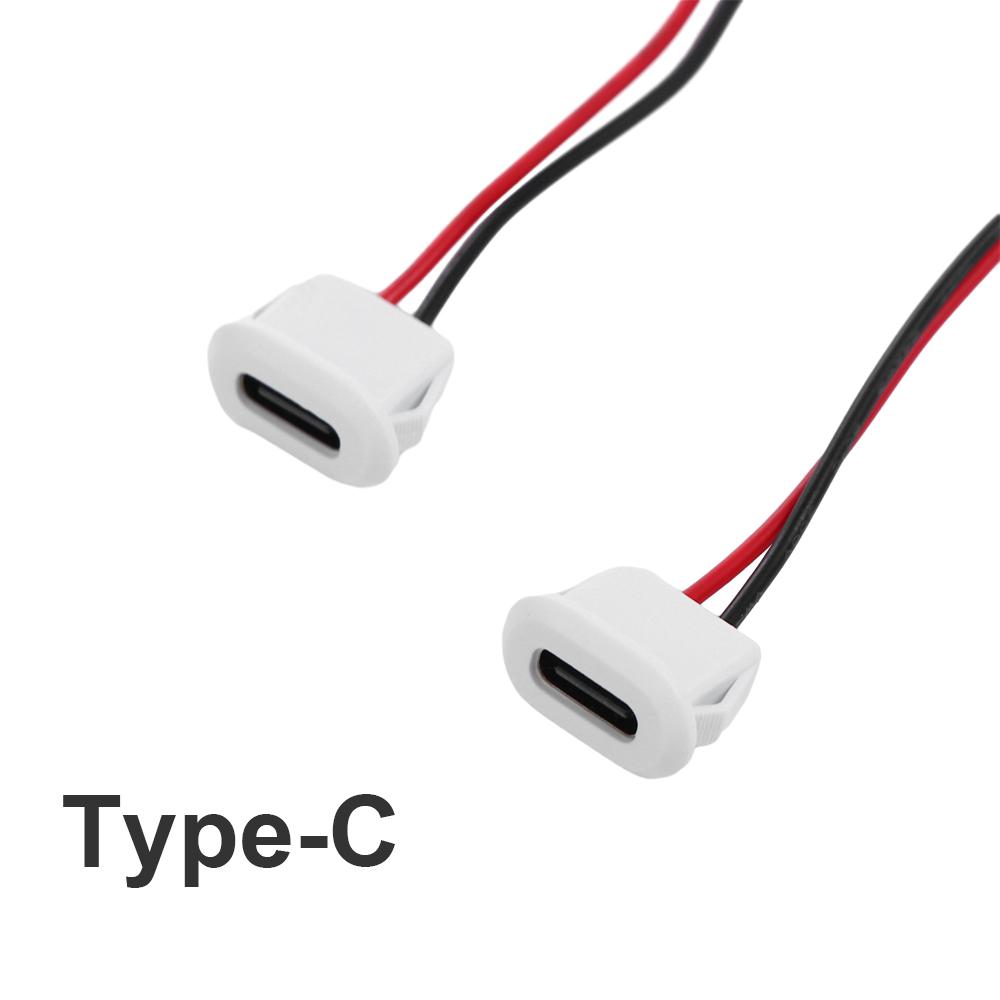

Welding Wire Type-C Base Female Base USB-C Connector USB-C Type 2 Pin Connector Charging Interface

Label:Yes Package Included:1Pc USB-C Connector Color: as shown in the figure Product name: TYPE C2P direct compression type female seat Rated current: 3A Rated voltage: 30 IP grade: IP67 Number of ports: 1 Standard: USB 2.0 Installation type: crimping installation

Description: 1. The waterproof ring is made of silica gel, with a hardness of 30 ° and a waterproof grade of IPX 5. The waterproof ring can be canceled. 2. Lead specification: 1007 # 24AWG, red is positive, green is negative. 3. The rubber coated insulating layer of the product is black. 4. The contact impedance is less than 30 milliohms, and the insulation impedance is greater than 1M ohms. 5. The insertion force is 5-20N, the extraction force is 5-20N, and the contact performance guarantees 10000 times of insertion.

Note: There might be a little color difference due to the monitor, camera or other factors, please refer to the physical item.
