Features:

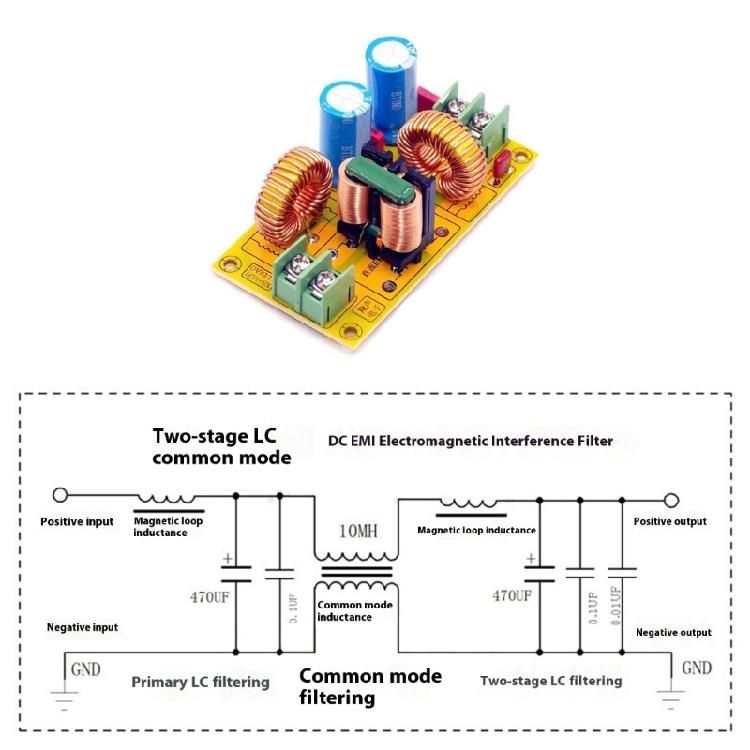

The circuit consists of three parts, the first part is a single-stage LC filter circuit, the second part is a common mode filter, and the third part is a two-stage LC filter circuit.
LC filter, commonly known as passive filter, is a traditional direct current harmonics compensation device compose of inductance and capacitance.
It can filter out one or more harmonics in the power supply and purifying the direct current power supply.
Common mode filtering can suppress fast transiented group interferences problems with repetition rates of several kilohertz at certain user positions.
Efficient filtering, combined with LC filters, effectively suppresses common mode and harmonics.
Specifications:
Material: ABS+Metal

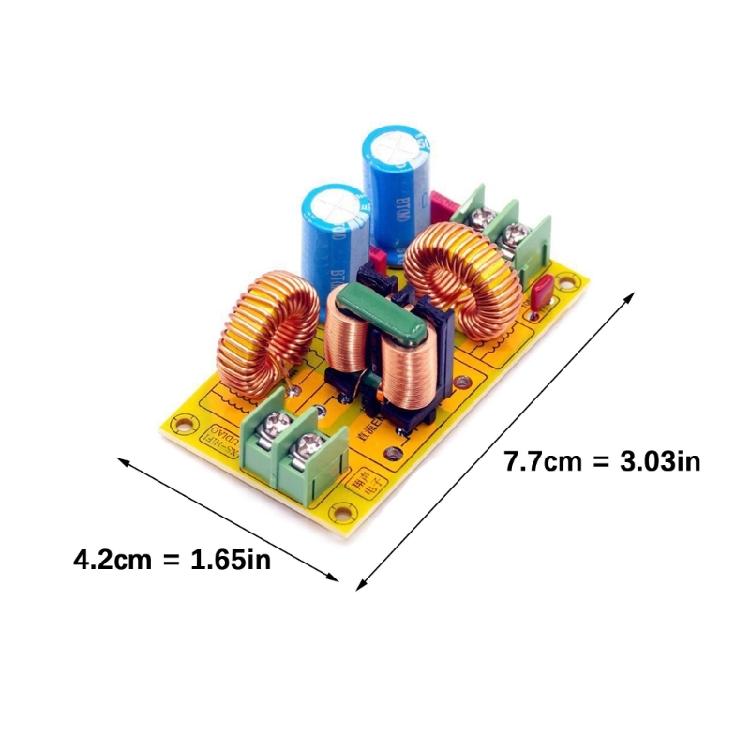

Size: approx. 77x42mm/3.03x1.65inch
Product name: LC filter, power supply filter
Input: DC0-50V
Output: DC0-50V
Current: 10A
Input connection: IN+/IN (double wire 7.62 terminal board input)
Output connection: OUT+/OUT (2 cores 7.62 terminal board output)
Package Includes:
1 Piece 10A Power Supply LC Filter
note:
Please allow 1-2cm errors due to manual measurement.
Please allow for slight color differences due to different display resolution.
