Voltage Compatibility】
When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.
【Plug Type】
Our products use Japanese plug types (A or B type).
Please use a conversion adapter if necessary.
【Important Note on Transformers and Adapters】
A transformer adjusts voltage to match your device’s requirements.
A conversion adapter only changes the plug shape and does not adjust voltage.
Using only a conversion adapter without a transformer may result in damage to the product.
【Liability】
We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer.
5 Front Accessible USB Ports: Multi-port functionality allows you to connect multiple peripherals simultaneously, avoiding frequent plugging and unplugging. USB 3.0*2 and backward compatible with USB 2.0*2 and USB Type-C.
PLUG AND PLAY & EASY INSTALLATION: Riser for connecting various external USB devices or adding support HD-AUDIO audio board and microphone input.
Excellent Compatibility: No driver installation is required for compatible systems. Compatible with Windows 7/8/10/XP, Mac OSX, and Linux.
SUPER SPEED DATA: Supports SuperSpeed USB 3.0 and USB 2.0 data transfer speeds, delivering fast and smooth data transfers up to 4.8Gbps.
Compatible with a wide range of USB devices: scanners, printers, digital cameras, camcorders, speakers, mice, keyboards, external drives, MP3 players, and more.
Nowadays, there are so many USB devices, and the USB ports on your chassis are not enough? No need to worry, we provide what you need.
specification:
Name: USB 3.1 Optical Drive Control Panel. Wire: 24 + 28 AWG. Outer Diameter: 5.5mm. Ports: Interface: 2 x USB 3.0, 2 x USB 2.0, 1 x Type-C.
Supports 3.5mm stereo HD audio output.
Supports 3.5mm microphone input.

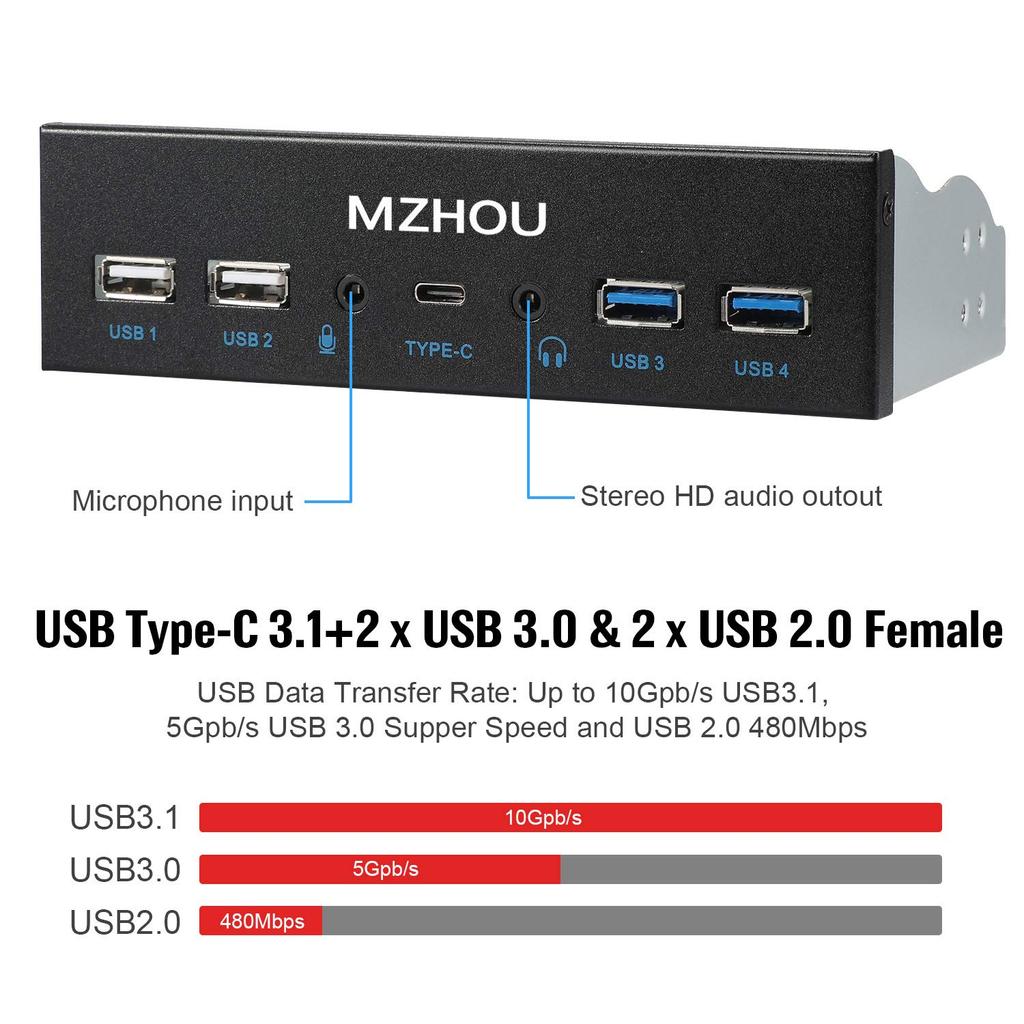

Color: Black - Silver Spray USB Data Transfer Rate: Up to 10Gb/s USB3.1, 5Gb/s USB 3.0 SuperSpeed and USB 2.0 480Mbps.
Built-in USB 3.0 to SATA III chipset. Supports 2.5" hard disk drives (HDD & SSD). No additional power required.
Fits: 5.25 inch open bay space.
Compatible with Windows XP/Vista/7/8/8.1/10.
Features:

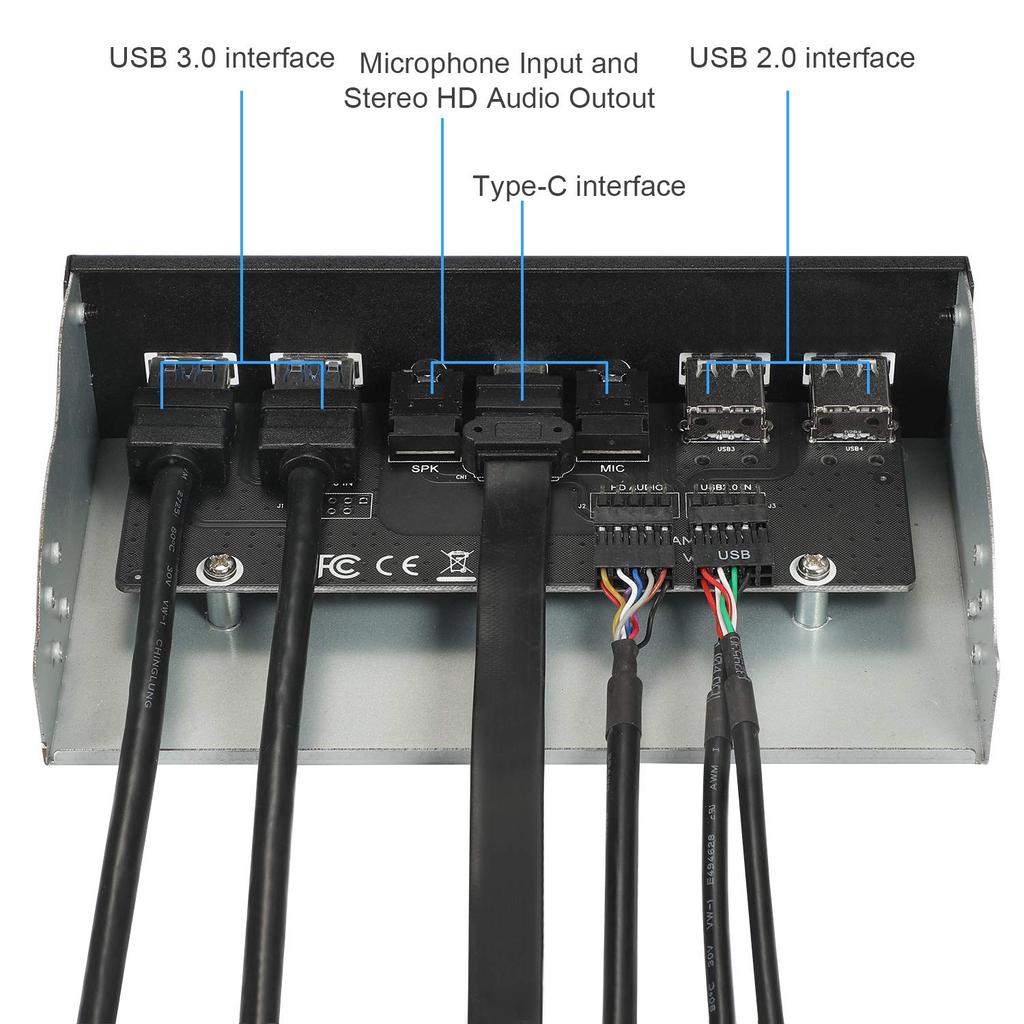

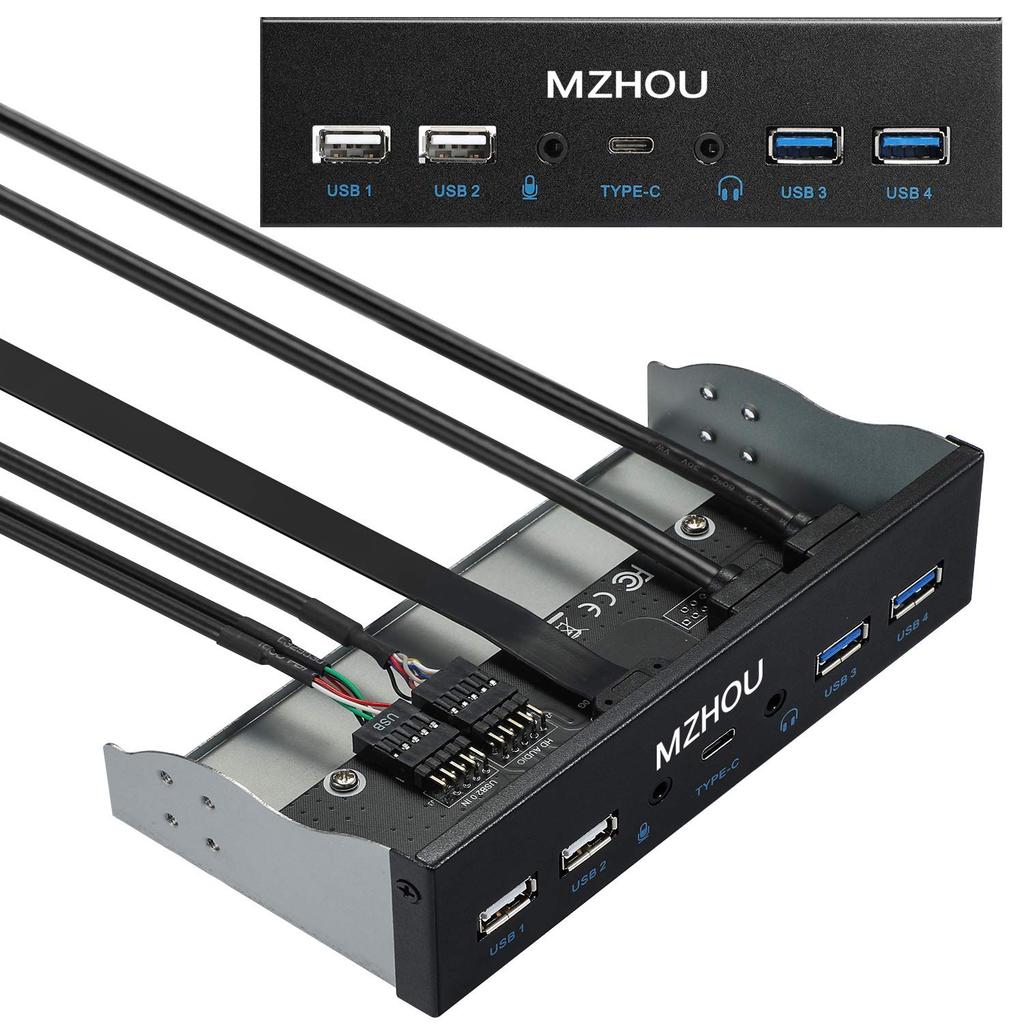

5.25" Front Bay - 5-Port USB Panel Hub with 1 HD Audio Port and 1 Microphone Port

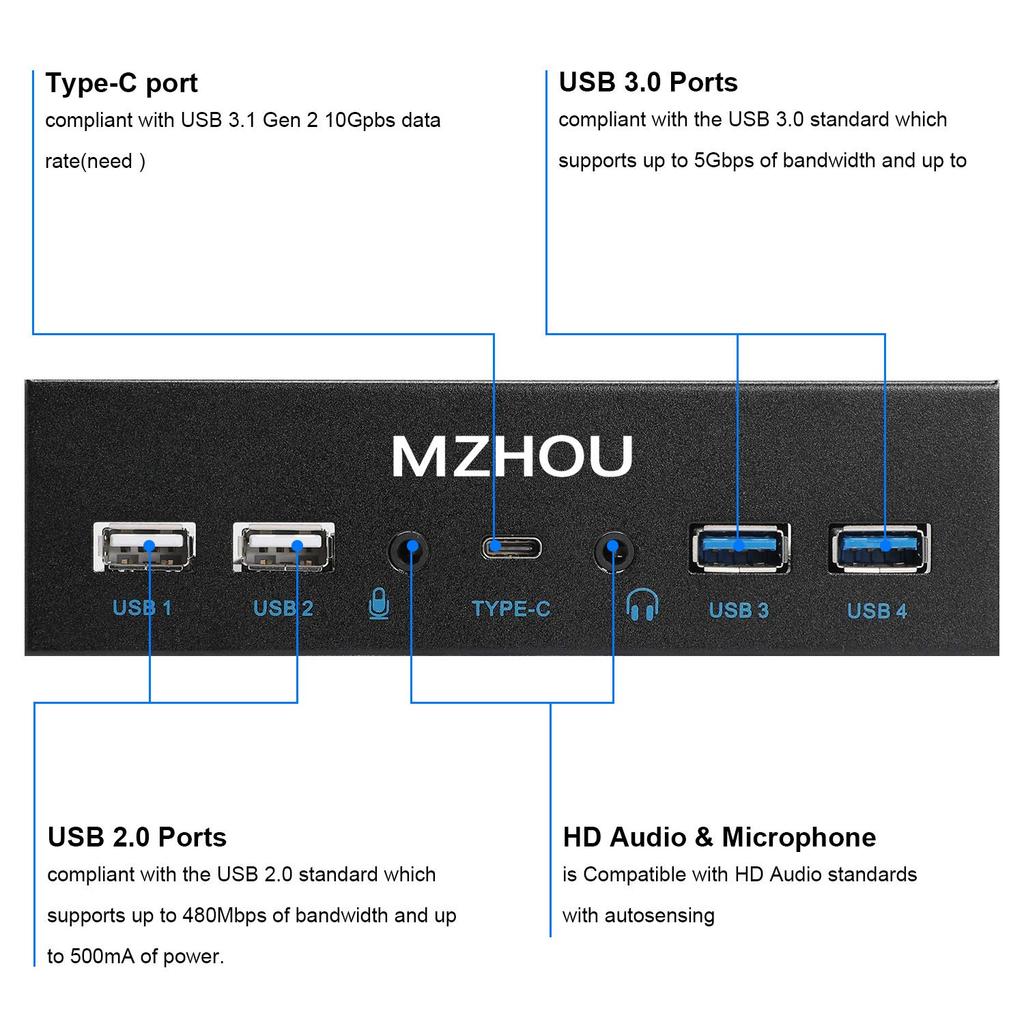

Converts the front bay of your 5.25-inch computer case into a 5-port USB hub, USB 3.1 Gen 2 Type-C, 2-port USB 3.0, and 2-port USB 2.0.

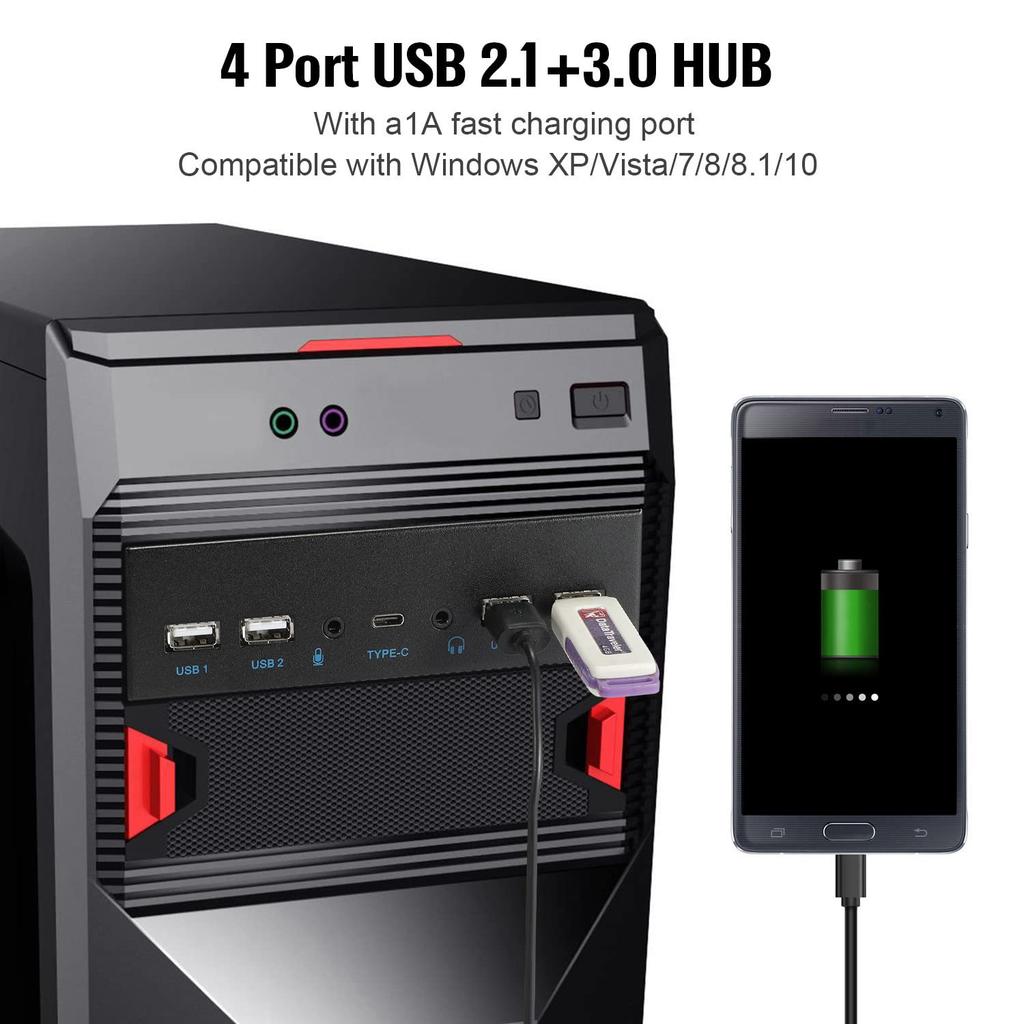

This front panel hub provides easy access to five USB ports on the front of your computer case through a 5.25-inch bay.
Type-C port. USB 3.1 Gen 2 10Gbps data rate (required). USB 3.0 port compliant. Supports up to 5Gbps bandwidth and up to 900mA of power.
USB 2.0 port. Compliant with USB 2.0 specifications, supporting bandwidth up to 480Mbps and power up to 500mA.
HD Audio & Microphone is compatible with HD Audio standards with auto-sensing.
Installation is quick and easy, and the unit is plug and play.

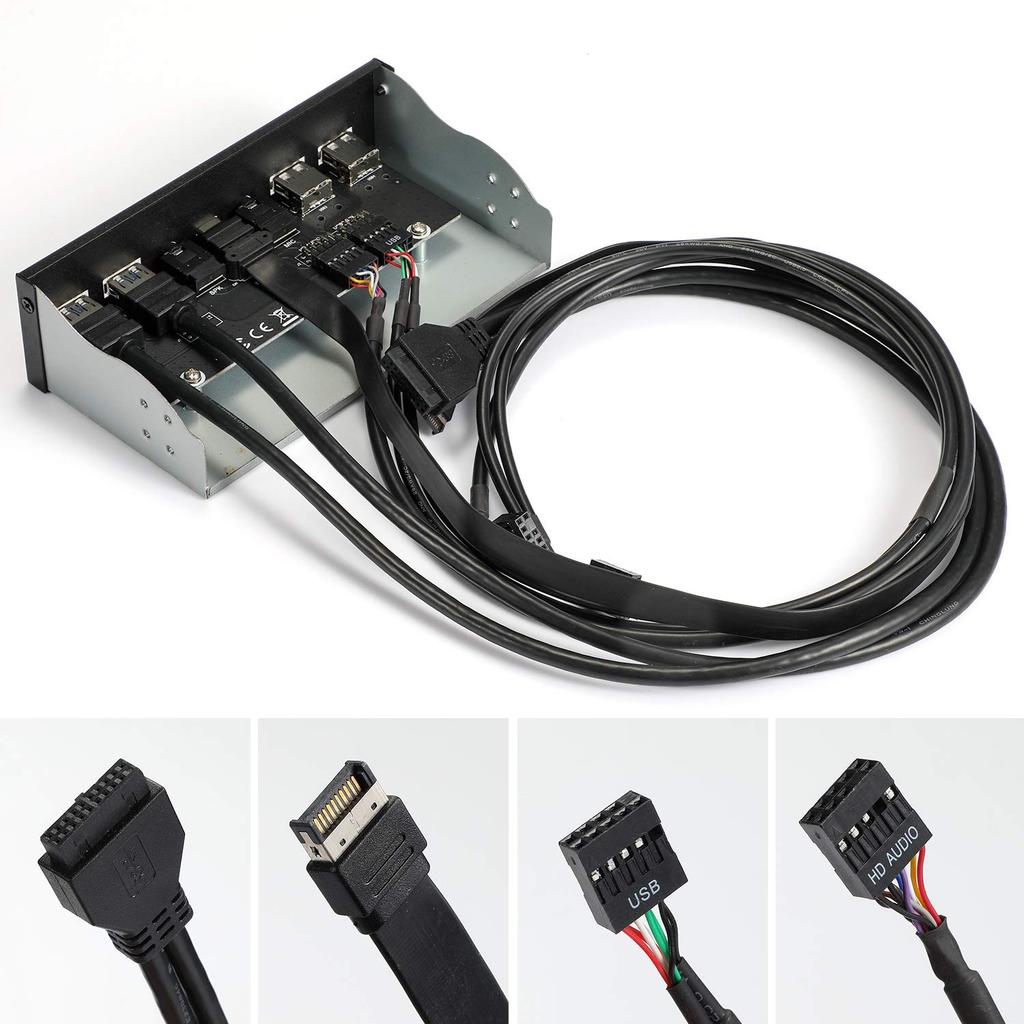

Simply insert the bay into the space using the included screws, then plug the bay into the USB 3.0 19/20-pin connector, USB3.1 Key-a (TYPE-E) 20-pin and USB 2.0 10-pin connectors, and you're done.
Package Includes:
Optical drive bit panel *1 (with USB cable *4 + TYPE-C cable).
5 x Fixing Screws
