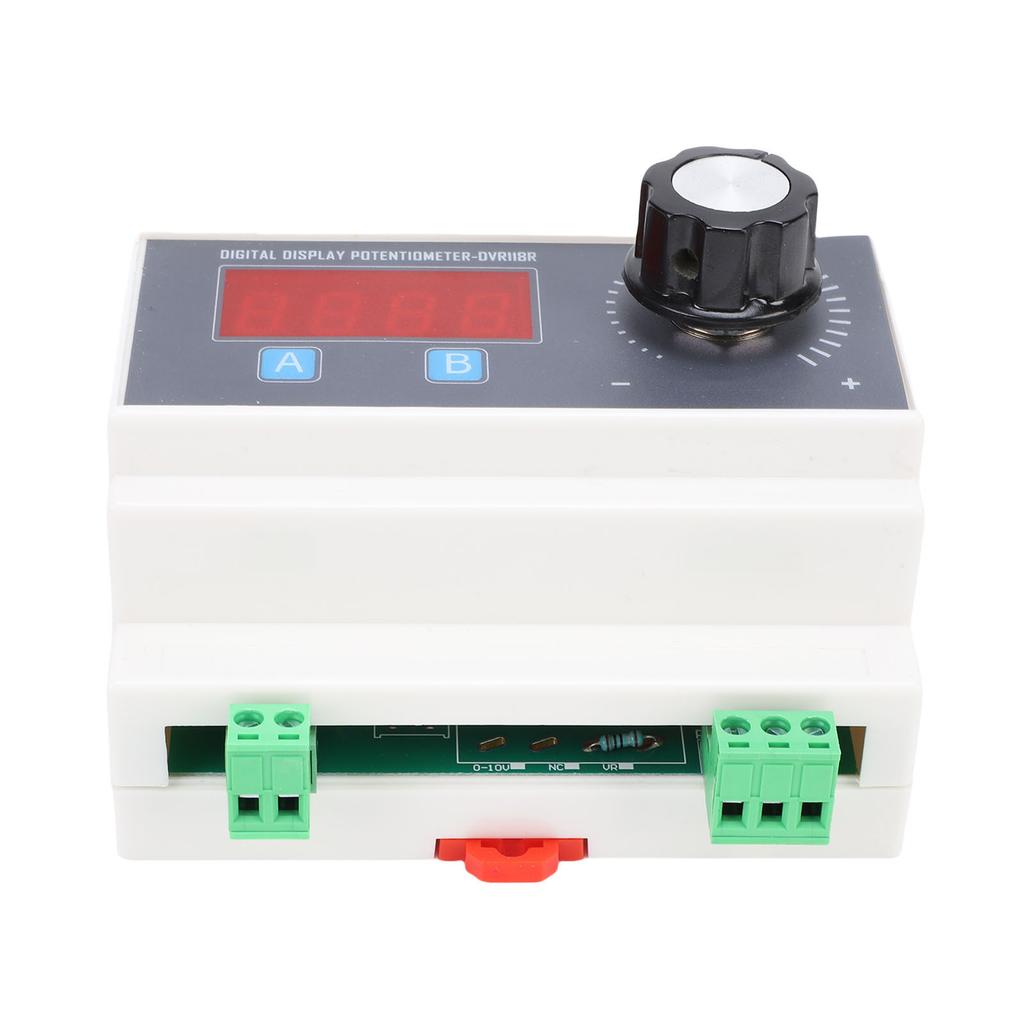

Feature:
1. Rail Mounted Installation: The power is 2W, the resistive value is 10K Ohm , this potentiometer can be installed on the guide rail and is easy to use.
2. Digital Display: This potentiometer adopts 4 digit 0.4 inch digital display, convenient for parameter settings, with same accuracy as single turn 2W potentiometer.
3. Programming Function: This digital potentiometer can set minimum range value ( 1000 to +1000), multiplier (0.1 to 5.0), set magnification (x1, x2, x10), and decimal point position.
4. Industrial Circuit Design: The programmable potentiometer adopts current loop dedicated chip and industrial grade circuit design, with power off storage function.
5. Wide Application: This potentiometer can replace most commonly used single coil potentiometers with the same resistive value, can be connected to speed controller, PLC inverter, etc.
Specification:
Item Type: Digital Display Potentiometer
Material: Flame Retardant PC
Potentiometer Power: 2W
Resistive Value: 10K Ohm
Parameters Setting:
A Parameter Minimum Value Range: 1000 1000
Operation Instructions:
1. Long press the A key, when the first digit flashes
2. Press the B key to adjust the value
3. Press the A key again to switch between the second, third, and fourth digit
4. Press A again to store and exit
B Parameter Setting Magnification: 0.1 5.0
Operation Instructions:
1. Press and hold the B key, the four digits will flash together
2. Press the A key to increase the value by 1 each time, and adjust it to the appropriate value
3. Press the B key again to store and exit
C Magnification Setting: x1, x2, x10
Operation Instructions:
1. Short press the B key to switch between magnification, 1x, 2x, or 10x
2. Automatically stored after 2 seconds
D Decimal Point Setting: X.XXX, XX.XX, XXX.X, XXXX
Operation Instructions:
1. Short press the A key to switch decimal points
2. Automatically stored after 2 seconds
Note:
The minimum display range for standard potentiometers with a linear error of over 5percent is 1999, and the maximum is 9999
If the minimum value displayed is less than 1000 or larger than 1000, consider C02 or C10 first
Package List:
1 x Digital Display Potentiometer
Note:
This module is a potentiometer module, and cannot be directly used to adjust power loads. It can only be used as a replacement for potentiometer on controller and device.
