Feature:
1. Versatile Functionality: Experience the tool with our 3 in 1 digital multimeter, which combines a multimeter, oscilloscope, and signal generator into one sophisticated device. Suitable for both professionals and hobbyists, it simplifies your toolkit by delivering exceptional functionality without compromising performance.
2. Accurate Measurement: Achieve maximum accuracy with a 4.5 digit resolution (160,000 maximum count) ensuring you can measure voltage, current, and more with confidence. The included high stability 5ppm reference enhances reliability, making it the choice for accurate electronic diagnostics.
3. Automatic Measurement Convenience: Simplify your testing process with automatic measurement features. The multimeter effortlessly switches between DC (400mV 1000V) and AC (400mV 750V) modes without manual adjustment, and seamlessly transitions between uA mA A ranges (400UA 10A) for maximum efficiency.
4. Oscilloscope: Take your testing to new heights with the 10 bit ADC sampling and 50M sample rate, along with a 10MHz bandwidth. Catch and analyze waveforms in extraordinary detail, supported by 64K points of memory to store your data for further evaluation.
5. Vibrant Multi Touch Display: Enjoy a visually stunning experience on the vibrant G and G multi touch screen. With rich colors and high clarity, the display enhances readability, making it easier to interpret results even in challenging lighting conditions.
Specification:

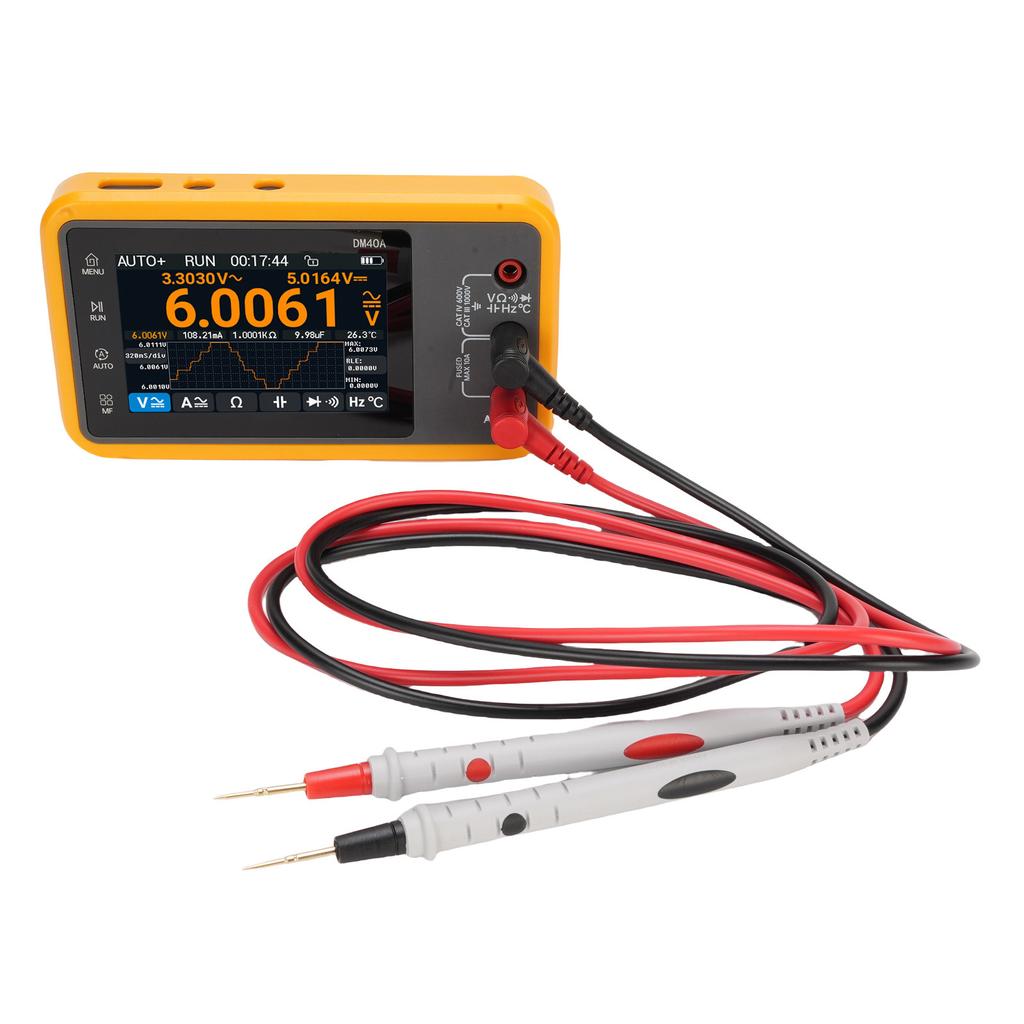

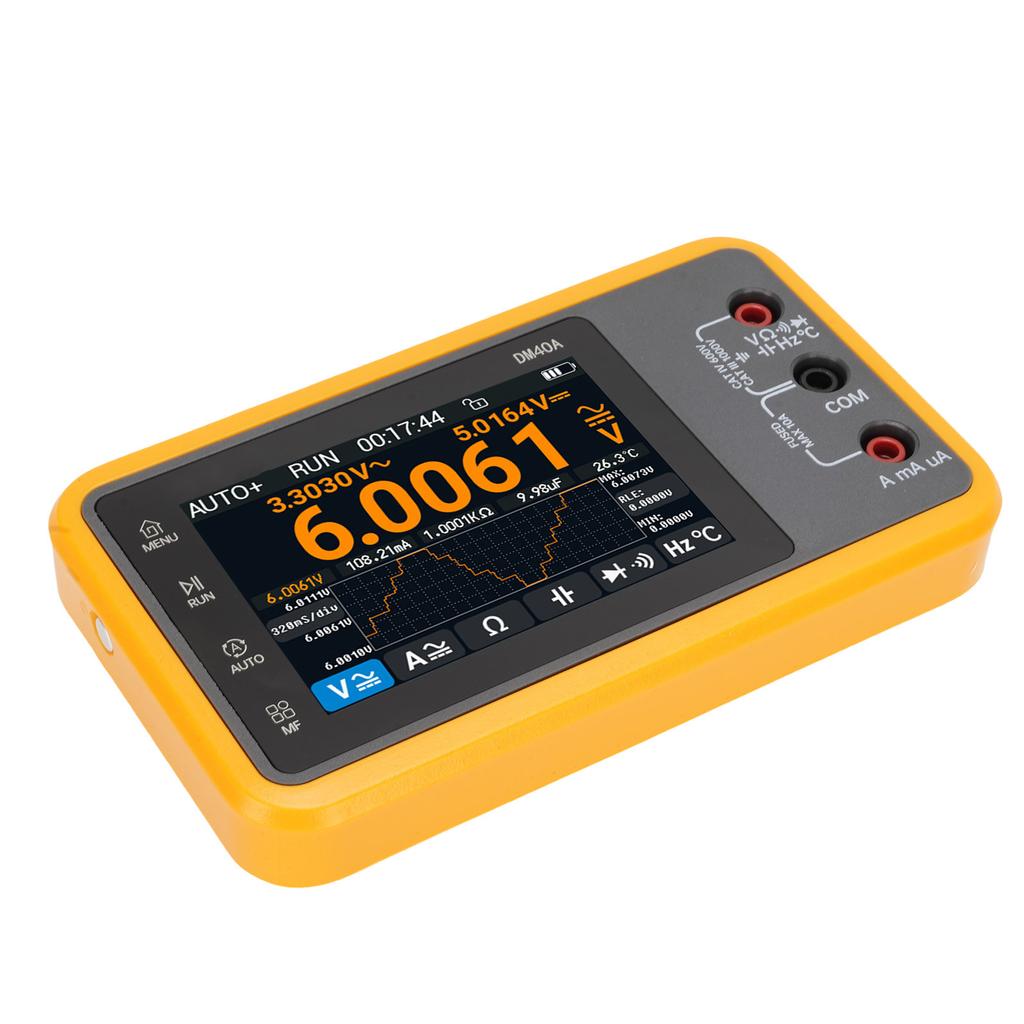

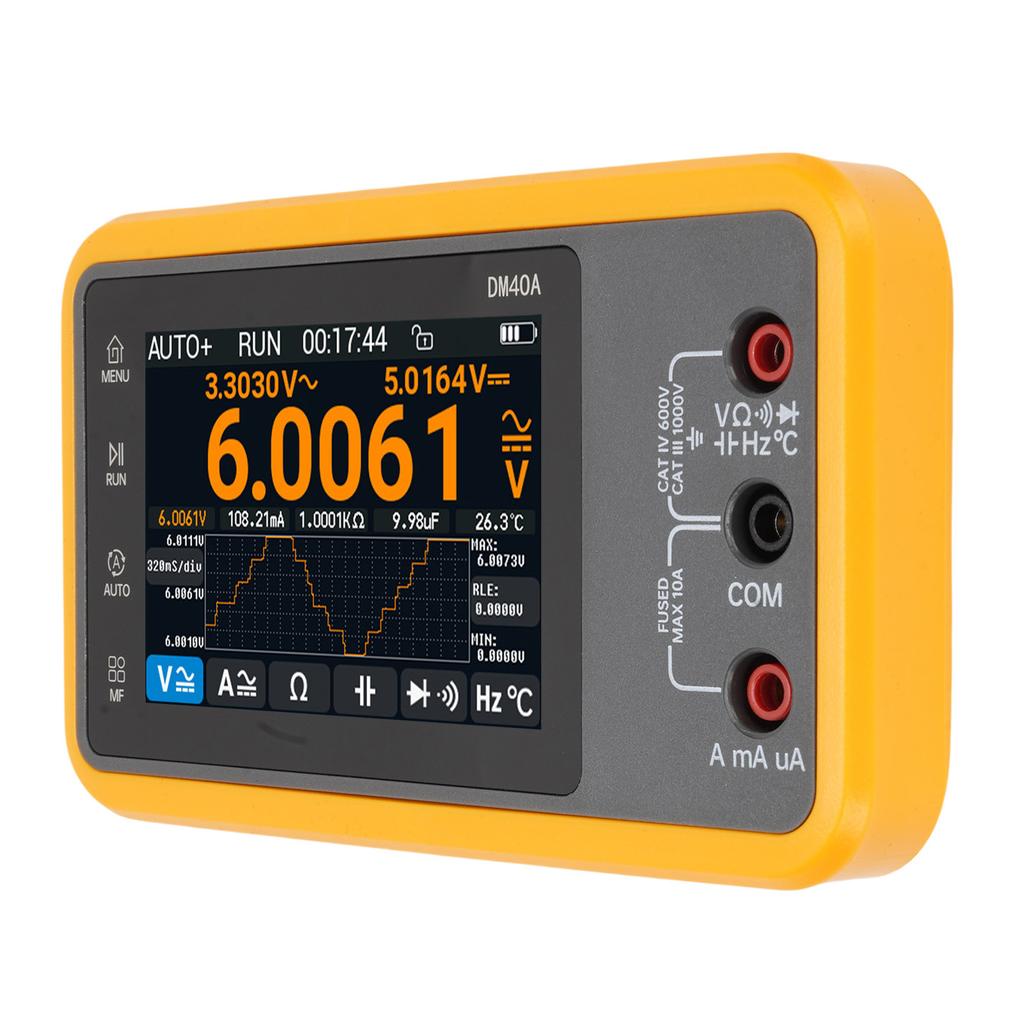

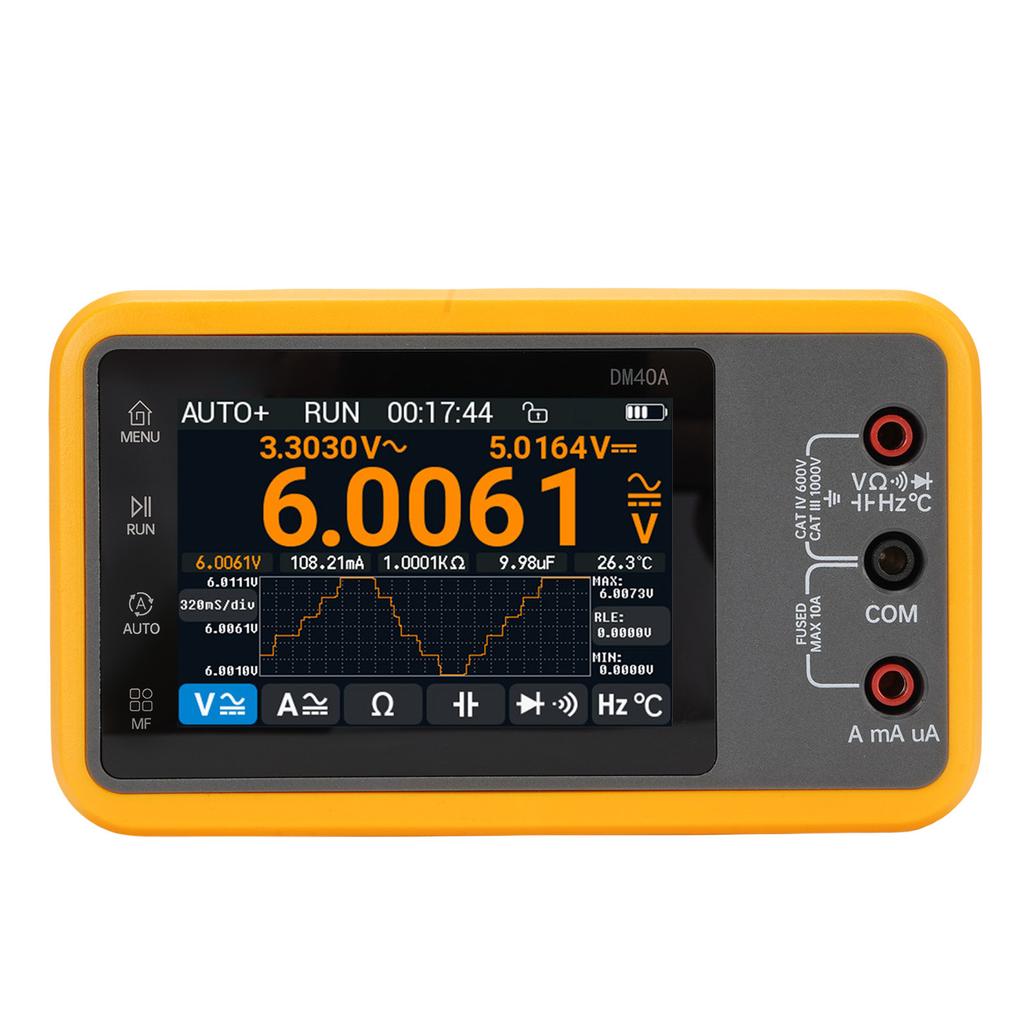

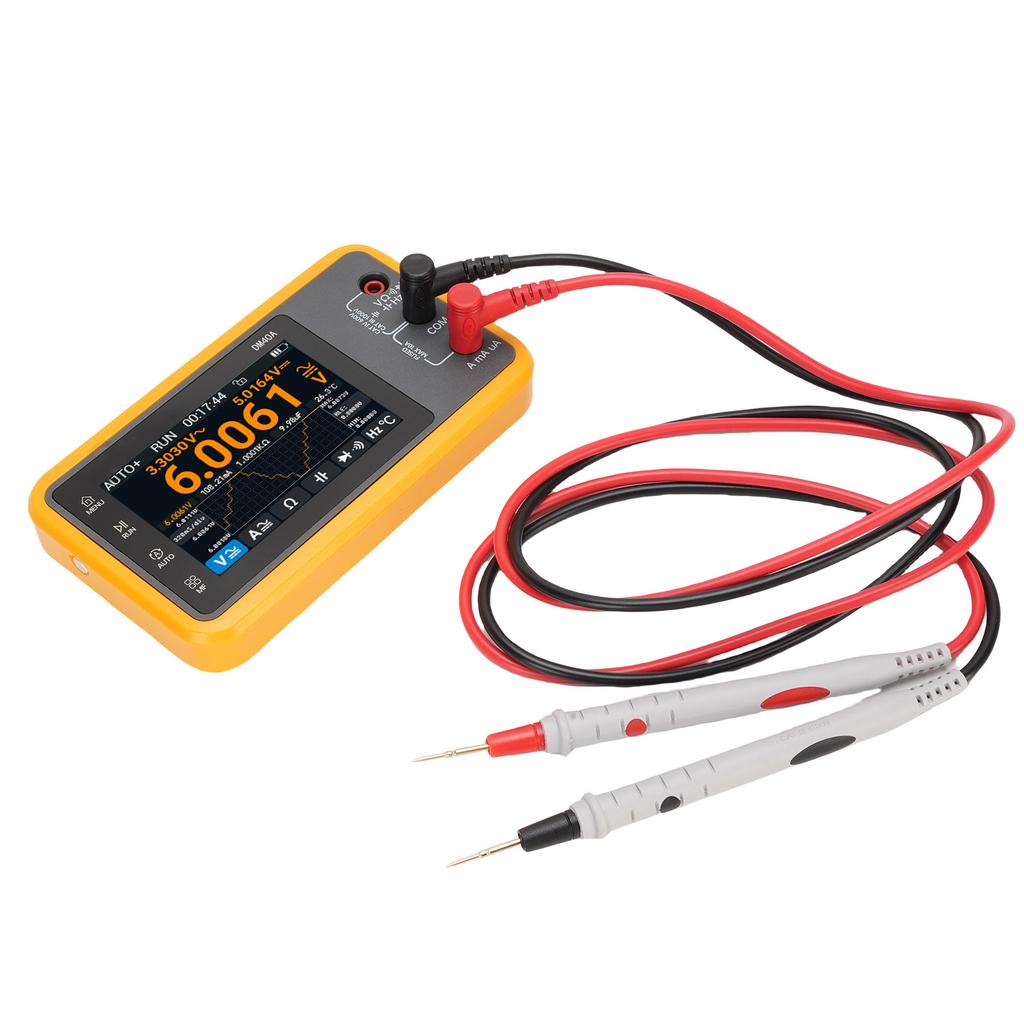

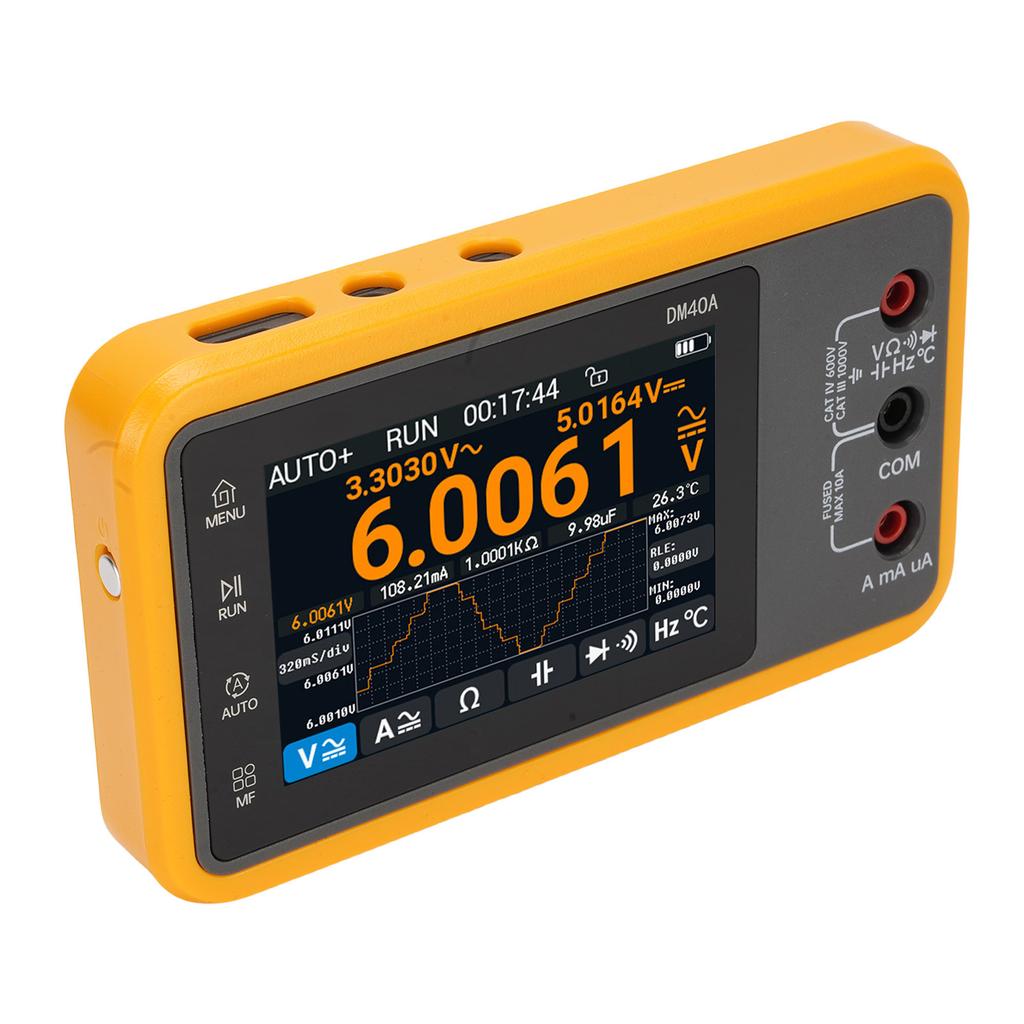

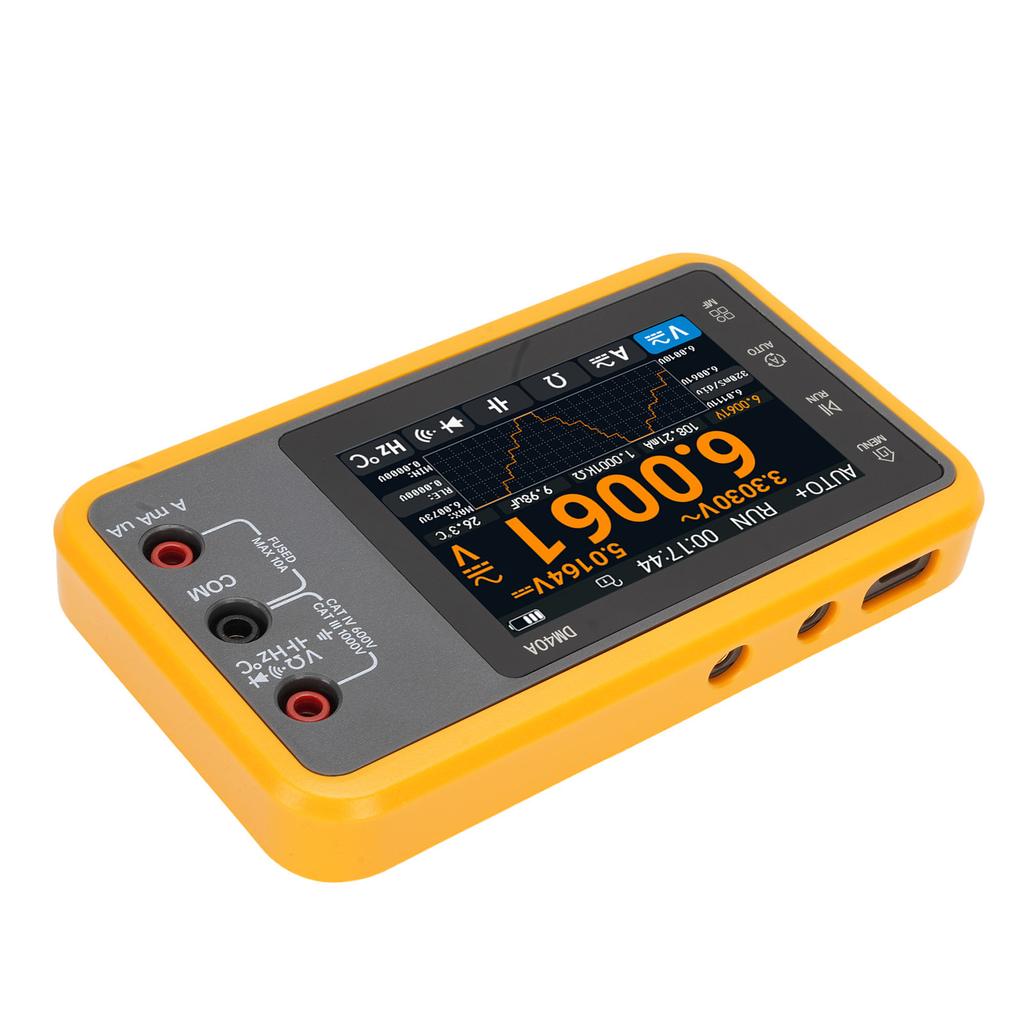

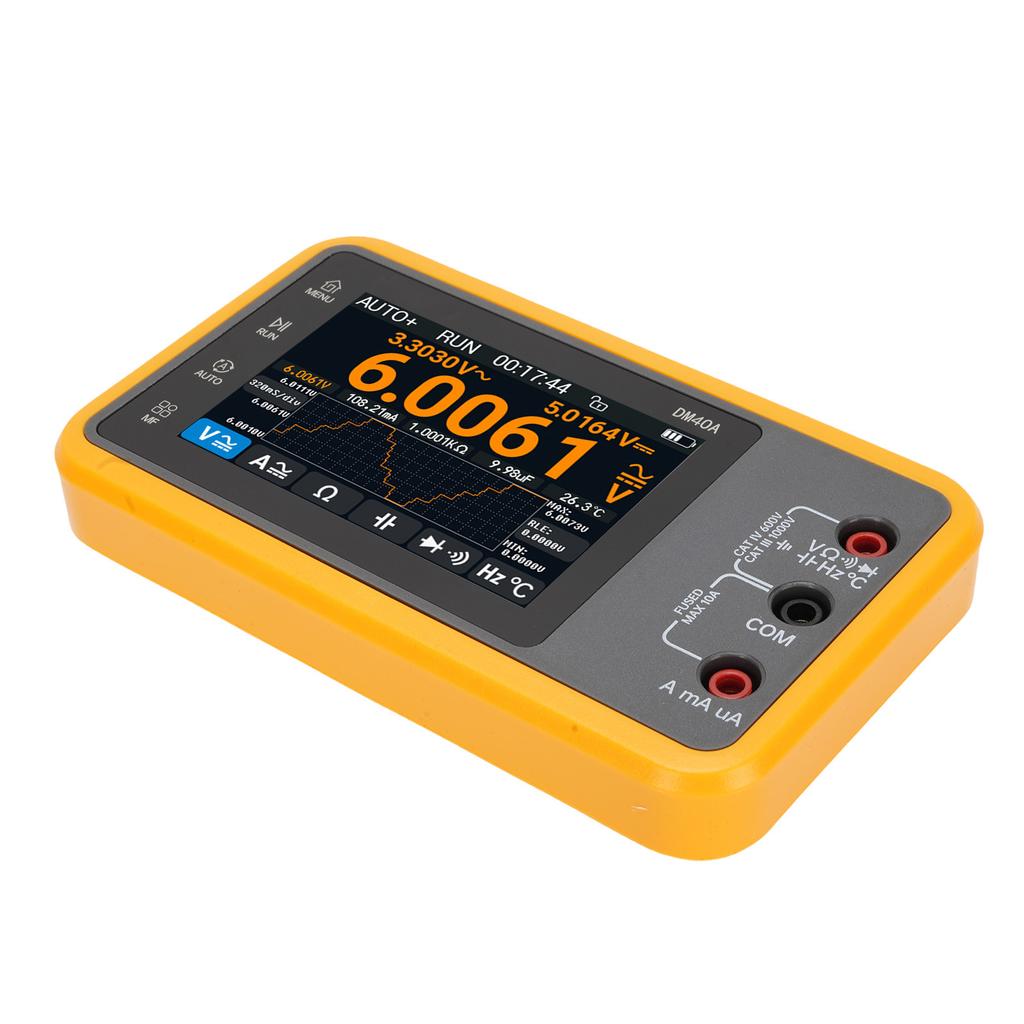

Item Type: Digital Multimeter Oscilloscope Signal Generator
Material: ABS
Battery: Rechargeable Battery x1 (2000mah) (shipped with built in battery)
Screen: Full Touch 3.5in (480x320)
DC Voltage: 400mV, 4V, 40V, 400V, 1000V
AC Voltage: 400mV, 4V, 40V, 400V, 750V
DC Current: 400uA, 4000uA, 40mA, 400mA, 4A, 10A
AC Current: 400uA, 4000uA, 40mA, 400mA, 10A
Resistor: 400 Ohm , 4K Ohm , 40 K Ohm , 400K Ohm , 4M Ohm , 40M Ohm
Capacitance: 4nF, 40nF, 400nF, 4uF, 40uF, 400uF, 4mF, 40mF
Frequency: 10Hz 40MHz
Temperature: 40 celsius 1000 celsius (standard probe temperature measurement range 20 celsius 300 celsius ) 40 Fahrenheit 1832 Fahrenheit
Continuity: 0 Ohm 1K Ohm
Diode: 0V 3.0V, 0 1K Ohm
Oscilloscope:
Sample Rate: 50MSa S
Analog Bandwidth: 10Mhz
Storage Depth: 64Kpts
Time Base Range Time: 100ns 50s
Vertical Sensitivity: 10mV 10V div (X1)
Vertical Resolution: 10bit
Input Impedance: 1Μ Ohm
Time Base Mode: YT ROLL
Trigger Mode: Auto, Normal, Single
Trigger Type: Rising, Falling
Persistence Time: OFF Min 1S Infinite
Math Function: FFT ABS
Signal Generator:
Output Waveform: Sine Wave, Sawtooth Wave, Triangle Wave
Frequency: 1Hz 50KHz
Amplitude: 0.5V 3.0Vpp.

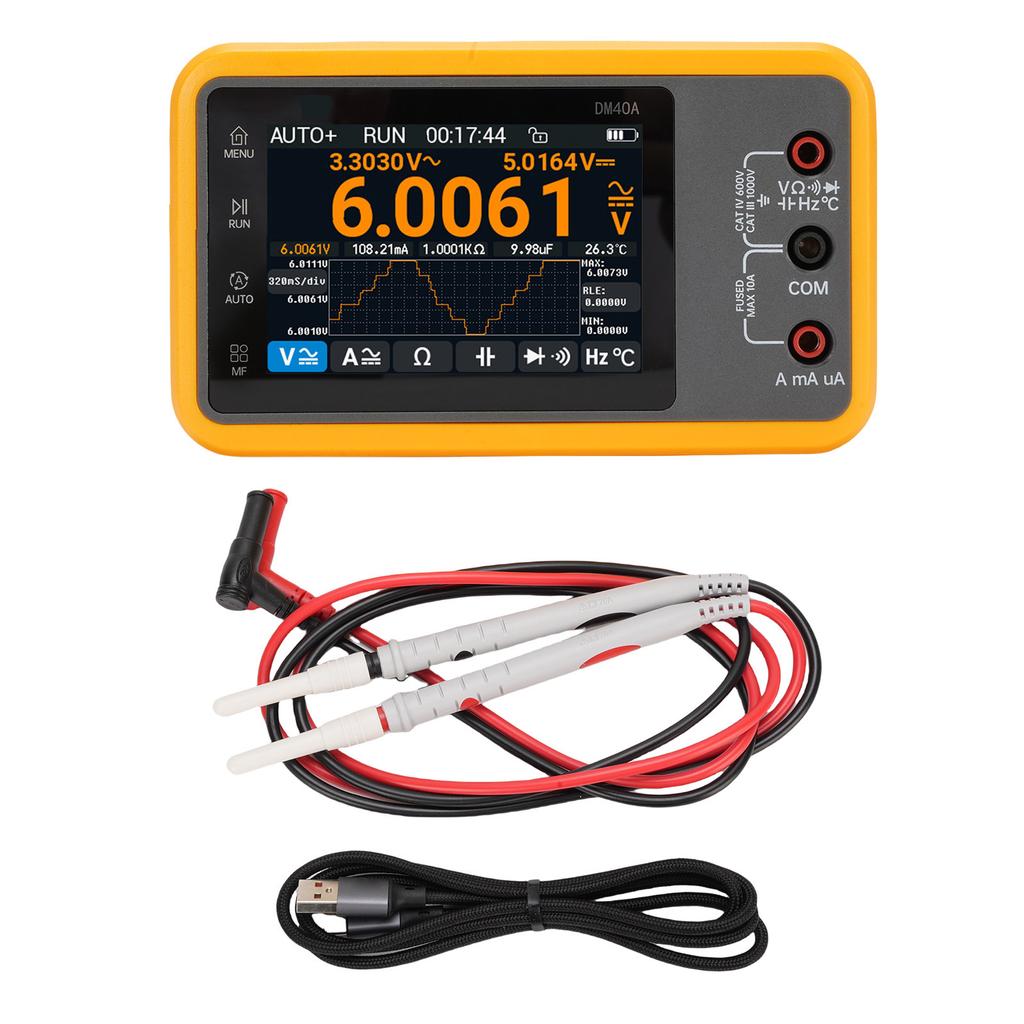

Package List:
1 x Oscilloscope
1 x User Manual
1 x USB Cable
1 Pair x Test Pen
