Battery Included : No
High-concerned chemical : None
Is Smart Device : No
Measurement Range : 50-50000PPM / 0-100%LEL
Model Number : CGD02A
With LCD Screen Or Not : Yes
Gas Type : Combustible Gas
DIY Supplies : Electrical
Origin : Mainland China
Certification : CE
Measure gas : Combustible gas, natural gas, coal gas, methane,Ethane
Alarm mode(CGD02A) : mode(CGD02A) Sound alarm and Analog column
Accuracy : 1PPM / 1%LEL
Preheat time : 30 seconds
Calibration method : Auto Calibration after 30 seconds
Auto power-off : 10 minutes after no operation
Working curent : 190mA
Temperature measure range : 0-50 degree/32-122F
Celsius and Fahrenheit switch : Yes
Working temperature : 0-50 degree
Working humidity : 0-70%RH
Flexible hose : 270mm
Usage 1 : Combustible Gas detector
Usage 2 : Flammable Natural Tester
Usage 3 : Gas detector
item : Gas analyzer
Power supply : 1.5V*3 AAA battery(not include)

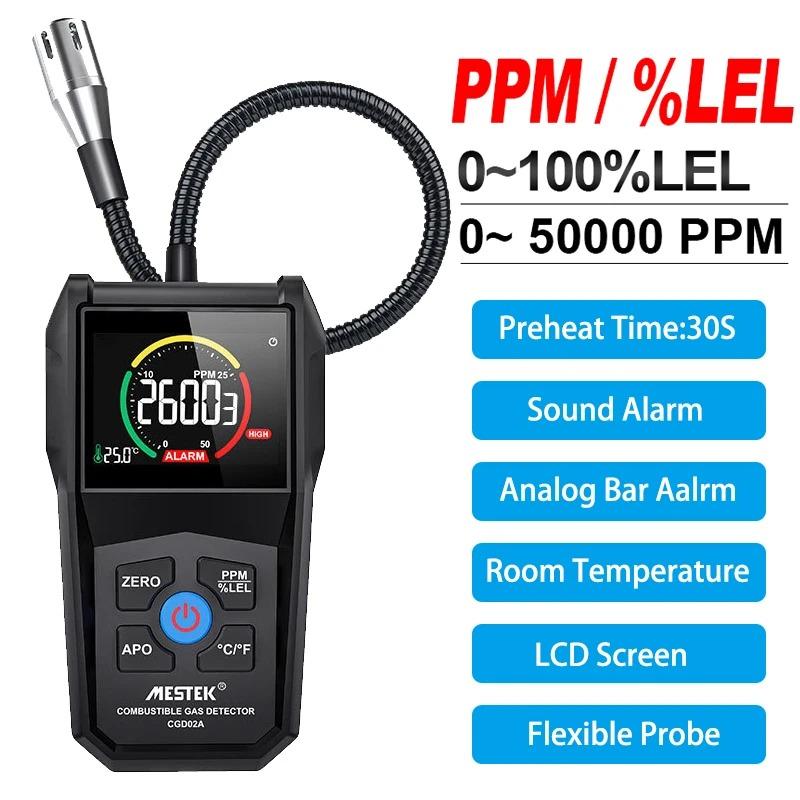

CGD02A Combustible Gas Detector Analyzer 50000 PPM 100% LEL Gas Leak Detector LCD Screen Sound and Light Alarm Gas Analyzer
Specifications:
● Material: ABS
● Detecting Gas: Natural gas, coal gas and liquefied petroleum gas
● Detection Flow: 1L/min
● Gas Resolution: 1%LEL/1PPM
● Temperature Resolution: 0.1℃ / 0.2℉
● Gas Measurement Range: 0~100%LEL / 0-50000ppm(automatic)
● Temperature Measurement: 0~50℃ / 32~122℉±(2℃/4℉)
● Measurement Accuracy: ±5%FS
● Sampling Mode: Diffusion type
● Response Speed: 2 seconds
● Calibration Mode: Automatic calibration after starting up for 30 seconds
● Automatic Shut-down: About 10 minutes
● Color VA Reverse Display Screen: Yes
● Type of Alarm: Sound, screen display
● Preheating Time: 30 seconds
● Working Current: 190mA
● Working Environment: 0~50℃, 0~70%RH
● Storage Environment: -10~50℃, 5~95%RH
● Length of Flexible Metal Hose: 270mm / 10.63in
● Power Supply: 3 * 1.5V AAA battery (NOT included)
Features:
●Compact size and light weight, the combustible gas detector adopts double body protection, safer for operation and portable to carry with you.
●Flexible metal hose and metal induction shield can reduce interference, which is suitable for all kinds of scene detection.
●Use high performance sensor, it has high sensitivity, quick response, good reliability, and accurate leakage detection.

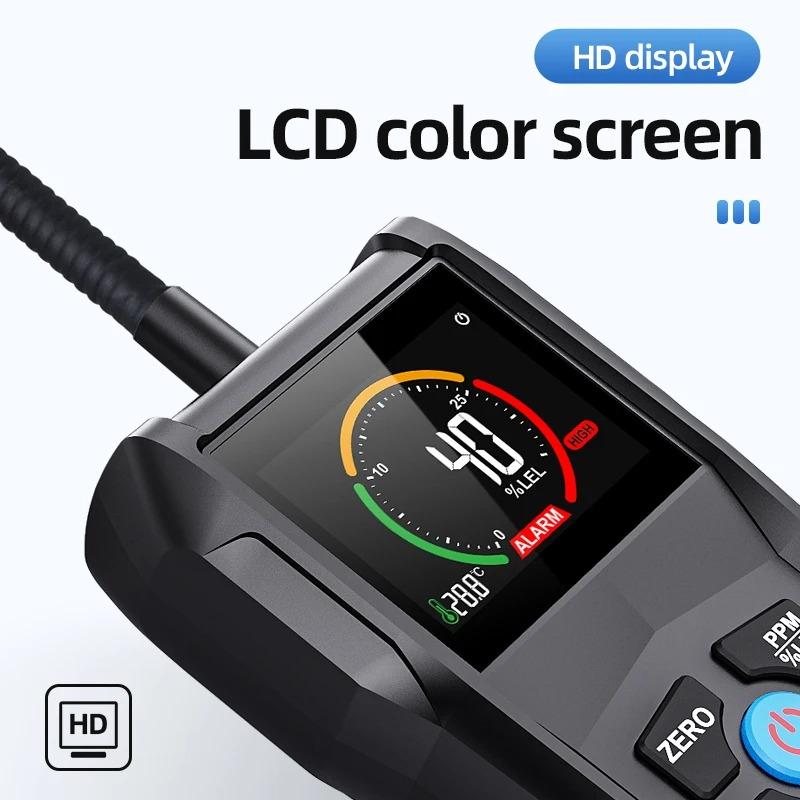

●HD VA reverse color screen, digital and analog dual display, easy to read.
●%LEL and PPM measurement units switch.
●APO button for one key turn off and turn on the Auto Power Off Function.
●Sound alarm and LCD display visible leakage alarm.

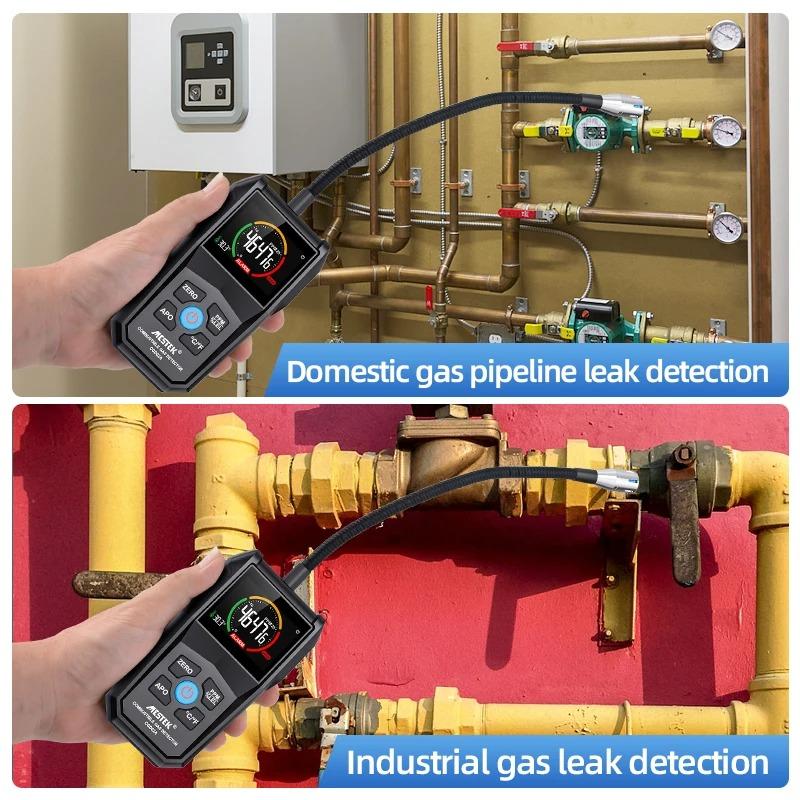

●The detector is suitable for gas pipeline leakage detection, domestic gas prevention, oil and gas exploitation, tunnel and mine operation, chemical industry, metallurgy, refining and chemical industry, biochemical medicine and other industries.
Packing List:
1 * Gas Detector
1 * Storage Pouch
1 * Manual (English)
