Fully Suspended. More Powerful on the Go.
The Lapis is built for demanding routes and long days in the saddle. The combination of full suspension, step-through frame, and powerful 110 Nm mid-drive motor lets you tackle asphalt, gravel, and root-strewn trails with confidence. Cover more terrain, ride more relaxed, and stay in the flow longer.
FEATURES & HIGHLIGHTS
Comfort That Devours Bumps

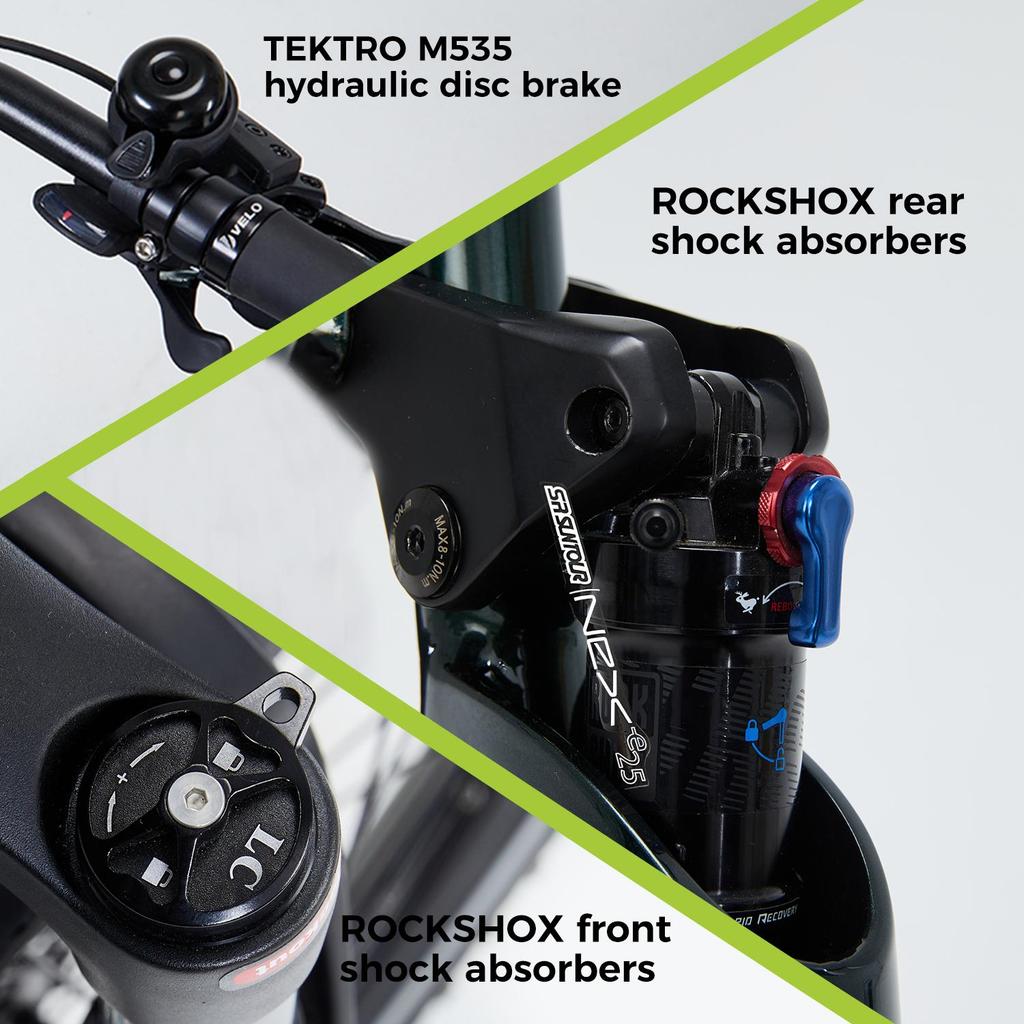

The step-through frame paired with front RockShox suspension (100 mm travel) and rear suspension is engineered for maximum control. It absorbs shocks, smooths out rough sections, and delivers a stable, plush ride on asphalt, cobblestones, or forest paths.
Climbs? Effortless.
The Lapis is equipped with a robust mid-drive motor boasting 110 Nm of torque and an efficient 48 V system. Perfect for steep climbs, heavy loads, and long tours. Assistance kicks in early and powerfully – keeping you in the flow.
Long-Lasting Power
The 644 Wh battery sits neatly in the down tube, is lockable, removable, and can be charged externally. It delivers long range, extended lifespan, and the reserve power you need for longer rides and spontaneous detours.
Tires That Mean Business on Any Terrain
Schwalbe Hurricane tires roll smoothly and efficiently, while still offering sidewall grip for forest trails and gravel. Ideal for mixed terrain – fast on the road, stable off it.
A Seat That Fits Your Ride
The ergonomic Velo saddle and dropper seatpost let you adjust your seat height at the touch of a button. More safety when stopping, more comfort on long rides, and more maneuverability on rough ground.
Bring More Along for the Ride
The Racktime luggage rack carries up to 25 kg and is fully compatible with Racktime accessories. Perfect for groceries, gear, or tours – robust, stable, and built for daily use.
Technical Data
Frame
Material: 6061 Aluminium
Frame Size: 42 cm (One Size)
Frame Type: Step-Through
Suspension
Front Suspension Fork: RockShox Judy Silver TK Solo Air
Travel: 100 mm
Features: Hydraulic Lockout, E-Bike-ready
E-Bike System
Motor: Deruiz M100 Mid-Drive Motor / 250 W / 48 V / 110 Nm
Sensors: Cadence & Torque Sensor / 5 Support Levels / Start Assist
Battery: 48 V / 644 Wh Battery / Range up to 161 km / Removable
Display: Deruiz LCD with Bluetooth
Charger: Deruiz 48 V / 2 A Charger
Front Light: 100 Lux (StVZO-Certified)
Rear Light: Integrated into Racktime Luggage Rack (StVZO-Certified)
Drivetrain & Brakes
Braking System: Tektro Gemini HD-M535 Hydraulic Disc Brakes – 180/160 mm
Shifter Lever: Shimano Deore SL-M4100
Rear Derailleur: Shimano Deore M4120 / 10-Speed
Cassette: Shimano Deore 11–42 Teeth
Crankset: Prowheel 42T / 170 mm
Cockpit
Handlebar: Deruiz Comfort Bar / 660 mm / 51° Backsweep / 16 mm Rise
Stem: Adjustable Deruiz Comfort Stem / Ø 31.8 mm
Grips: Deruiz (Velo) Ergonomic Comfort Grips
Headset: IS 52/28.6 mm (Upper) – ZS 56/39.8 mm (Lower)
Wheels
Front Wheel Hub: Quick Release 115 mm
Rear Wheel Hub: Steel Axle, Bolt-On
Rims: 36-Hole / ETRTO 584×25.5 mm (Inner)
Tires: Schwalbe Hurricane / 62-584 (27.5×2.40) / DD / RaceGuard / E-50
Equipment
Seatpost: ExaForm Dropper Post / 150 mm Travel / Ø 31.6 mm
Saddle: Velo Ergo with Comfort Zone
Pedals: Wellgo B249 / Aluminium / Sealed Bearings
Fenders: Aluminium, 66 mm Wide
Luggage Rack: Racktime / Max Load 25 kg / Includes Rear Light
Front Baskets & Accessories: More Options
The new exhaust pipe area features four additional mounting points—compatible with all current Deruiz front bays and front carriers. More transport options, seamlessly integrated, stable, and versatile.
More space for everything that matters.
The integrated luggage rack can carry up to 25 kg and is fully compatible with side bags, baskets, and the Quick-Mount system.
Whether it's shopping, a laptop, or weekend gear – everything has its place.
3. Technical Data (Quartz Model)
Frame
Material: 6061 Aluminium
Size: One Size (44 cm)
Frame Type: Step-Through Frame
Fork / Suspension
Front Suspension Fork: Deruiz PAY-PRO 700C, Disc Brake Mount, 60 mm Travel, with Mechanical Lockout
E-Bike System
Motor: Deruiz Rear Hub Motor 95RX.RC / 250 W / 48 V / 55 Nm
Sensors: Torque Sensor with Additional Cadence Detection / 5 Support Levels / Start Assist
Battery: 48 V / 13.2 Ah / approx. 644 Wh / Range up to approx. 161 km (depending on driving style and conditions)
Display: Deruiz Color LCD Display (KD126 Custom) with Bluetooth, Deruiz Ebike App Connection and Deruiz Protocol
Charger: Deruiz 48 V / 2 A Charger with 4-Pin Connector
Front Light: Shiny 40, 40 Lux (StVZO-Certified)
Rear Light: Büchel Edge, 2.5 cd (StVZO-Certified)
Drivetrain & Brakes
Braking System: Deruiz HD-280E Hydraulic Disc Brakes (180 mm Front / 180 mm Rear)
Shifter Lever: Shimano Altus SL-M315-8R Rapidfire
Rear Derailleur: Shimano Altus RD-M310 / 8-Speed
Cassette: Shimano Acera CS-HG41-8 / 11–32 Teeth
Crankset: XR5HA-42 / 42 Teeth / 170 mm Crank Arms
Cockpit
Handlebar: Deruiz Comfort Swallow Bar / 640 mm Width / 44° Backsweep / 25 mm Rise
Stem: Comfort Stem (Ø 31.8 mm) with 30° Angle
Grips: Deruiz Ergonomic Rubber Grips
Headset: Semi-Integrated Ahead Headset
Wheels
Front Wheel Hub: Quick Release 115 mm, Disc Brake Mount
Rear Wheel Hub: Integrated Deruiz Rear Motor
Rims: Double-Walled Aluminium Rims, 700C / 36 Holes
Tire: Schwalbe Road Cruiser, 47-622 (28 × 1.75), with Reflective Strips and K-Guard Puncture Protection
Equipment
Seatpost: Ø 31.6 × 350 mm / Dual-Screw Clamping
Saddle: Velo VL-6581
Pedals: FP-803B City Pedals, Ball-Bearing, with Reflectors
Kickstand: Adjustable Side Stand (22–29 inches)
