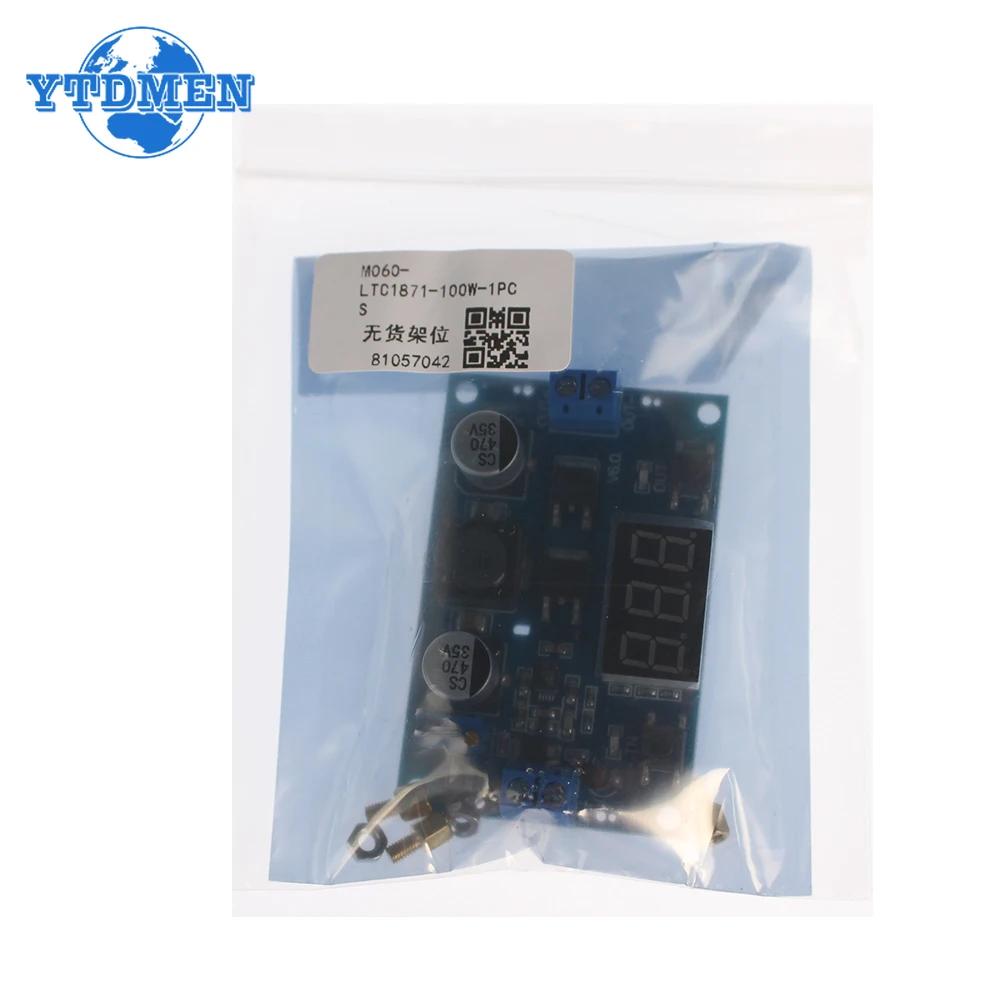

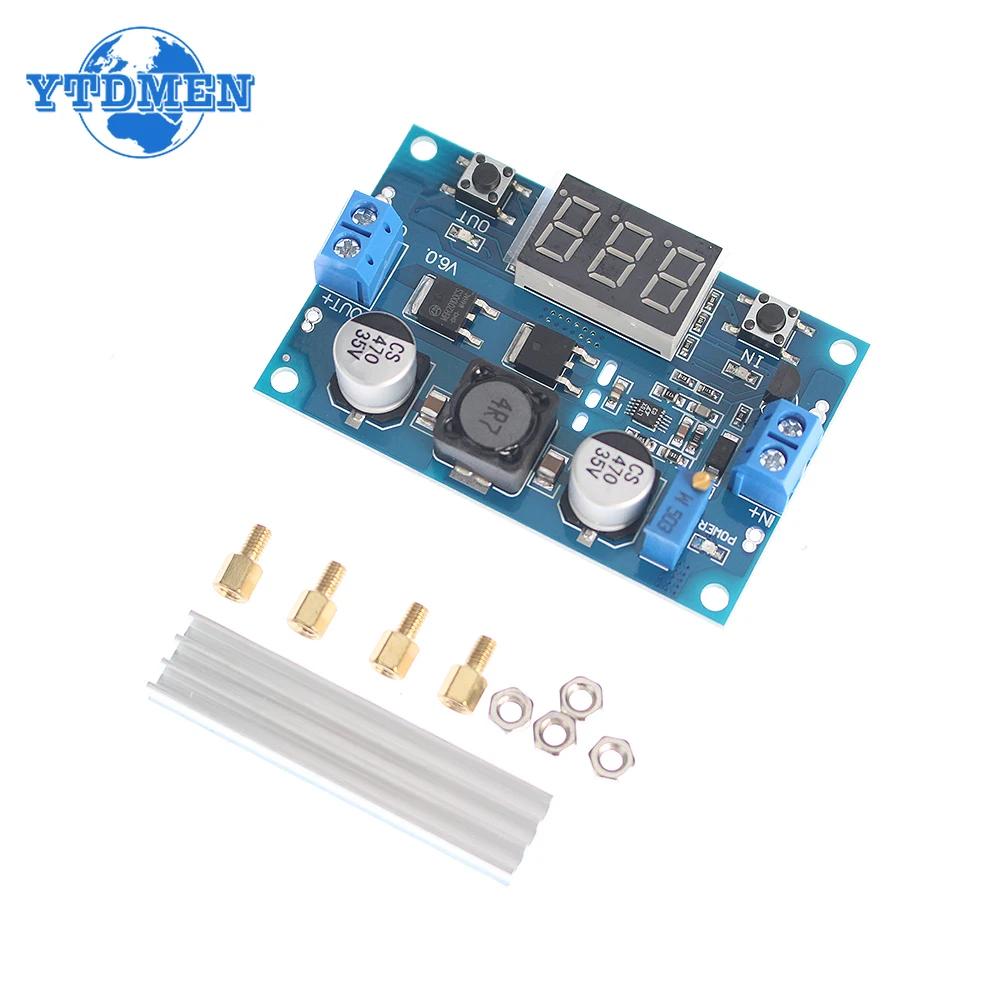

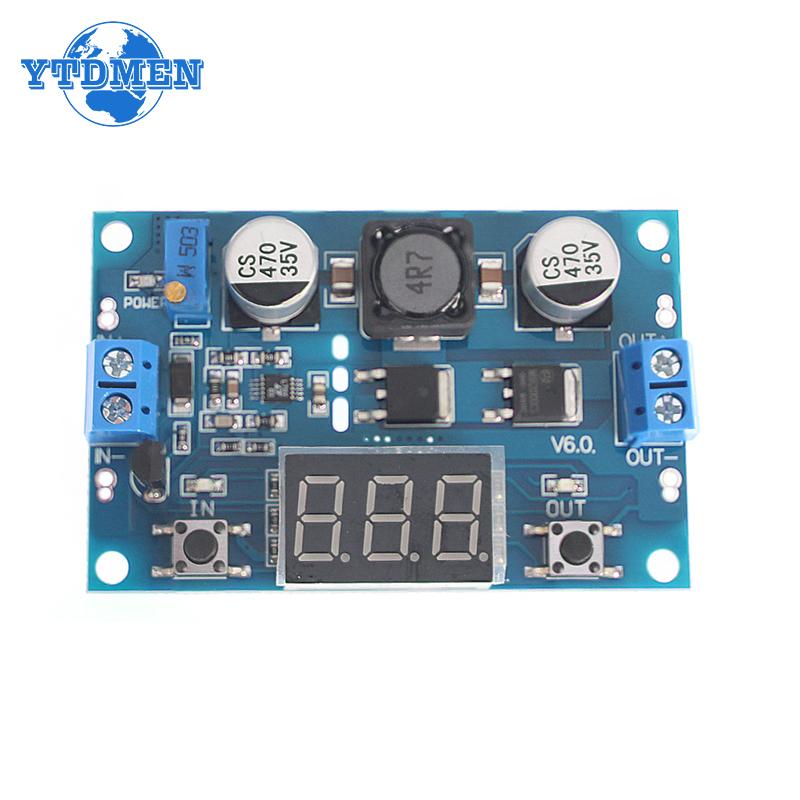

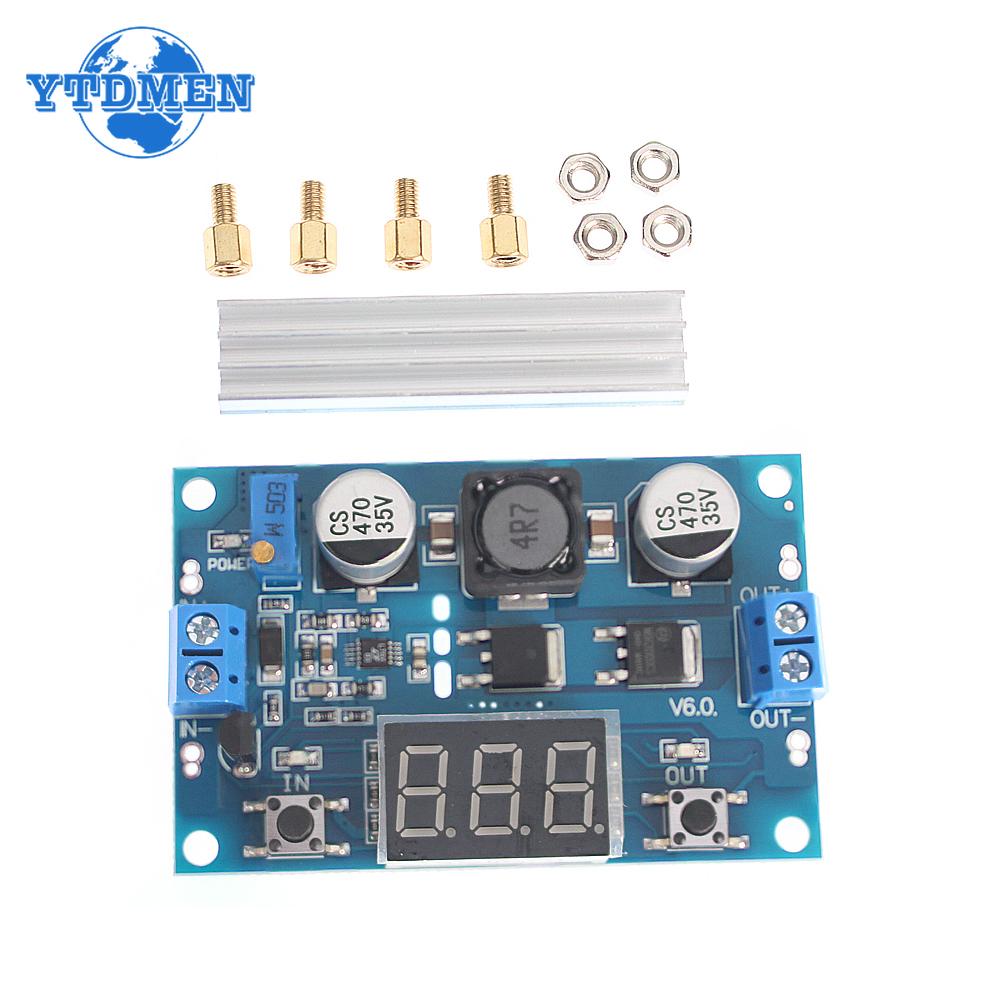

LTC1871 100W Boost Converter Module Step-up Power Supply Module DC-DC 3-35V To 3.5-35V with Digital Display Voltmeter

Performance parameters: 1. Input voltage: 3-35V DC (note: if the input voltage is less than 4V, the onboard voltmeter will fail) 2. Input current: 9A (max) 3. Output voltage: 3.5-35V DC (this board is a boost board, and the output voltage should be>=input voltage) 4. Output current: 6A (max) 5. Output power: 75W, (can reach 128W when both input and output voltages are greater than 20V) 6. Conversion efficiency: 96.7% () 7. Output ripple: 24mV (TYP) 8. Range of onboard voltmeter: 4~40V, error+-0.1V 9. Short circuit protection: Yes (limited current of 14A). Reminder: When connecting high-power loads, due to the large impact current at the beginning of startup, it is recommended to start the machine first and then connect the load for current limiting self-locking protection. 10. Input reverse protection: None (if necessary, please connect a high current diode in series with the input). 11. Length x width x height=67 * 43 * 12MM (excluding copper pillars)
