Features:
1. The high voltage module generator made by the circuit composed of components, can be used as a high voltage source for school scientific experiments, electronic devices, negative ion generator and science small productions.
2. Adopt for tesla coil principle, output high voltage pulses, powerful discharge strength.
3. Compact size, high efficiency, stable and professional performance, dependable to use.
4. The input voltage is less than
7.2V and will output about 800KV high voltage.
5. Built to meet standard specification, strictly follow factory quality control.
Specifications:
High voltage type: pulse direct current split type
Input voltage: less than 7.2V(no more than 7.2V)
Input current: 2.4A (Different depends on input voltage)
Output voltage: appro 800KV
(please pay attention to safety when using!)
Output current: approx. 1A
High voltage bipolar discharge distance: 3cm
Discharge time: appro 50s (no more than 1 minutes)
Size: 14 x 2.3 cm
Product usage method:
Module

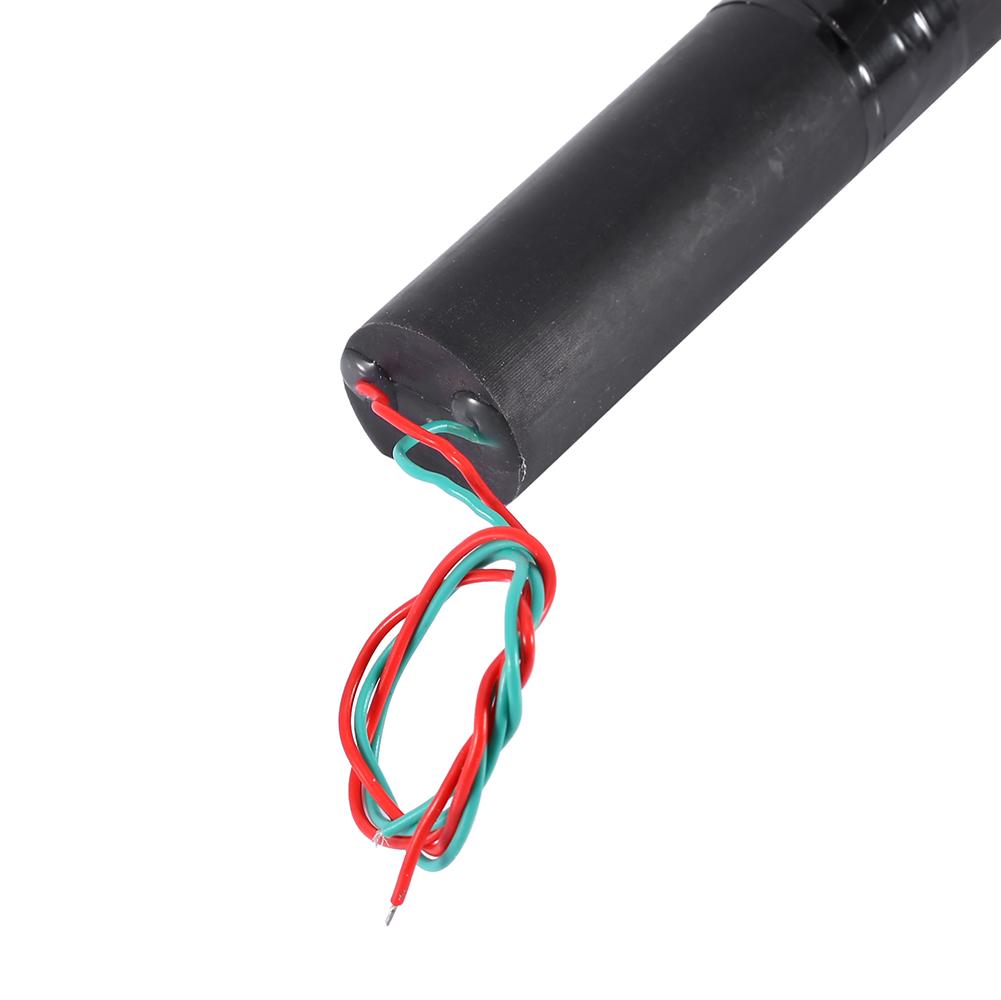

input terminal and the output terminal, red and green line is Input

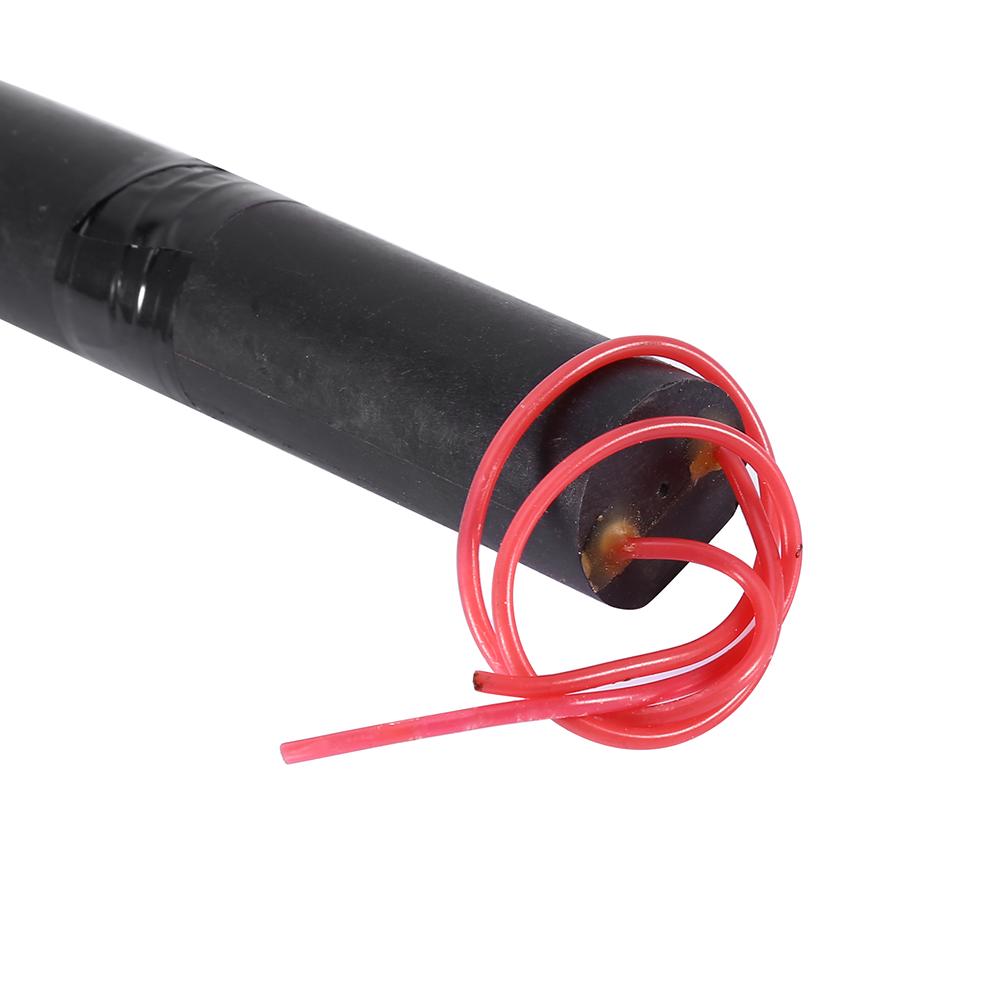

terminal, red green + ,two thick line which has same color is the
high voltage output, fixed output end of the proper arc distance and
input end is connected with a battery can generate high voltage electric
arc.
About input power:
Can use single section 3.7V lithium battery or two series, such as 18650 battery, the
idle mobile phone battery (to remove protective plate, proposed capacity above
2000mAh) or nickel cadmium NiMH battery pack, 4V or 6V acid batteries and
other (to achieve the best effect of 6V battery)
Module use matters needing attention:
1. High voltage module should avoid the use of high voltage no load, power must be
adjusted
before the appropriate high voltage line ends, high voltage wire pull
arc distance and the use of the battery voltage and capacity is
proportional to.
2. To test the arc distance from short to long experiment, when the power is strictly
prohibited beyond the maximum pull arc distance, due to the high pressure energy
can not be released, very easy to damage the module.
3. The power of the module is large, internal heat dissipation, it is not a long time to work.
4. To determine whether the battery capacity to drive the output of the maximum power is
to measure the voltage of the battery when pulling the arc, if you can output the maximum
power of about 6V.
5.
Small capacity lithium battery two series for 7.2V, in pull arc voltage
measurement has fallen to around 4V, capacity of the smaller voltage
lower. It is recommended that the lithium 2000mA above, there are more
than the best conditions with 4000MA battery.
Note:
1.The size of the input voltage will affect the output voltage and arc distance.
2.Note that this is not a high temperature arc, not cigarette paper
3.Please use the methods and precautions to operate in strict accordance with the operating
module, otherwise it is easy to damage the module.
Package include:
1 x High Electric Arc Generator
.
