Feature:
1. Maximum Power Point Testing: This MPPT photovoltaic panel multimeter can accurately test maximum power point and opencircuit voltage, providing essential data for optimizing solar panel performance.

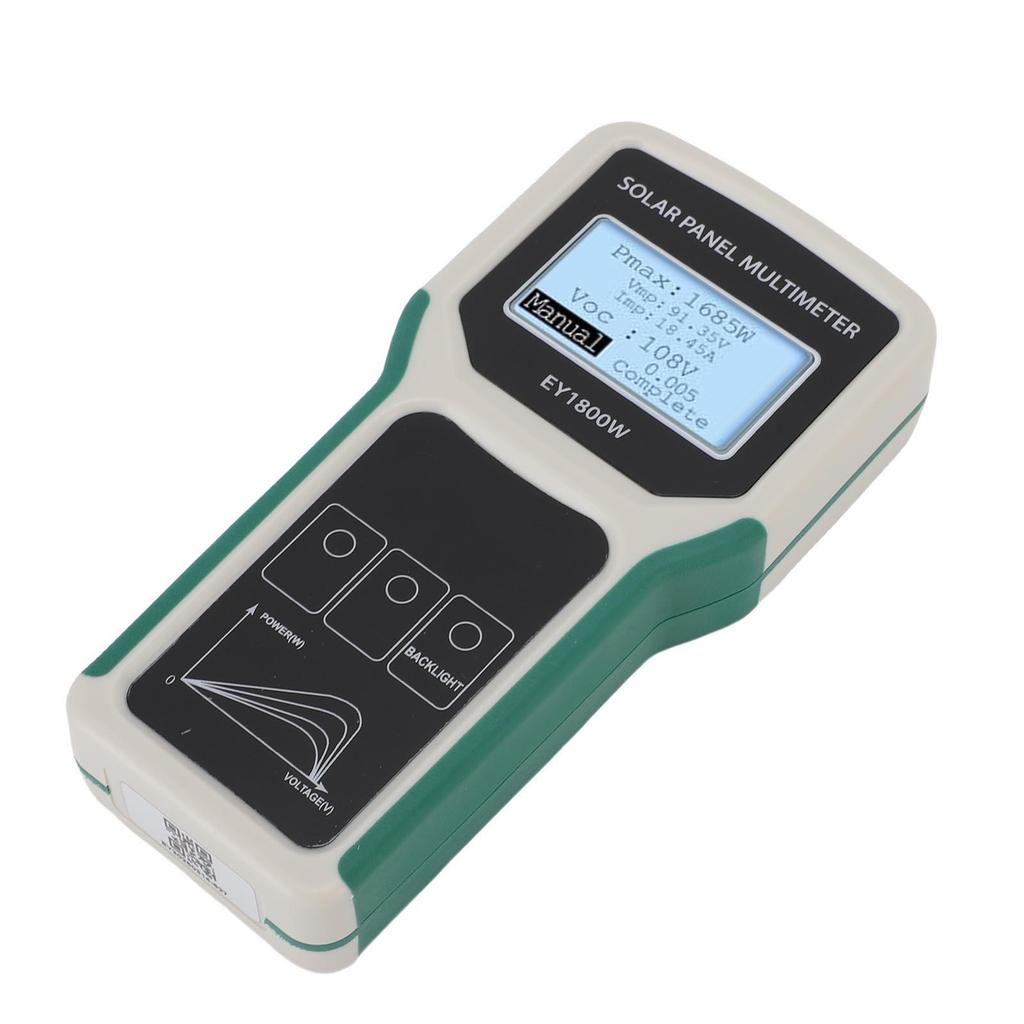

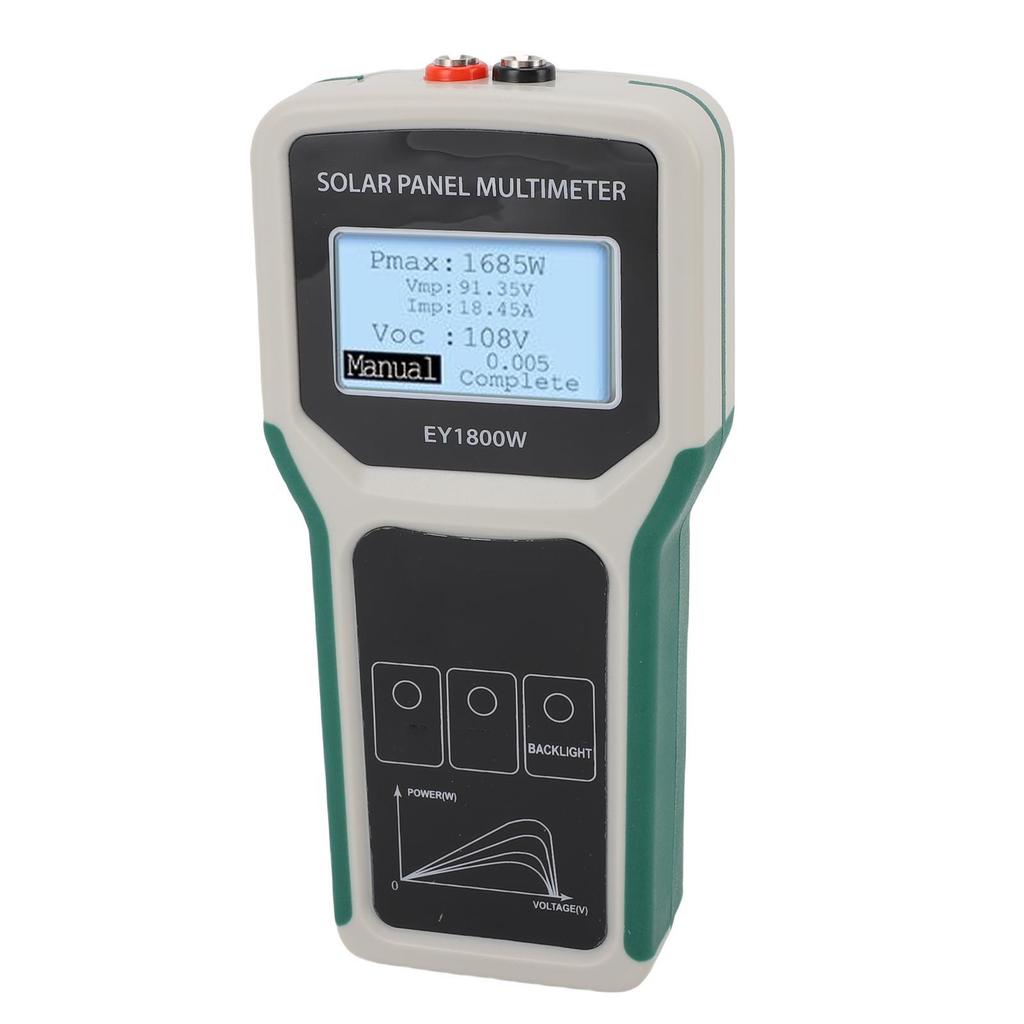

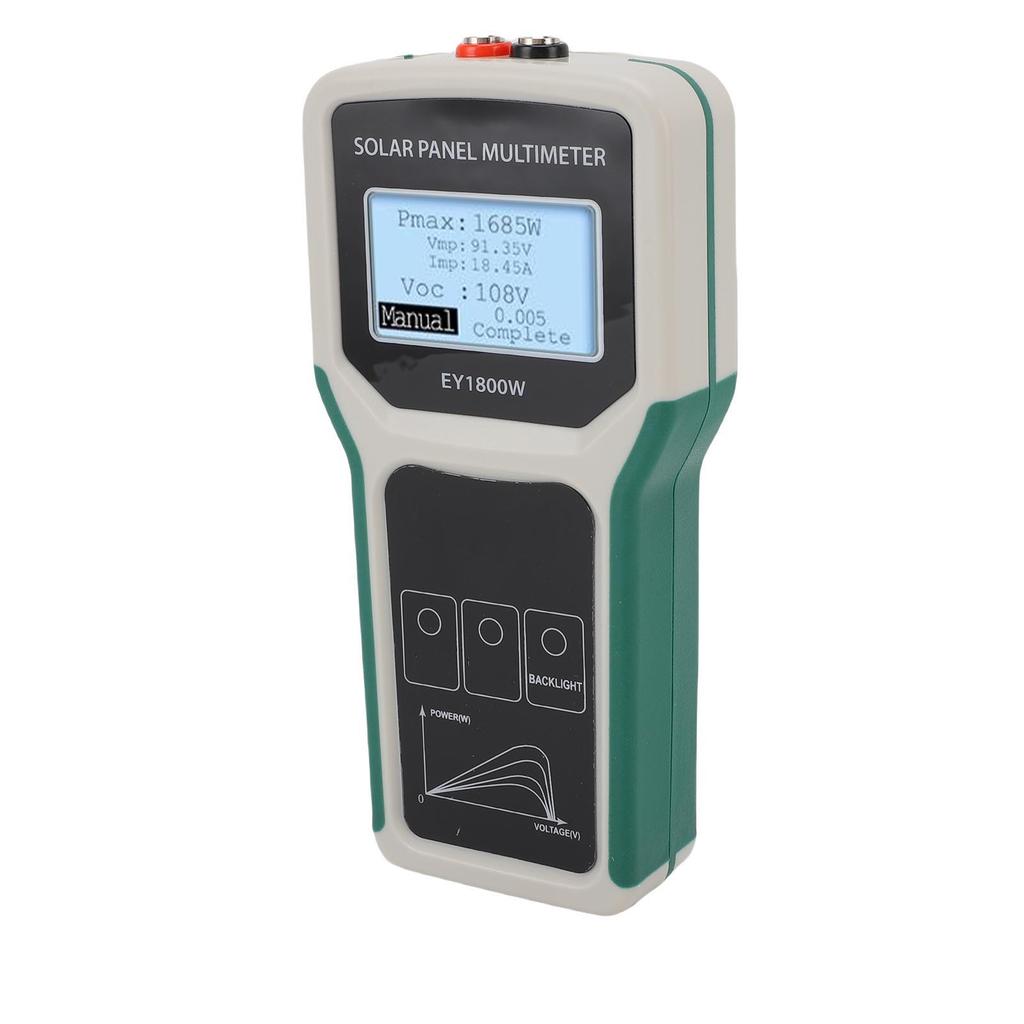

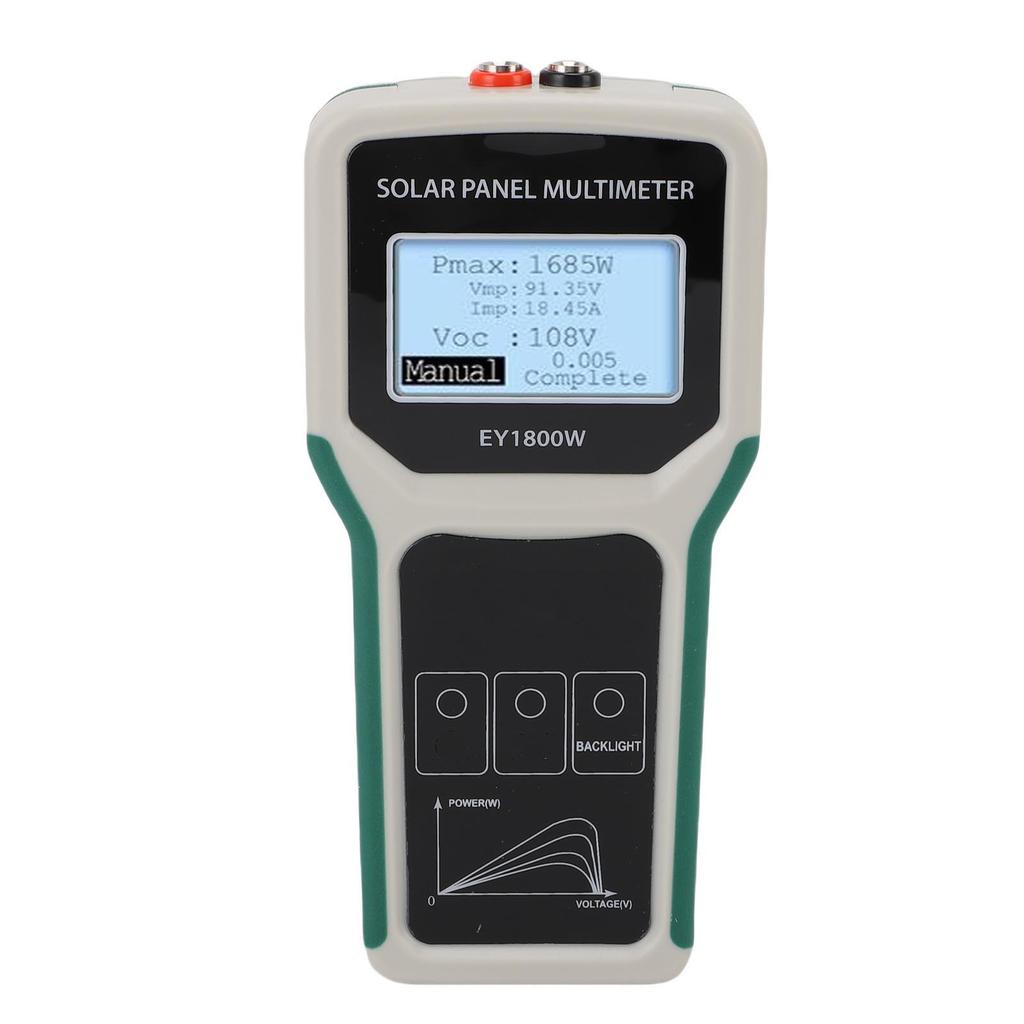

2. Data Display: Pmax indicates the maximum power point power. Vmp indicates maximum power point voltage. Imp indicates maximum power point current. Voc indicates open circuit voltage.
3. Clear Backlight: Equipped with a high definition LCD screen and backlight, this multimeter offers excellent visibility even under direct sunlight, making it easy to read and interpret results.
4. Solar Powered Design: This solar panel multimeter is powered directly by solar panels, without the need for additional batteries, offering an cost effective solution for your measurement needs.
5. Manual Auto Mode: In manual measurement mode, the multimeter automatically adjusts the test interval according to the current power value. The higher the power, the longer the interval, and refreshes the digital display. In automatic measurement mode, the multimeter tests and refreshes the digital display according to the current power value.
6. Multiple Protection Mechanisms: Designed with safety in mind, this multimeter includes over temperature, over voltage, over current, reverse polarity, and exceeding rated power protections to ensure safe operating.
Specification:
Item Type: Photovoltaic panel multimeter
Usage: Solar Panel Manufacturer, Solar Panel Distributor, Solar Panel Installer, Solar Panel User, Solar Panel Fan
Measurement Function: DC Current, DC Voltage
Product Size: Approx. 16.5x8x3cm 6.5x3.15x1.18in
Power Supply: Solar Panel Supply
Display: LCD Liquid Crystal Display
Backlight: Yes
Power: 5 1800W
Voltage: 20 120V
Material: ABS
Working Current: 0 60A
Features:
1. Switch Auto Manual Test Mode
2. Overtemperature, Overvoltage, Overcurrent Protection
3. Solar Panel Reverse Connection Protection
4. Over Rated Power Protection
5. No Additional Power Supply Required
Function: Test the maximum power point and open circuit voltage of solar panels
Auto MPPT Detection: Press the auto test button, the instrument automatically adjusts the test interval time based on the current power value, and refreshes the display. (At 100W, refresh once every 5S or so; 350W, refresh once every 15S or so.)
Manual MPPT Detection: Press the manual test button, the instrument scans the maximum power point once, and refreshes the display.
Open Circuit Voltage Detection: LCD screen displays real time voltage of solar panel
Common Issues:
If there is no display, it may be due to reverse polarity protection; please check the input polarity.If the device If there is no display, it may be due to reverse polarity protection; please check the input polarity.
If the device displays Over Power Rating, it indicates an over power condition; please use the device within the rated power range.
If the device shows Over Temperature, it signifies that the over temperature protection is activated; please wait for it to cool down before using it.
If the device displays Over Voltage, this is a result of over voltage protection; please use the device within the rated voltage range.
If the device shows Over Current, it indicates that over current protection is in effect; please use the device within the rated current range.
Weight: Approx. 474.00g 16.72oz.

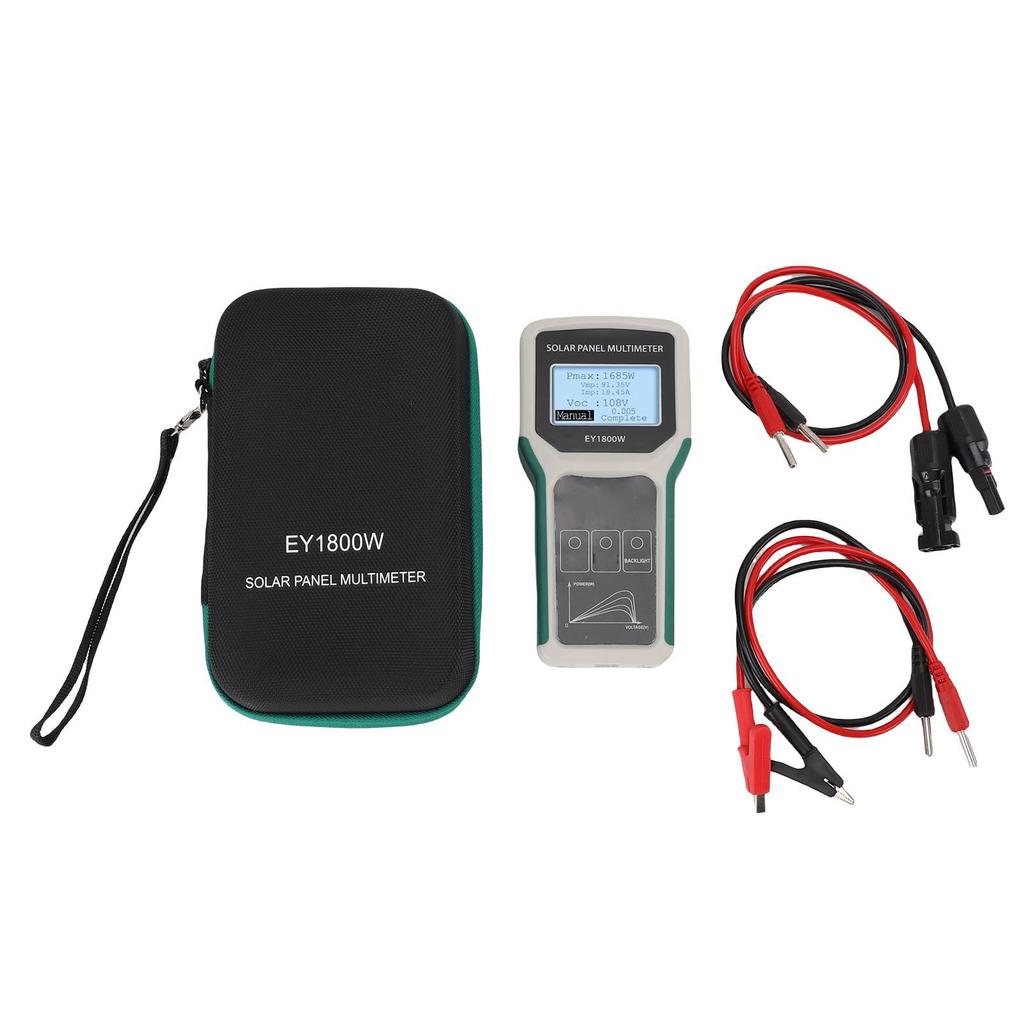

Package List:
1 x Photovoltaic Panel Multimeter
1 x Storage Bag with Handle Rope
1 x Instruction Manual
4 x Connecting Cables
