Specifications: 200MHz bandwidth, 2 channels, sampling rate up to 1GSa/s, memory depth up to 8K, waveform generator compatible (frequency output up to 25MHz), ultra-low power consumption of less than 3W, equipped with a 4400Ah lithium battery for approximately 4 hours of continuous operation. Auto-ranging function allows horizontal, vertical, single waveform/multi-waveform tracking. Four probe attenuation factors: 1X, 10X, 100X, and 1000X. 3.5-inch LCD screen, ultra-compact design, size 198mm x 96mm x 38mm, weight approximately 0.6kg.
[Features] This compact, lightweight, and portable handheld oscilloscope meets the needs of field maintenance and hobbyists. ❶ Equipped with a built-in memory, it can operate continuously for approximately 4 hours. ❷ Supports USB Type-C charging and communication. ❸ Oscilloscope + multimeter + waveform generator (S model) all in one unit.
[Accessories] Quick guide, USB cable, probe (1), dedicated soft case, BNC alligator clips (2 S model, 1 non-S model), multimeter leads (2). Ultra-compact design, size 198 mm x 96 mm x 38 mm, weight approximately 0.6 kg.
[Download the Japanese instruction manual] Method 1: Download from the owon.co.jp product page. Method 2: If you are using Amazon on a PC, you can also download it directly from this product page by scrolling down and selecting "Product Guides and Documents."
[Warranty] 3 years for the main unit, 1 year for accessories. Products are not covered by the warranty, so please purchase from a retailer such as Amazon or OWON's official store.

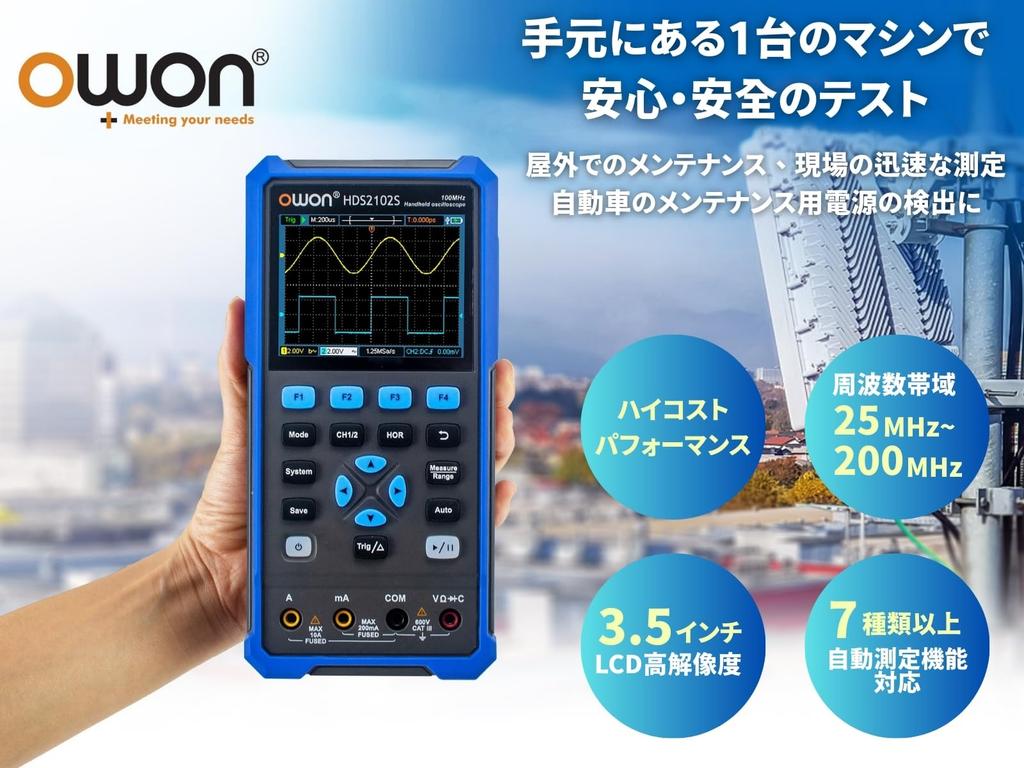

The OWON HDS2202 is a compact and lightweight handheld oscilloscope. It features 200MHz bandwidth, two channels, a maximum sampling rate of 1GSa/s, a maximum memory depth of 8K, and waveform generator support (up to 25MHz). Its ultra-low power consumption and lithium battery provide approximately 4 hours of continuous operation. The auto-ranging function allows for horizontal, vertical, single waveform, and multi-waveform tracking. Four probe attenuation options are available: 1X, 10X, 100X, and 1000X. It features a 3.5-inch LCD screen, a blue plastic design, dimensions of 198mm x 96mm x 38mm, and a weight of approximately 0.6kg. It supports USB Type-C charging and communication, combining an oscilloscope, multimeter, and waveform generator into one device. It comes with a Japanese instruction manual, a 3-year warranty on the unit, and a 1-year warranty on accessories.
