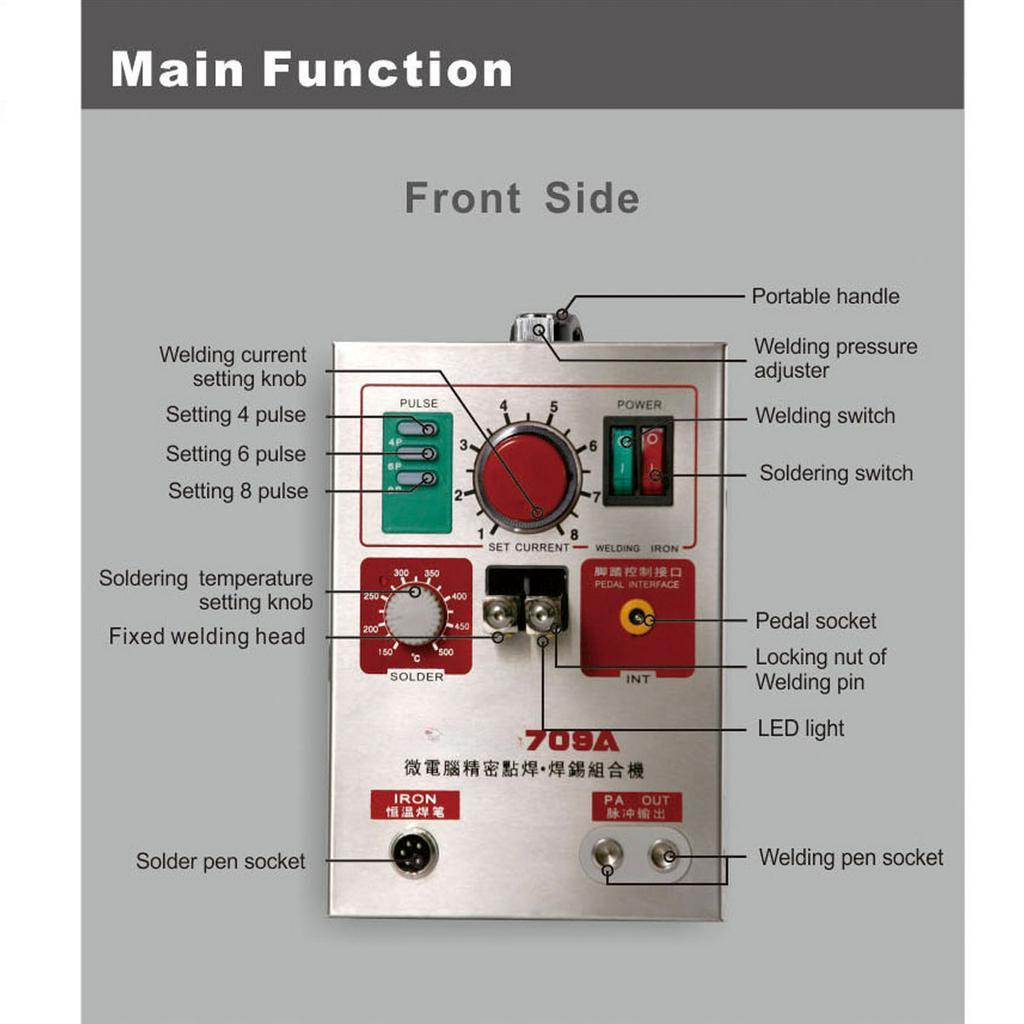

Features:
1.The machine is a combination of battery spot welding and Circuit board solder,that make your work more convenient.
2.fixed spot-welding head and mobile spot-welding pen are combined together in one machine,so that the welding will become flexible.
3.Possess the function of 2,4,6,8 welding s selection, make the solder joint reliable.
4.Possess welding current rapids regulator，selecting the current will become quick and efficient.
5.The anti-static soldering station which controls the temperature accurately,it is suited for welding any intergrated circuit or wiring.
6.The removable footswitches can satisfy the requirement of welding position or sophisticated technology.
7.The fixed spot-welding head has pressure regulating device which makes the solder connections more reliable.
Specification:
-Scope of application:
Lead sheets of rechargeable battery can be welding rapidly.
The production,installation,welding of lithium battery or mobile power.
The welding of lead sheets and wires from metal parts.
-Soldering iron part:
Temperature:150℃~450℃
Power:50W
Output voltage:20VDC
-Spot-welder part:
Supply voltage: AC220V±20V
Power: 1.9KW (Instantaneous)
Current: 500A
Time of double : 1~10ms (adjustable)
Time of four s: 2~20ms (adjustable)
Time of eight s: 8~80ms (adjustable)
Size:140x245x200mm
Net weight:5.5kg

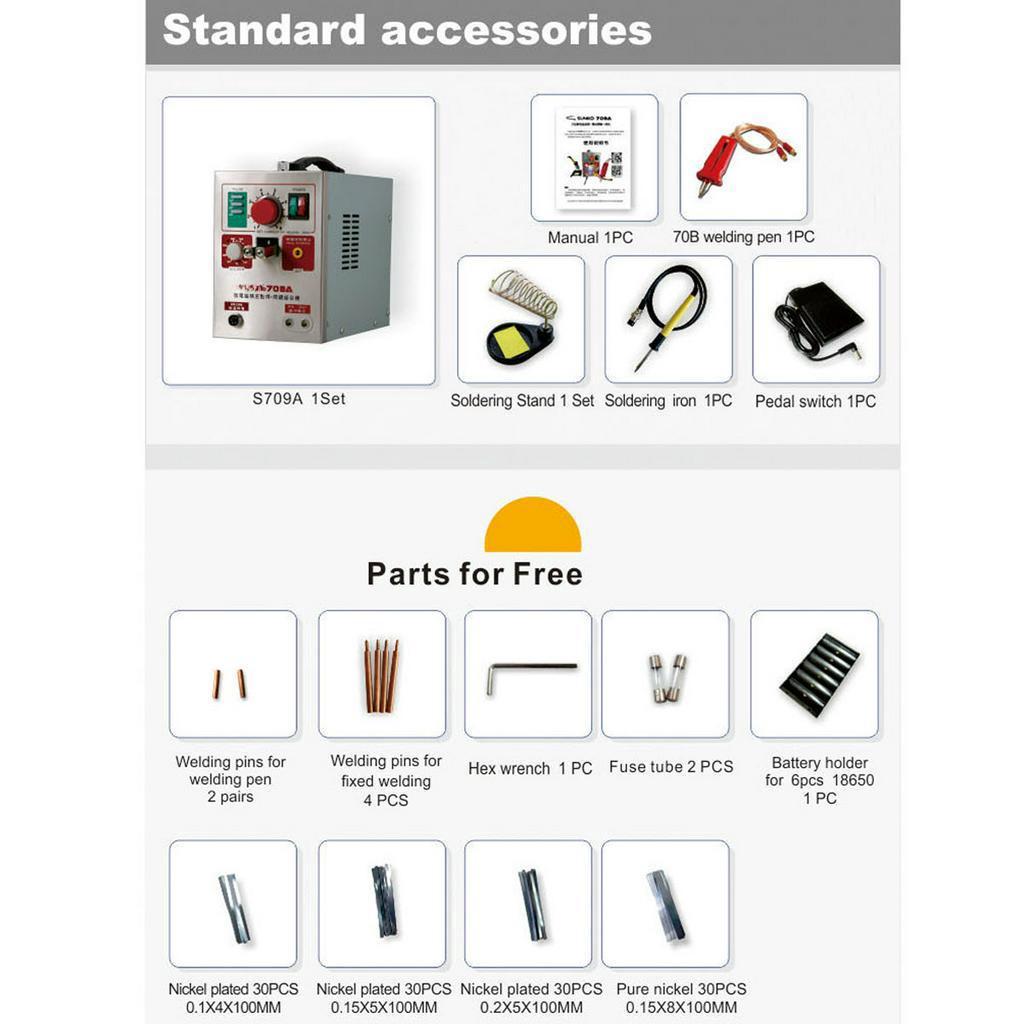

Package Included:
1 x S709A Machine
1 x User manual
1 x Welding pen
1 x Soldering stand
1 x Soldering iron
1 x Pedal switch
4 x Welding needle(for fixed head)
2 pairs Welding needle(for welding pen)
1 x Wrench
2 x Fuse tube
1 x Battery holder
30 x Nickle plated(0.1x4x100mm)
30 x Nickle plated(0.15x5x100mm)
30 x Nickle plated(0.2x5x100mm)
30 x Pure nickel(0.15x8x100mm)
