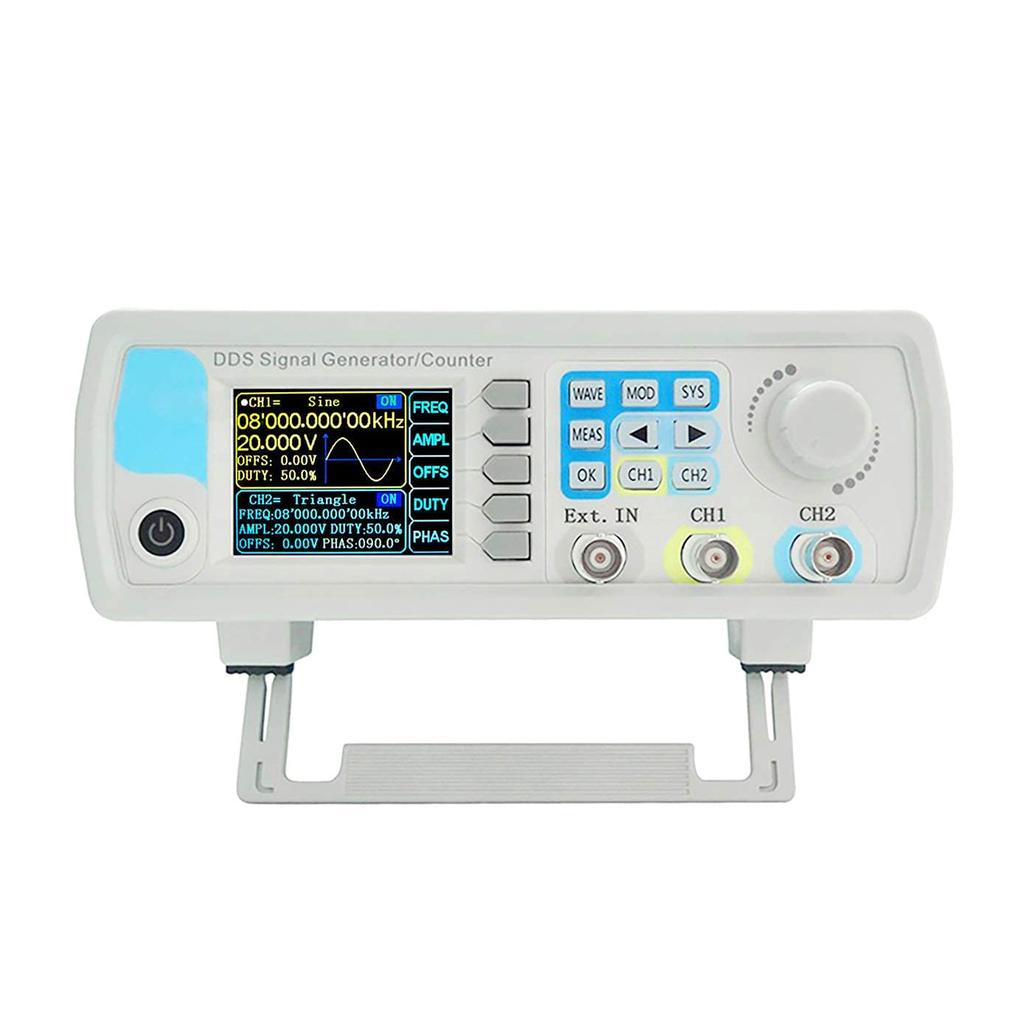

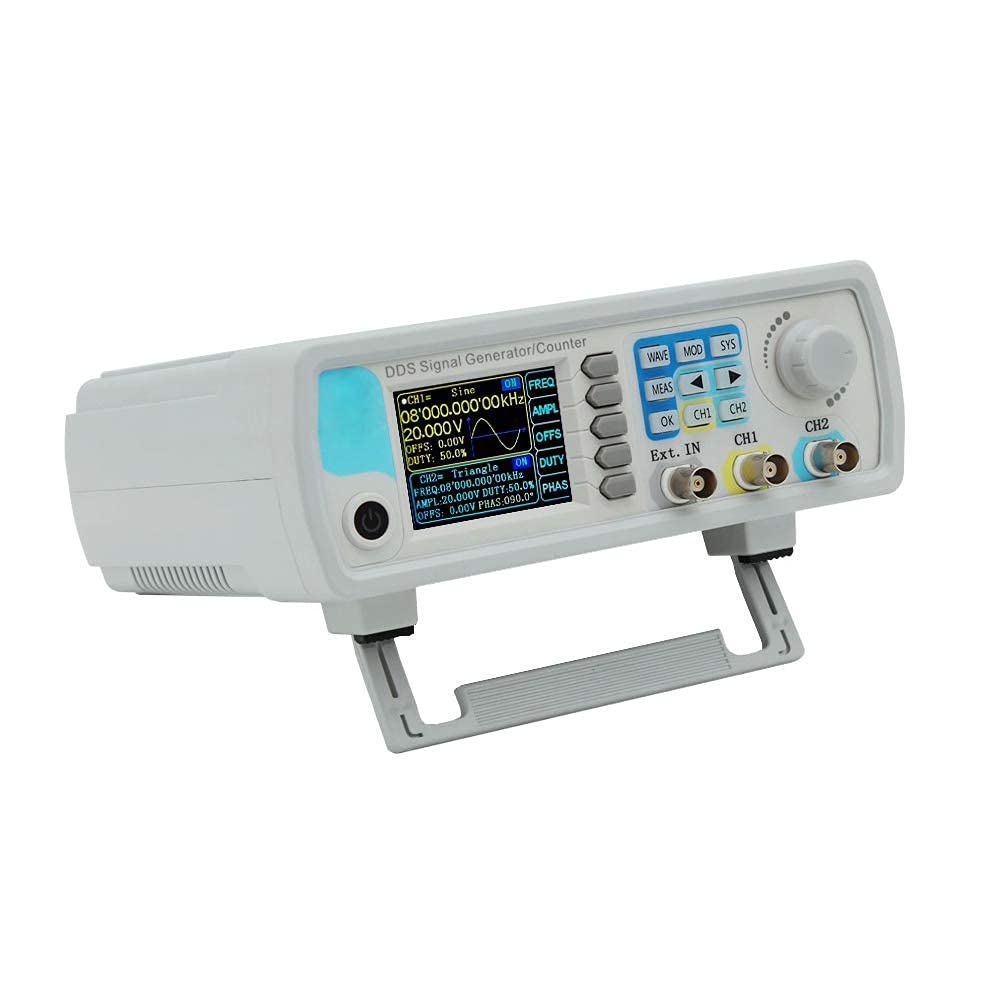

【Arbitrary Waveform, Dual Channel】Uses dual channel DDS signal and TTL level output to generate accurate, stable and low distortion output signal. Generate signals such as sine waves, triangle waves, square waves, sawtooth waves, pulses, arbitrary waveforms, white noise, and 60 user-defined waveforms.
[Precise structure] Largely adopts FPGA integrated circuit, high-speed MCU microprocessor, and the internal circuit is based on a high-precision oscillator, making the signal more stable.
【Frequency and Sampling Rate】The maximum frequency of sine wave output is 15MHz, sampling rate of 266MSa/s. Each waveform has a length of 2048 and a vertical resolution of 14 bits.
[Memory Protection] 100 groups of parameter data set by the user can be saved and can be recalled and checked at will. It also has frequency measurement, period measurement, positive and negative pulse width measurement, count frequency sweep, and burst functions.

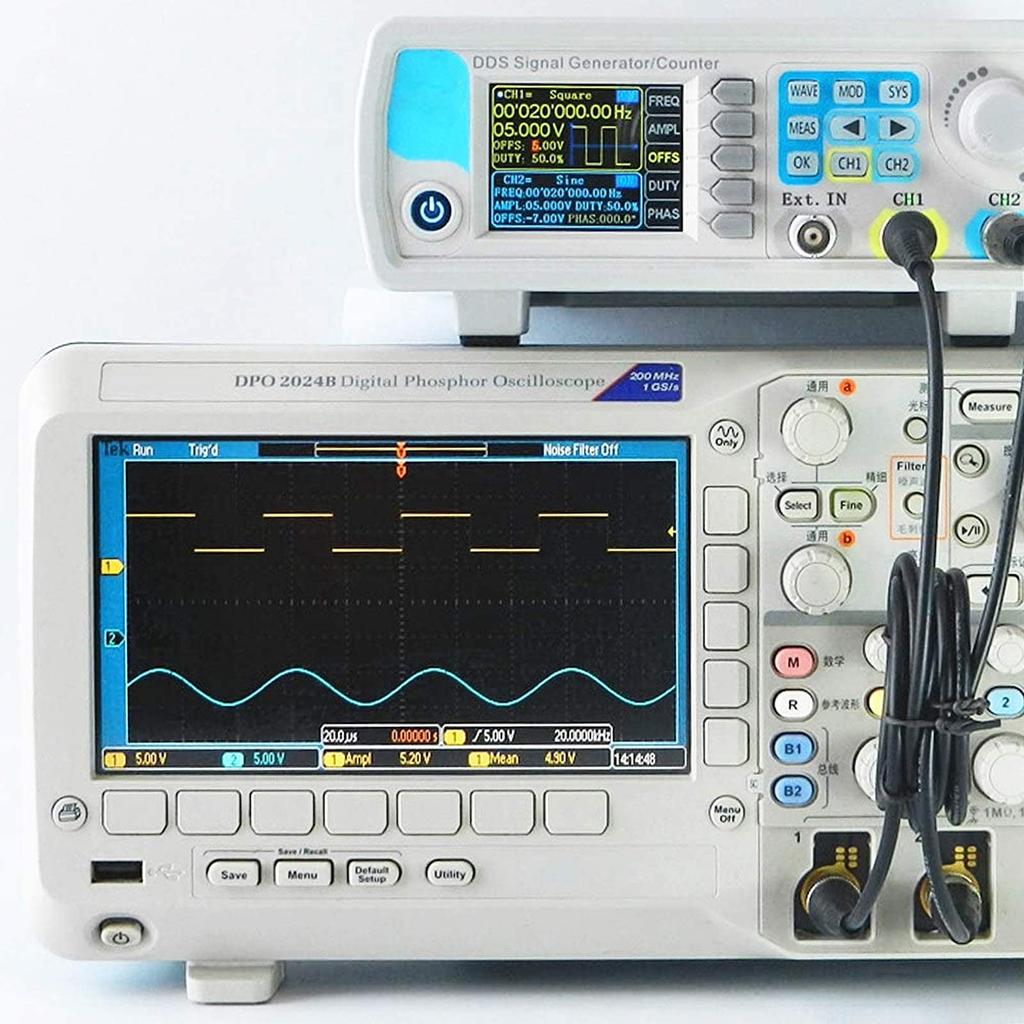

[Multi-function] Excellent performance of signal generation, scanning waveform and measurement parameters. This is the perfect test and measurement equipment for electronic engineers, electronic laboratories, education and research.
Cleqee - change something. At Cleqee, we strive to provide quality tools and accessories that encourage consumers to live a more convenient and fulfilling lifestyle. Our boundless passion for innovation and solutions drives us forward. We strongly believe that only when you have a deep understanding of people's needs and wants can you change your product, which can change your life. [15MHz Dual Channel Signal Generator Frequency Characteristics]: Sine wave, square wave, triangle wave: 0~15MHz Pulse & arbitrary & TTL digital wave: 0~6MHz Pulse width adjustment range: 100nS~4000S Square wave rise time: ≤25nS Minimum frequency resolution: 0.01uHz (0.00000001Hz) Frequency accuracy: ±20ppm Frequency stability: ±1ppm/3h [Waveform characteristics]: Waveform types: sine wave, square wave, triangle wave, pulse (adjustable duty cycle, precise adjustment of pulse width and period), partial sine wave, CMOS, DC level (adjust offset to set DC amplitude), half wave, full wave, positive step
Step wave, ladder wave, noise wave, exponential rise, exponential fall, multisonic wave, symplectic pulse, Lorentz pulse, and 60 user-defined waveforms. Wavelength: 2048 points Wave sampling rate: 266MSa/s Waveform vertical resolution: 14 bits [Output characteristics]: Amplitude resolution: 1mV Amplitude stability: ±0.5%/5 hours Amplitude flatness: ±5% (<10MHz); ±10% (> 10MHz) [Counter function]: Counting range: 0-4294967295 Combining mode: 2 types of combining modes, DC and AC Counting mode: Manual [Sweep function]: Sweep channel: CH1 or CH2 Sweep type: Linear sweep, logarithmic sweep Sweep time: 0.1s~999.9s Sweep direction: Forward, backward, reciprocating [Rupture function]: Number of pulses: 1-1048575 Burst mode: Manual burst, CH2 burst, external burst (AC), external burst (DC) [General specifications]: Display

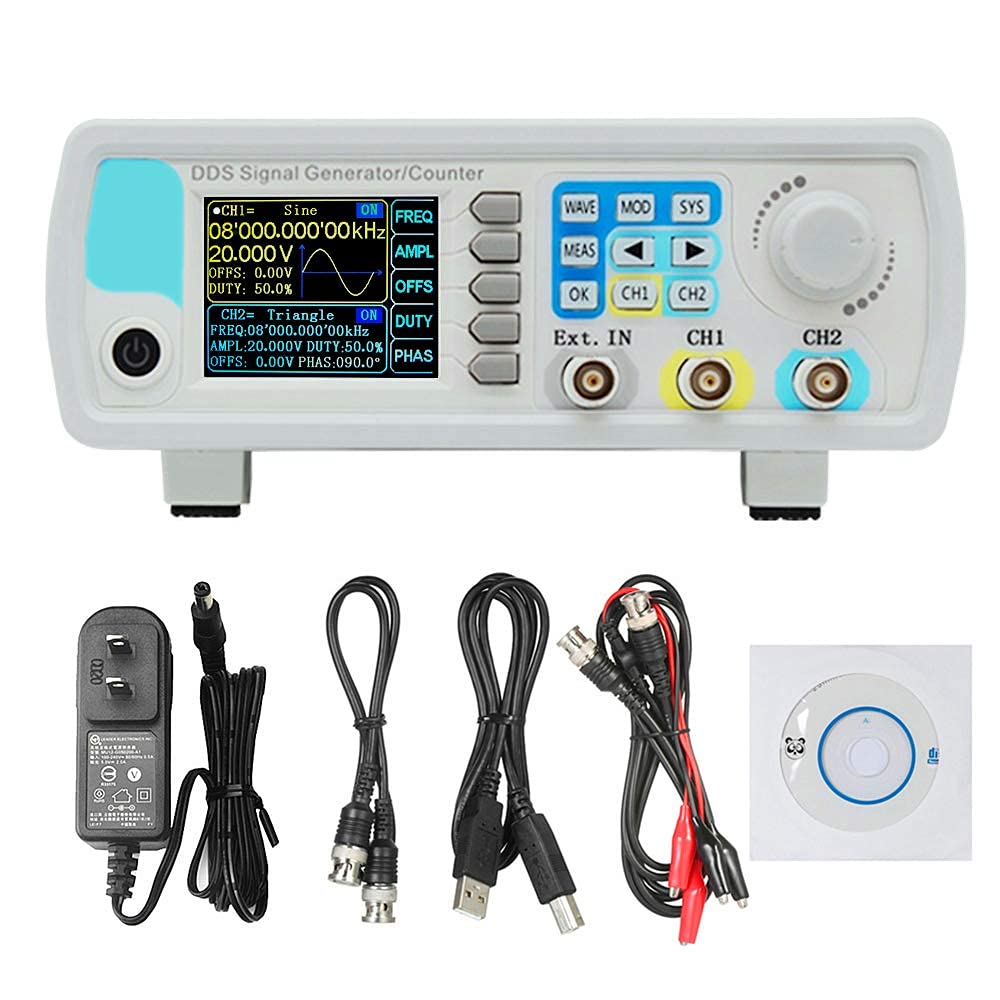

Type: 2.4 inch TFT color LCD display Voltage range: DC5V±0.5V [Package included]: 1 x DDS Signal Generator 1 x USB Cable 1 x Power Adapter 2 x BNC-Alligator Clip Cable 1 x BNC Q9 Cable 1 x CD We hope you are satisfied with our product. We provide 30 days exchange or refund service and one year warranty period. If you have any questions or requests, please feel free to contact us. We will reply within 24 hours.
