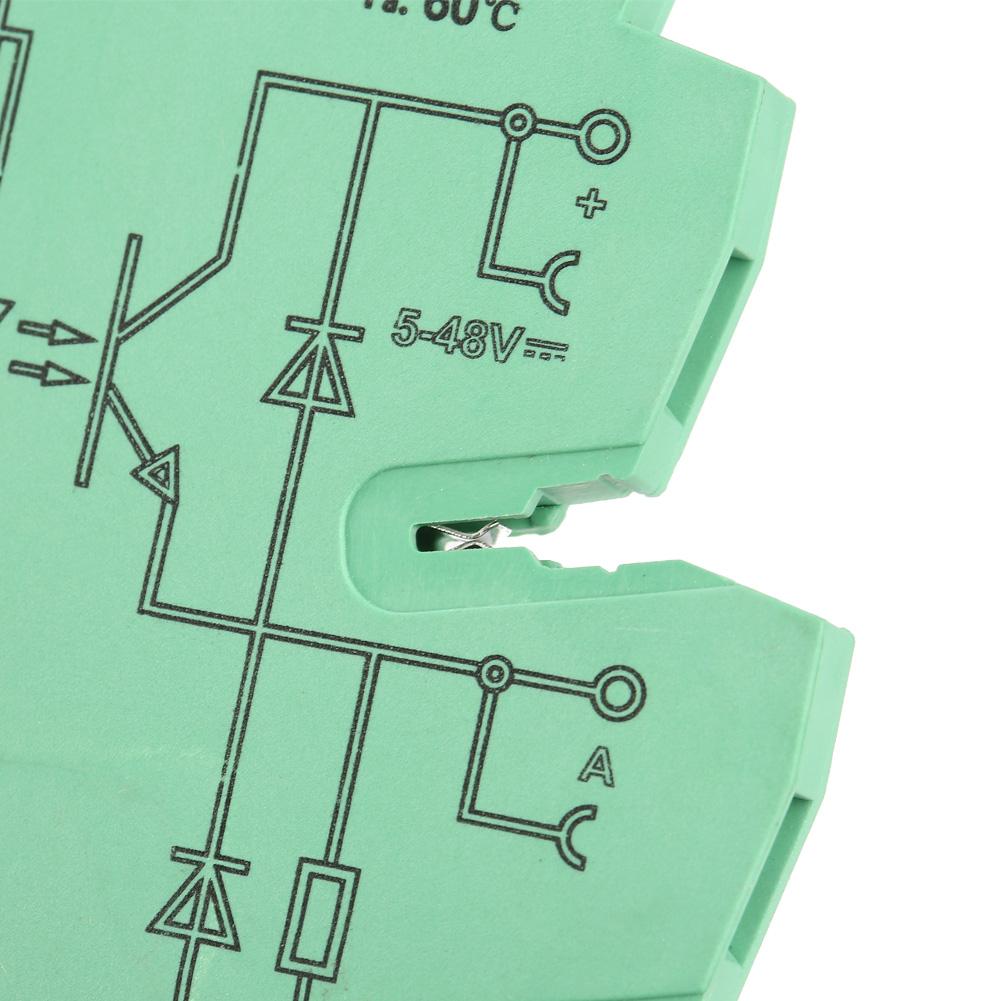

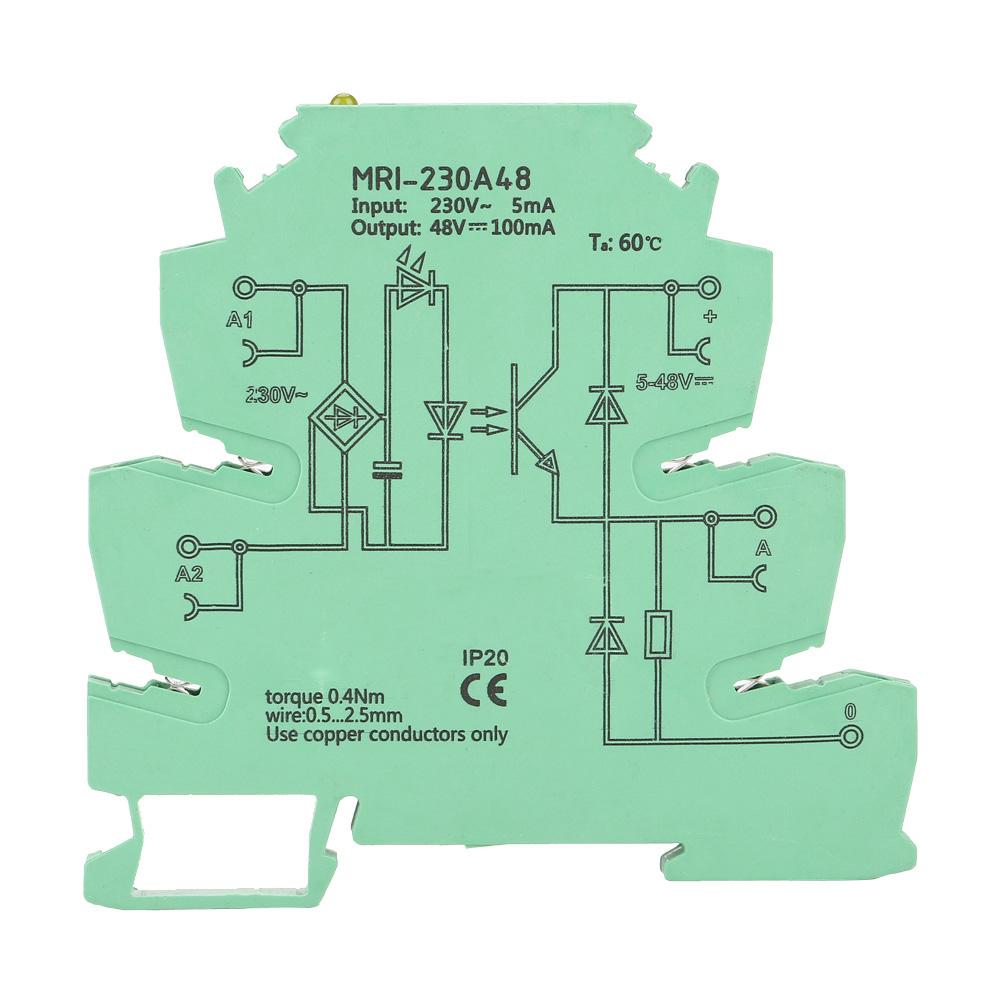

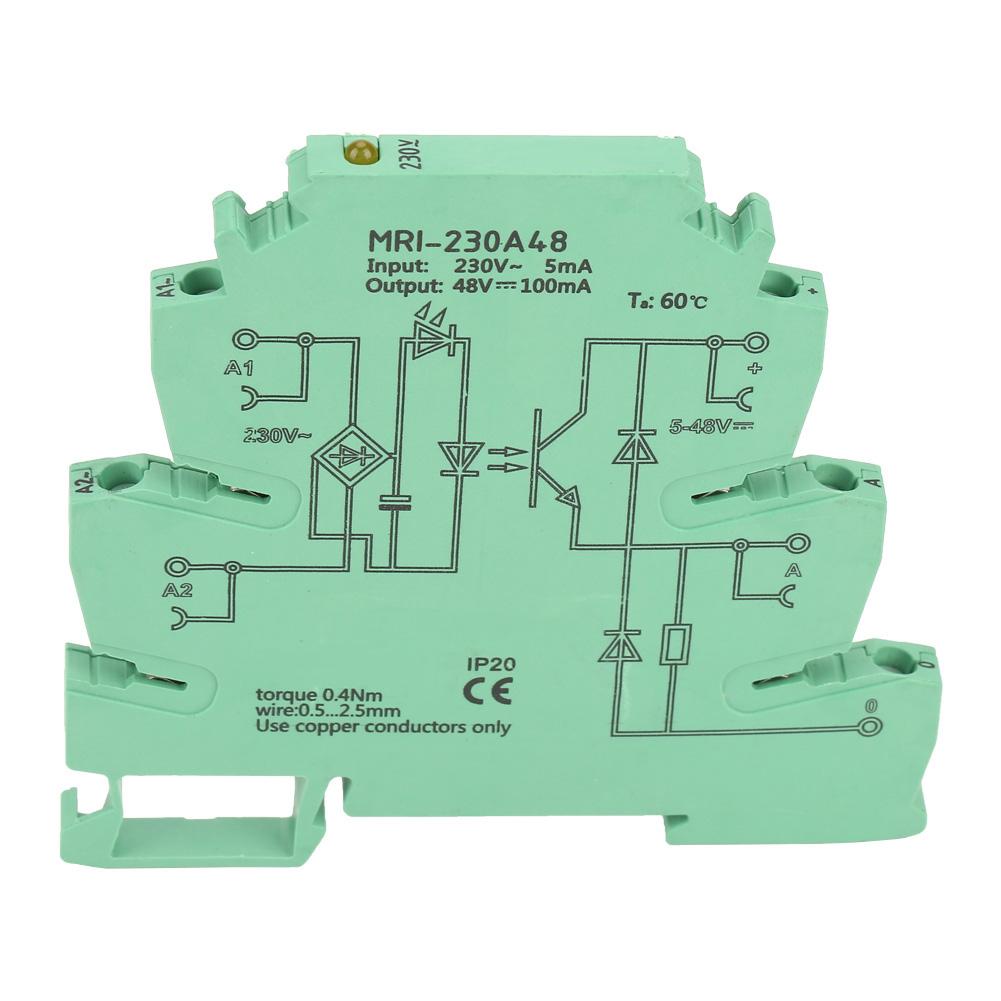

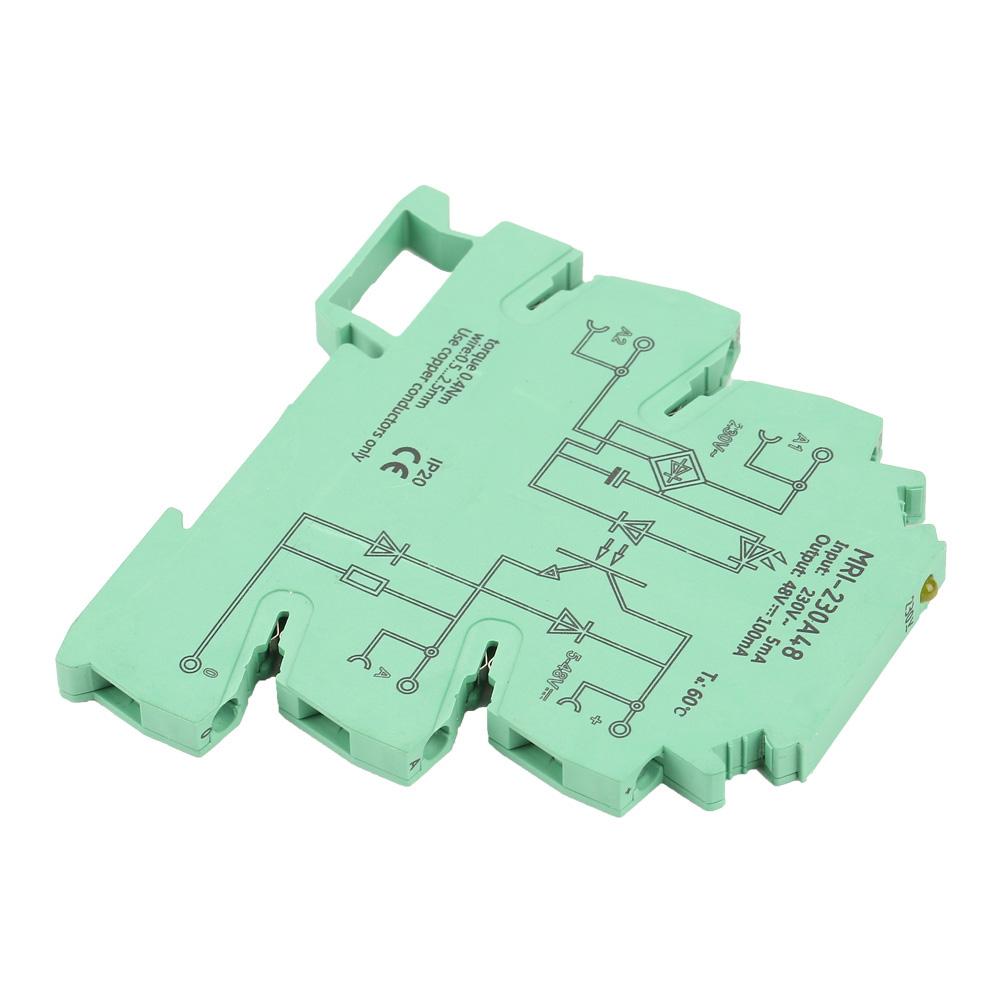

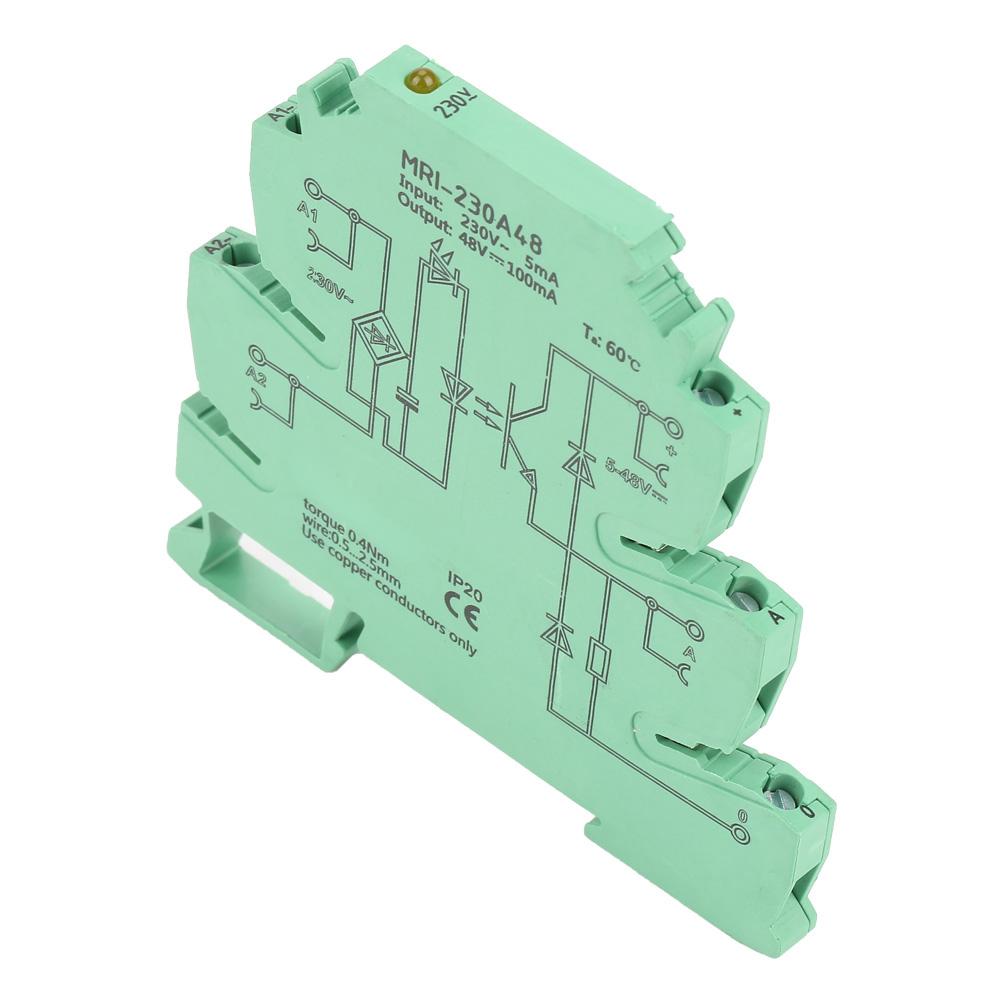

MRI230A48 6.2mm Ultra Thin Coupling Isolation Protection PLC Relay Module

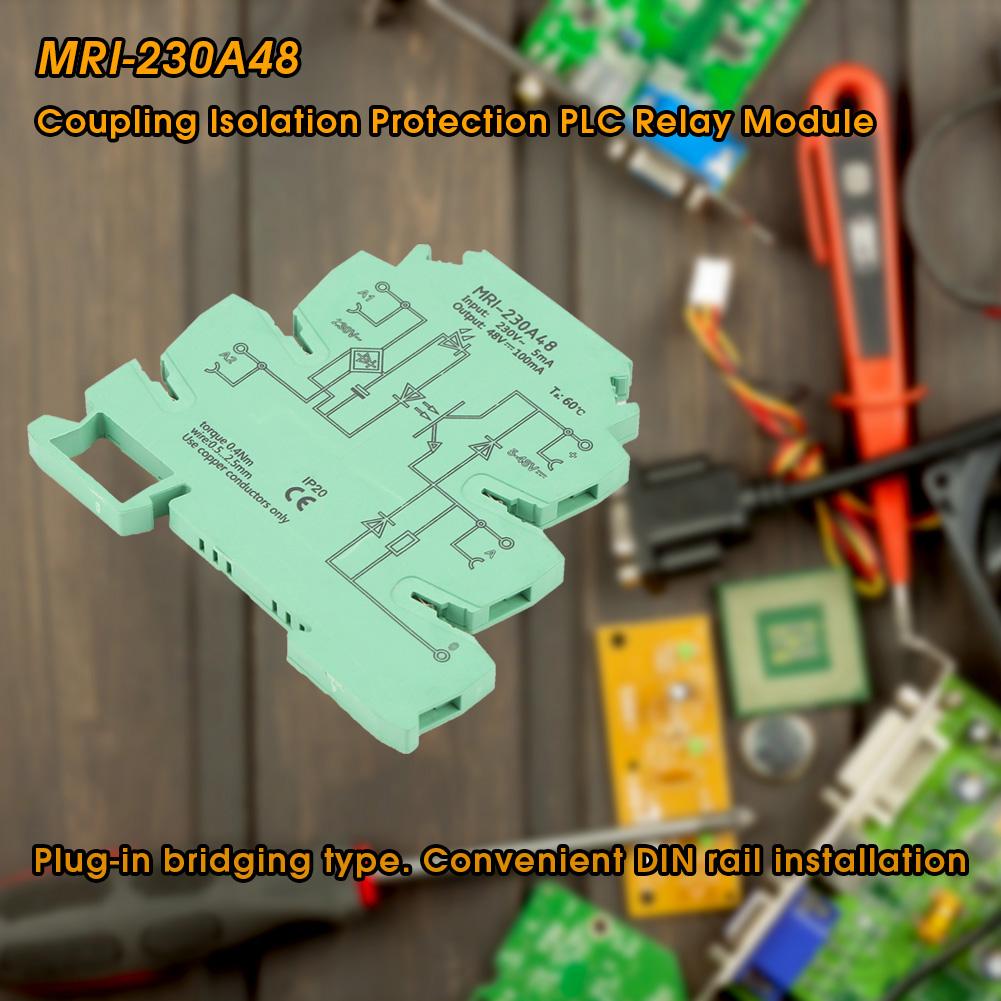

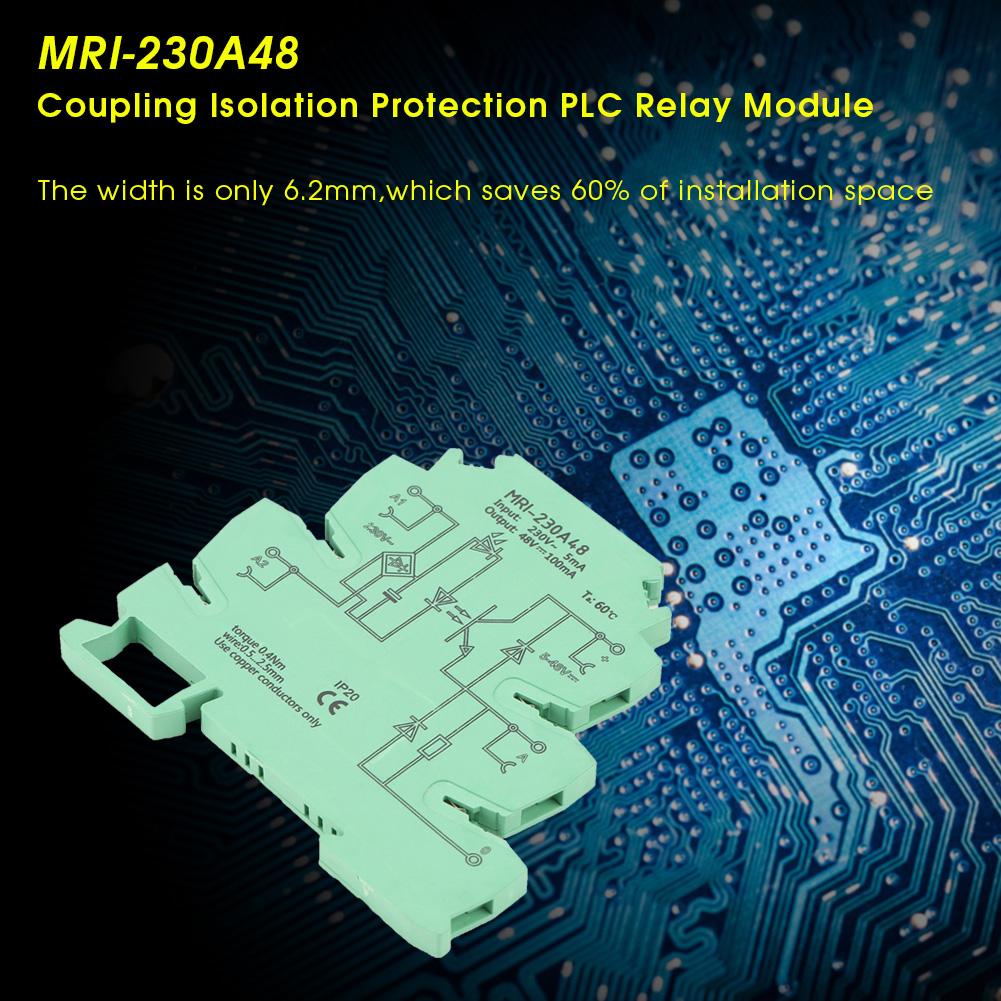

Features: Yellow LED indication, clear port mark The width is only 6.2mm,which saves 60percent of installation space Plugin bridging type.Convenient DIN rail installation Operational frequency can reach to 3Hz.Noabrasion switch output :548V DC Internal inputoutput polarity protection circuit.The max electrical isolation is 2.5kVrms Specification: Model:MRI230A48 Input Voltage Range:230VAC+20percent Input Current: 2.5mA Output Voltage Range: 548VDC Transfer Frequency:3Hz Switch Electrical Level: "1" signal (H) more than 80,"0" signal (L) less than 40percent Max.Sustained current: 100mA

Max. Voltage Drop: less than 0.9V InputOutput Isolation Voltage: 2.5kV(50Hz,1min) Ambient Temperature: 20 celsius ~60 celsius Operative Standard: IEC60664,EN50178, IEC62103 Applicable Wire: (Rigidity)0.22.5mm2,(Flexibility)0.22.5mm2,(AWG)2414 Weight: Approx.3 1 g1.1oz Package list: 1 x

Optocoupler Isolating PLC Relay Yellow LED indication, clear port mark The width is only 6.2mm,which saves 60percent of installation space Plugin bridging type.Convenient DIN rail installation Internal inputoutput polarity protection circuit.The max electrical isolation is 2.5kVrms Operational frequency can reach to 300Hz.Noabrasion switch output :548V DC100mA
