Label:Yes
Temperature Range: -40degree Celsius+ 85degree Celsius
Package Contents:1 x Modified accessories
Material: ABS
Plug diameter: 9mm
2-pin to 6-pin cables:
Optional types:2-Pin Female, 3-Pin Female, 4-Pin Female, 5-Pin Female, 6-Pin Female, 2-Pin Male, 3-Pin Male, 4-Pin Male, 5-Pin Male, 6-Pin Male
Wire diameter: 3.7mm
Wire length: 1000mm (1 metre)
DIMENSIONS:
Plug length: 35mm
Features:
1. 100% brand new and high quality
2. Made of high quality material, durable and practical to use
3. This is THE best option for having water tight connections on your e-bike. Mostly found on the Bafang range of electric bike equipment, these connectors come in a wide range of available pins, to help you make your wiring loom!

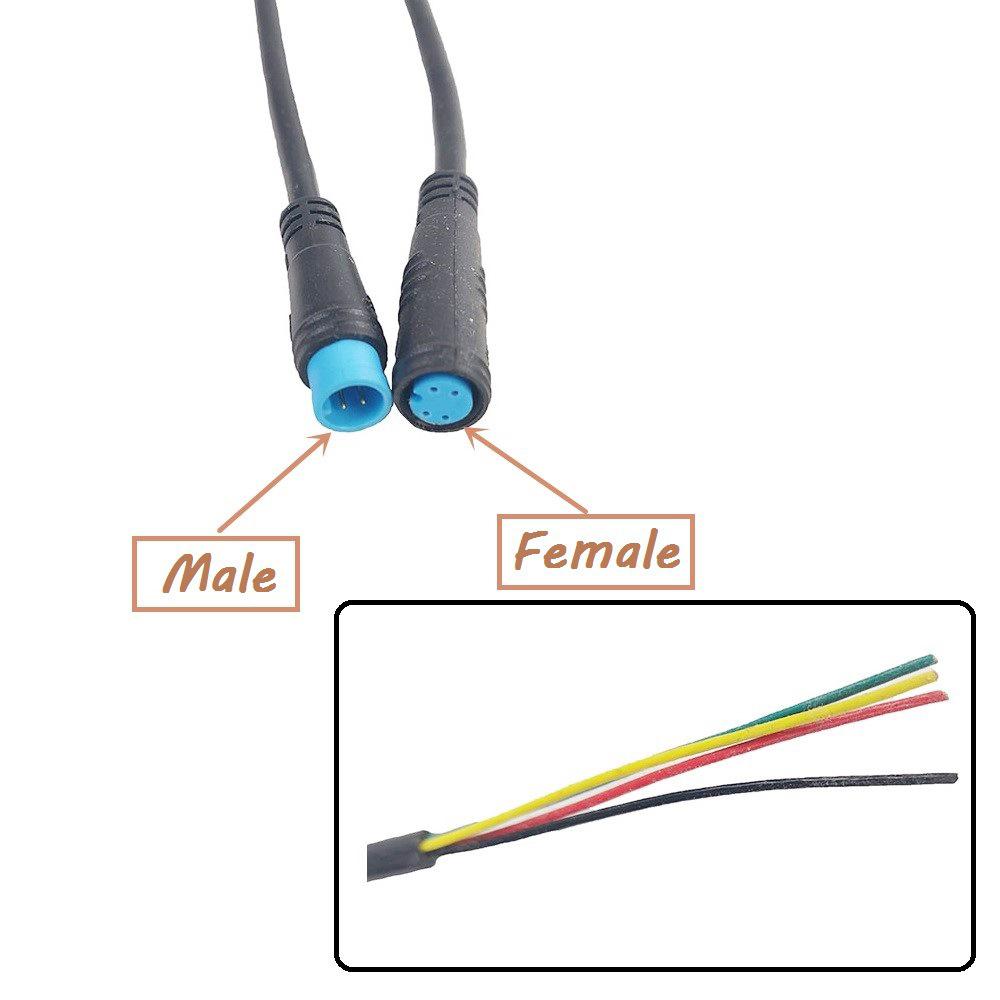

4. Each male or female connector comes with 1m of cable length, moulded connector on one end, bare cable on the other.
5. Be sure to choose the male or female end that you require, or both if you need the pair.
6. These Higo connectors are rated at 2A for each pin/core and have colour mark ends:
Red = 2 Pin
Yellow = 3 Pin
Blue = 4 Pin
Green = 5 Pin
Purple or Black = 6 Pin
2-pin Female
Left = Blk
Right = Blue
2-pin Male
Left = Blue
Right = Blk
3-pin Female
Left = Blk
Middle = Blue
Right = Red
3-pin Male
Left = Red
Middle = Blue
Right = Blk
4-pin Female
Left Top = Blk
Right Top = Red
Left Bottom = Yellow
Right Bottom = Blue
4-pin Male
Left Top = Red
Right Top = Blk
Left Bottom = Blu
Right Bottom = Yellow
5-pin Female
Left Top = Red
Right Top = Blk
Middle = Brown
Left Bottom = White
Right Bottom = Green
5-pin Male
Left Top = Blk
Right Top = Red
Middle = Brown
Left Bottom = Green
Right Bottom = White
6-pin Female
Left Top = Red
Middle Top = Purple
Right top = Blk
Left Bottom = White
Middle Top = Brown
Right Bottom = Green
6-pin Male
Left top = Blk
Middle Top = Purple
Right Top = Red
Left Bottom = Green
Middle Top = Brown
Right Bottom = White
