Feature:

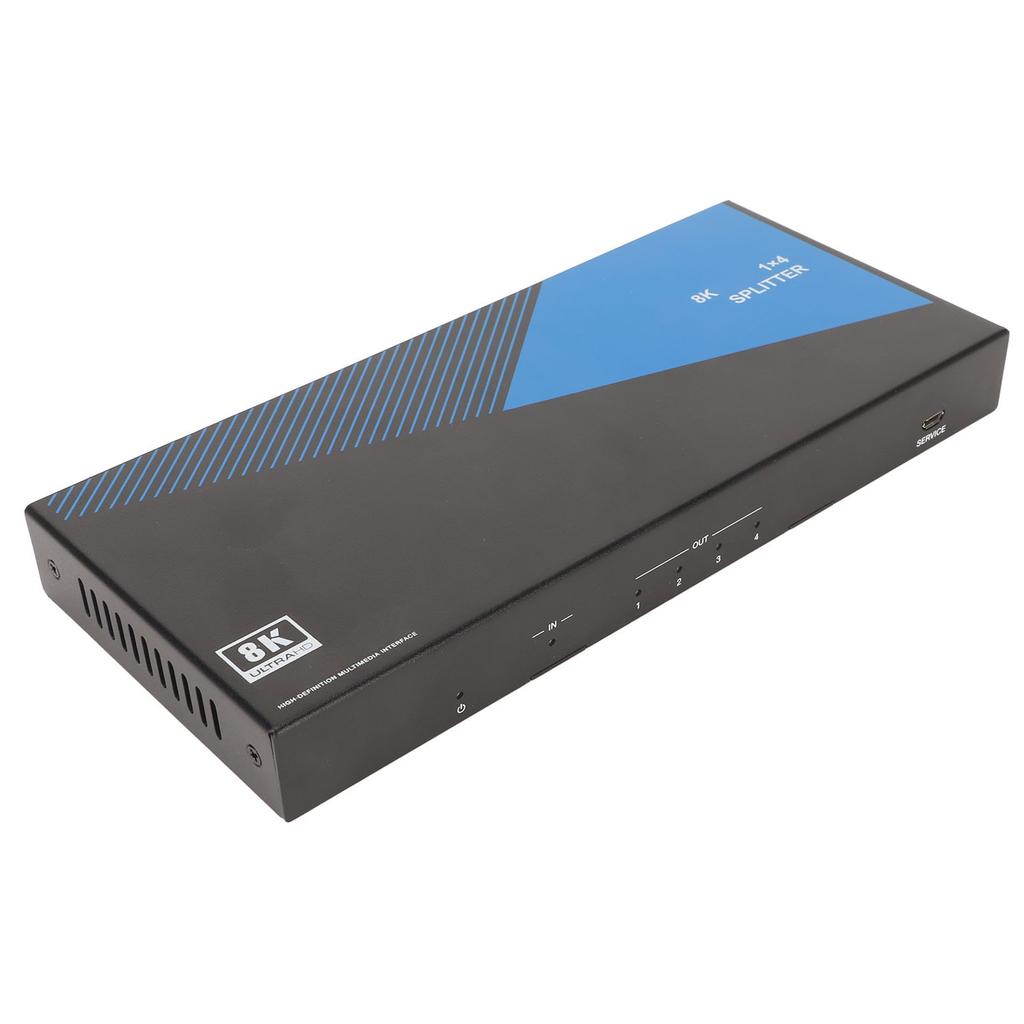

1. 1 IN 4 OUT: 8K HD Multimedia Interface Splitter can distribute 1 HD Multimedia Interface signal source to any 4 display devices, while supporting sound stripping function (via optical and analog sound port output).
2. HIGH RESOLUTION: HD Multimedia Interface Splitter with video bandwidth up to 40Gbps and video resolution up to 8K at 60Hz 4: 2: 0 10bit, 8K at 30Hz 4: 4: 4 10bit, 4K at 120Hz 4: 4: 4 10bit.
3. MULTI FUNCTION: Built in equalizer, retiming and driver, supports intelligent EDID management. Support VRR, FVA, ALLM. Support HDR, HDR10, HDR10 plus, for Dolby Vision, HLG pass through.
4. SOUND FORMATS SUPPORT: Sound video splitter supports LPCM, for Dolby Digital, Plus, EX, for Dolby True HD, DTS, DTS EX, DTS 96, 24, DTS High Res, DTS HD Master Sound, DSD sound formats.
5. MULTI APPLICATION: HD Multimedia Interface distributor can be widely used in presentation scenarios, video conferencing, multimedia teaching and other scenarios that require large screen presentation.
Specification:
Item Type: HD Multimedia Interface Splitter
Material: Iron
HD Multimedia Interface Compatible: HD Multimedia Interface 2.1
HDCP Compatible: HDCP 2.3
Video Bandwidth: 40Gbps
Video Resolution: Up to 8K at 60Hz 4:2:0 10bit, 8K at 30Hz 4:4:4 10bit, 4K at 120Hz 4:4:4 10bit
Color Space: RGB, YCbCr 4:4:4, 4:2:2, YUV 4:2:0
Color Depth: 8,10,12 Bit
HD Multimedia Interface Input Output Format: LPCM, for Dolby Digital, Plus, EX, for DolbyTrue HD, DTS,DTS EX, DTS 96 24, DTS High Res, DTS HD Master Sound, DSD
Sound Stripping Output Formats: Optical (LPCM 2, 5.1 CH, for Dolby Digital 2, 5.1 CH, DTS 2, 5.1 CH), Analog (LPCM 2.0)
Input: 1 x HD Multimedia Interface IN (Type A, 19 Pin Female)
Output: 4 x HD Multimedia Interface OUT (Type A, 19 Pin Female), 1 x OPTICAL (S PDIF), 1 x L, R (3.5mm Stereo Mini Jack)
Control Port: 1 x SERVICE (Micro USB, Upgrade Port)
Power Supply Type: US Plug (100-240V).
Package List:
1 x
HD Multimedia Interface Splitter1 x Power Adapter1 x Instruction Manual
